BirdDog X120 20x PTZ Camera Kit with IDX Imicro-98 Micro V-Mount Battery & BM-1 Battery Plate

ITEM #: BDS-X120-IM98 MFG #: BDS-X120-IM98

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BDS-X120-IM98

BDS-X120-IM98 - Overview

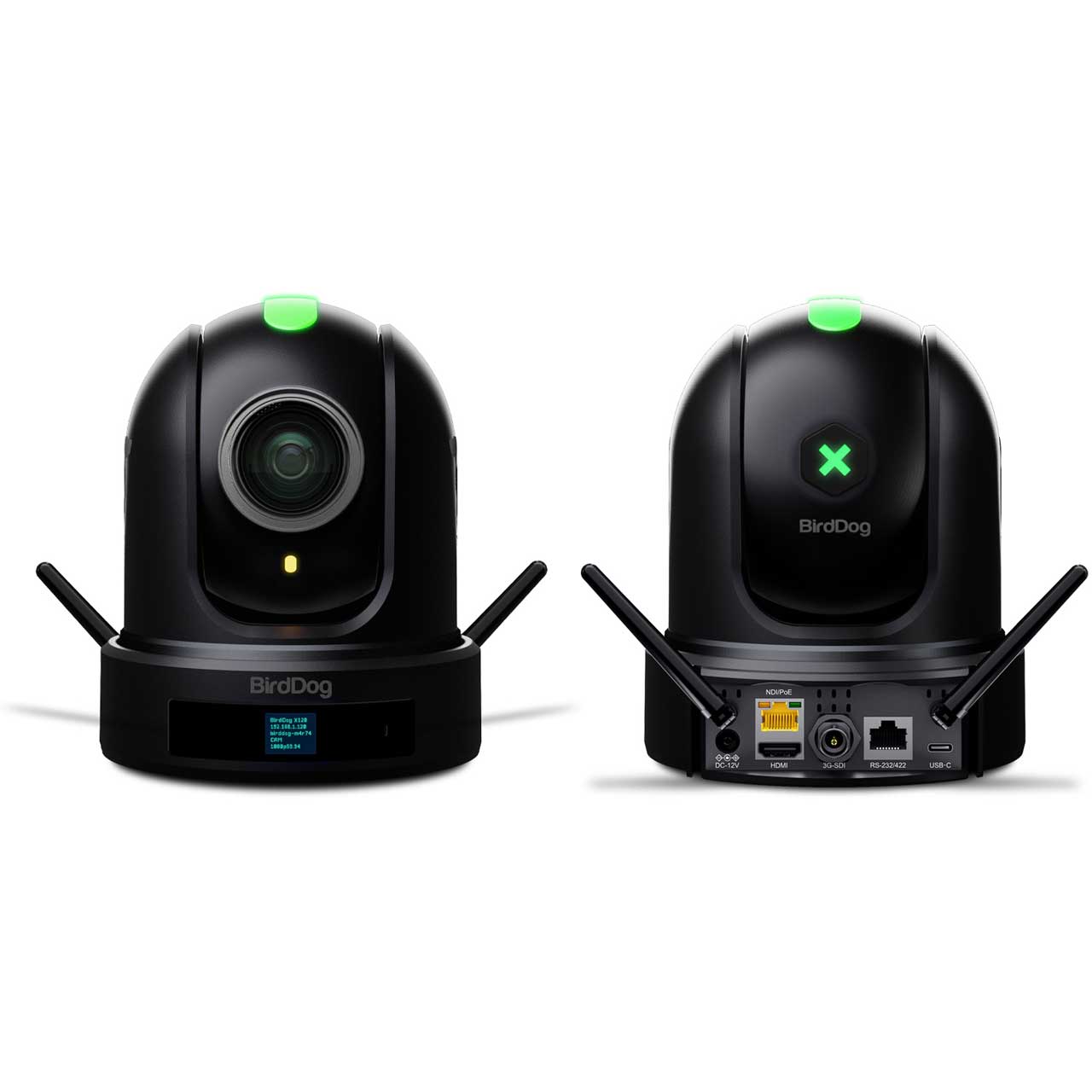

The BirdDog X120 packs an amazing Sony Exmor R image broadcast sensor to deliver fantastic low light capabilities and incredible picture performance. In true BirdDog style, there is an OLED display to show the IP address, 360° mohawk tally, filter thread, and free auto-tracking and color shading via Cam Control. X120 also offers four hardwired connection options along with Wi-Fi making it the most connected PTZ camera on the planet, Additional connection options include NDIr over Ethernet, SDI, HDMI for live production work, and UVC USB for connecting to Zoom & Teams.

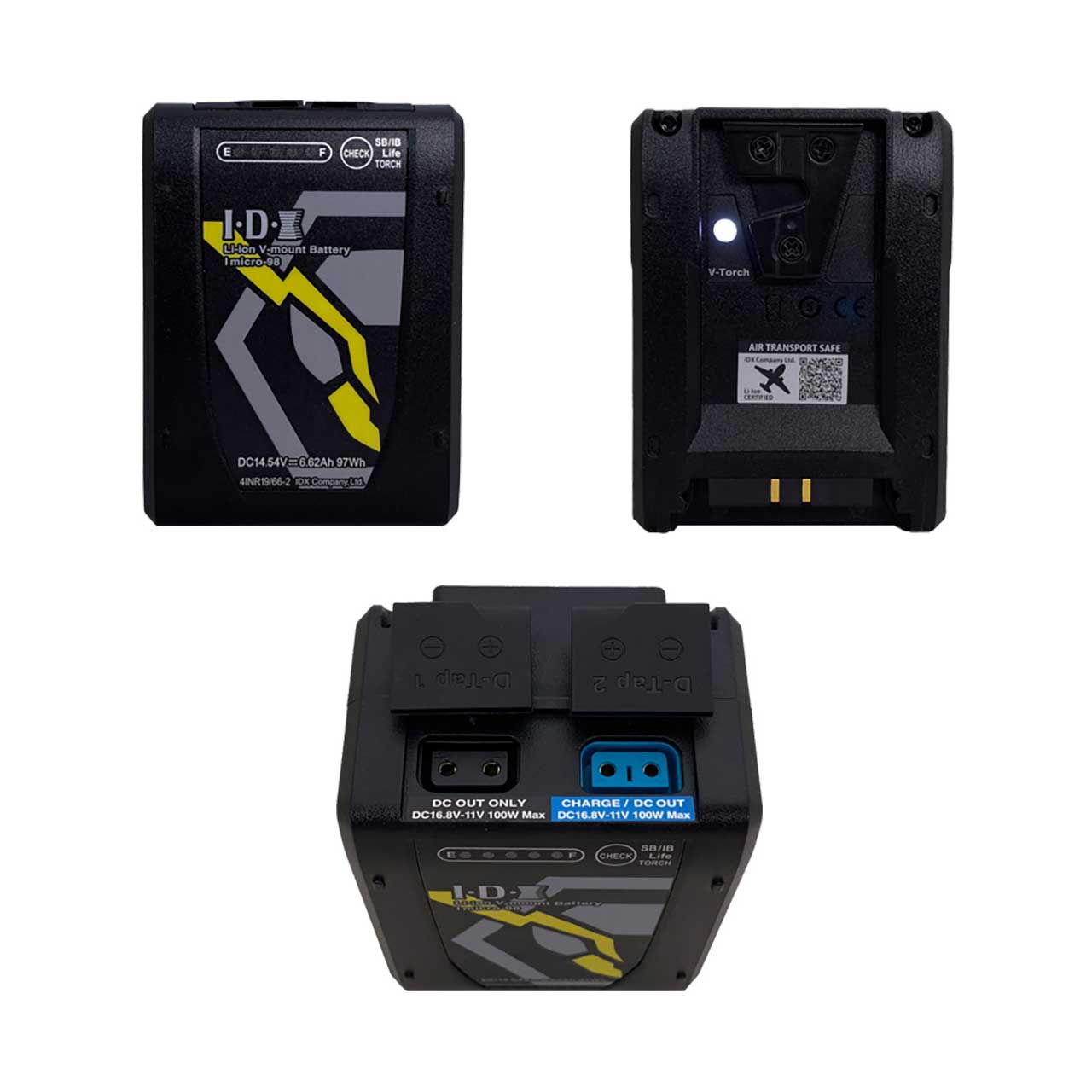

The IDX Imicro-98 is the smallest battery pack in the world at this capacity. Rated at 97Wh, the Imicro-98 meets the passenger aircraft carry-on limit while remaining useful in many diverse applications. The Imicro's size is beneficial for users with small equipment and gimbal set ups. The Imicro-98 also includes two on-battery D-Tap outputs. Future accessories will make the Imicro Series your new go-to setup.

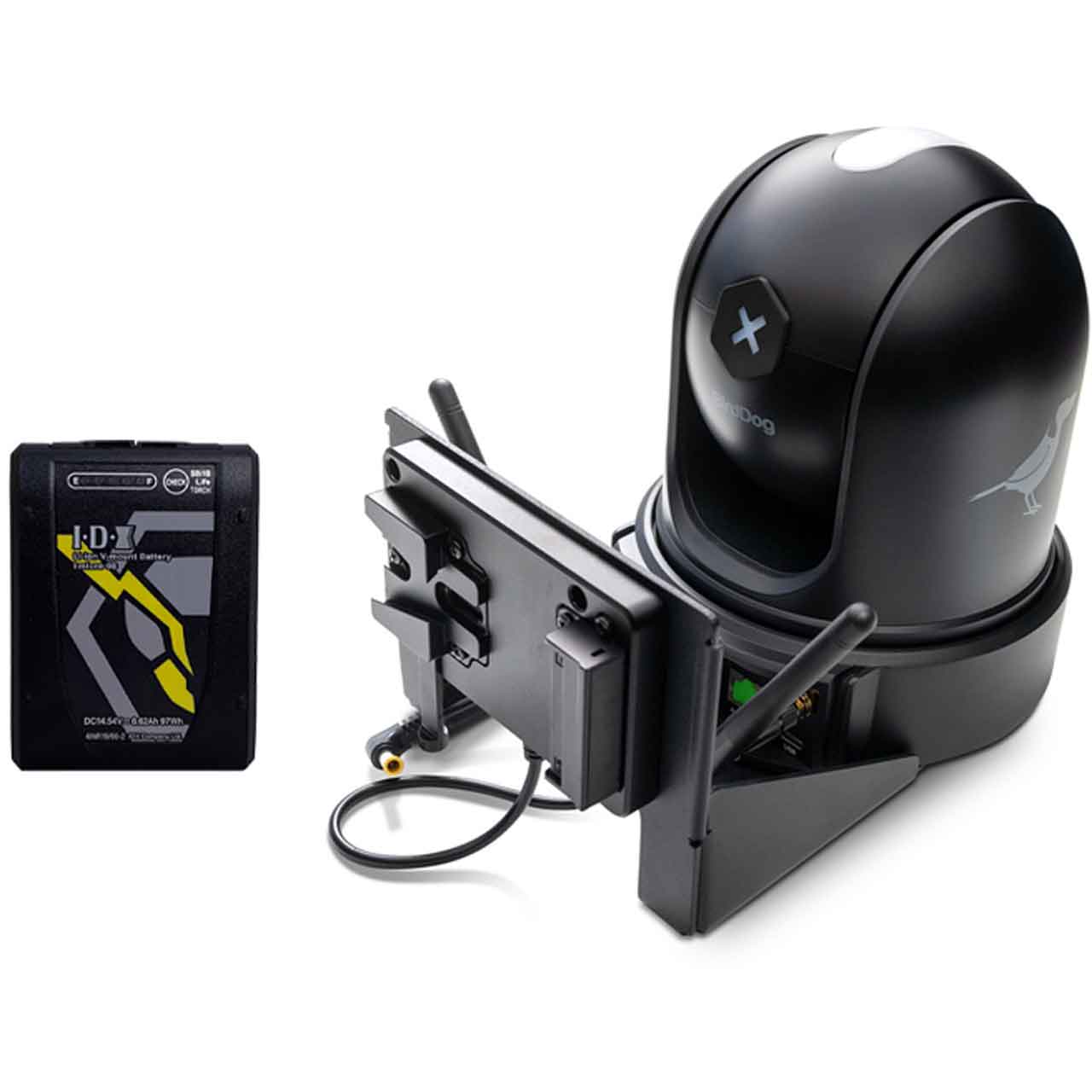

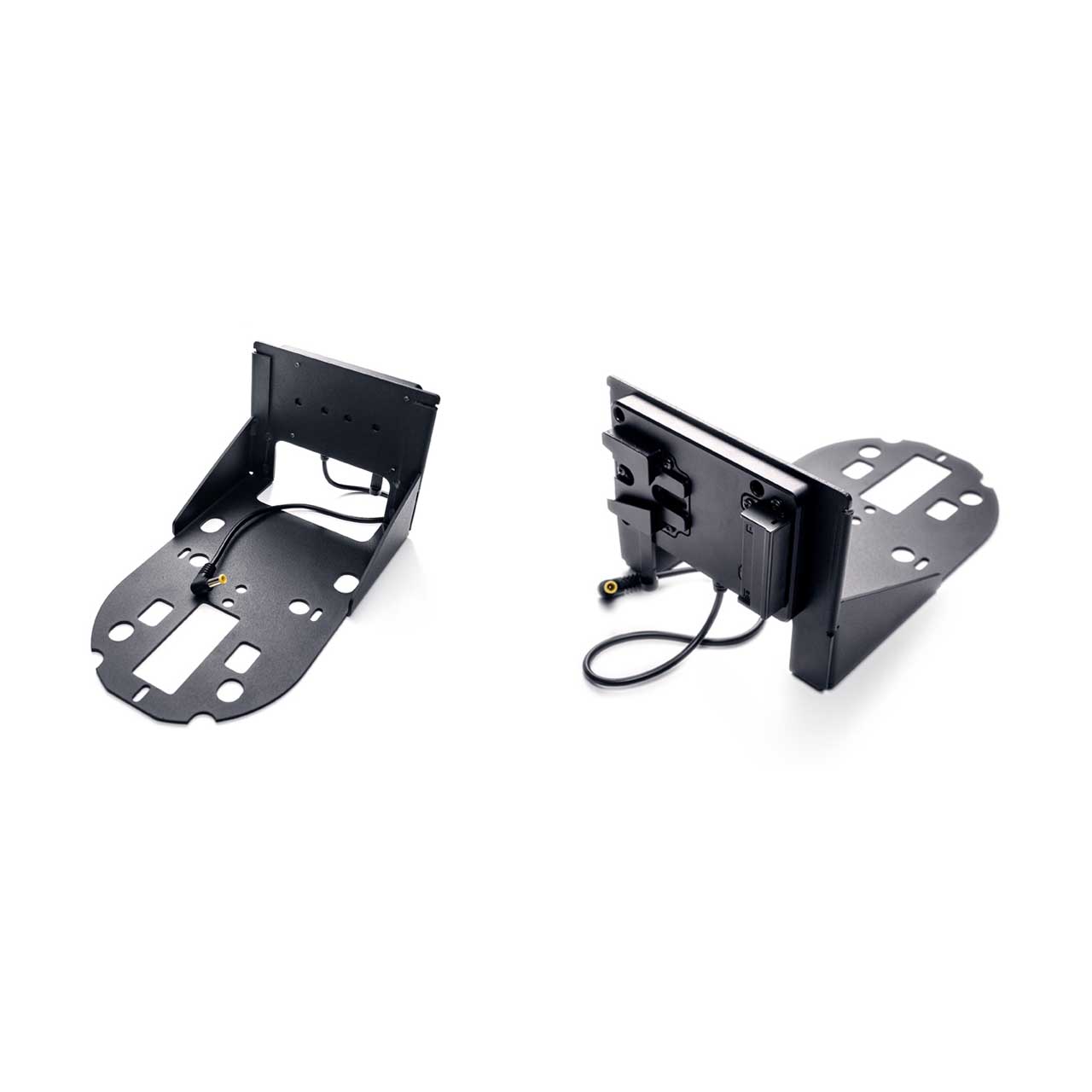

The BirdDog BD-BM-1 is a battery mount V-lock for the BirdDog X120, P100, P110 and P120.

  • Features:

    • X120
    • NDI HX3 certified
    • 5 connection options including Wi-Fi, Ethernet (with PoE) SDI, HDMI, and USB-C
    • Sony Exmor R image sensor
    • 1080p60
    • 20x Optical Zoom
    • OLED screen to display IP address, resolution, frame rate, and stream name
    • Full Colour Matrix and Kelvin control
    • 360-degree viewable mohawk tally
    • BirdDog's unique PTZ numbering system
    • Compatible with all BirdDog software including NDI PTZ Control, Cam Control, BirdUI, BirdDog Cloud, Central 2.0, Multiview Pro, DYNO, and more

      Imicro-98
    • 97Wh capacity
    • Meets passenger aircraft travel regulations
    • Capable of handling up to 14A loads
    • 1x 100W D-Tap Advanced Output (unregulated) - D-Tap Output with the added ability to charge battery using low-cost D-Tap Charger (VL-DT1)
    • 1x 100W D-Tap Output (unregulated)
    • 5 Power Indicator LEDs (displaying 10% increments)
    • Battery circuit protection ensures the Imicro-98 is fully protected against common causes of battery misuse, guarding against over charge, over discharge, over current and exposure to high temperatures
    • The highest grade Lithium Ion cells are used to ensure the Imicro-98 is one of the most reliable batteries on the market
    • 11V auto cut-off prevents over-discharging (while load is applied)
    • Fully compatible with all ENDURA V-Mount Battery chargers and accessories
    • Environmentally friendly and recyclable


  • Specifications:

    • X120
    • Image Sensor: 1/2.8" CMOS 2.2MP
    • Lens: 5.2-104mm - (TBC)
    • Optical Zoom: 20x
    • Angle Of View: Horizontal: 55.8° (W) - 3.2° (T) - Verrtical: 32.2° (W) - 1.8° (T)
    • Aperture: F1. (W) - F3.0 (T) - (TBC)
    • Focus: Auto, Push, Manual
    • Tally: Bi-Color Full overhead and rear (w/included 0-9 number silicon plugs)
    • Onboard OLED Display: 5-line, RGB Color, Graphical
    • Pan Movement: Horizontal: 350° (±175°) continuous pan (Zoom Adaptive Speed Range: 0.05°-100°/s)
    • Tilt Movement: Vertical: 90° to -30° (Zoom Adaptive Speed Range: 0.05°-72°/s)
    • Video Output: NDI HX2, NDI HX3/SDI/HDMI/USB-C (UVC/UAC)
    • Video Formats:
      1080p: 60, 59.94, 50, 29.97, 25
      720p: 60, 59.94, 50, 29.97, 25
    • Video Compression: h.264
    • IP PTZ Control: NDI HX, VISCA IP, Serial
    • Serial PTZ Control: 1x RJ45: RS232/RS422
    • Serial Control Protocol: VISCA/PELCO D
    • Power Input: 12v DC, PoE+ (IEEE 802.3at)
    • Dimensions: 5.7" x 5.98" x 6.73" (145mm x 152mm x 171mm) (without antennas)
    • Weight: 2.2lbs (1kg)

      Imicro-98
    • Battery Capacity: 97Wh (14.5V/6.6Ah)
    • Max.Output Voltage: 16.8V DC
    • Nominal Voltage: 14.5V DC
    • Maximum Discharge Current: 14A
    • D-Tap: 100W each
    • End Voltage: 11V
    • Battery Protection: Over charge, Over discharge, Over current, Thermal protection
    • Ambient Temperature to Charge: 32° - 104°F (50° - 86°F)
    • To Discharge: -4° - 113°F (50° - 104°F)
    • To Store: -4° - 122°F (less than 1 month)
    • Dimensions (WxHxD): 2.8" x 3.8" x 2.1"
    • Weight: 1.21lbs approx.

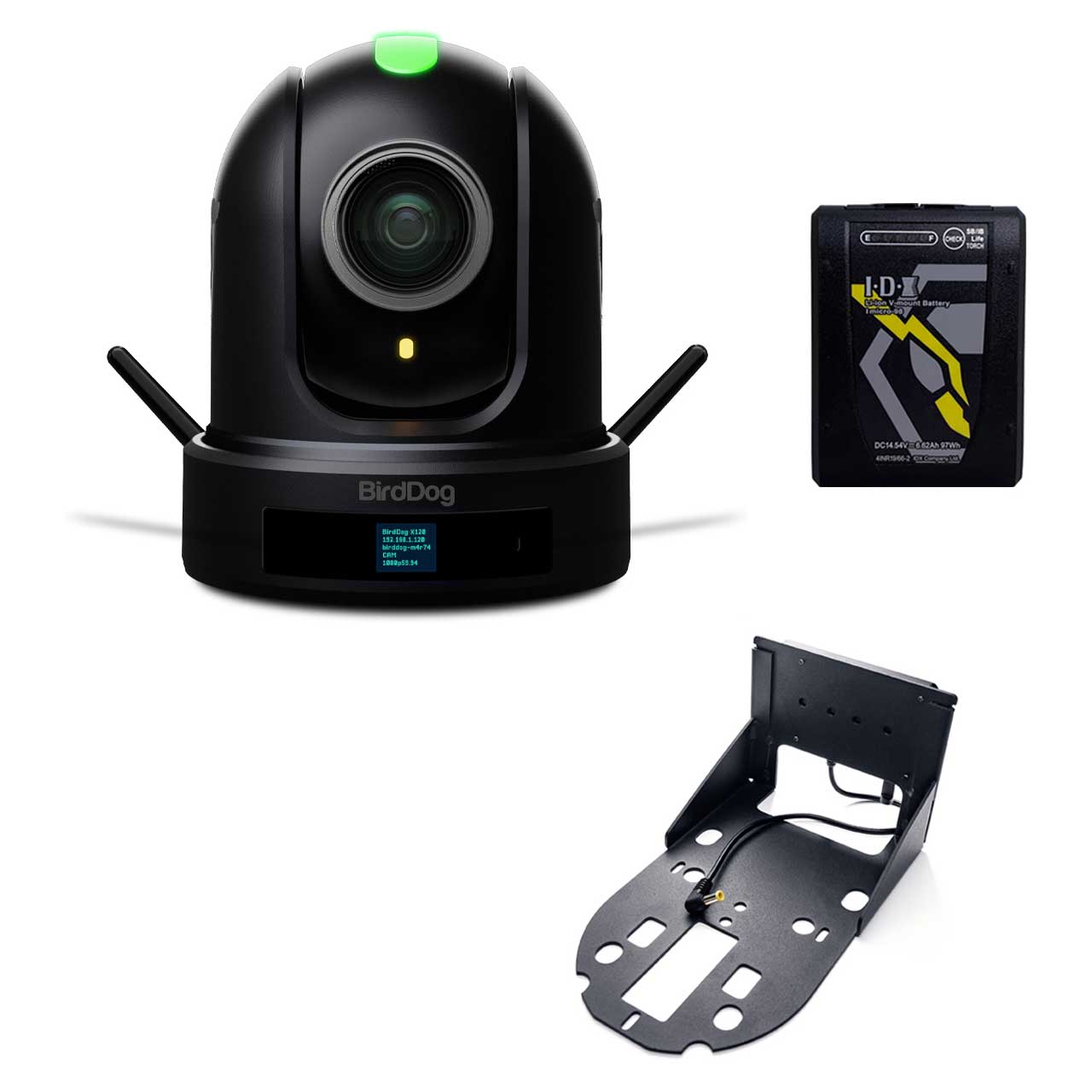

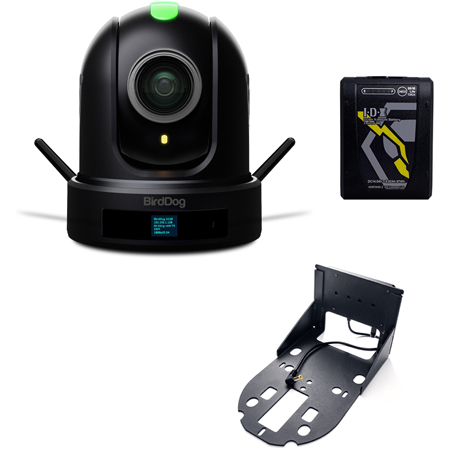

  • Item Includes:

    • 1x BirdDog X120 PTZ Camera
    • 1x IDX Imicro-98 Micro V-Mount Battery
    • 1x BirdDog BM-1 V-mount Battery Plate
