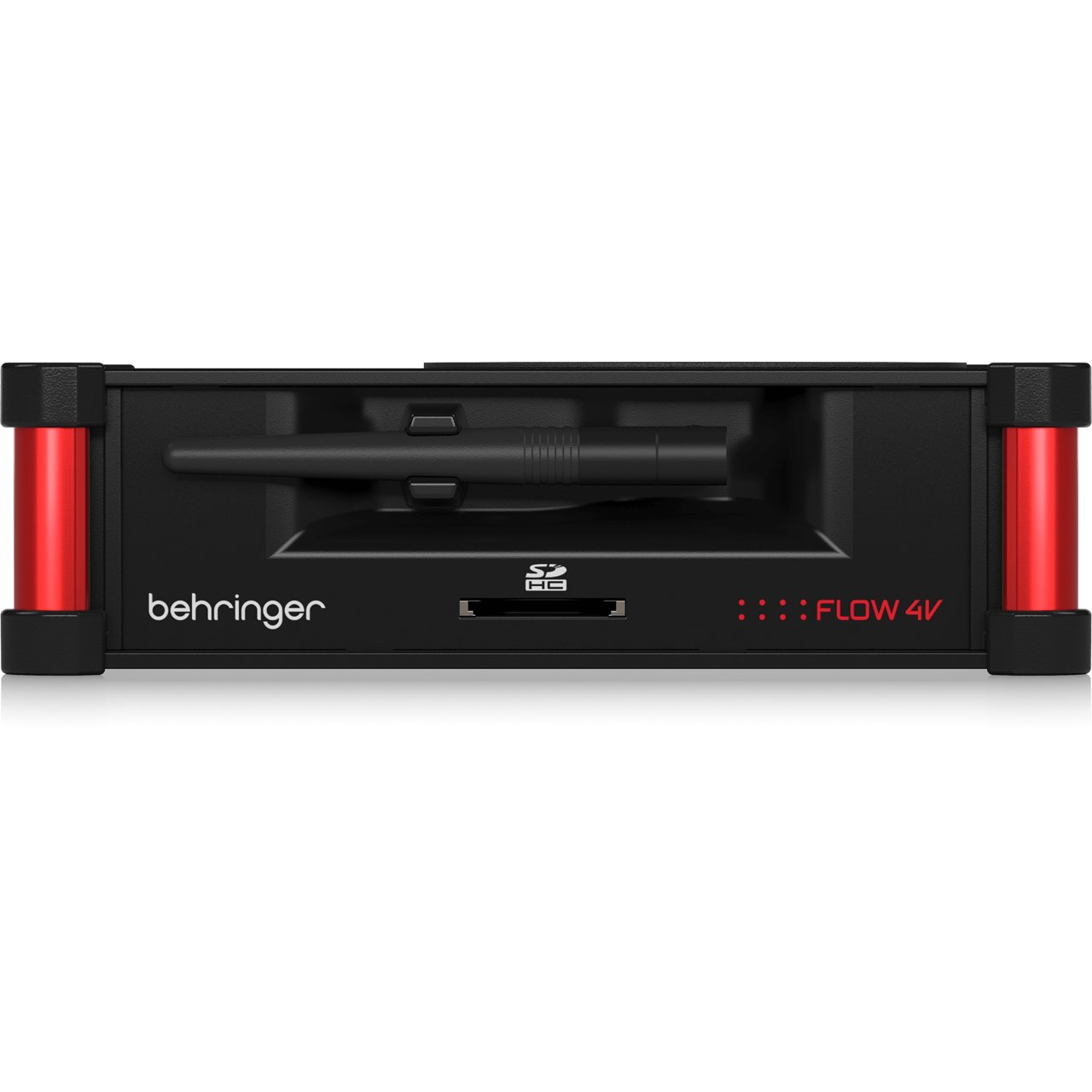

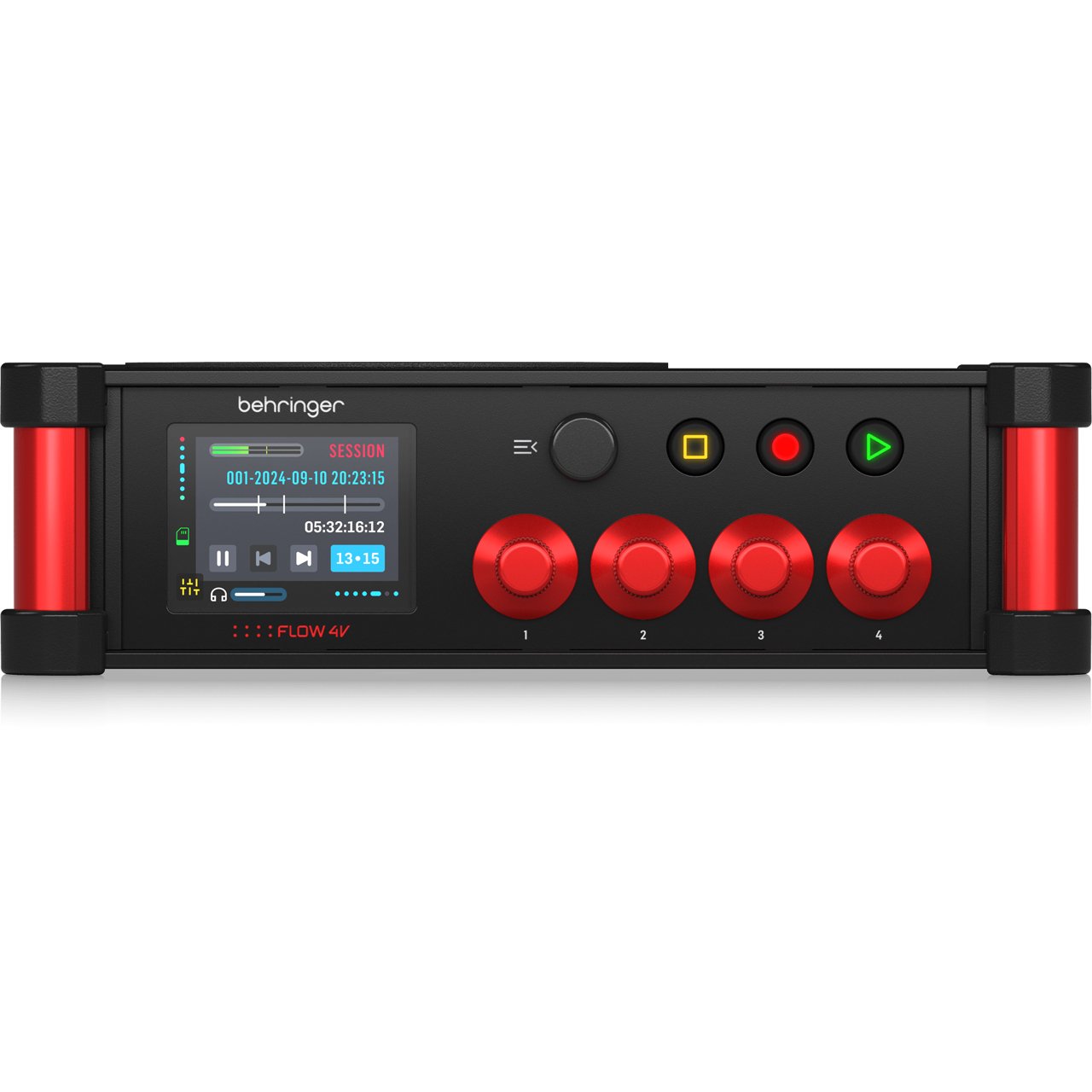

Behringer FLOW 4V 4-Input 10-Track Digital Audio Mixer for Video Production - SD Recording & Bluetooth Remote Monitoring

ITEM #: BEH-FLOW-4V MFG #: FLOW-4V

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$299.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


FLOW-4V - Overview

Digital Audio Mixer for Video Production - 4 Inputs, SD Recording, BT Remote App and BT Monitoring

Behringer FLOW 4V is a 10-track field recorder equipped with four onboard dual-stage preamps with extreme dynamic range. It also functions as a standalone 32-bit float USB audio interface and an I/O box for other StageConnect devices. Record and mix line level signals using the stereo AUX input. FLOW 4V can be expanded with four additional remote inputs via StageConnect using FLOW 4VIO.

Made for Video. Ready for Anything.
• FLOW 4V is built for modern video production
• Capture clean, multitrack audio on set
• Stay perfectly in sync with your camera
• Move faster from shoot to edit
• Film. Stream. Create content. Without compromise.

No-Clip Recording
• Forget ruined takes. FLOW 4V captures everything from whispers to impact hits.
• 4 dual-gain mic preamps dual-stage A/D converters
• An extreme 142dB dynamic range
• Quiet details stay clean. Loud moments virtually impossible to clip.

Multi-track Recording, Done Right
Record every source as its own track while simultaneously creating a finished stereo mix. FLOW 4V is a true 10-track multitrack recorder built for video workflows. Fast on set, flexible in post.

• Up to 8 isolated input tracks
• Dedicated stereo mix recorded simultaneously
• Mic, line, USB/Bluetooth sources captured independently

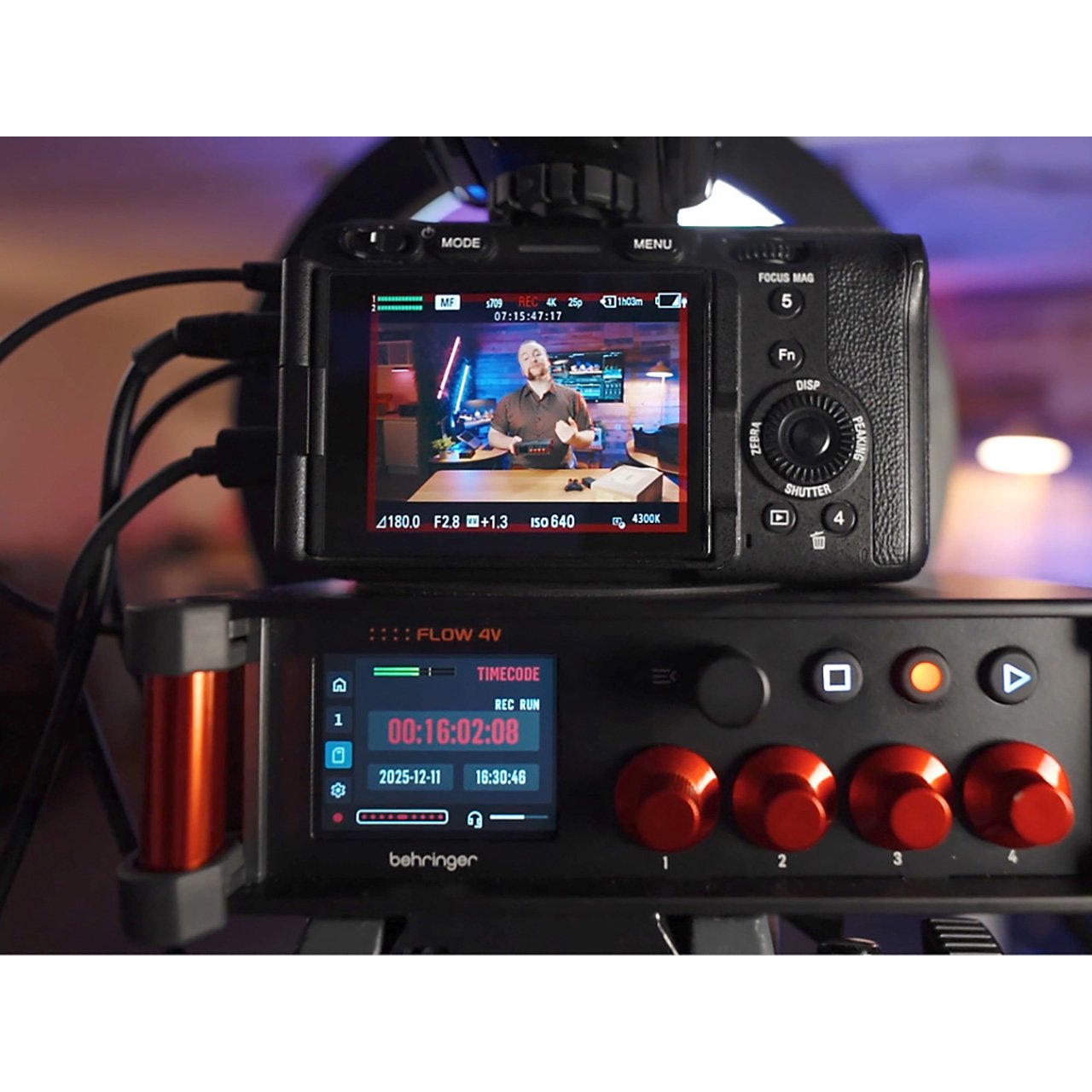

Always in Sync. No Extra Steps.
FLOW 4V can sync to your camera or let your camera sync to it. Recording starts and stops together automatically. In post, your audio files align themselves perfectly with the video timeline, even across multiple takes or multiple cameras. No manual syncing. No hand clapping. No waveform matching.

• Send, receive, or jam timecode
• Frame-accurate sync via SMPTE
• Start/Stop control via HDMI
• Clean, perfectly aligned files in post

10-Channel Onboard Digital Mixer
Create a polished stereo mix on set. Perfect for fast turnarounds and live streaming.

Filters, EQ, dynamics, and AutoMix built in.

At the same time, record every track separately. Full flexibility in post. No compromises.

USB Ports for Power, Recording, and Audio
FLOW 4V is a full-featured USB audio interface with 12 input channels and 2 outputs. Perfect for recording, streaming, and post-production.

Choose how you record: directly to the onboard SD card or straight to your computer.

When recording to SD, FLOW 4V can automatically create a backup copy to a USB drive after every take or work as a USB audio interface at the same time.

Two recessed USB-C ports provide redundant, hot-swappable power from any USB-PD source, including power banks. A compatible power supply is included.

More Inputs? One Cable!
The optional FLOW 4VIO (sold separately) expands your setup with four additional dual-stage microphone preamps and two independent headphone outputs. One single cable keeps everything connected - making your rig ultra clean, fast to deploy, and easy to scale when productions grow.

  • Features:

    • Ultra-low noise, high headroom field recorder and mixer with wireless remote control
    • 4 Midas microphone preamps with phantom power and dual-stage A/D converters for 138dB dynamic range 10ch recording to SD cards and to the USB class- compliant interface with 32-bit float or 24-bit fixed point
    • No analog gain setting required due to the dual-stage conversion, float recordings allow gain adjustment in post-processing
    • Full-featured 8-channel mixer with level, pan, low-cut, tone, high-cut and dynamics
    • Up to 8 channels of automixing with smooth gain-sharing algorithm
    • Pre-record buffer for always capturing that "golden moment"
    • Recordings to SD card are automatically copied to an attached USB stick after stopping
    • StageConnect multi-channel uncompressed audio transmission at sub-millisecond latency using standard XLR/DMX cable
    • Optional StageConnect FLOW 4VIO offers remote power, 4 additional microphone inputs, 2 headphone outputs
    • SPMTE timecode can be generated internally for synchronizing other devices
    • Bluetooth audio can be received from mobile devices for Talkback or Playback
    • Camera video CEC signal can be received via HDMI for triggering the audio recording
    • Powered via StageConnect or via USB-C, power adaptor included

  • Specifications:

      General
    • Frequency Range (±1dB): 5Hz - 22kHz
    • Dynamic Range (Inputs): 140dB
    • Frame Rate (FPS): 29.98, 24, 25, 30, 50, 60

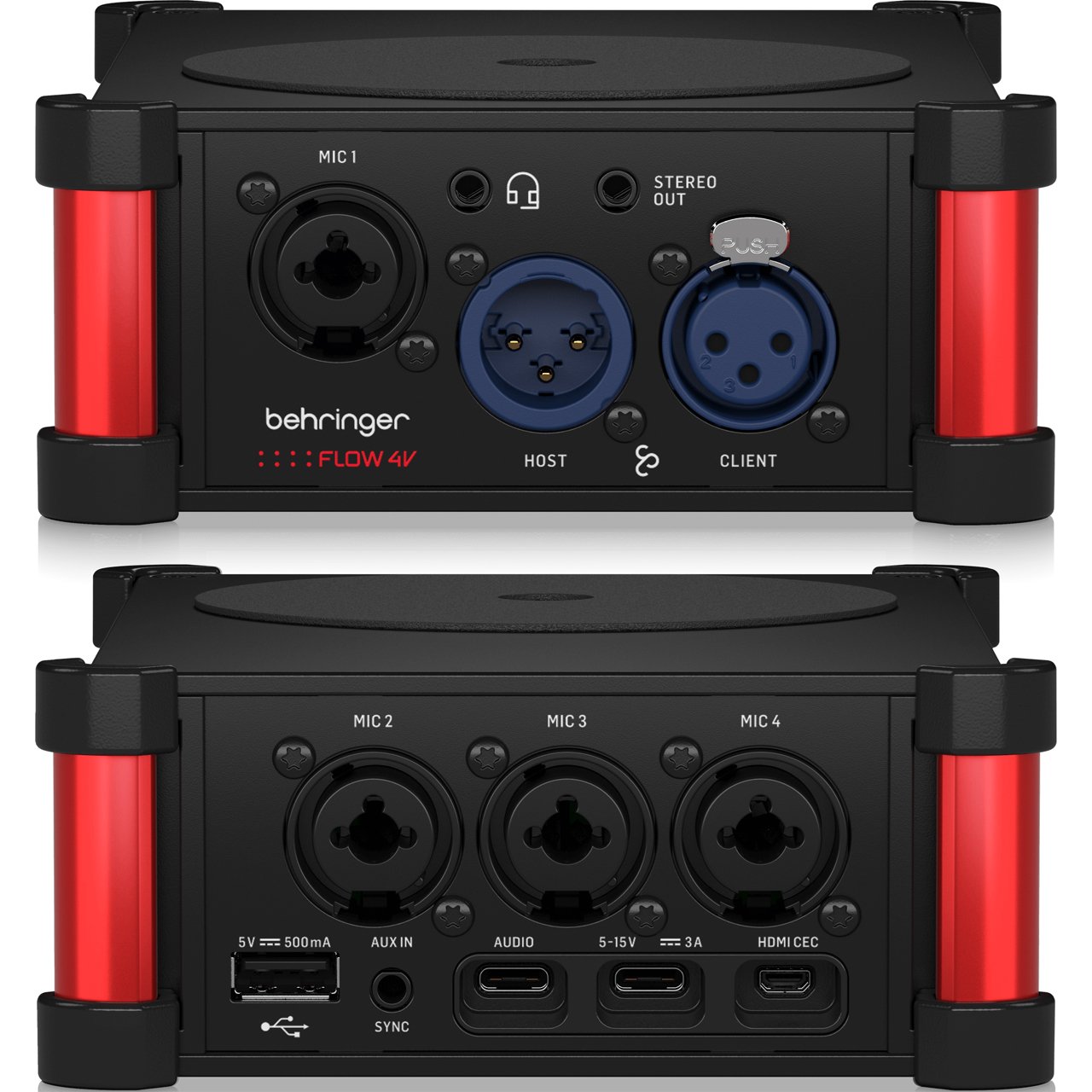

      Mic Inputs
    • Type: 4x XLR/1/4" TRS combo jacks, balanced
    • EIN (20Hz - 20kHz): -130dBu
    • Distortion (THD + N):
      - 0.007% @ -40dBu in
      - 0.0003% @ -20dBu in
    • Crosstalk rejection @ 1kHz, adjacent channels: -110dB
    • Max Input Level:
      - XLR: +18dBu
      - TRS: +29.5dBu
    • Impedance:
      - XLR: 9.5kΩ bal.
      - TRS: 30kΩ bal.
    • Max Gain: +70dB
    • Phantom Power: +48V, switchable

      AUX In
    • Type: 1x 3.5mm TRS jack, stereo
    • Distortion (THD + N): 0.008% @ + 6dBu in
    • Max Input Level: +24dBu
    • Impedance:ÿ10kΩ

      Headset In/Out
    • Type: 1x 3.5mm TRRS jack, stereo + mic in
    • Impedance: 40Ω
    • Max Input Level: +10dBu
    • Max Output Level:
      - 110mW @ 30Ω
      - 110mW @ 75Ω
      - 75mW @ 300Ω

      Stereo Out
    • Type: 1x 3.5mm TRS jack, stereo
    • Impedance: 100Ω
    • Max Output Level: +4.6dBu

      Phones Outputs
    • Type: See HEADSET
    • Max Output Level (30Ω load): See HEADSET
    • Distortion (THD + N, 30Ω load): See HEADSET

      USB Audio Interface
    • Type: USB 2.0
    • Connector: Type C
    • Sample Rate: 48kHz
    • Bit Depth: 24-bit/32-bit float
    • Channel at Host: 12 IN/2 OUT

      HDMI
    • Type: Micro HDMI
    • CEC: Camera Controlled Rec Start

      Bluetooth
    • Frequency Range: 2402MHz - 2480MHz
    • Channel Number: 79
    • Version: Bluetooth 4.0 Dual Mode
    • Compatibility: Supports A2DP 1.2 profile
    • Max Communication Range: 12m
    • Max Output Power: 9.6dBm
    • Gain: 1.84dBi

      Power Supply/Voltage
    • Connector: USB-C
    • Power Supply/Voltage: USB-C PD
    • Power Consumption: 10W

      Physical
    • Dimensions (HxWxD): 2.00" x 7.24" x 5.03"
    • Weight: 1.76lbs

  • Item Includes:

    • 1x Behringer FLOW 4V
    • 1x USB-C power adaptor
    • 1x Integrated allen-wrench
