The 3-Way Bridge Between StageConnect, USB & Ultranet
Modern stages run on multiple protocols. The Behringer SC-U bridges three of the most important - StageConnect, multi-channel USB audio, and Ultranet personal-monitoring - all in a sturdy enclosure the size of a DI box. One small unit. Three interoperable worlds.
-
- 3-way bridge between StageConnect systems, multi-channel USB audio and Ultranet systems, such as the Behringer P16 products

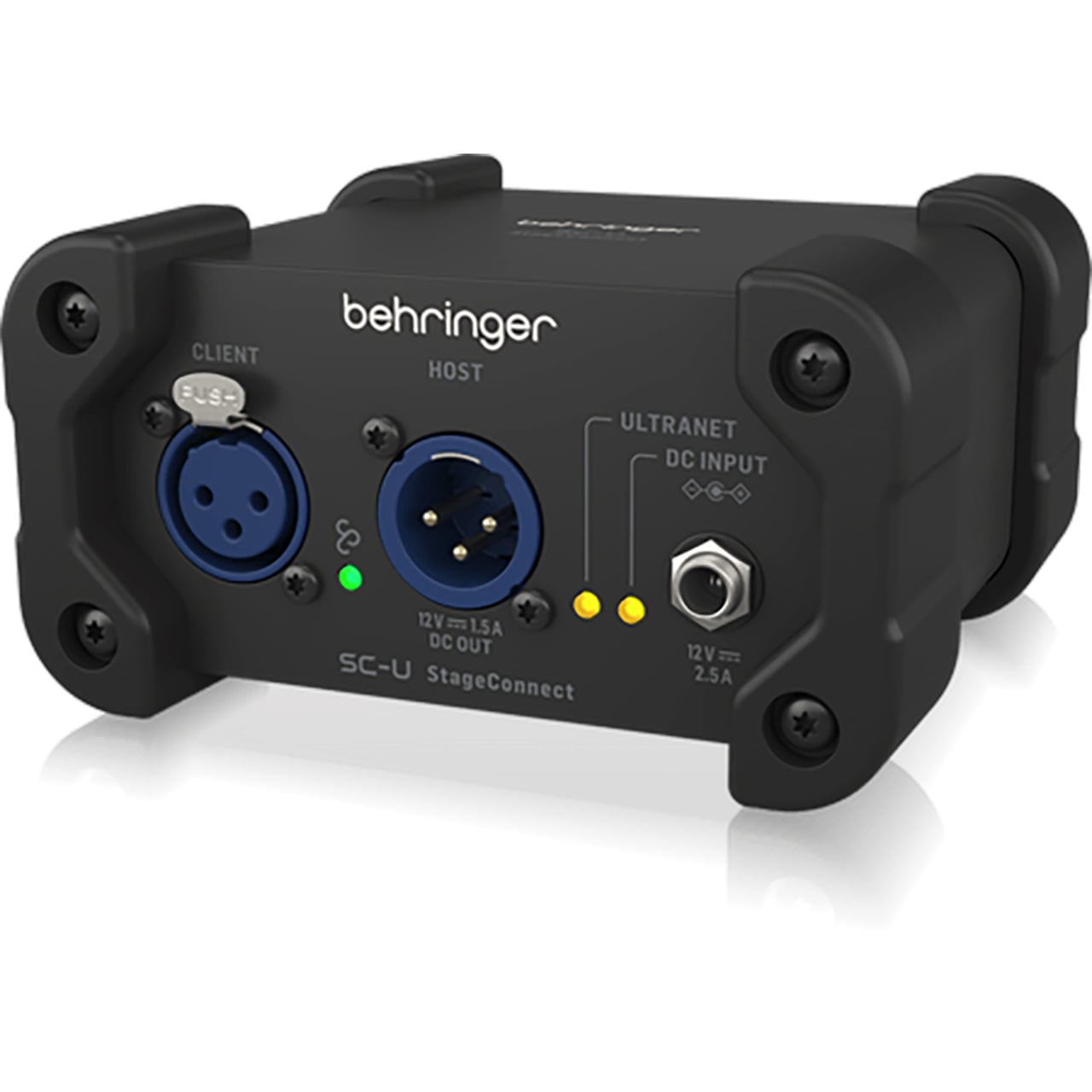

- Compact and sturdy enclosure the size of a DI box
- Communication between systems with different word clocks/sample rates via asynchronous 32-channel sample rate conversion (0.4 ms latency, 140dB dynamic range)
- StageConnect 32-channel bidirectional audio transmission with sub-millisecond latency at 44.1/48kHz and 24 bits over standard 3-pin XLR DMX or mic cable
- MIDI data transmission from USB host computer to StageConnect bus
- Host connector for multi-channel audio connections with other with other StageConnect devices
- Client connector for daisy-chaining multiple devices
- External DC power supply included
-
Processing- StageConnect Bus: 32 channels, 44.1/48 kHz, 24-bit PCM audio
- I/O Latency: 0.1 ms

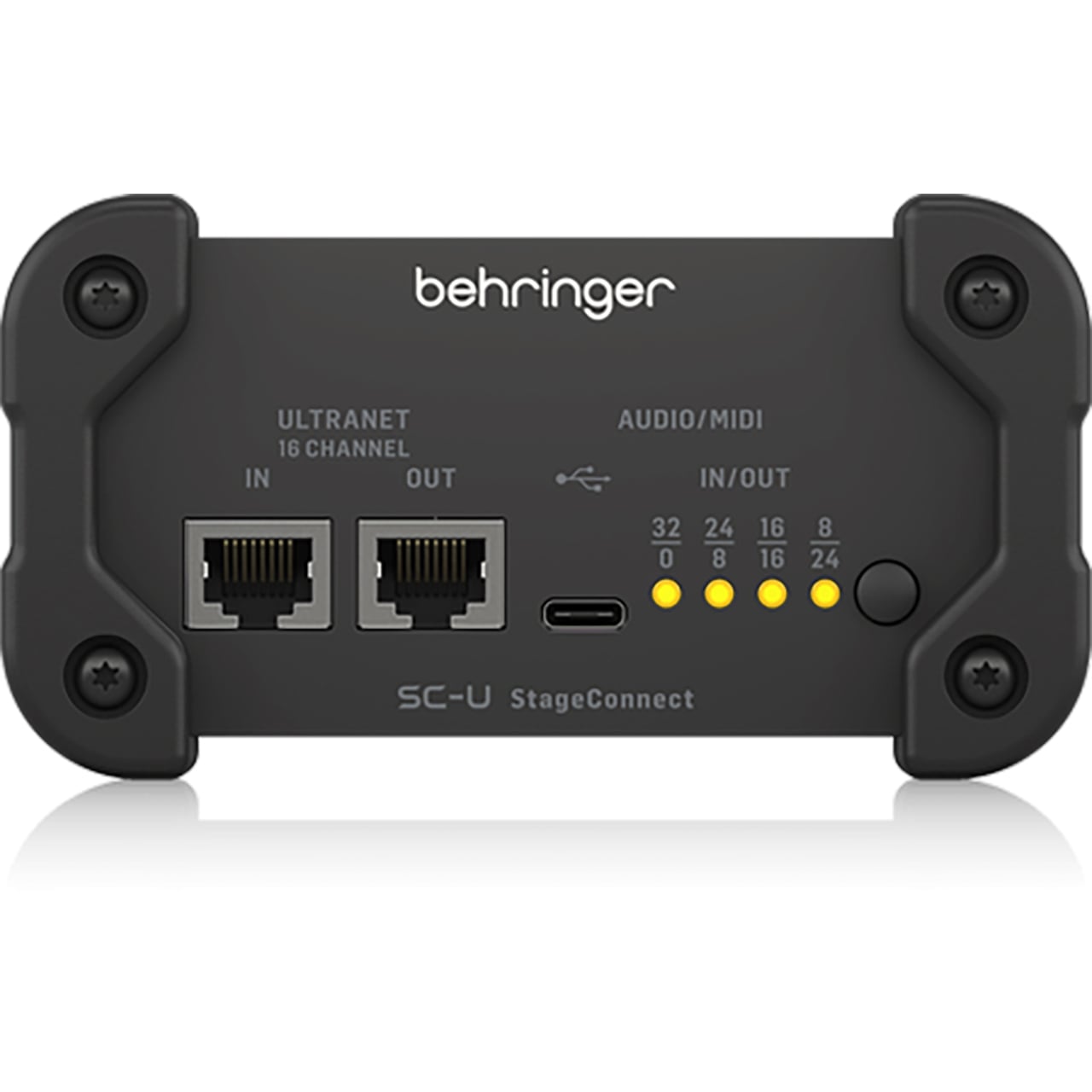

Connectors - Ultranet: 2x RJ45

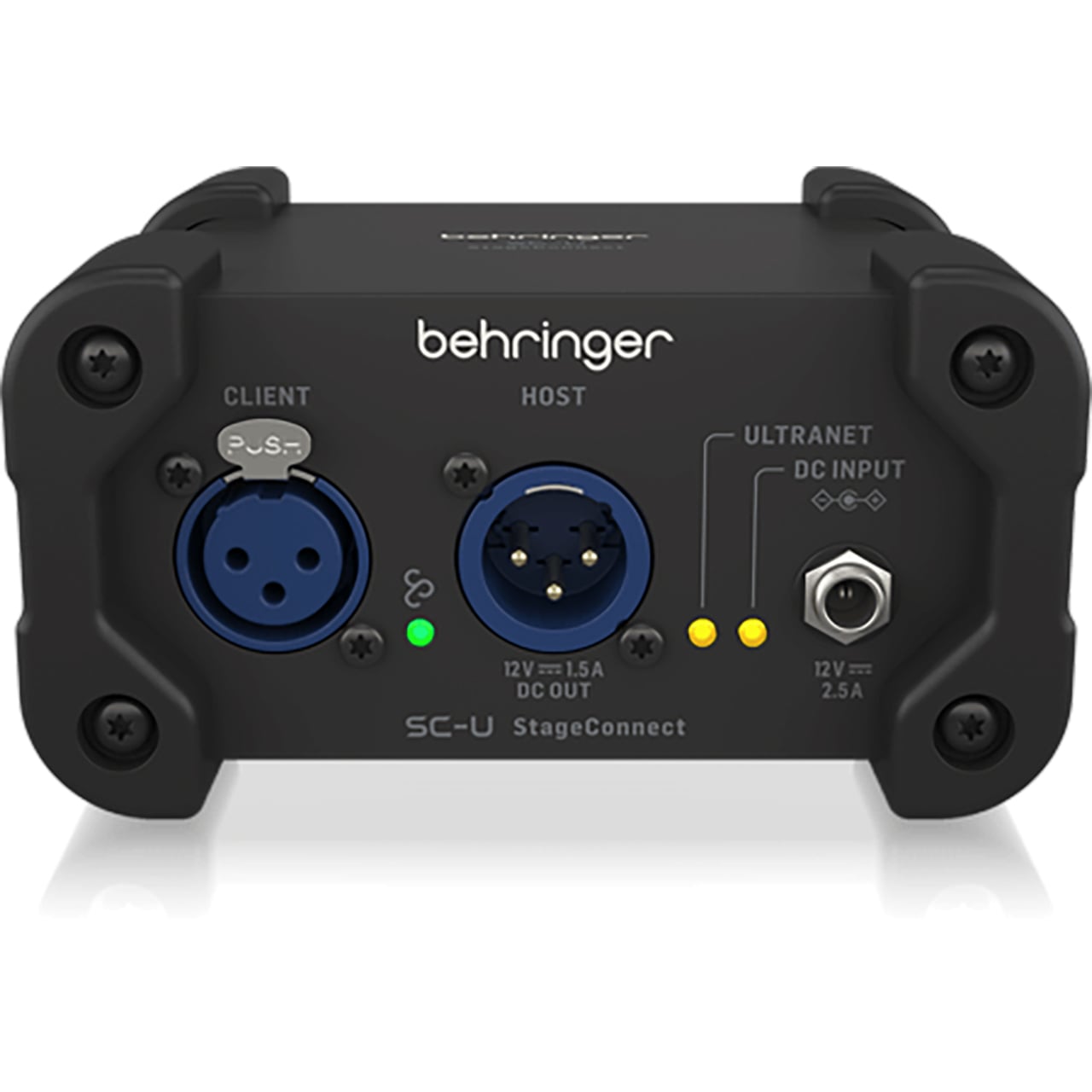

- Shielded CAT5e Cable: Max. 246ft (75m) - StageConnect: 1x XLR male, 1x XLR female
- Shielded Bal. 110Ω DMX Cable: Max. 131ft (40m) - USB: Type C
- USB Audio IN/OUT Configurations: 32 IN/0 OUT, 24 IN/8 OUT, 16 IN/16 OUT, 8 IN/24 OUT
- USB Audio Class 2 Compatible with OS: Windows 10, 11 (ASIO/WDM), OSX (CoreAudio), Linux
Power - Power Supply: 12V DC/2.5A, 30W adapter included. Remote power input via SC
- Client (female). Remote power output via SC Host (male). 12V DC/1.5A, 18W
- Power Consumption: 2W
Physical - Standard Operating Temperature Range: 41°F - 113°F (5°C - 45°C)
- Dimensions: 4.7" x 2.5" x 4.4" (118mm x 63mm x 112mm)
- Weight: 1.57lbs (0.71kg)
