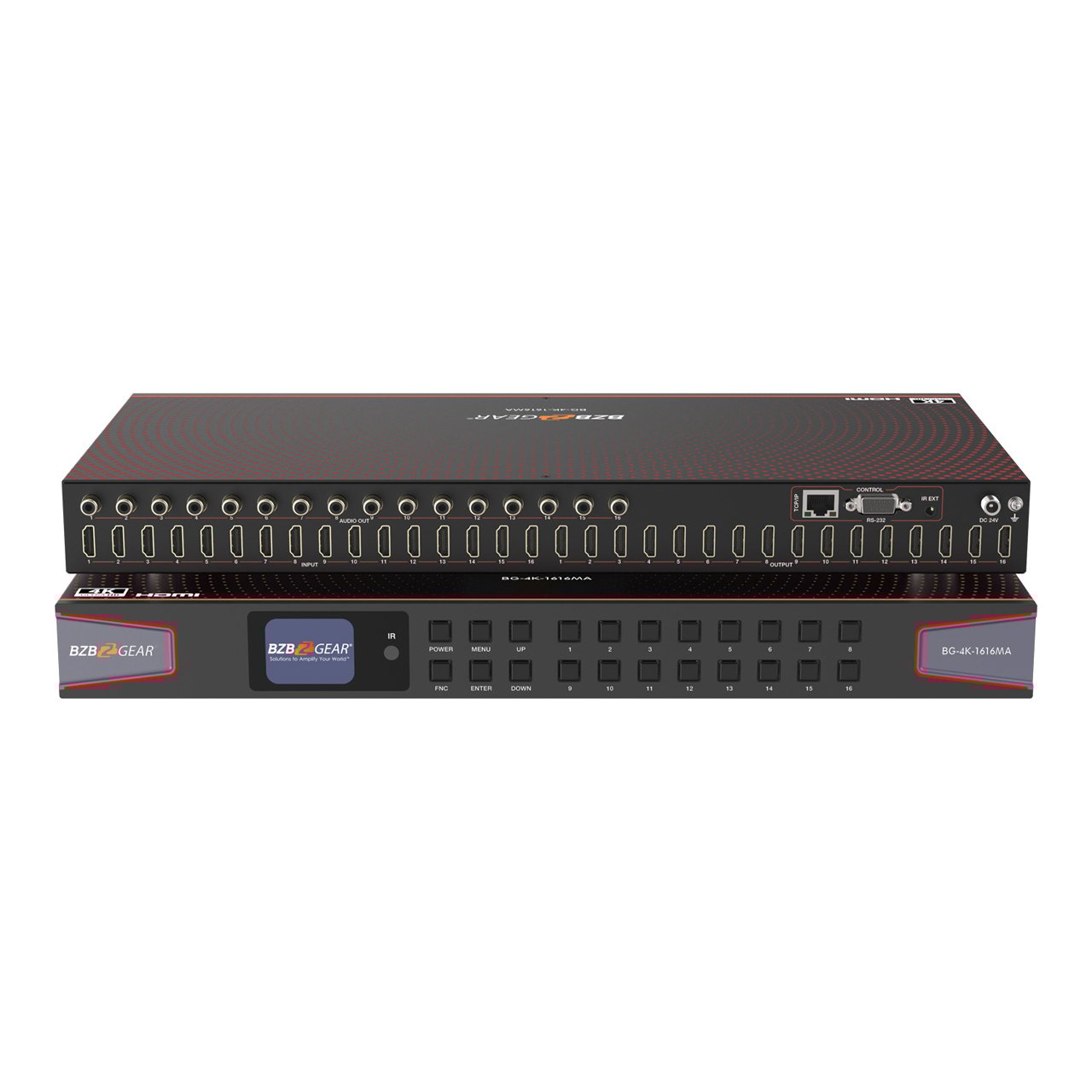

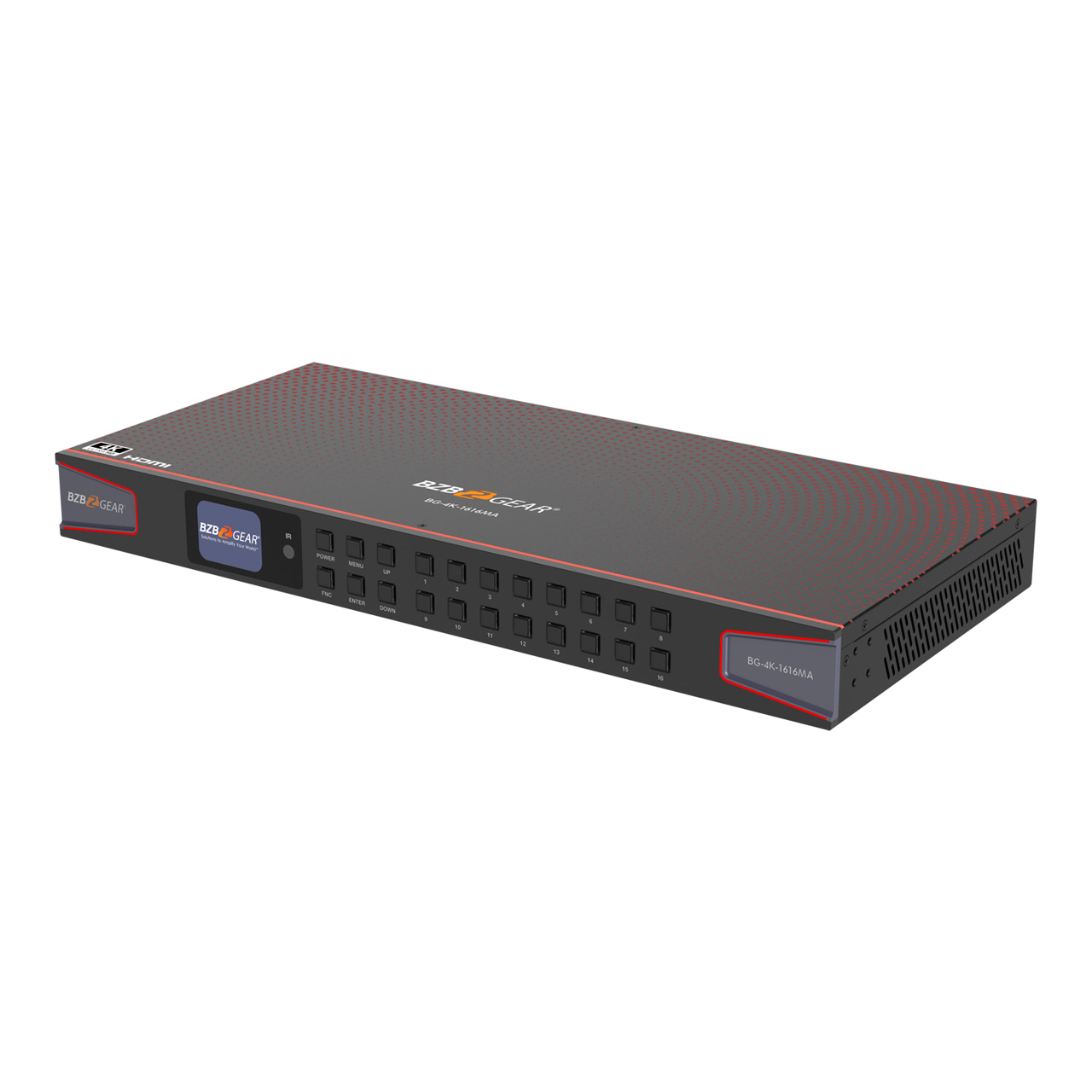

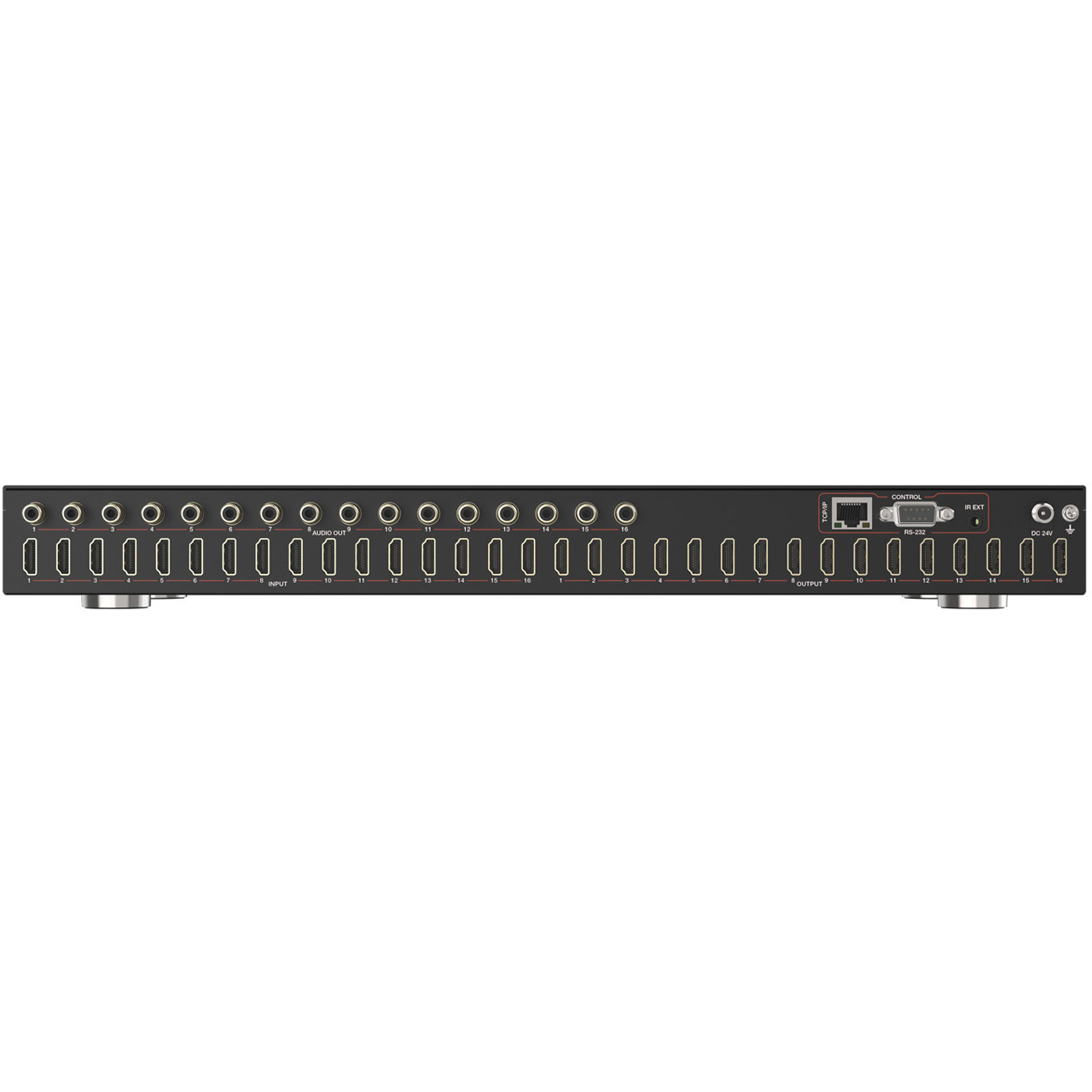

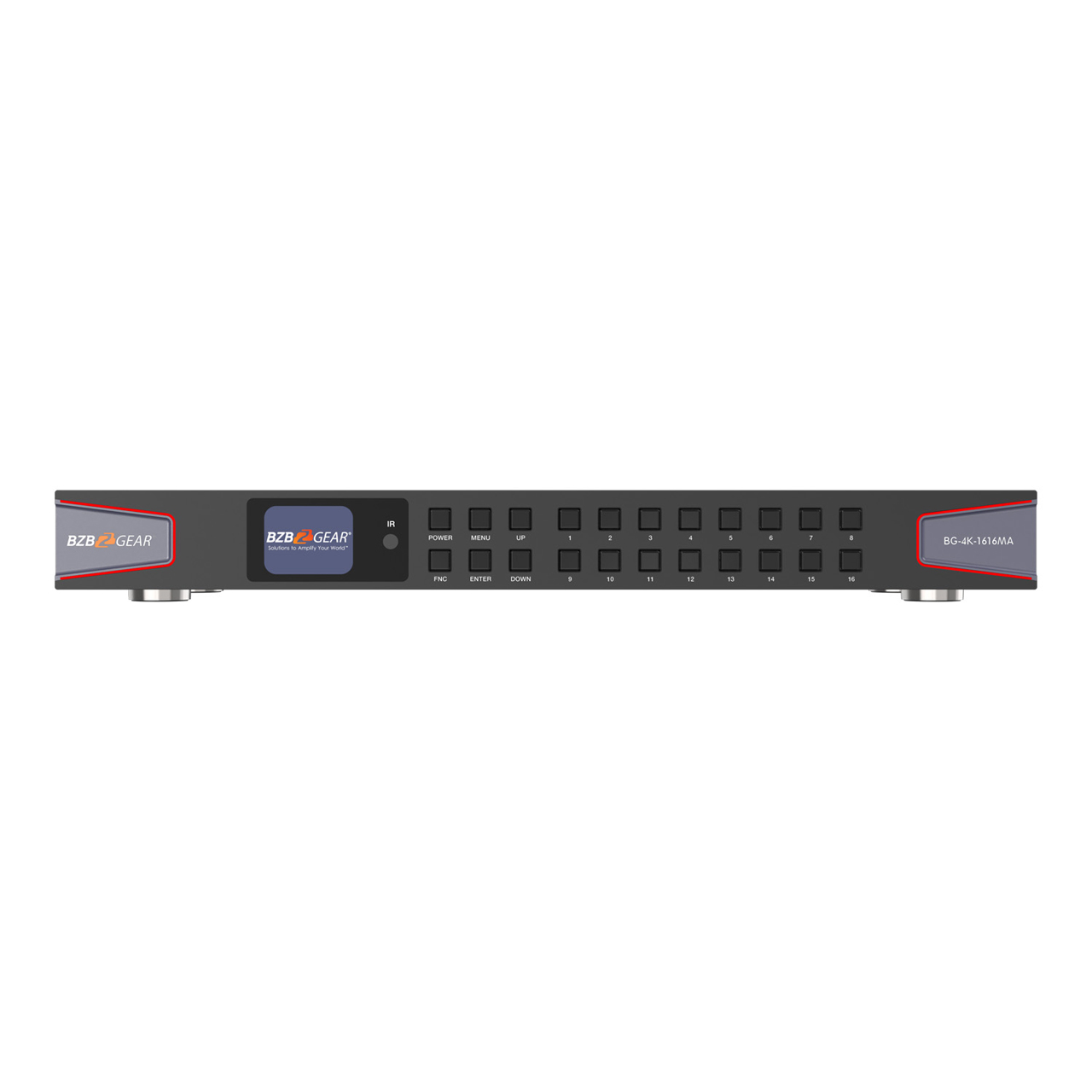

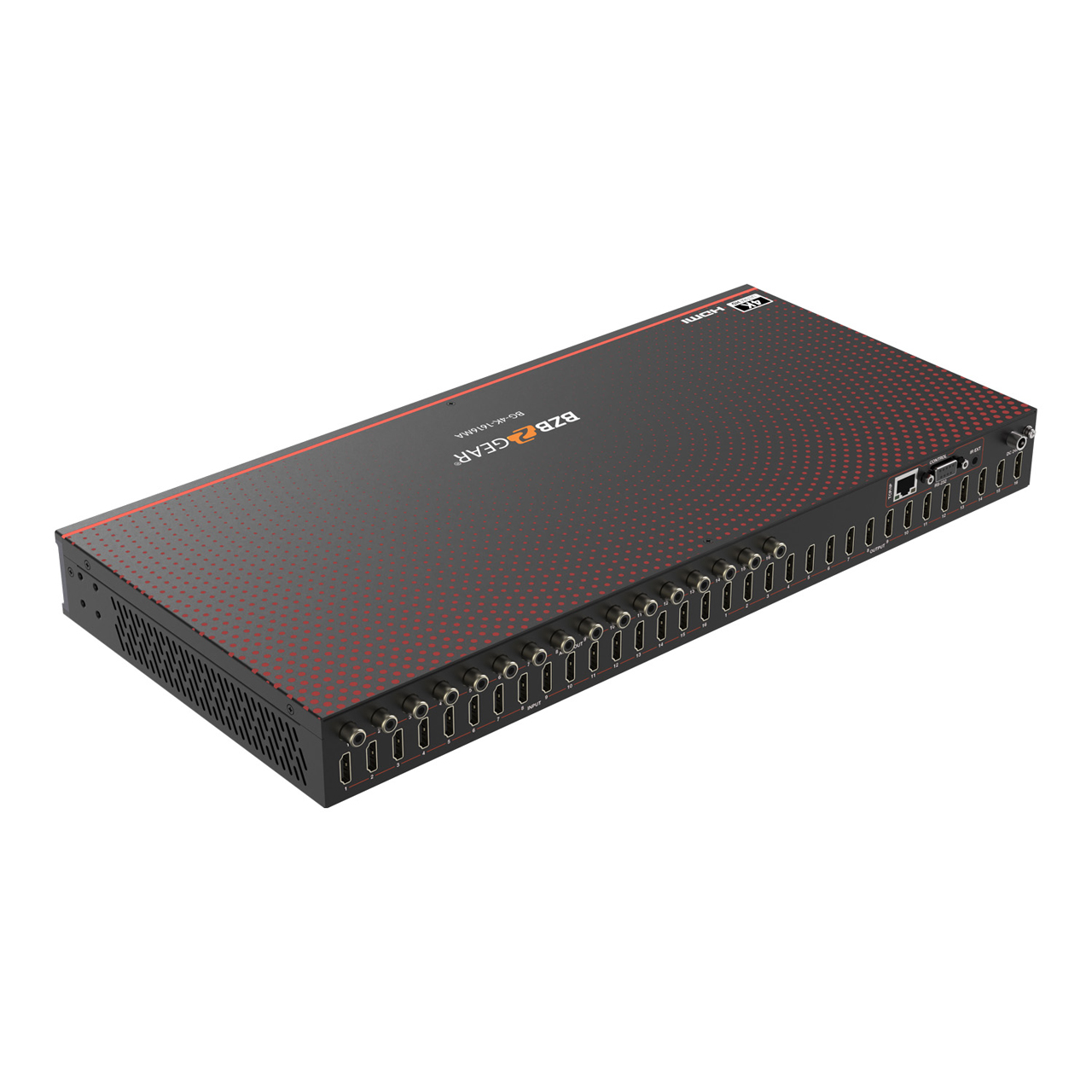

The BZBGEAR BG-4K-1616MA is a 4K HDMI matrix switcher designed to manage up to sixteen HDMI 2.0 inputs and sixteen HDMI 2.0 outputs, enabling the seamless distribution of multiple HDMI sources to various displays. Whether you need to switch between multiple sources or display a single source on all screens simultaneously, this matrix switcher offers the flexibility and control you need. Audio can also be independently routed. Experience professional-grade picture and audio quality with support for 4K resolutions and a wide range of high-quality audio formats.
Connectivity and Quality
The BG-4K-1616MA supports ultra-high resolutions up to 4K@60Hz 4:4:4 with HDR. With 18 Gbps of uncompressed bandwidth, HDMI signals are routed without losing quality. All HDMI ports on this matrix switcher are HDCP 2.2 compliant, ensuring compatibility with modern content protection standards. It also features auto-downscaling on all outputs to ensure compatibility with older displays. Furthermore, the BG-4K-1616MA supports Digital S/PDIF and Balanced audio output formats for versatile audio integration.
Control
The BG-4K-1616MA offers multiple control methods, including front panel controls, an IR remote control, RS-232, and TCP/IP (Web GUI). The included IR receiver allows for remote control operation even when the unit is hidden for a clean installation. Additionally, the full-featured web interface and control software, accessible via RS-232, enables users to adjust advanced settings such as EDID management, signal mapping, and network configurations. Control is also accessible on mobile phones, personal computers, and devices through the BG-SWITCH-CONTROL App by BZBGEAR, which is available for Windows, Mac, iOS, and Android.
Audio Matrixing
This unit features advanced audio matrixing capabilities. The audio can be independently routed from the video signals, providing flexible audio management options for a variety of installation scenarios.
Serial & Advanced IR Control with API
This matrix switcher allows you to send commands via RS-232 and IP, complemented by an intuitive API and third-party drivers for additional control options. The included IR remote is pre-programmed for a user-friendly experience when employing IR control options.
