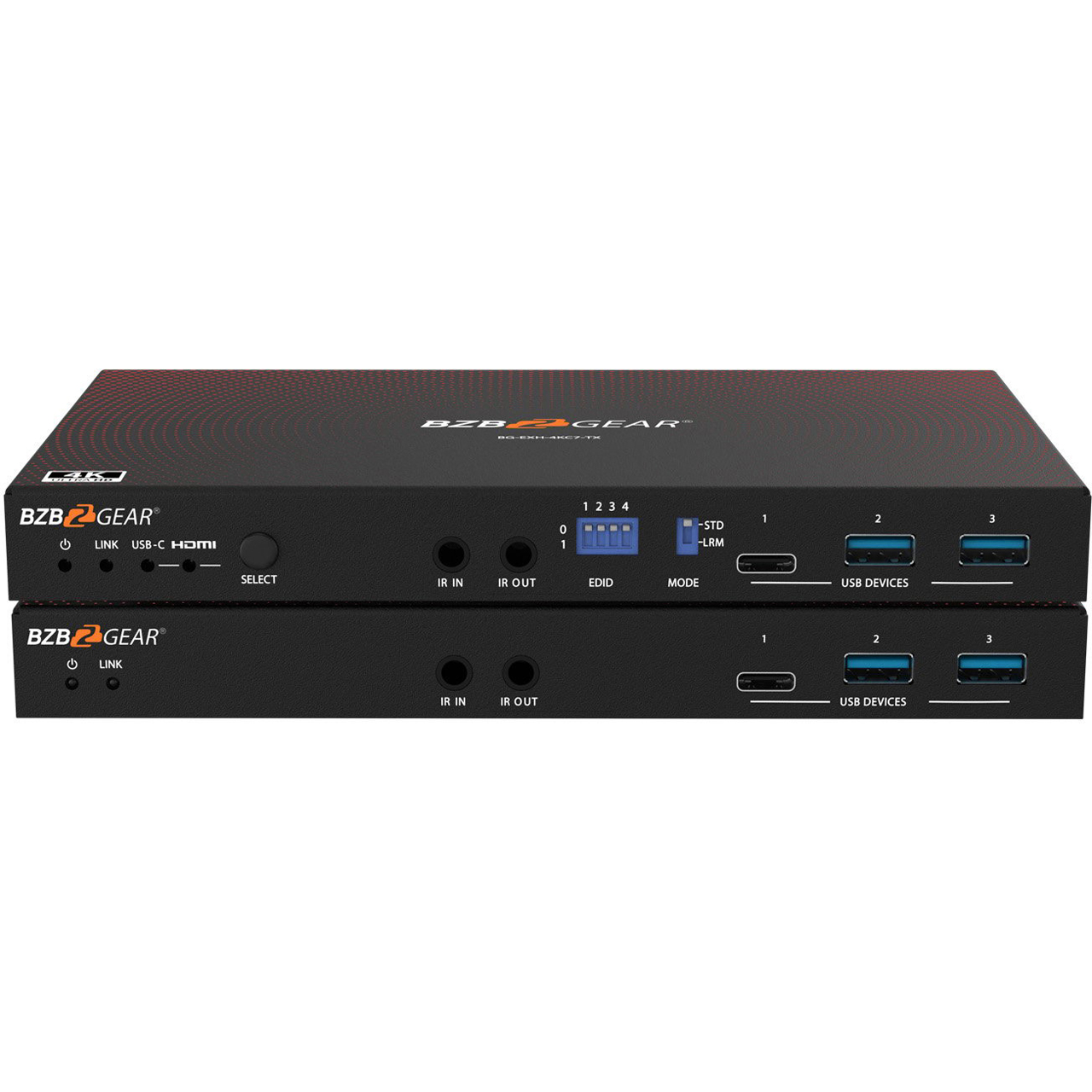

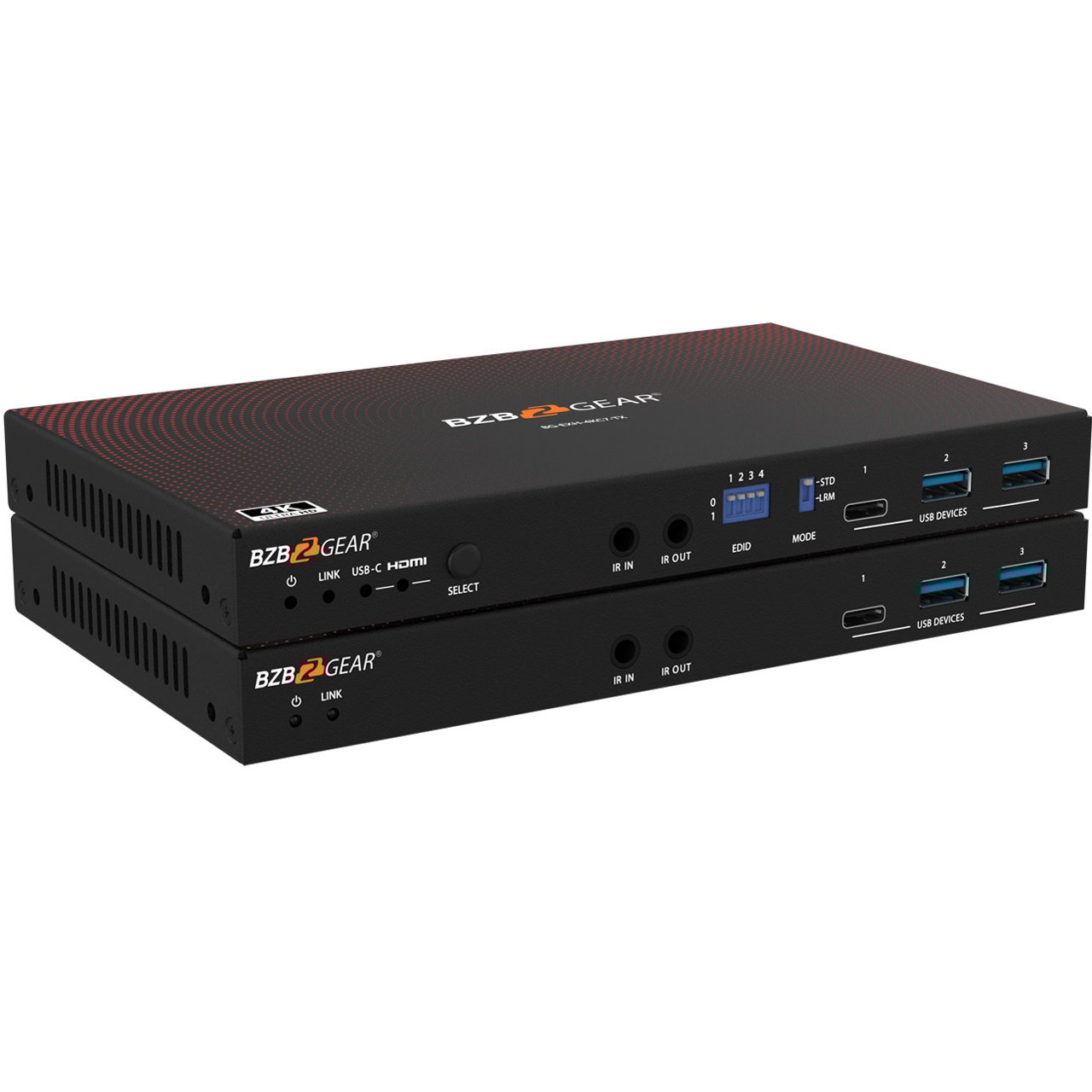

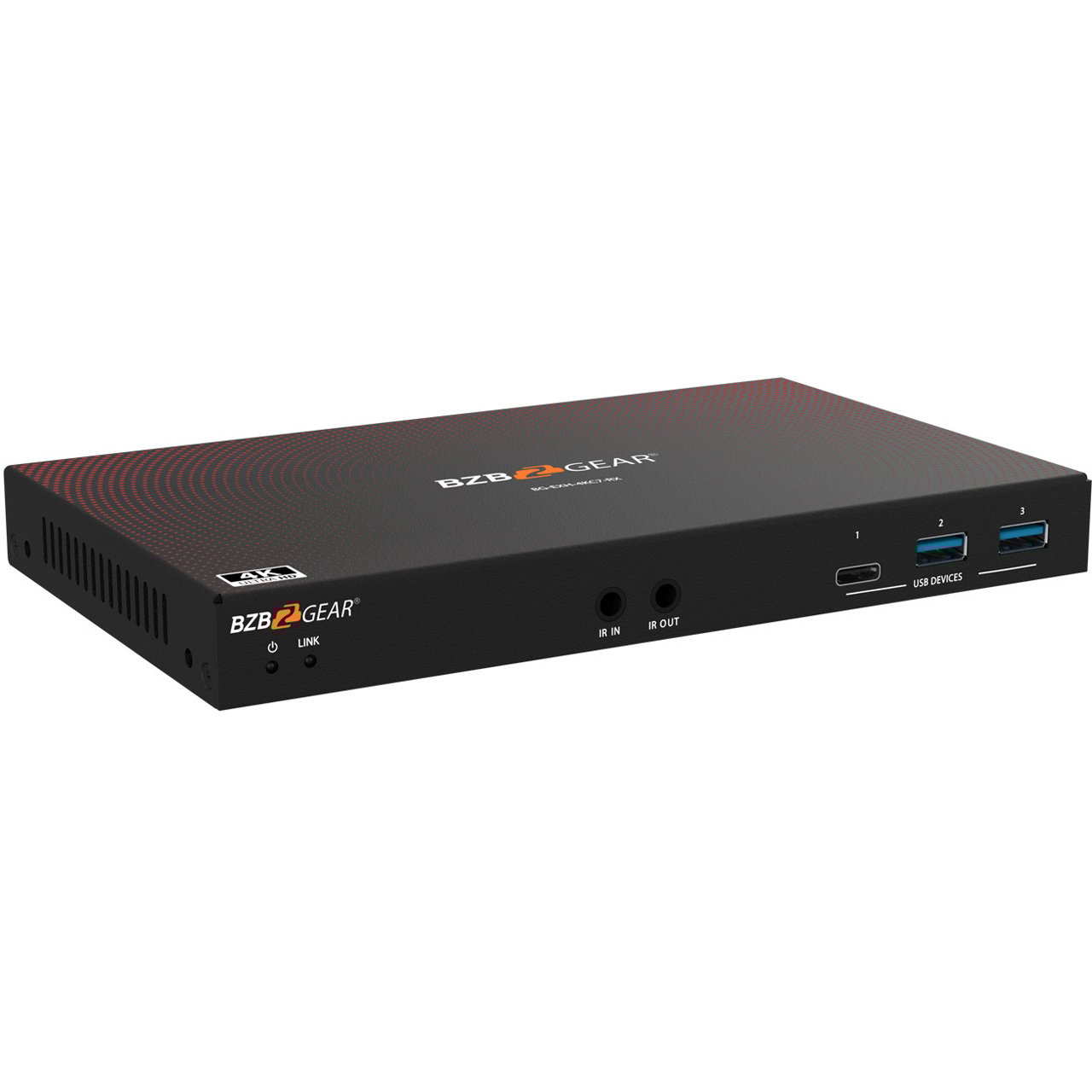

BZBGEAR BG-EXH-4KC7 4K UHD HDMI USB-C KVM HDBaseT 3.0 Extender and Switcher with USB 3.0 Ethernet IR RS-232 and POE

BG-EXH-4KC7 - Overview

• Features:

  • Advanced HDR Support
  • Transmits 4K60Hz signals up to 100m over CAT6A/7 cables
  • Versatile USB-C Input
  • Integrated Audio Extraction
  • RS-232 pass-through and API support for integration into control systems
  • Simplified Power Management


• Specifications:

  General
  • Dimensions (WxDxH):
    - Transmitter: 8.2" x 4.8" x 0.87" (208mm x 122mm x 22mm)
    - Receiver: 8.2" x 4.8" x 0.87" (208mm x 122mm x 22mm)
  • Weight:
    - Transmitter: 1.51lbs (687g)
    - Receiver: 1.4lbs (636g)
  • Power Supply:
    - Input: AC 100V - 240V 50/60Hz
    - Output: DC 24V/7.5A (US/EU standard, CE/FCC/UL certified)
  • Power Consumption (Max):
    - 173W (Power supply from TX, 100W USB-C charging, PoC to RX)
    - 73W (Power supply from TX or RX, without USB-C charging)
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)

    Technical
  • HDMI Compliance: HDMI 2.0b
  • HDCP Compliance: HDCP 2.2
  • DP Compliance: DisplayPort 1.4a
  • Video Bandwidth: 18Gbps
  • Video Resolution: 720x480i59.94Hz(480i59), 720x480p59.94Hz(480p59), 720x576i50Hz(576i50), 720x576p50Hz(576p50), 1280x720p50Hz(720p50), 1280x720p59.94Hz(720p59), 1280x720p60Hz(720p60), 1920x1080i50Hz(1080i50), 1920x1080i59.94Hz(1080i59), 1920x1080i60Hz(1080i60), 1920x1080p23.98Hz(1080p23), 1920x1080p24Hz(1080p24), 1920x1080p25Hz(1080p25), 1920x1080p29.97Hz(1080p29), 1920x1080p30Hz(1080p30), 1920x1080p50Hz(1080p50), 1920x1080p59.94Hz(1080p59), 1920x1080p60Hz(1080p60), 3840x2160p23.98Hz(2160p23), 3840x2160p24Hz(2160p24), 3840x2160p25Hz(2160p25), 3840x2160p29.97Hz(2160p29), 3840x2160p30Hz(2160p30), 3840x2160p50Hz(2160p50), 3840x2160p59.94Hz(2160p59), 3840x2160p60Hz(2160p60), 3840x2160p100Hz(2160p100), 3840x2160p120Hz(2160p120), 4096x2160p23.98Hz, 4096x2160p24Hz, 4096x2160p25Hz, 4096x2160p29.97Hz, 4096x2160p30Hz, 4096x2160p50Hz, 4096x2160p59.94Hz, 4096x2160p60Hz
  • Color Space: RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
  • Color Depth: 8/10/12bit
  • HDR:
    - HDR10
    - HDR10+
    - Dolby Vision
    - HLG
  • IR Level: 12Vp-p
  • Audio Formats:
    - HDMI/USB-C/HDBT: LPCM 2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
    - Analog Audio: LPCM 2CH (sample rate 32~192kHz)
  • USB Support:
    - Transmitter: USB 3.2 Gen 1 5Gbps, compatible with USB 2.0 480Mbps
    - Receiver: USB 2.0 350Mbps
  • USB Host Ports:
    - Transmitter: 1x USB-C 3.2 Gen 1 + 1 USB-B 3.2 Gen 1
  • USB Device Ports:
    - Transmitter: 1x USB-C 3.2 Gen 1 + 2x USB-A 3.2 Gen 1
    - Receiver: 1x USB-C 2.0 + 3x USB-A 2.0
  • Host Ports:
    - Transmitter: 1x USB-C port (100W charging)
  • Device Ports:
    - Transmitter: 1x USB-C port (1A) + 2x USB A port (1.5A)
    - Receiver: 1x USB-C port (1A) + 3x USB A port (1A)
  • Transmission Distance:
    - HDMI/USB-C passive cable: 16.4ft (5m)
    - USB 3.2 Gen 1 5Gbps passive cable: 5.9ft (1.8m)
    - CAT6A/7 cable: 328ft (100m) @ 4K60 (HDBT Standard Mode)
    - CAT6A/7 cable: 492ft (150m) @1080P (HDBT Long Reach Mode)
  • ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

    Audio Parameters
  • Output Impedance:
    - 600Ω balanced
    - 300Ω unbalanced
  • Output Level (Max):
    - Max 8.2dBu (2Vrms) balanced audio
    - Max 2.2dBu (1Vrms) unbalanced audio
  • Frequency Response: 20Hz - 20kHz (±0.5dB)
  • Dynamic Range: > 90dB @ 0dBu, 1kHzA-weighted
  • Audio S/N Ratio: > 90dB @ 0dBu, 1kHzA-weighted
  • Audio THD+N: < 0.01% @ +4dBu, 1kHz
  • Audio Output Delay: < 1ms

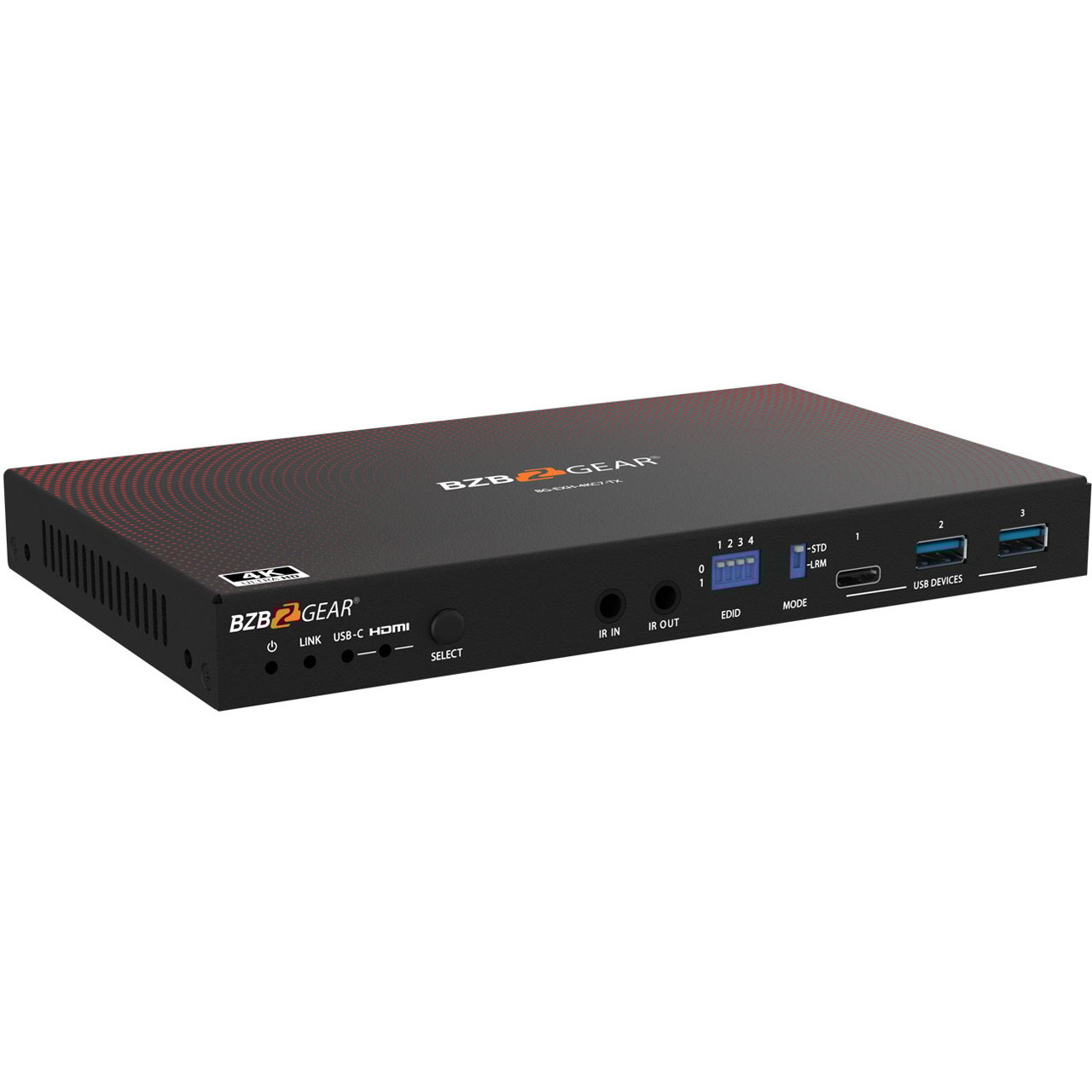

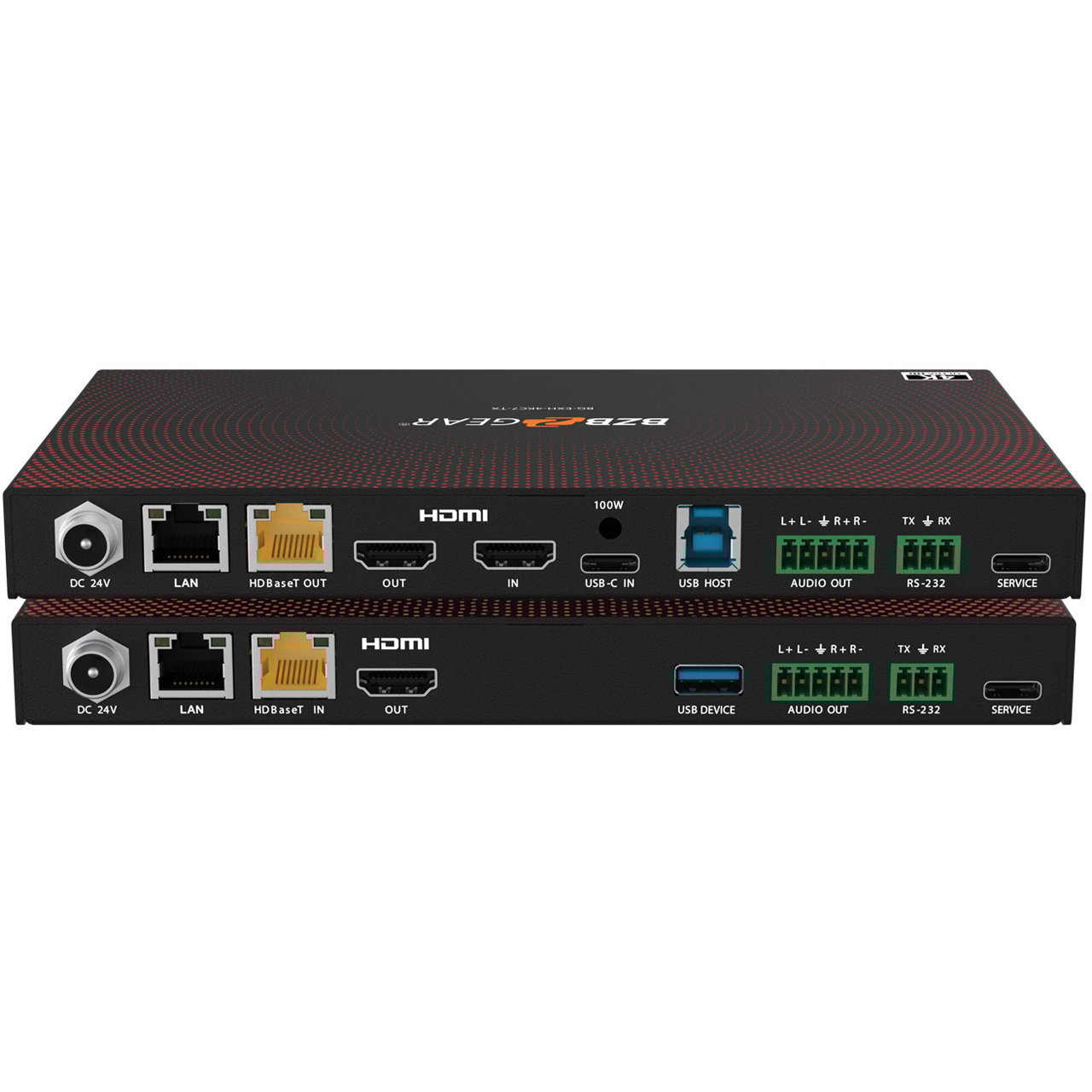

    Transmitter IO
  • Input:
    - 1x HDMI IN (Type A, 19-pin female)
    - 1x USB-C IN (USB Type C, 24-pin female)
  • Output:
    - 1x HDBaseT OUT (RJ45, HDBT output with 24V PoC)
    - 1x HDMI OUT (Type A, 19-pin female)
    - 1x AUDIO OUT (5pin-3.5mm phoenix connector)
  • Control:
    - 1x LAN (RJ45 connector, 1G Ethernet pass-through)
    - 1x RS-232 (3pin-3.5mm phoenix connector)
    - 1x SERVICE (USB-C with USB 2.0 only, 12-pin female)
    - 1x USB HOST (USB Type B, 9-pin female)
    - 1x USB DEVICES (USB 3.2 Type C, 24-pin female)
    - 2x USB DEVICES (USB 3.2 Type A, 9-pin female)
    - 1x IR IN (3.5mm audio jack, 12V level)
    - 1x IR OUT (3.5mm audio jack)


• Item Includes:

  • 1x BG-EXH-4KC7 4K HDMI/USB-C over HDBaseT 3.0 Extender (Transmitter)
  • 1x BG-EXH-4KC7 4K HDMI/USB-C over HDBaseT 3.0 Extender (Receiver)
  • 2x 3pin-3.5mm Phoenix Connector (male)
  • 2x 5pin-3.5mm Phoenix Connector (male)
  • 4x Mounting Ear
  • 8x Machine Screw (KM3*6)
  • 1x IR Blaster Cable (1.5m)
  • 1x IR Receiver Cable (1.5m)
  • 1x 24V/7.5A Desktop Power Supply
  • 1x User Manual


• Warranty:

  • 5 Year Limited Warranty


• GTIN:

  0850050134725
