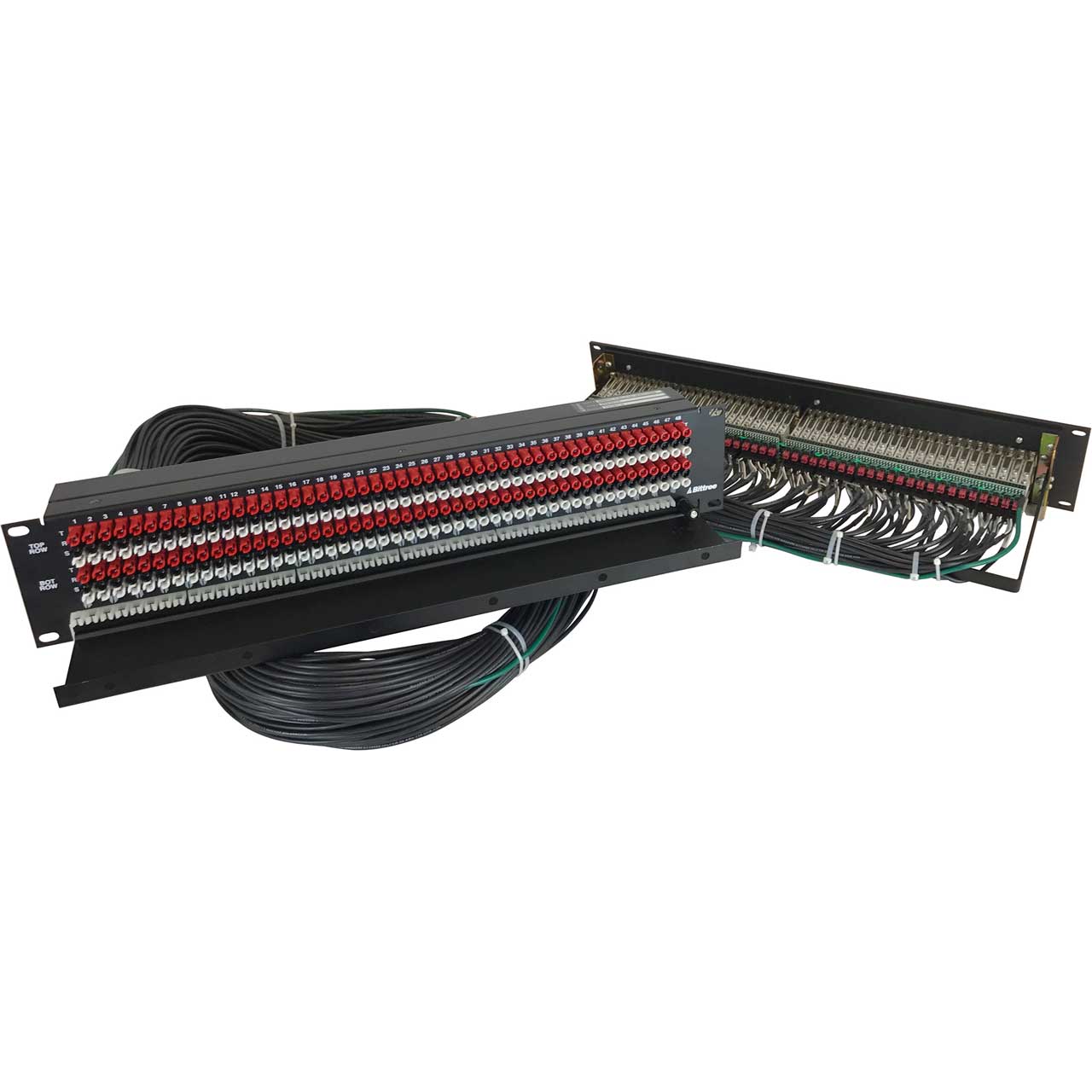

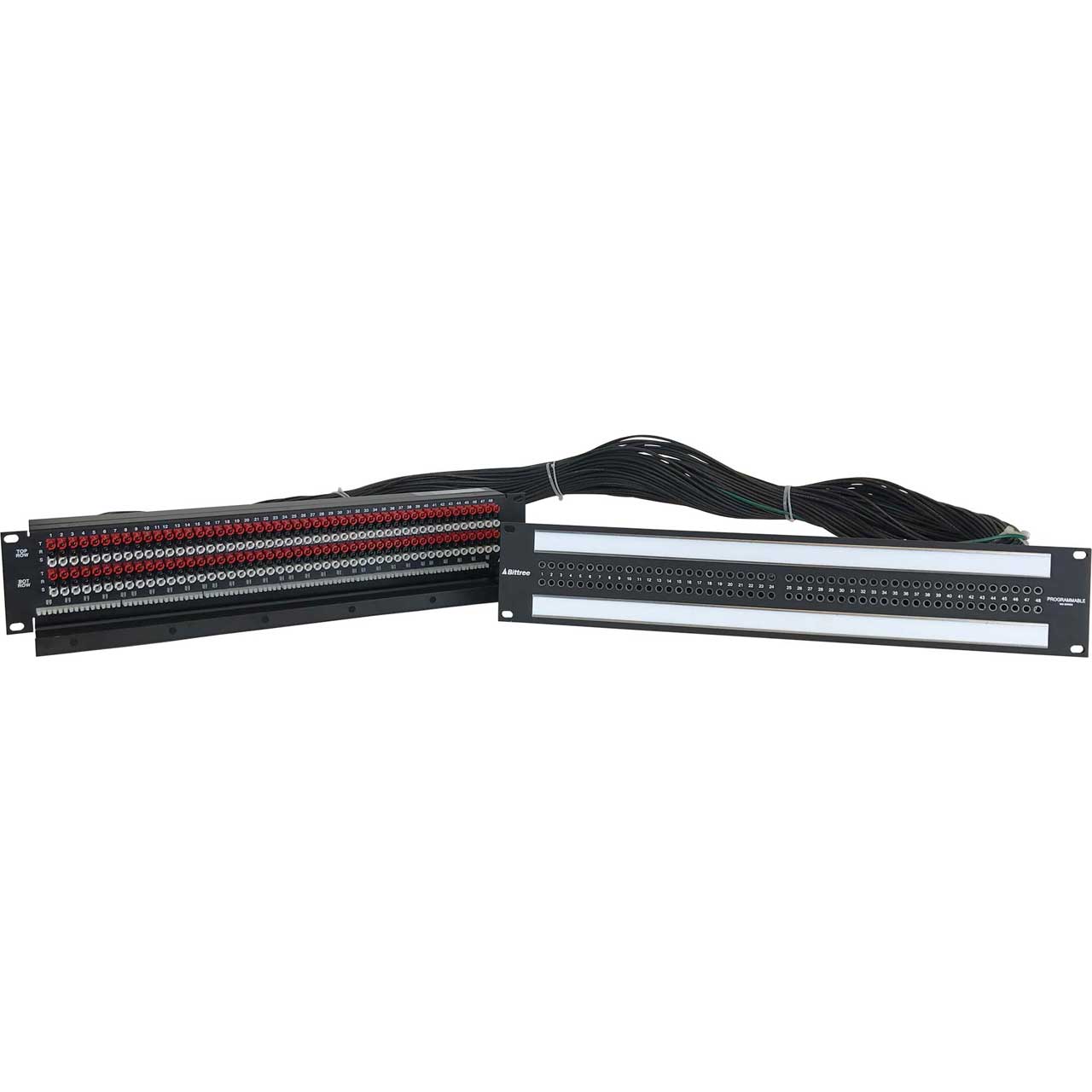

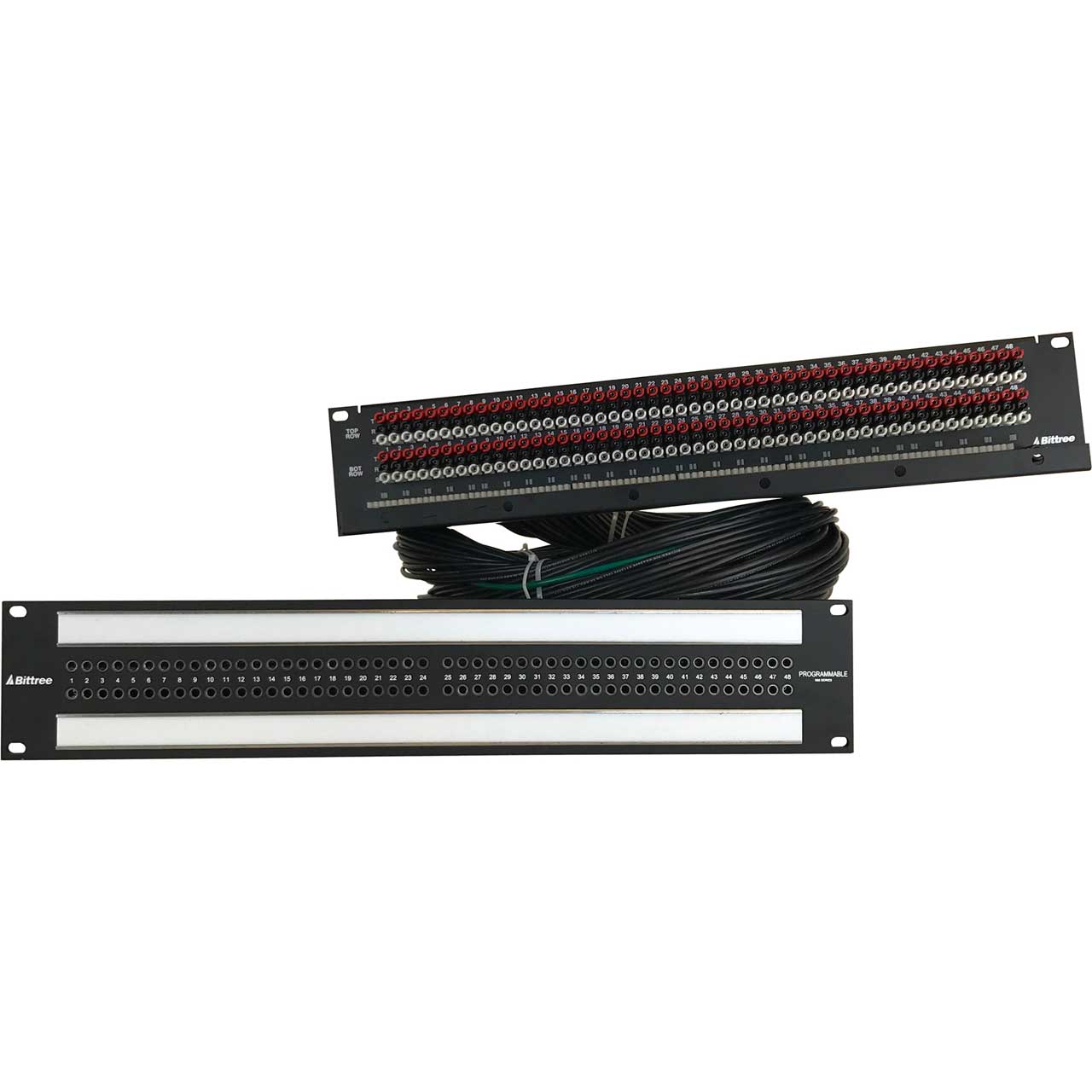

Bittree B96DH-FNRST/ID 2RU 2x48 Mono Spaced TT Bantam Patchbay with 2 Over/Under Type Designation Strips

B96DH-FNRST/ID - Overview

• Features:

  • Bittree 2x48 TT Internally Programmable Harness Audio Patchbay
  • High-density 2x48 jack configuration with mono (even) jack spacing
  • Selectable normalling and grounding: Circuits can be easily changed via shunts behind front panel
  • Digital AES wire used for internal wiring
  • 1-48 left-to-right numbering on front panel for easy circuit identification
  • 2 x designation strip assemblies, "Over/Under" orientation: 1RU - DS250-10-ASSY, 1.5RU - DS800-10-ASSY, 2RU - DS870-10-ASSY
  • Mating hardware included with E3 and ID (Punchdown) rear interfaces
  • 6" (15.24 cm) deep removable rear lacing bar included with E3 and ID (Punchdown) rear interfaces
  • Entire harness is detachable from the front panel for simplified installation in certain scenarios

    Options
  • Rear Panel and Interface -- choose from three standard options E3, 1RU (3 pin ELCO connectors), E3, 2RU (3 pin ELCO connectors), ID, 2RU (Punchdown)
  • Normalling & Grounding -- choose from three standard configurations or specify your own at checkout: Normalling -- circuits can be programmed to full normal, half normal or non- normal, - Grounding -- patchbays are supplied with switched grounds by default; circuits can be reprogrammed for bussed, isolated, or looped grounds
  • Harness Length: 48" (121.92 cm) long. Other lengths available, please contact us

    About Switched Grounds (Sleeve Normalling)
  • Patchbays with switched grounds feature an additional switching contact in every jack.
  • Grounds are lifted when patching, ensuring a proper grounding scheme is maintained, and ground loops, or earth loops, are avoided.
