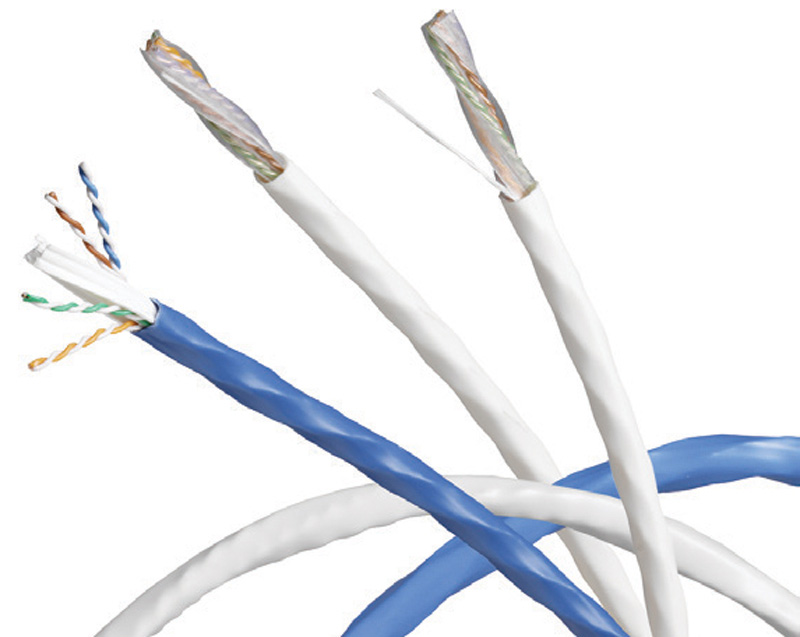

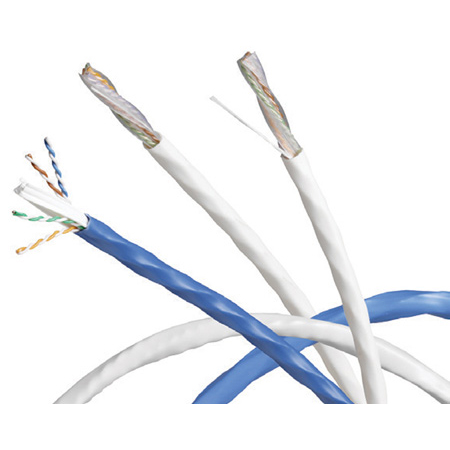

Belden 10GX12 23 AWG 4 Pair Enhanced Category 6A Cable - Black - 1000 Foot

ITEM #: BL-10GX12-1000 MFG #: 10GX12 0101000

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order


Availability: Sold Out
iAvailability Description Popup


    10GX12 0101000 - Overview

    Multi-Conductor - Enhanced Category 6A Nonbonded-Pair Cable
    Belden 10GX12 is a 10GX Category 6A Enhanced Premise Horizontal Cable (625MHz), 4 Pair, 23 AWG Solid Bare Copper Conductors, U/UTP, Riser-CMR, PVC Jacket. Suitable for Premise Horizontal Cable, Ethernet up to 10GBASE-T, HDBaseT, PoE++, PoE+, and PoE applications.

    • Specifications:

      • AWG: 24
      • Stranding: Solid
      • Material: BC - Bare Copper
      • Pairs: 4
      • Max. Conductor DCR: 74 Ohm/km
      • Max. DCR Unbalance: 3%
      • Max. DCR Unbalanced Between Pairs [%]: 5%
      • Max. Capacitance Unbalance: 50 pF/100m
      • Nom. Mutual Capacitance: 17 pF/ft
      • Nom. Velocity of Prop.: 64%
      • UL Voltage Rating: 300 V (CMR), 300 V (CL3R)
      • UL Rating Temp: 90°C
      • Operating Temp: -20°C To +75°C
      • Installation Temp: 0°C To +50°C
      • Storage Temp: -20°C To +75°C
      • Max. Pull Tension: 25 lbs
      • Bulk Cable Weight: 36 lbs/1000ft
      • EnvironmentalSuitability: Riser, Indoor
      • Sustainability: Product Lens, Environmental Product Declaration (EPD) Available
      • Flammability / Fire Resistance: UL 1666 Riser, FT4, FT4, IEC 60332-1-2
      • NEC / UL Compliance: 800, CMR;CMR-LP (0.5A);CL3R-LP (0.5A)
      • CEC / C(UL) Compliance: CMR
      • ICEA Compliance: S-116-732-2013
      • IEEE Compliance: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
      • NEMA Compliance: ANSI/NEMA WC-66
      • Data Category: Category 6A
      • TIA/EIA Compliance: ANSI/TIA-568.2-D Category 6A
      • Cenelec Compliance: Segregation class according EN50174-2=a

    • GTIN:

      0612825102168
