Belden 1222B Multi-Pair Cable 16 Pair - 1000 Foot Roll
Questions? Ask a Markertek Expert:
800-522-2025 Email

Belden 1222B Multi-Pair Cable 16 Pair - 1000 Foot Roll

Manufacturer: Belden

Item #: BL-1222B-1000   •   MFG #: BL-1222B-1000


List Price:$10,029.20
Our Price:$7,454.19

free ship


Availability: Usually ships in 3-10 business days
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


California Residents:
Cancer and Reproductive Harm -

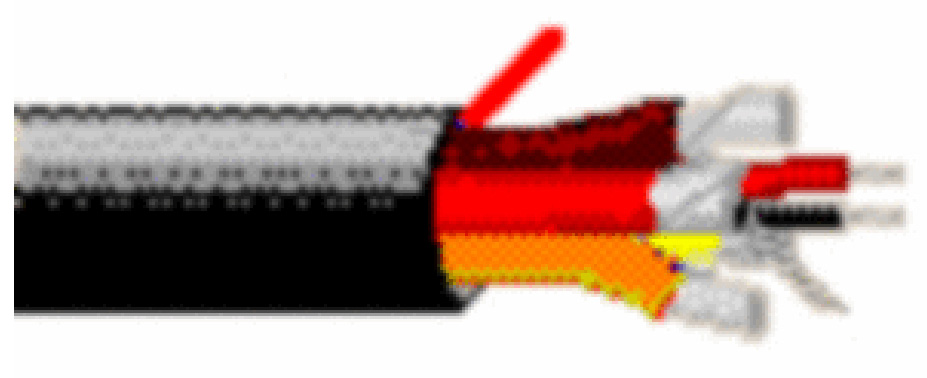

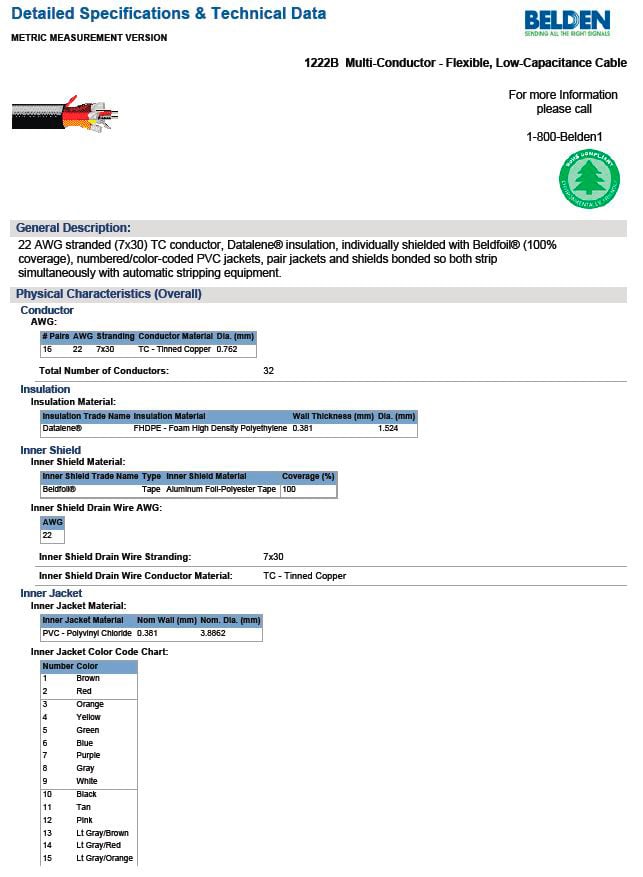

22 AWG stranded (7x30) TC conductor, Datalene insulation, individually shielded with Beldfoil (100% coverage), numbered/colorcoded PVC jackets, pair jackets and shields bonded so both strip simultaneously with automatic stripping equipment.

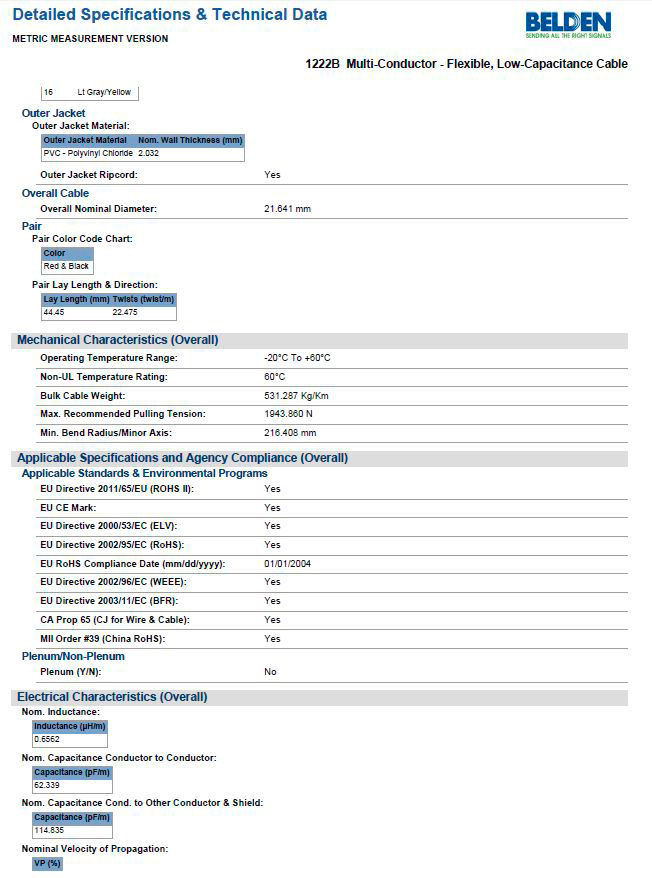

  • Specifications

    • Number of Pairs 16
    • Total Number of Conductors 32
    • AWG 22
    • Stranding 7x30
    • Conductor Diameter .030 in.
    • Conductor Material TC - Tinned Copper

    • Insulation Material Trade Name Datalene
    • Insulation Material FHDPE - Foam High Density Polyethylene
    • Nom. Insulation Wall Thickness .015 in.
    • Insulation Diameter .060 in.
    • Lay Length 1.75 in.
    • Twists/ft. 6.85
    • Pair Color Code Chart Red & Black

    • Inner Shield Material Trade Name Beldfoil
    • Inner Shield Type Tape
    • Inner Shield Material Aluminum Foil-Polyester Tape
    • Inner Shield % Coverage 100 %
    • Inner Shield Drain Wire AWG 22
    • Inner Shield Drain Wire Stranding 7x30
    • Inner Shield Drain Wire Conductor Material TC - Tinned Copper

    • Inner Jacket
    • Inner Jacket Material PVC - Polyvinyl Chloride
    • Inner Jacket Nominal Wall Thickness .015 in.
    • Inner Jacket Diameter .153 in.
