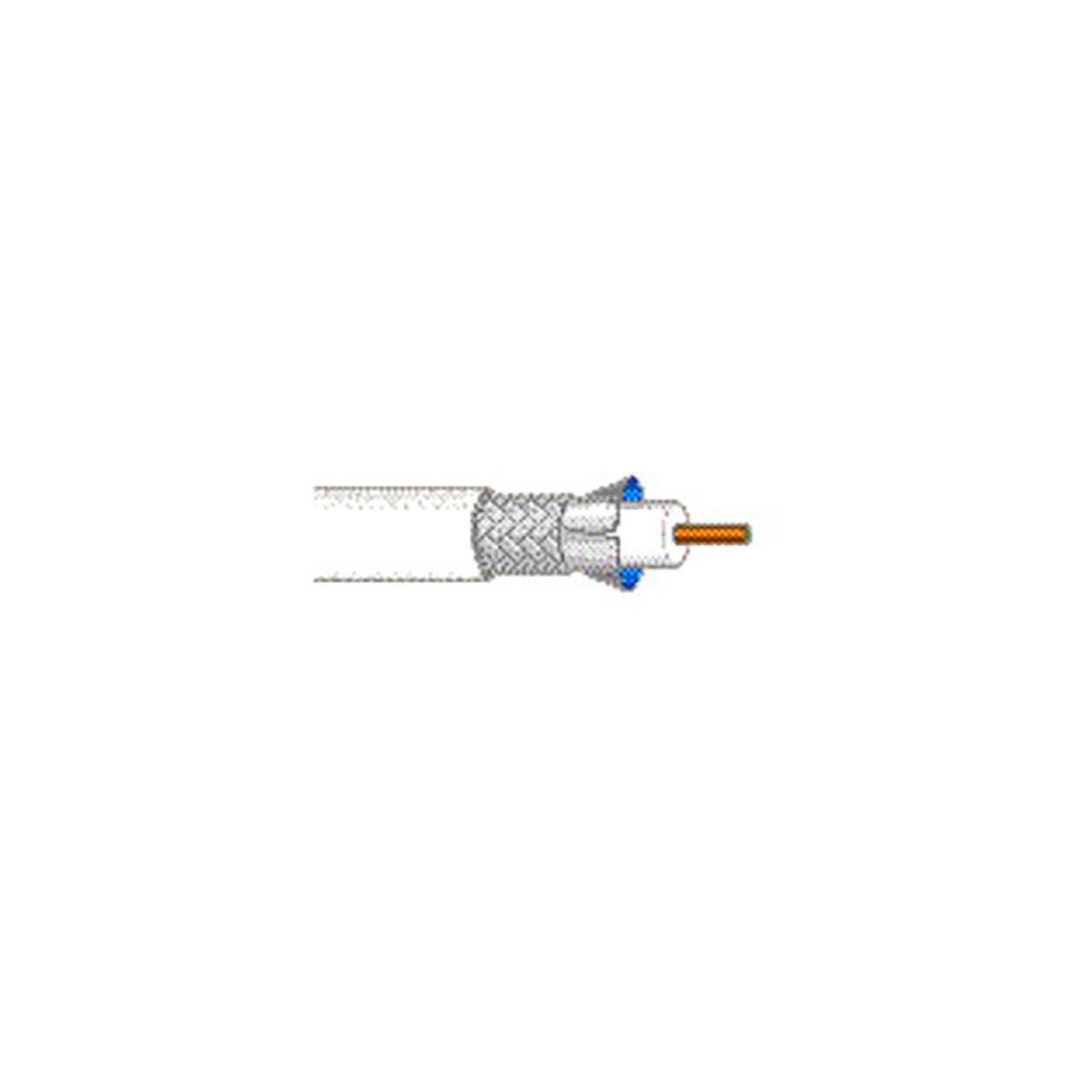

Belden 1369P CMP/Plenum RG6 Plenum Digital Coaxial Cable - Solid Sheild/BCCS 18AWG - Black - 1000 Foot

1369P 0101000 - Overview

• Specifications:

  • Cable Type: Coaxial - Plenum
  • Cable Group: RG-6
  • Wire Gauge: 18 AWG
  • Conductor Strand: Solid
  • Conductor Count: 1

  • Jacket (Insulation) Material: Low Smoke Poly-Vinyl Chloride (LSPVC)
  • Jacket (Insulation) Diameter: 0.231" (5.87mm)
  • Shield Type: Foil, Braid
  • Impedance: 75Ω
  • Length: 1000.0' (304.80m)
  • Jacket Color: Black
  • Usage: Analog Video
  • Conductor Material: Copper, Bare
  • Dielectric Material: Foam Fluorinated Ethylene Propylene (FFEP)
  • Dielectric Diameter: 0.168" (4.27mm)
  • Shield Material: Aluminum; Copper, Tinned
  • Shield Coverage: 100%, 85%
  • VoP, Velocity of Propagation: 83.0
  • Operating Temperature: -4°F - 167°F (-20°C - 75°C)
  • Bulk Cable Weight: 33.5lbs/1000ft
  • Max. Pull Tension: 64lbs
  • Min. Bend Radius/Minor Axis: 2.5"
