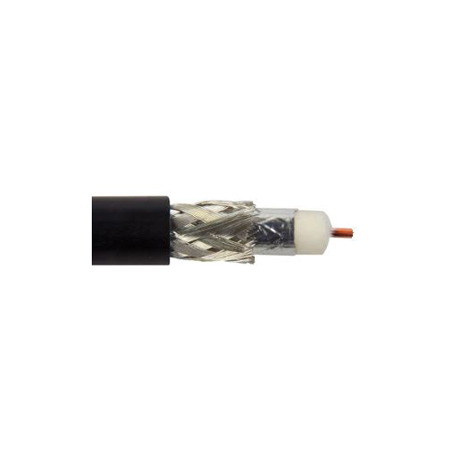

Belden 1369R Riser/CMR Indoor RG6 Serial Digital Coax Video Cable BC/Shielded 18AWG - Black - 1000 Ft

1369R 0101000 - Overview

• Features:

  • Specially formulated gas injected high density foam polyethylene is more crush-resistant than standard polyethylene. Even with rough handling during installation, it resists deformation and maintains impedance and return loss characteristics.
  • Belden's skin/foam insulation process provides the right amount of conductor adhesion for easier stripping and improved connector reliability.
  • Compared to SMPTE's return loss limit, Belden's Precision Video Coax provides significant RL headroom to account for potential losses elsewhere in the transmission line.

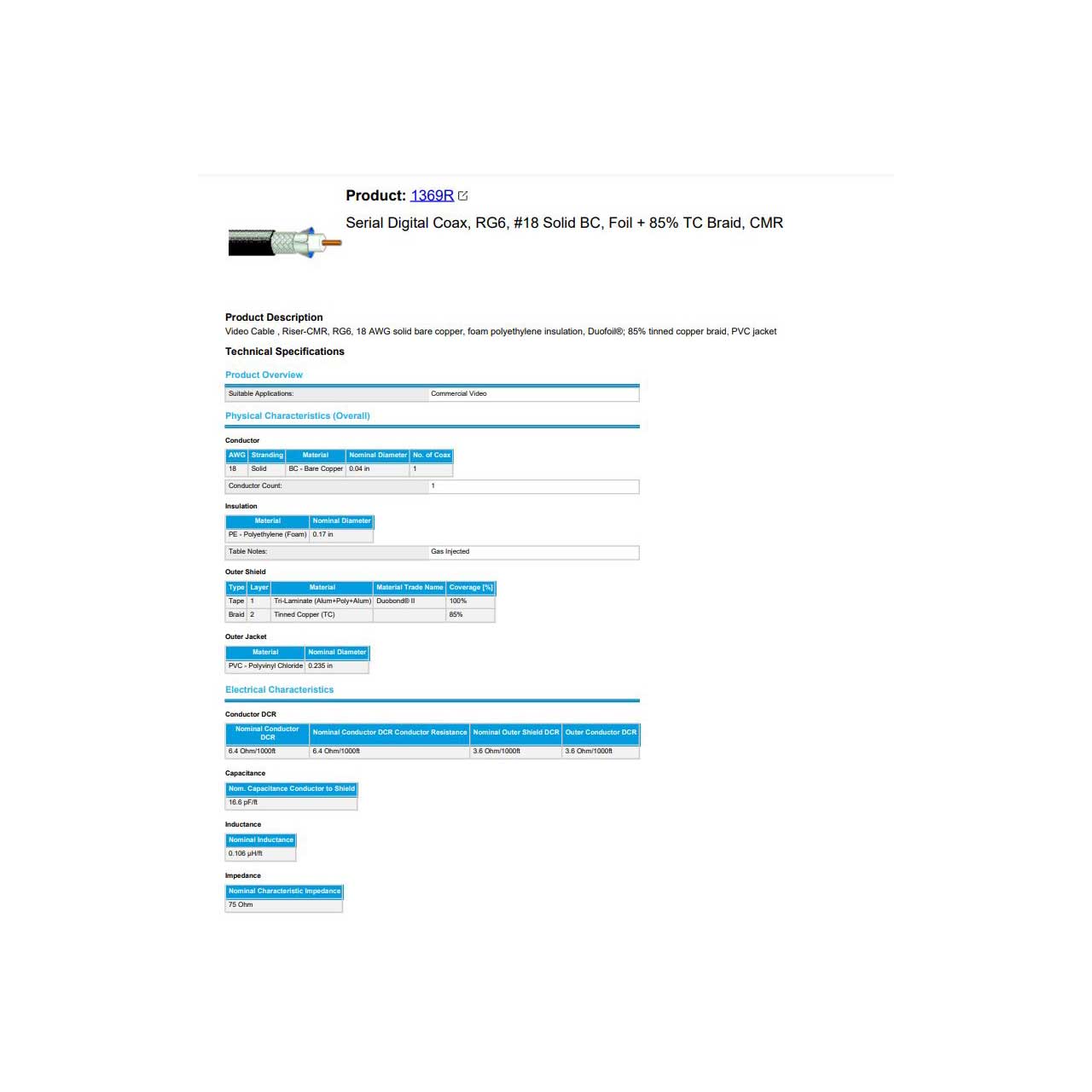

• Specifications:

  • Conductor AWG: 18
  • Conductor Stranding: Solid
  • Conductor Material: Bare Copper
  • Conductor Nominal Diameter: 0.04 in
  • No. of Coax: 1
  • Insulation Material: PE - Polyethylene (Foam)
  • Insulation Nominal Diameter: 0.17 in
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Outer Jacket Nominal Diameter: 0.235 in
  • Nominal Conductor DCR: 6.4 Ohm/1000ft
  • Nominal Conductor DCR Conductor Resistance: 6.4 Ohm/1000ft
  • Nominal Outer Shield DCR: 3.6 Ohm/1000ft
  • Outer Conductor DCR: 3.6 Ohm/1000ft
  • Nom. Capacitance Conductor to Shield: 16.6 pF/ft
  • Nominal Inductance: 0.106 µH/ft
  • Nominal Characteristic Impedance: 75 Ohm

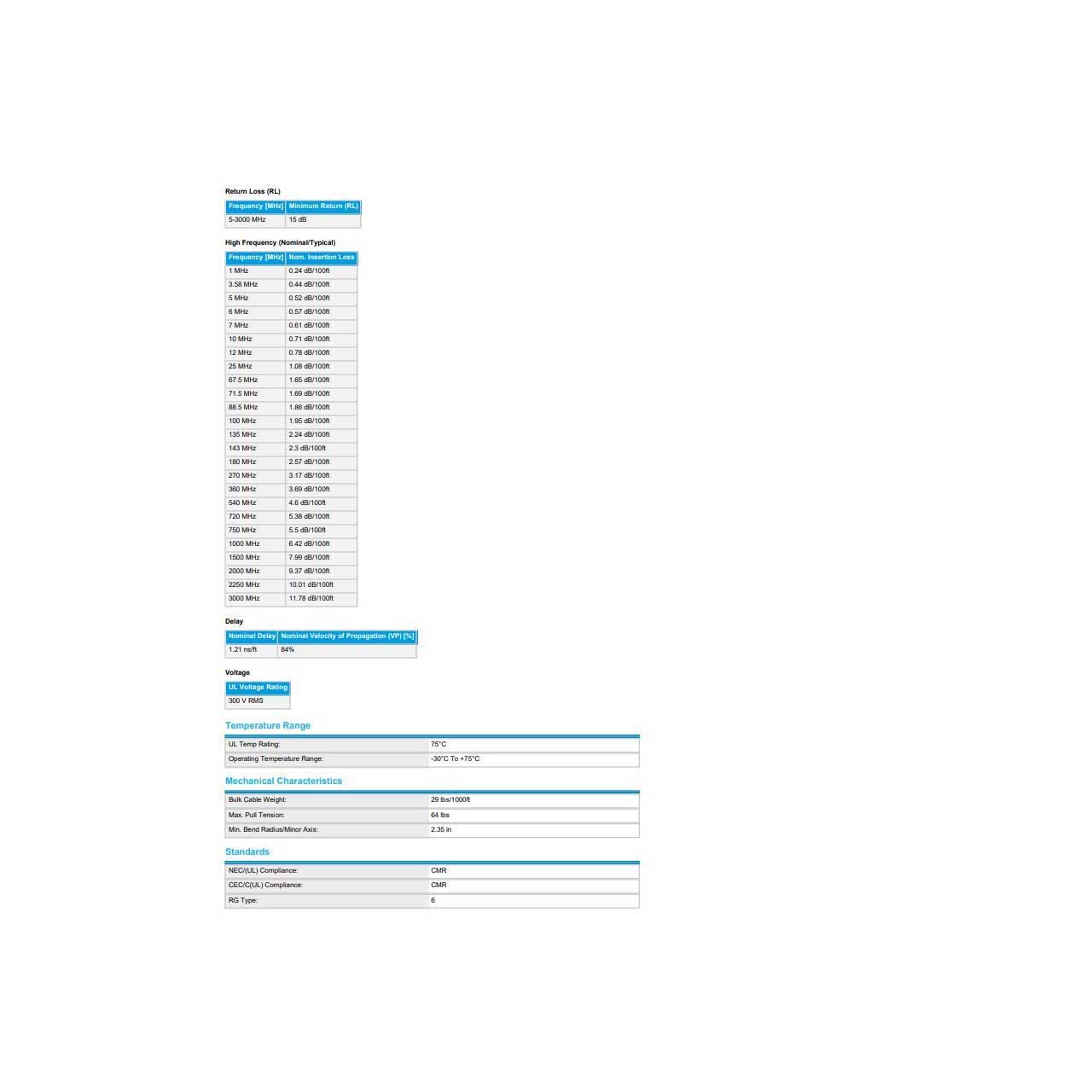

  • Frequency [MHZ] Return Loss: 5-3000 Mhz
  • Minimum Return Loss: 15 dB
  • Nominal Delay: 1.21 ns/ft
  • Nominal Velocity of Propagation (VP) [%]: 84%
  • UL Temp Rating: 75°C
  • Operating Temperature Range: -30°C To +75°C
  • Bulk Cable Weight: 29 lbs/1000ft
  • Max. Pull Tension: 64 lbs
  • Min. Bend Radius/Minor Axis: 2.35 in
  • NEC/(UL) Compliance: CMR
  • CEC/C(UL) Compliance: CMR
  • RG Type: 6
  • Environmental Space: Indoor - Riser
  • UL Flammability: UL1666 Vertical Shaft
  • UL voltage rating: 300 V RMS
  • Plenum (Y/N): No
  • Plenum Number: 1369P


• Item Includes:

  • 1369R RG6 18 AWG Riser-CMR Indoor Serial Digital Coax Video Cable - Black - 1000 Ft


• Warranty:

  • 10 Year Limited Warranty
