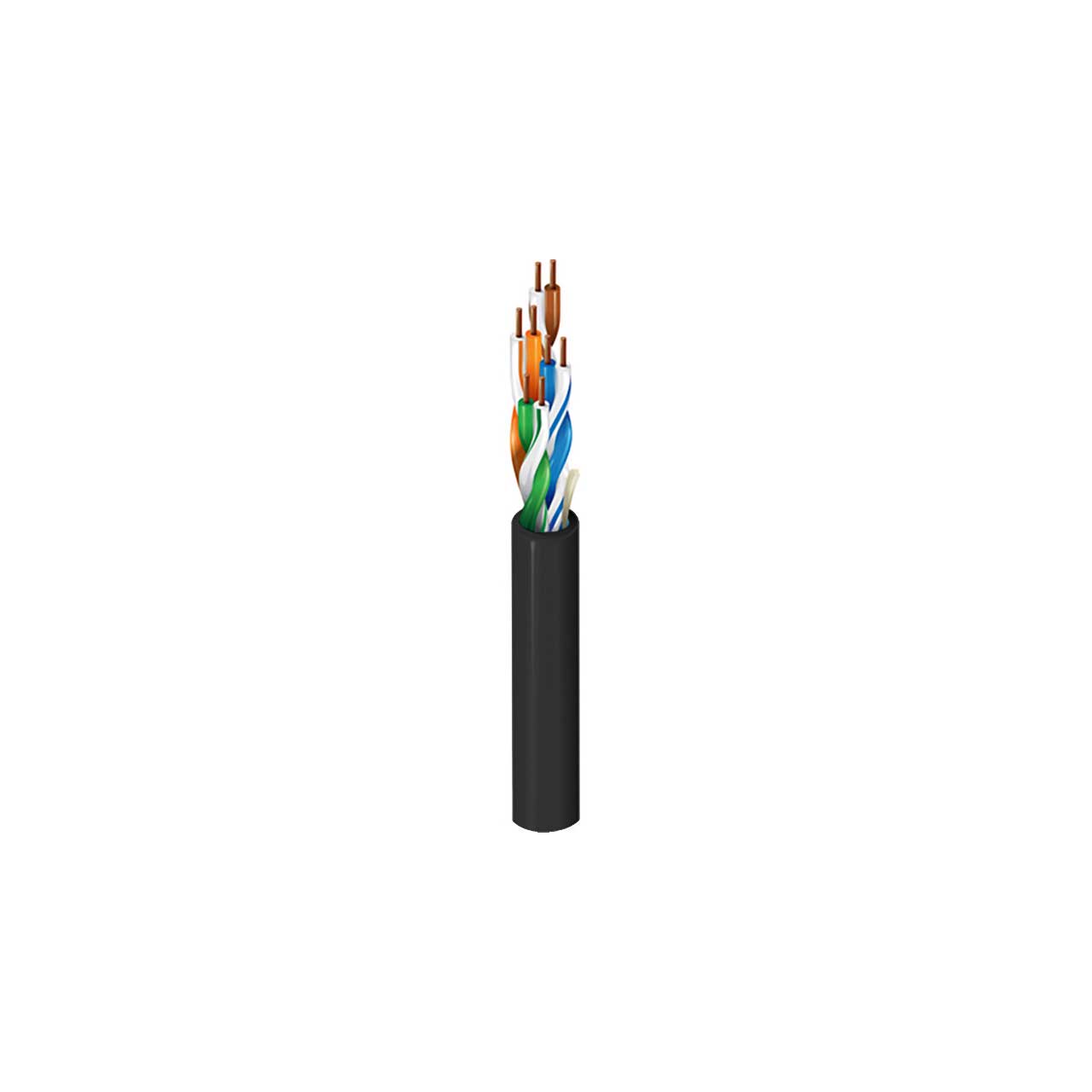

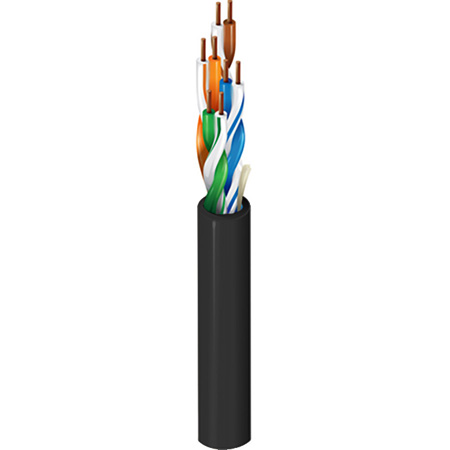

Belden 1752A Multi-Conductor Enhanced CAT5e Bonded-Pair - Black - 1000 Foot/Unreel Put-Up

ITEM #: BL-1752A-U1000BK MFG #: 1752A 010U1000

Primary Image
Belden
Free Shipping with $49 Minimum Order

List Price:

$898.30

Our Price:

$730.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    1752A 010U1000 - Overview

    Belden 1752A is a CAT5e+ (350MHz), 4-Bonded-Pair, U/UTP-unshielded, CM, Premise Patch cable, 24 AWG Bonded stranded (7x32) tinned copper conductors, polyolefin insulation, PVC jacket, and RJ-45 compatible. Suiteable for Premise Patch Cable Designed for Attenuation Stability in High Humidity Environments, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU, Digital Video, RS-422, Noisy Environments applications.

    • Specifications:

      • AWG: 24
      • Stranding: 7x32
      • Material: TC - Tinned Copper
      • Conductor Count: 8
      • Total Number of Pairs: 4
      • Max. Conductor DCR: 90 Ohm/km
      • Max. DCR Unbalance: 3 %
      • Max. Capacitance Unbalance: 160 pF/100m
      • Nom.Mutual Capacitance: 15 pF/ft
      • UL Voltage Rating: 300 V RMS
      • Installation Temp Range: 0°C To +50°C
      • UL Temp Rating: 75°C
      • Storage Temp Range: -20°C To +75°C
      • Operating Temp Range: -20°C To +75°C
      • Bulk Cable Weight: 21 lbs/1000ft
      • Max Recommended Pulling Tension: 40 lbs
      • Min Bend Radius During Installation: 2.2 in
      • Min Bend Radius/Minor Axis: 1.0 in
