Belden 1829R 18 AWG BCCS Solid DBS RG6 Coax Cable - Black - 1000 Foot Unreeled

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Belden 1829R 18 AWG BCCS Solid DBS RG6 Coax Cable - Black - 1000 Foot Unreeled

    Manufacturer: Belden

    Item #: BL-1829R-U1000BK   •   MFG #: 1829R 010U1000



    List Price:$196.60
    Our Price:$152.70

    free ship


    Availability:
    More on the way, usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.


    • Special Order Item: non-cancelable, non-returnable, non-refundable.

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

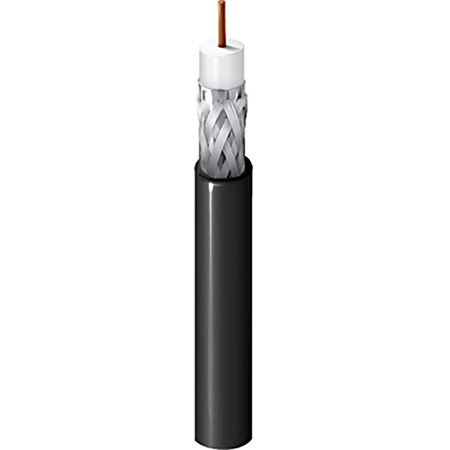

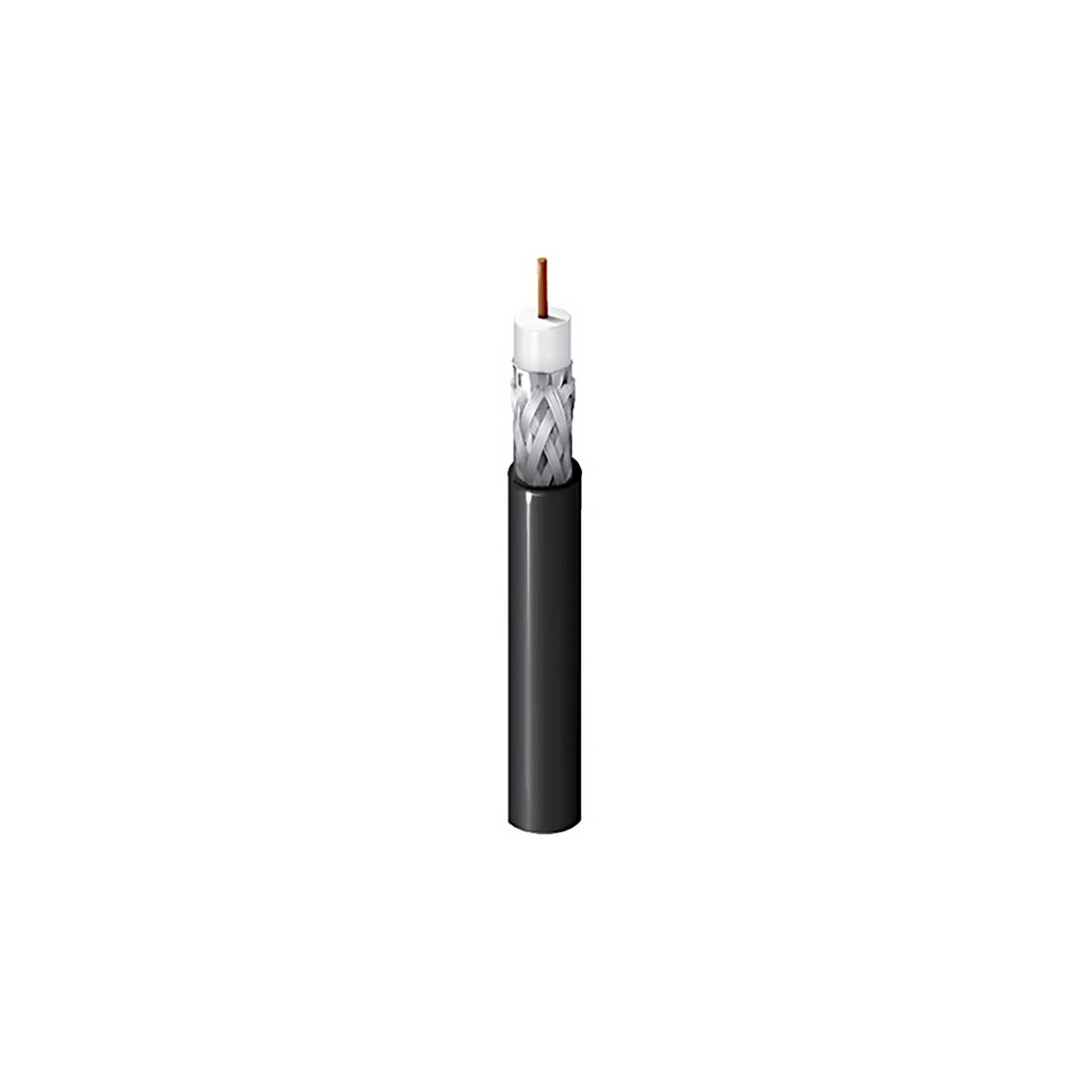

    The Belden 1829R is an 18 AWG BCCS (Bare Copper Covered Steel) solid RG6 coax cable. It's made up of a .040" bare copper-covered steel conductor, gas-injected foam polyethylene insulation, Duobond II tape shield for 100% coverage and aluminum braid shield for 60% coverage, and a PVC jacket. This cable is ideal for indoor use in Satellite, Direct Broadcast Satellite (DBS), TV, and Antenna installs.


    • Specifications

      • Environmental Space: Indoor - Riser
      • Suitable Applications: Satellite, DBS, TV, Antenna
      • AWG: 18
      • Stranding: Solid
      • Material: BCCS - Bare Copper Covered Steel
      • Nominal Diameter: 0.04in
      • No. of Coax: 1
      • Conductor Count: 1
      • Nominal Conductor DCR: 28 Ohm/1000ft
      • Nominal Outer Shield DCR: 9 Ohm/1000ft
      • Outer Conductor DCR: 9 Ohm/1000ft
      • Installation Temp Range: -30°C To +80°C
      • Operating Temp Range: -40°C To +80°C
      • Bulk Cable Weight: 29 lbs/1000ft
      • Max Recommended Pulling Tension: 126 lbs
      • Min Bend Radius/Minor Axis: 2 in
      • NEC/(UL) Specification: CATVR, CMR
      • CEC/C(UL) Specification: CMG
      • RG Type: 6/U Type
      • Series Type: Series 6
      • Other Specification: CEC/C(UL): CMG

    • GTIN:

      0612825124153
