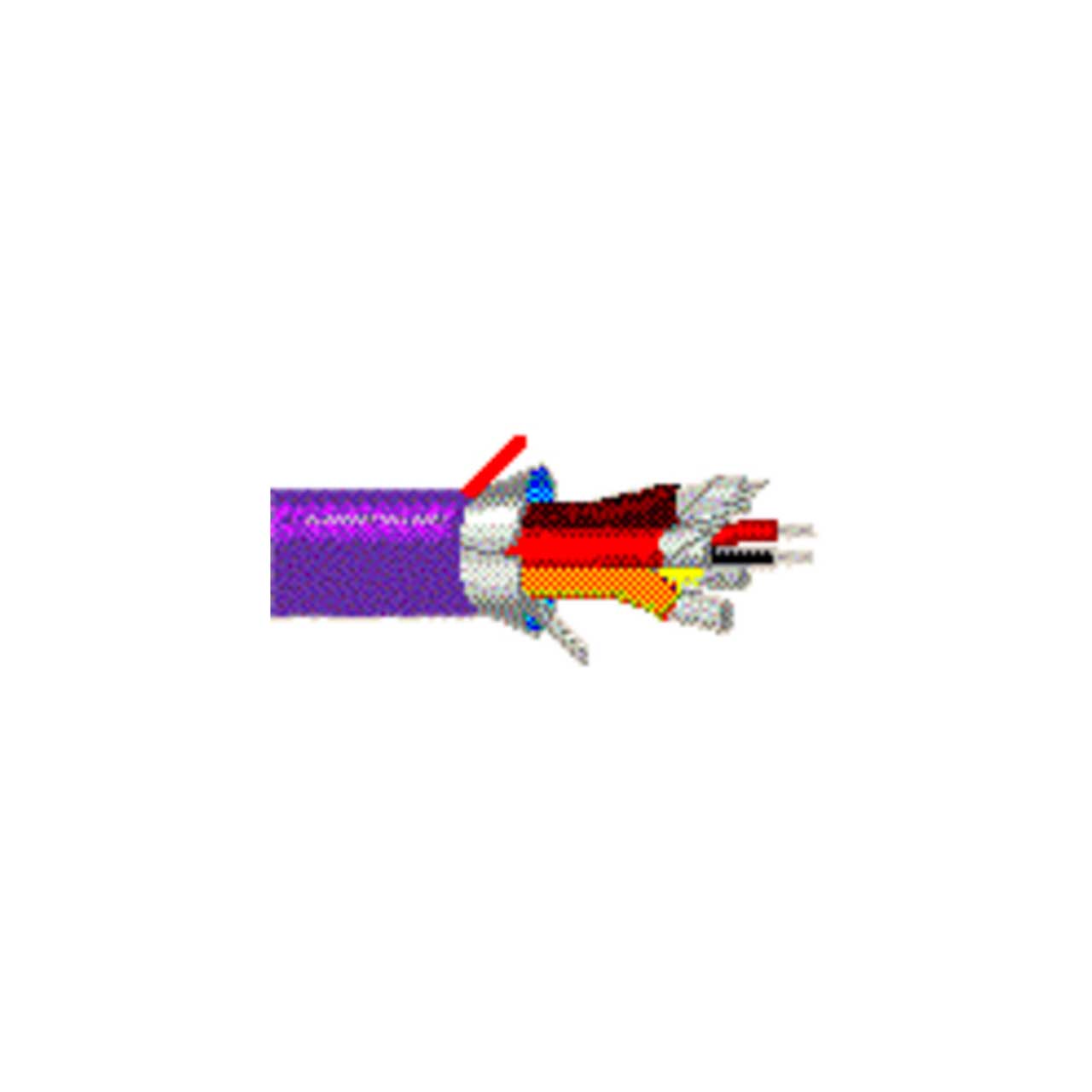

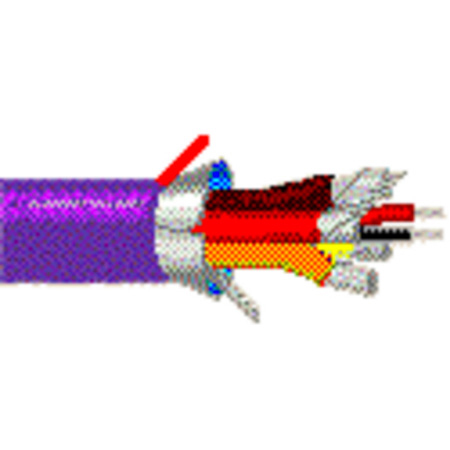

Belden 1850F 16pr AES/EBU Digi. Aud. Snake 1000ft

Name: Belden 1850F 16pr AES/EBU Digi. Aud. Snake 1000ft
Brand: Belden
SKU: BL-1850F-1000
Price: 19170.93 USD
Availability: PreSale

ITEM #: BL-1850F-1000 MFG #: 1850F Z4B1000

Belden

Lengths:

Types:

Lengths

Types

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$23,373.50

Our Price:

$19,170.93

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Shipped truck freight.
Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

1850F Z4B1000 - Overview

24 AWG stranded (7x32) TC conductor, Datalene® insulation, pairs individually shielded with bonded Beldfoil® with a drain wire and have numbered and color-coded PVC jackets, overall Beldfoil® shield/drain wire + overall PVC jacket w/nylon rip cord.

Specifications:
- Number of Pairs: 4
- Total Number of Conductors: 8
- AWG: 24
- Stranding: 7 x 32
- Conductor Material: TC - Tinned Copper
- Insulation Material Trade Name: Datalene
- Insulation Material: FHDPE - Foam High Density Polyethylene Pair
- Shield Material: Bonded Aluminum Foil-Polyester Tape
- Inner Jacket Material: PVC - Polyvinyl Chloride
- Outer Shield Material Trade Name: Beldfoil
- Outer Shield Material: Aluminum Foil-Polyester Tape
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Plenum (Y/N): N
- Individually Shielded and Jacketed
- Nominal Conductor DCR: 23.7 Ohm/1000ft
- Nominal Conductor DCR Conductor Resistance: 23.7 Ohm/1000ft
- UL Temp Rating: 60°C
- Operating Temp Range: -30°C To +60°C
- Bulk Cable Weight: 288 lbs/1000ft
- Max. Pull Tension: 200 lbs
- Min Bend Radius/Minor Axis: 8.5 in
- NEC/(UL) Compliance: CMG
- CEC/C(UL) Compliance: CMG
- Other Compliance: AES/EBU
- Environmental Space: Indoor (Not Riser or Plenum)
GTIN:
0612825124429
