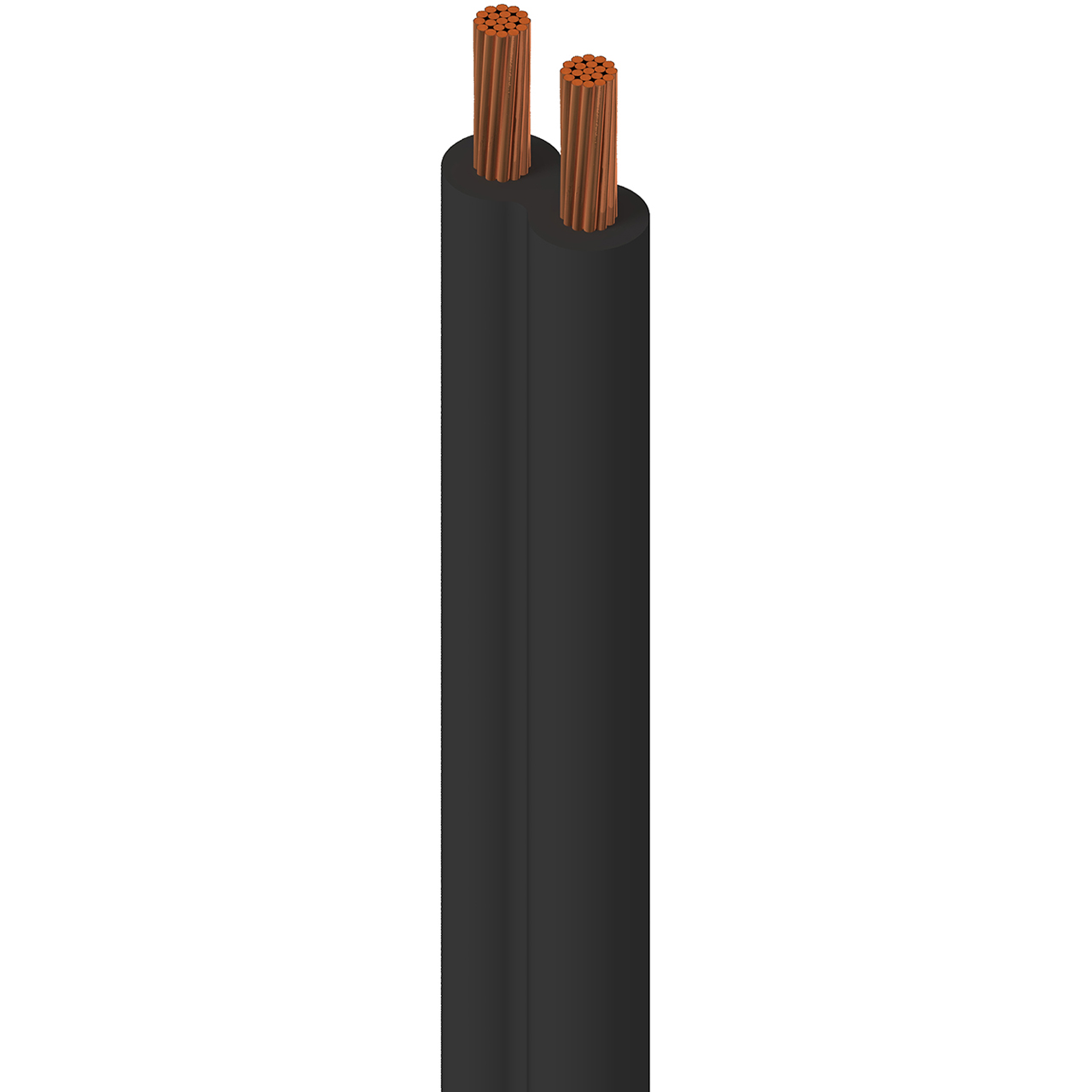

Belden 19122 Low-Voltage Portable Cordage Power Cable - 2 Cond/18AWG - Bare Copper - UL Type SPT-1 - Black - 250Ft

19122 010250 - Overview

You know it as "Lamp Wire" or "Zip Cord". Great for low voltage use on set or on-location.

• Features:

  • Engineered to Last: Designed with proprietary materials optimized to withstand extremes
  • Proven Robustness: Cables are field tested to ensure they perform in the industrial space
  • Built for Your Needs: Select the materials you want, including PVC/nylon, XLPE, and EPR insulated conductors with PVC, CPE, or LSZH


• Specifications:

  • Conductor
  • No. of Elements: 2
  • Size: 18
  • Stranding: 42x34
  • Material: BC - Bare Copper

    Insulation
  • Material: PVC - Polyvinyl Chloride
  • Nom. Thickness: 0.032 in (0.81 mm)
  • Nom. Insulation Diameter: 0.110 in (2.79 mm)
  • Color Code: Brown, White, Black, Silver, Gray

    Outer Jacket
  • Nom. Diameter: 0.11 x 0.207 in

    Electricals
  • Nom. Conductor DCR / Max. Current: 6.97 Ohm/1000ft 10 Amps per Conductor at 25°C (7 Amps over 50 ft) / 7 Amps per Conductor at 25°C (over 50 ft)

    Temperature
  • UL Temperature: 60°C

    Bend Radius
  • Stationary Min.: 1.1 in (28 mm)
  • Installation Min.: 1.1 in (28 mm)
  • Max. Pull Tension: 42.6 lbs (19.3 kg)
  • Bulk Cable Weight: 20 lbs/1000ft

    Standards and Compliance
  • NEC / UL Compliance: Article 400, SPT-1
  • AWM Compliance: SPT-1
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)


• Item Includes:

  • 1x Belden 19122 Low-Voltage Portable Cordage Power Cable - 2 Conductor/18AWG - Bare Copper - UL Type SPT-1 - Black - 250Ft
