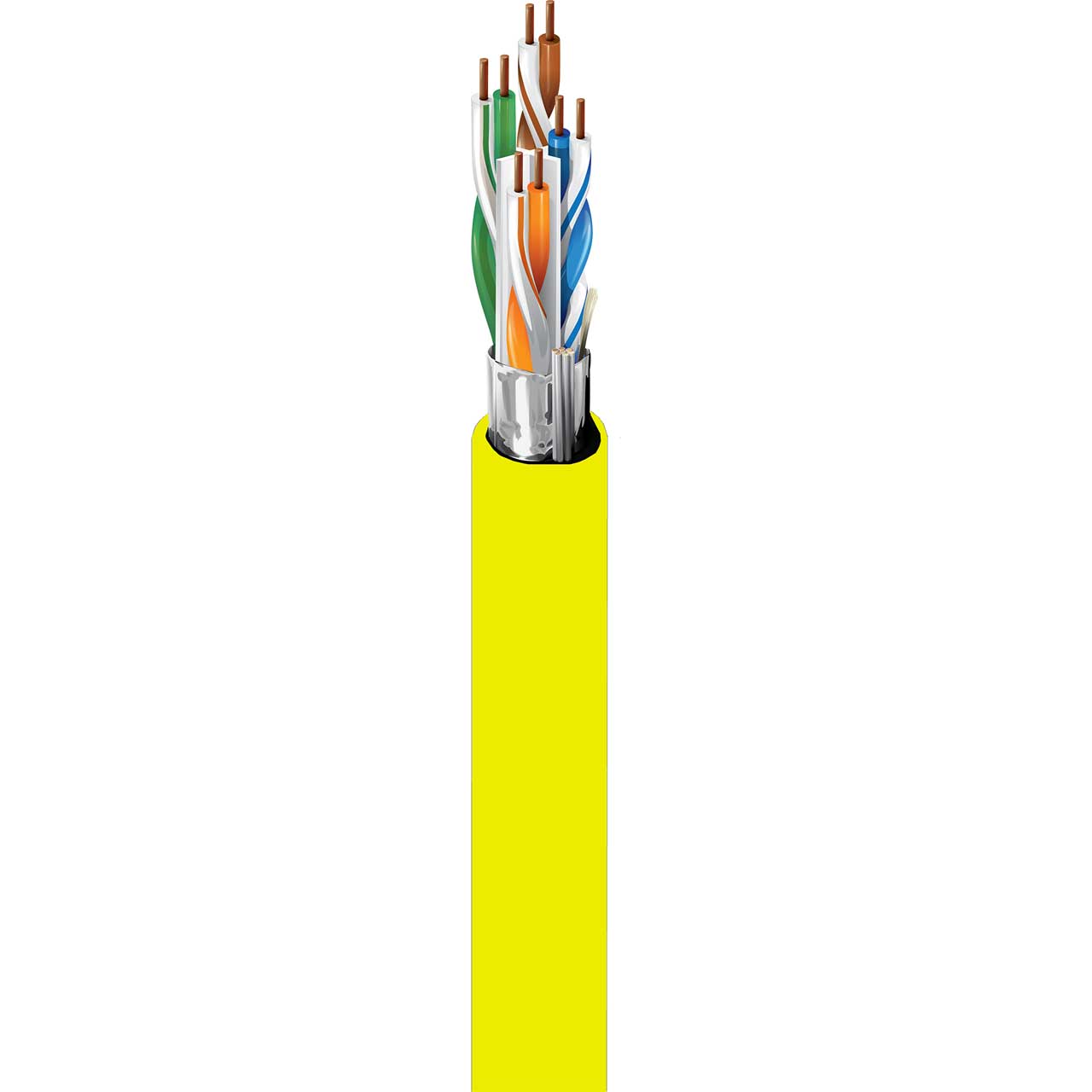

Belden 2413FS CMP/Plenum Cat6+ Enhanced Premise Horizontal F/UTP Cable 350MHz 4-Pair Shld/BC 23AWG - Yellow - 1000 Foot

ITEM #: BL-2413FS-1000YW MFG #: 2413FS 0041000

Primary Image
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,072.40

Our Price:

$979.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

2413FS 0041000 - Overview

Belden 2413FS is a Category 6+, F/UTP, Enhanced Premise Horizontal Cable (350MHz). It features 4 Pair, 23 AWG Solid Bare Copper Conductors and is Foil Shielded in a Plenum-CMP, Flamarrest® PVC-LS (low-smoke) Jacket.

Belden offers several Category 6 performance levels with every level exceeding TIA-568-C.2 performance and produced with Belden's superior quality. Bonded-Pair technology is an option to make your installation as robust as possible.

Applications
Premise Horizontal Cable
Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T
Surveillance
PoE++, PoE+, PoE
Noisy Environments

  • Features:

    • Improve Crosstalk Performance: Central spline separates pairs and maintains stable pair position
    • Optimized Cable Balance: Improved balance of transmission performance for simultaneous parallel transmission protocols
    • Performance Reliability: Guarantees across all parameters, including insertion loss and crosstalk, for excellent uptime, headroom and network speeds
    • Withstand Installation Rigors: Bonded-Pair Cables handle higher pulling tensions and tighter bend radii
    • Easy, Mess-free Outdoor Installations: Dry Core Outside Plant and Indoor/Outdoor Plenum cables contain no inconvenient water-blocking gels, tapes, or powders


  • Specifications:

    • Conductor AWG: 23 AWG
    • Conductor Number of Pairs: 4
    • Conductor Stranding: Solid
    • Conductor Material: BC - Bare Copper
    • Insulation Material: Fluorinated Ethylene Propylene
    • Outer Shield Material: Polyester + Bi-Laminate (Alum+Poly)
    • Outer Shield Coverage: 100%
    • Outer Shield Drain Wire AWG: 24 AWG, Solid Stranding Tinned Copper
    • Outer Jacket Material: Flamarrest® Low Smoke Polyvinyl Chloride
    • Outer Jacket Nom. Diameter: 0.285 in (7.24 mm)
    • Outer Jacket Ripcord: No
    • Overall Cable Diameter (Nominal): 0.285 in (7.24 mm)
    • Overall Cabling Fillers: Patented Central X-Spline
    • Overall Cabling Separator Material: Polyester Tape
    • Storage Temperature Range: -20°C To +75°C
    • Installation Temperature Range: +5°C To +50°C
    • Operating Temperature Range: -20°C To +75°C
    • Bulk Cable Weight: 49 lbs/1000 ft.
    • Max. Recommended Pulling Tension: 25 lbs
    • Min. Bend Radius/Minor Axis: 1 in.
    • Min. Bend/Installation: 3 in
    • NEC/(UL) Specification: Article 800, CMP
    • CEC/C(UL) Specification: CMP
    • CA Prop 65 (CJ for Wire & Cable): Yes
    • MII Order #39 (China RoHS): Yes
    • Telecommunications Standards: Category 6 - TIA 568.C.2
    • Other Specification: UL Verified to Category 6
    • UL Flame Test: NFPA 262, UL 910 (Plenum), FT6, FT6, IEC 60332-1-2
    • Plenum (Y/N): Yes
    • Non-Plenum Number: 2412FS


  • Item Includes:

    • 1x Belden 2413FS CMP/Plenum Cat6+ Enhanced Premise Horizontal F/UTP Cable 350MHz 4-Pair Shld/BC 23AWG - Yellow - 1000 Foot


  • Warranty:

    • Limited 10 Year Warranty
