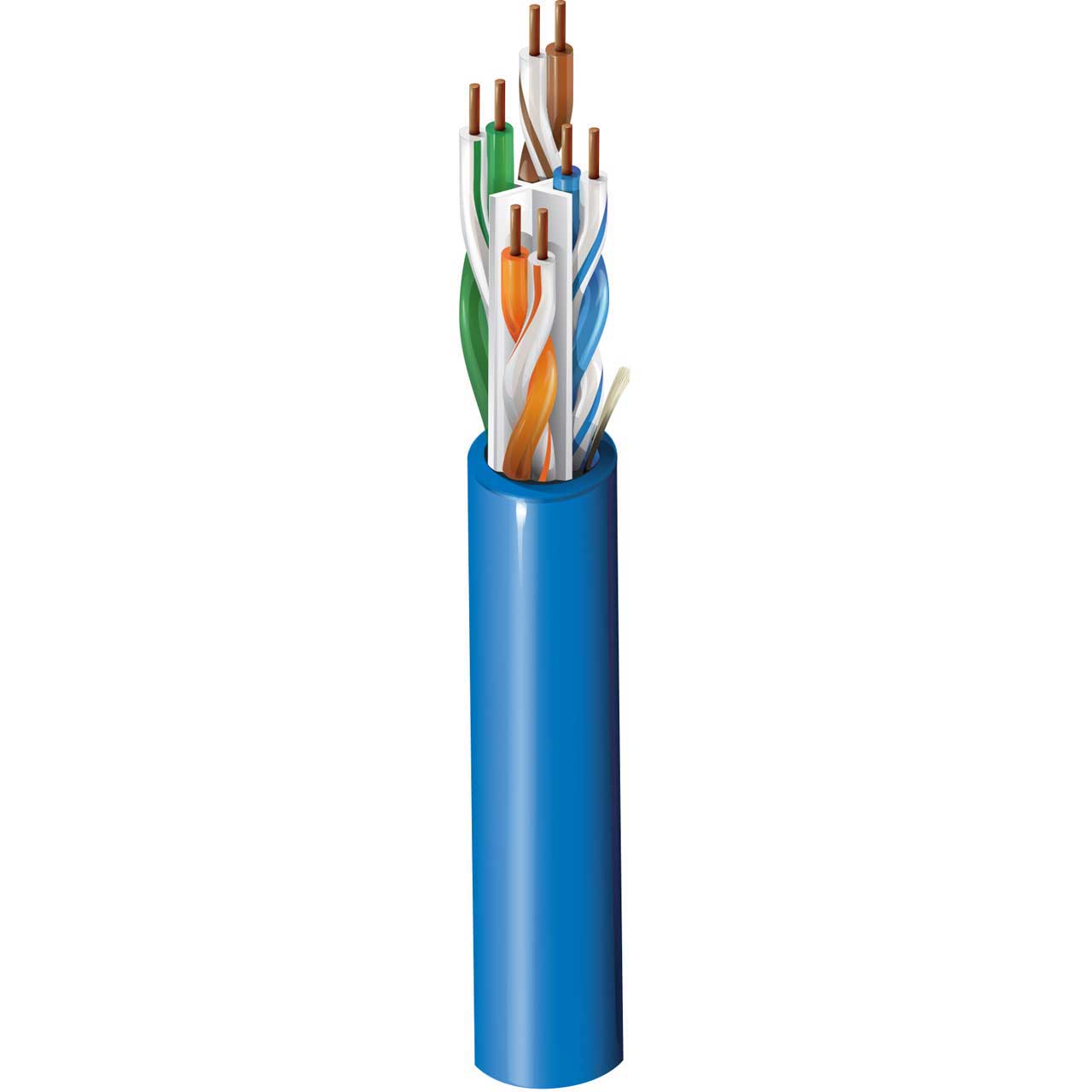

Belden 3613 CMP/Plenum Cat6+ 4 Pair U/UTP Solid Conductor PVC-LS Premise Horizontal Cable 23 AWG - Blue - 1000 Ft Reel

ITEM #: BL-3613-1000BE MFG #: 3613 D151000

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$913.00

Our Price:

$740.54

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


3613 D151000 - Overview

Belden 3613 is a Category 6+ Premium Premise Horizontal Cable (400MHz), 4 Pair, 23 AWG Solid Bare Copper Conductors, U/UTP, Plenum-CMP, and a Flamarrest®PVC-LS Jacket.

It is suitable for Premise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE++, PoE+, and PoE applications.

  • Specifications:

    • Size: 23 AWG
    • Stranding: Solid
    • Material: Bare Copper
    • Number of Pairs: 4
    • Max. Conductor DCR: 77 Ohm/km (23 Ohm/1000ft)
    • Max. Capacitance Unbalance: 330 pF/100m
    • UL Voltage Rating: 300 V (CMP), 300 V (CL3P)
    • UL Temp: 90°C
    • Operating Temp: -20°C To +75°C
    • Installation Temp: 0°C To +50°C
    • Storage Temp: -20°C To +75°C
    • Max. Pull Tension: 25 lbs (11 kg)
    • Bulk Cable Weight: 28 lbs/1000ft
    • Environmental Suitability: Plenum, Indoor
    • Sustainability: Product Lens, Environmental Product Declaration (EPD) Available
    • CPR Compliance: CPR Euroclass: Eca; CPR UKCA Class: Eca
    • NEC / UL Compliance: Article 800, CMP;CMP-LP (0.6A);CL3P-LP (0.6A)
    • CEC / C(UL) Compliance: CMP
    • ICEA Compliance: S-116-732
    • IEEE Compliance: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
    • NEMA Compliance: ANSI/NEMA WC-66
    • Data Category: Category 6
    • TIA/EIA Compliance: ANSI/TIA-568.2-D Category 6

  • Item Includes:

    • 1x Belden 3613 Cat6+ Plenum 4 Pair 23 AWG Solid Conductor Cable - Blue - 1000 Foot Reel

  • GTIN:

    0612825145714
