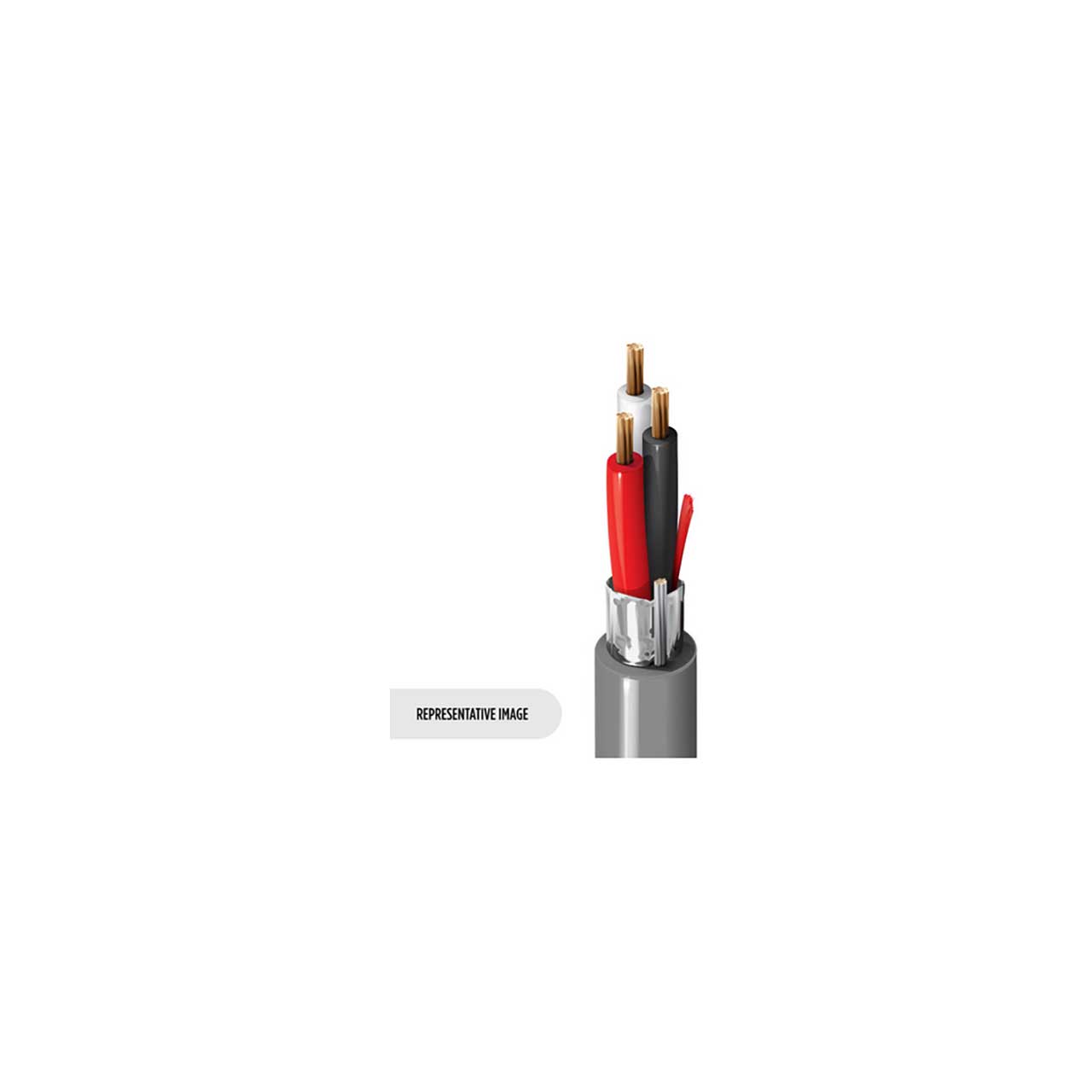

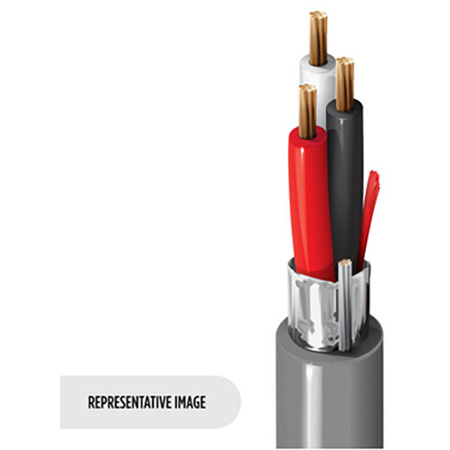

Belden 5501FE 3 Conductor 22AWG Stranded Security & Commercial Audio Cable - Gray - 1000 Foot/Unreeled

5501FE 008U1000 - Overview

• Specifications:

  • AWG: 22
  • Condoctors: 3
  • Stranding: 7x30
  • Material: Bare Copper
  • Nom. Conductor DCR: 16.4 Ohm/1000ft
  • Nom. Capacitance Cond-to-Cond: 28.25 pF/ft
  • Nom. Capacitance Cond-to-Other (Conds + Shield): 51 pF/ft
  • Max. Current: 2.8 Amps per conductor @ 25°C
  • Nom Outer Shield DCR: 16.1 Ohm/1000ft
  • UL Voltage Rating: 300 V (CMR)
  • UL Rating Temp: 75°C
  • Operating Temp: -20°C to +75°C
  • Stationary Min. Bend Radius: 1.5 in
  • Installation Min. Bend Radius: 1.3 in
  • Max. Pull Tension: 33 lbs
  • Bulk Cable Weight: 12 lbs/1000ft
  • Environmental Suitability: Indoor - Riser, Indoor
  • Flammability / Fire Resistance: UL1666 Riser, FT4, IEC 60332-1-2
  • NEC / UL Compliance: Article 800, CMR
  • CEC / C(UL) Compliance: CMG
  • CPR Euroclass: Eca
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Plenum Number: 6501FH


• Item Includes:

  • 1x Belden 5501FE 3 Conductor 22AWG Stranded Security & Commercial Audio Cable - Gray - 1000 Foot/Unreeled
