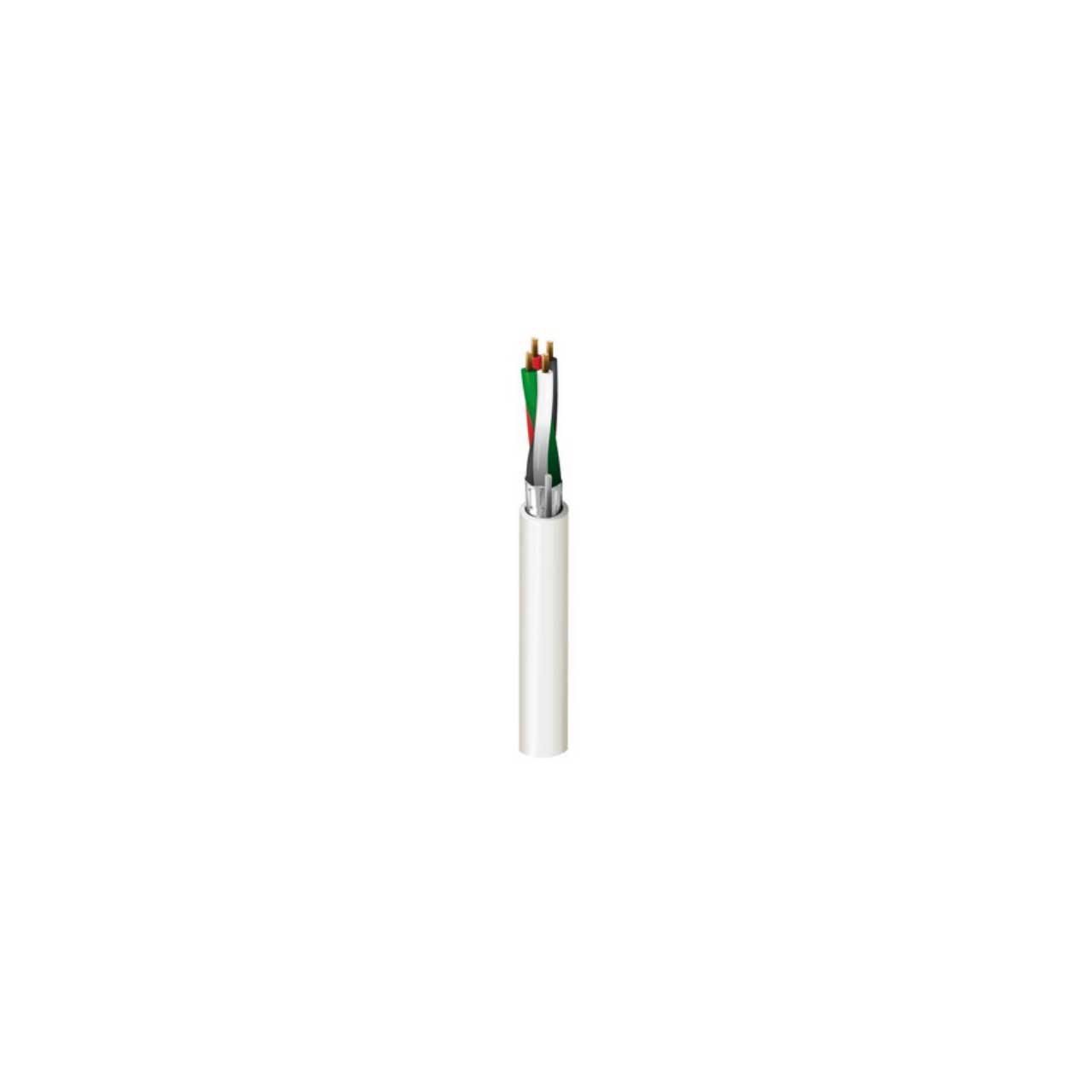

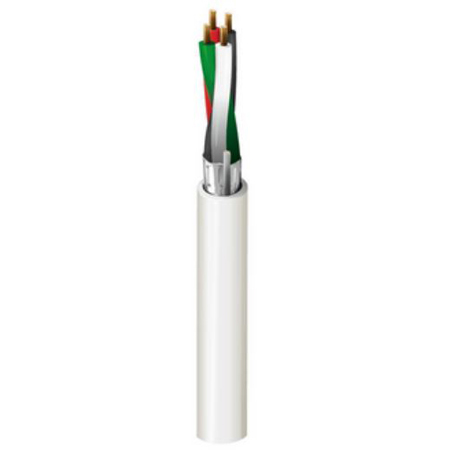

Belden 6202FE 4-16 AWG Plenum-CMP Security & Sound Cable - Natural - 1000 Foot

Name: Belden 6202FE 4-16 AWG Plenum-CMP Security & Sound Cable - Natural - 1000 Foot
Brand: Belden
SKU: BL-6202FEZ1000NL
Price: 1080.19 USD
Availability: PreSale

ITEM #: BL-6202FEZ1000NL MFG #: 6202FE 877Z1000

Belden

List Price:

$1,405.50

Our Price:

$1,080.19

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

6202FE 877Z1000 - Overview

Belden 6202FE is a Plenum-CMP, Security & Commercial Audio Cable. It features 4-16 AWG stranded bare copper conductors with Flamarrest insulation, a Beldfoil shield and Flamarrest jacket with ripcord.

Applications
Security Systems
Intercom/PA Systems
Sound/Audio Systems
Power Limited Controls

Specifications:
- Conductor(s): 4.
- Size: 16 AWG
- Stranding: 19 x29
- Material: BC - Bare Copper
- Outer Shield
- Type: Tape
- Material: Bi-Laminate (Alum+Poly).
- Coverage: 100%
- Drainwire Type: 24 AWG (7x32) TC.
- Outer Jacket
- Material: PVC - Polyvinyl Chloride.
- Nom. Thickness: 0.015 in (0.38 mm) 0.
- Nom. Diameter: 0.215 in (5.46 mm) .
- Ripcord: Yes
- Overall Cable Diameter (Nominal): 0.215 in (5.46 mm)
- UL Voltage Rating: 300 V.
- Nom. Conductor DCR: 4 Ohm/1000ft
- Max. Current: 14.4 Amps per conductor @ 25°C.
- UL Temperature: 75°C.
- Operating Temperature :0°C to +75°C.
- Bend Radius: Stationary Min 2.2 in (56 mm)., Installation Min. 2.2 in (56 mm).
- Environmental Suitability: Indoor - Plenum, Indoor.
- Max. Pull Tension: 165 lbs (74.8 kg)
- Bulk Cable Weight: 46 lbs/1000ft
