6301FE Non-Paired 18 AWG Stranded -Shielded Commercial Audio Systems (1000Ft)

ITEM #: BL-6301FE-1000 MFG #: 6301FE 8771000

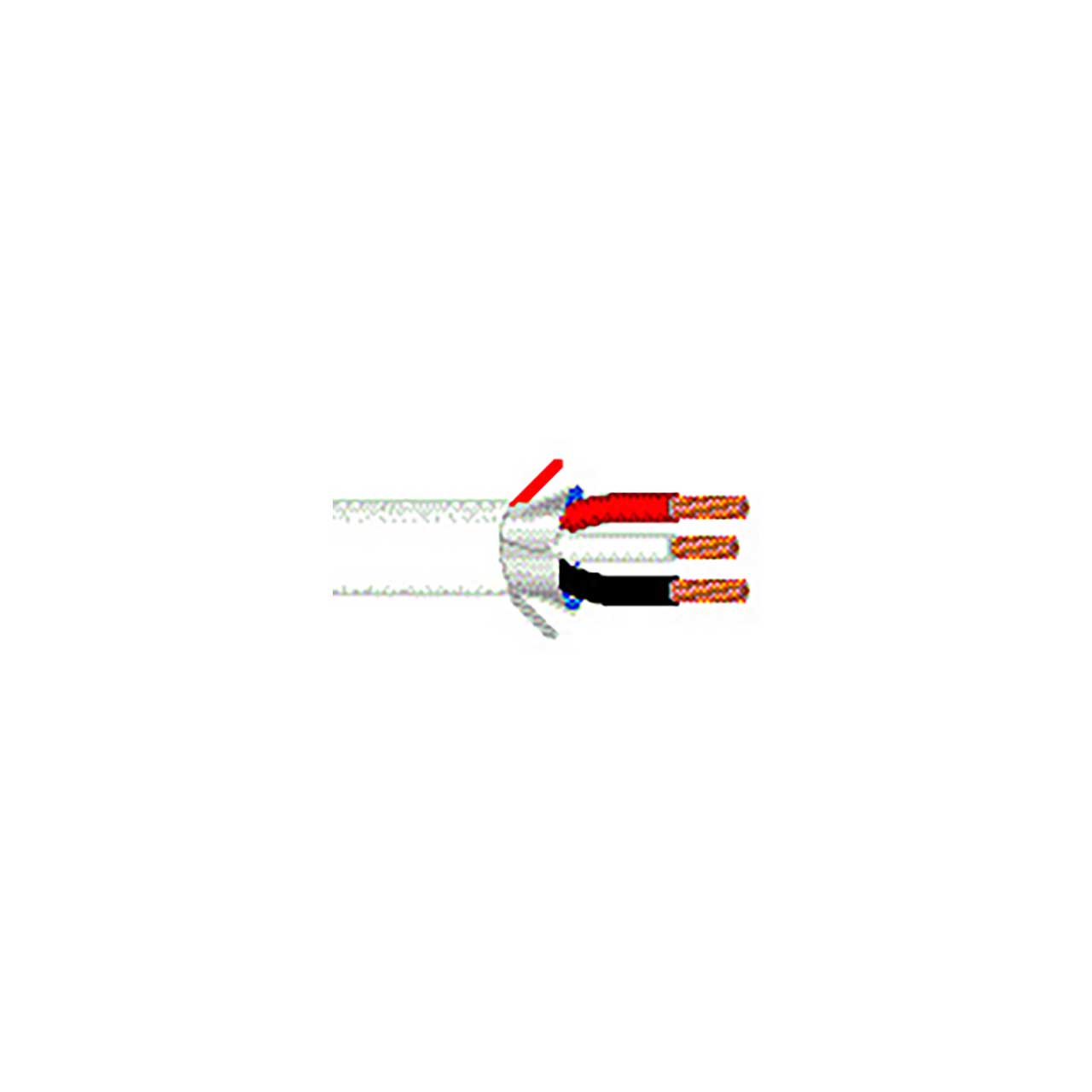

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$583.50

Our Price:

$444.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


6301FE 8771000 - Overview

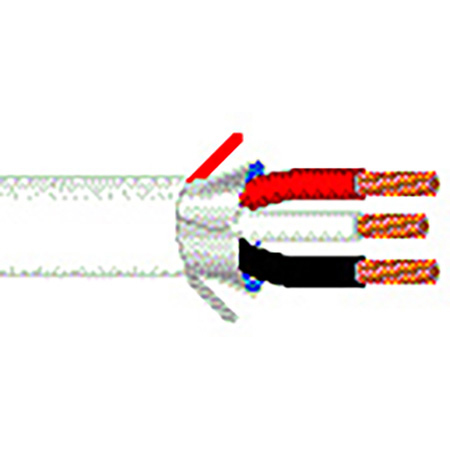

18 AWG bare copper conductors, Flamarrest insulation, conductors cabled, Overall Beldfoil tape shield (foil side out) and drain wire,Flamarrest jacket with ripcord, sequential footage marking every two feet.

  • Specifications:

    • Suitable Applications Security Systems, Intercom/PA Systems, Sound/Audio Systems, Power Limited Controls PHYSICAL CHARACTERISTICS: CONDUCTOR: Number of Conductors 3 Total Number of Conductors 3 AWG 18 Stranding 7x26 Conductor Material BC - Bare Copper INSULATION: Insulation Material Trade Name Flamarrestr Insulation Material LS PVC - Low Smoke Polyvinylchlorid Nom. Insulation Wall Thickness .009 in. OUTER SHIELD: Outer Shield Material Trade Name Beldfoil Outer Shield Type Tape Outer Shield Material Aluminum Foil-Polyester Tape w/Shorting Fold Outer Shield %Coverage 100 % Outer Shield Drain Wire AWG 20 Outer Shield Drain Wire Stranding 7x28 Outer Shield Drain Wire Conductor Material TC - Tinned Copper OUTER JACKET: 6301FE Non-Paired - Commercial Audio Systems Outer Jacket Material Trade Name Flamarrest Outer Jacket Material LS PVC - Low Smoke Polyvinyl Chloride Outer Jacket Nominal Wall Thickness .015 in. Outer Jacket Ripcord Yes OVERALL NOMINAL DIAMETER: Overall Nominal Diameter .172 in. MECHANICAL CHARACTERISTICS: Operating Temperature Range 0DegreesC To +75Degrees UL Temperature Rating 75DegreesC Bulk Cable Weight 28.1 lbs/1000 ft. Max. Recommended Pulling Tension 81.2 lbs. Min. Bend Radius (Install) 1.75 in. APPLICABLE SPECIFICATIONS AND AGENCY COMPLIANCE: APPLICABLE STANDARDS: NEC/(UL) Specification CMP NEC Articles 800 CEC/C(UL) Specification CMP EU CE Mark (Y/N) Yes EU RoHS Compliant (Y/N) Yes EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005 FLAME TEST: UL Flame Test NFPA 262 C(UL) Flame Test FT6 PLENUM/NON-PLENUM: Plenum (Y/N) Y Non-Plenum Number 5301FE ELECTRICAL CHARACTERISTICS: Nom. Capacitance Conductor to Conductor @ 1 KHz 70 pF/ft Nom. Cap. Cond. to Other Cond. & Shield @ 1 KHz 126 pF/ft Nom. Conductor DC Resistance @ 20 Deg. C 6.4 Ohms/1000 ft Nominal Outer Shield DC Resistance @ 20 Deg. C 7.6 Ohms/1000 ft Max. Operating Voltage - UL 300 V RMS Max. Recommended Current 5 Amps per conductor @ 25DegreesC

  • GTIN:

    0612825175179
