Belden 6302UE Security & Sound Cable - Plenum-CMP 4-18 AWG Stranded Bare Copper Conductors with Flamarrest - 1000 Foot

ITEM #: BL-6302UE-1000 MFG #: 6302UE 8771000

Primary Image
Belden
Free Shipping with $49 Minimum Order

List Price:

$431.10

Our Price:

$348.24

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

6302UE 8771000 - Overview

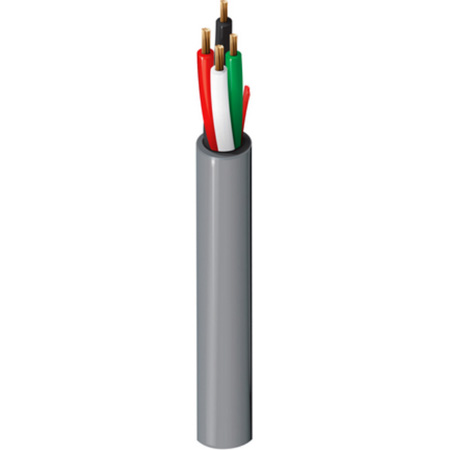

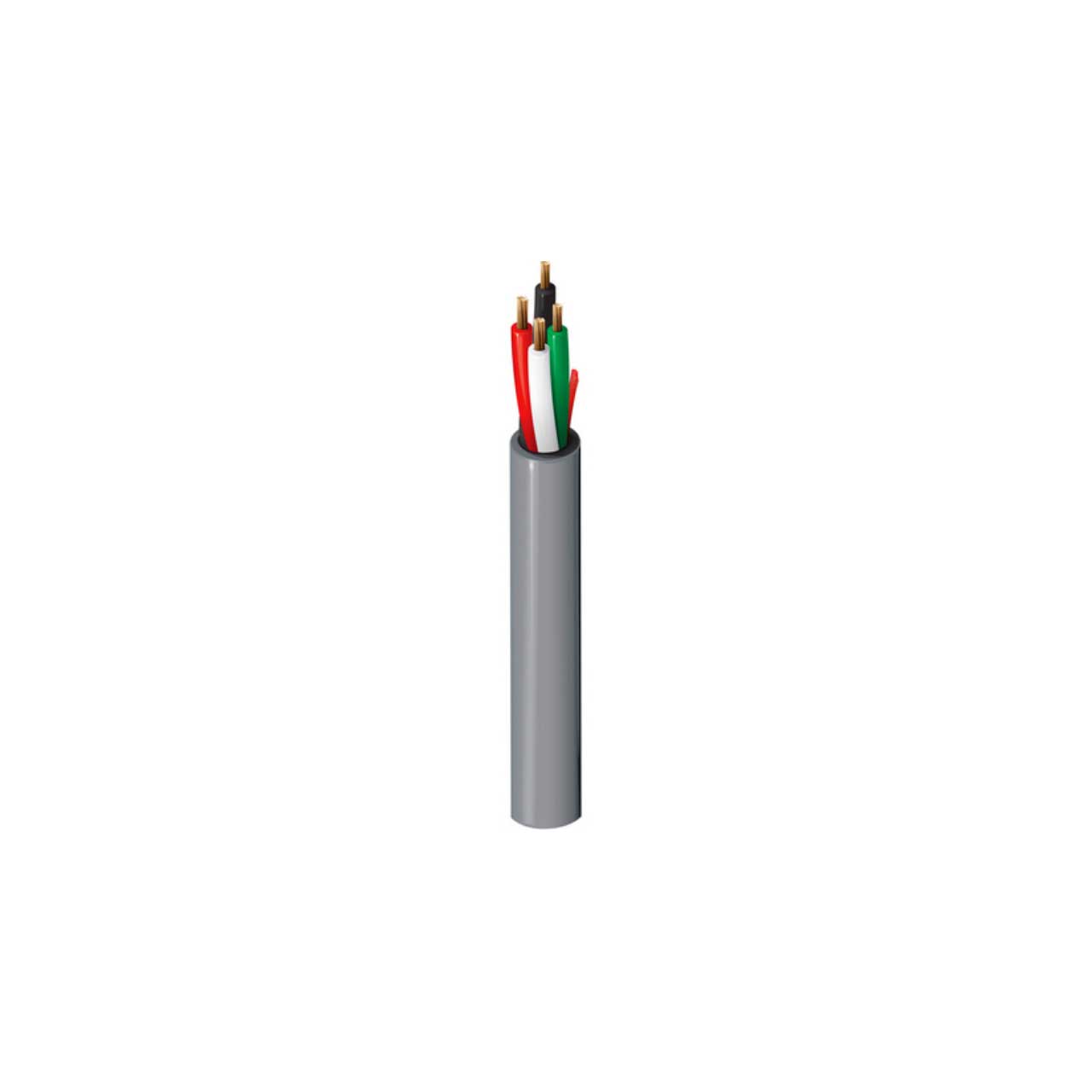

Belden 6302UE Security & Sound Cable Plenum-CMP 4-18 AWG stranded bare copper conductors with Flamarres® insulation, Flamarrest® jacket with ripcord

  • Specifications:

    • AWG: 18
    • Stranding: 7x26
    • Material: BC - Bare Copper
    • Conductor Count: 4
    • Material: LS PVC - Low Smoke Polyvinyl Chloride
    • Material Trade Name: Flamarrest®
    • Nominal Wall Thickness: 0.008in
    • UL Voltage Rating: 300 V RMS
    • Installation Temp Range: 0°C To +75°C
    • Operating Temp Range: -10°C To +75°C
    • Bulk Cable Weight: 33 lbs/1000ft
    • Max. Pull Tension: 89.6 lbs
    • Min Bend Radius/Minor Axis: 1.8 in
    • NEC Articles: Article 800
    • NEC/(UL) Compliance: CMP
    • CEC/C(UL) Compliance: CMP
    • CPR Euroclass: Eca
    • UL Flammability: NFPA 262 Plenum Flame Test
    • CSA Flammability: FT6
    • IEC Flammability: IEC 60332-1-2
    • UL voltage rating: 300 V RMS
