Belden 6302UE Security & Sound Cable - Plenum-CMP 4-18AWG Stranded Bare Copper Conductors - 500 Foot - Natural

ITEM #: BL-6302UE-500-NL MFG #: 6302UE 877500

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$204.60

Our Price:

$167.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    6302UE 877500 - Overview

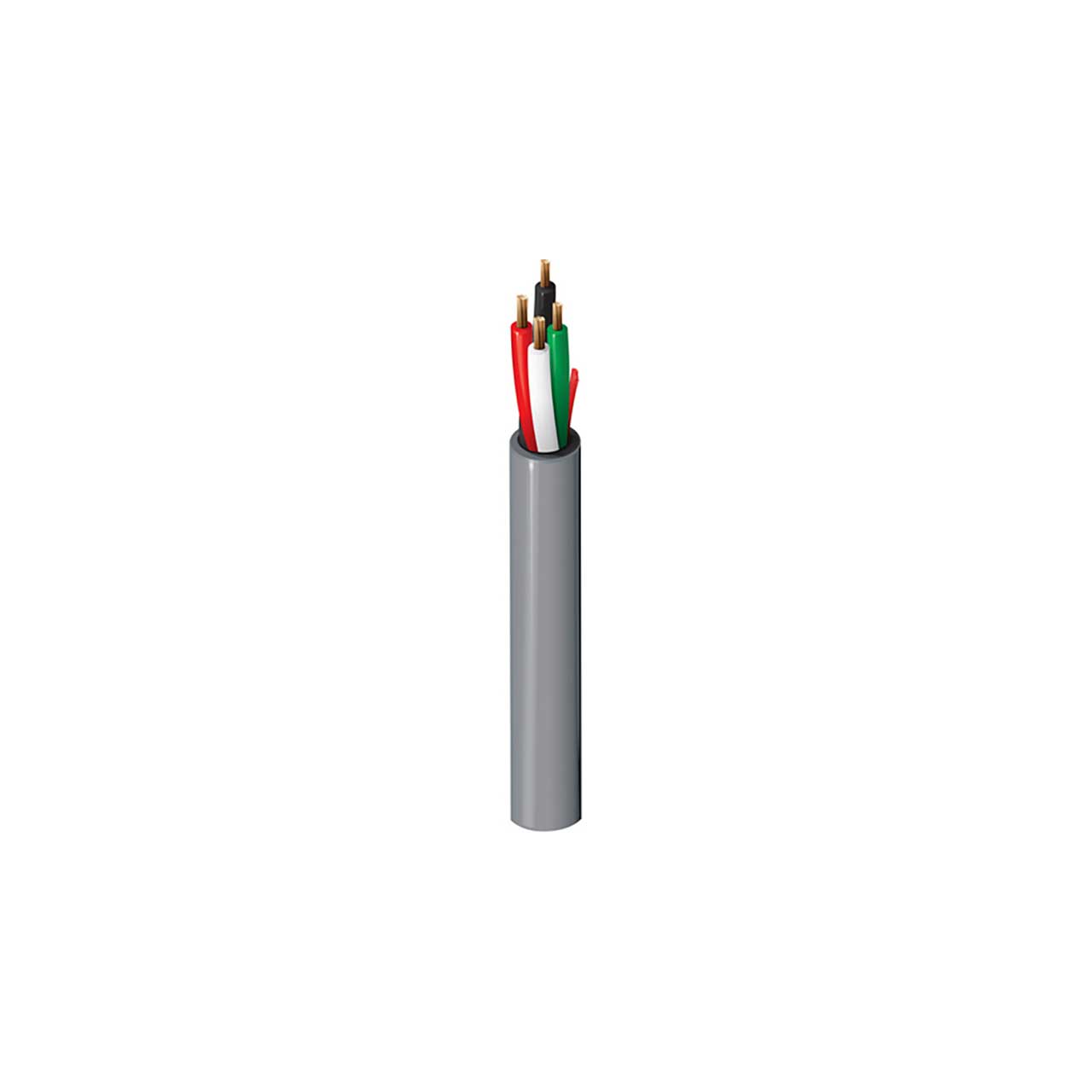

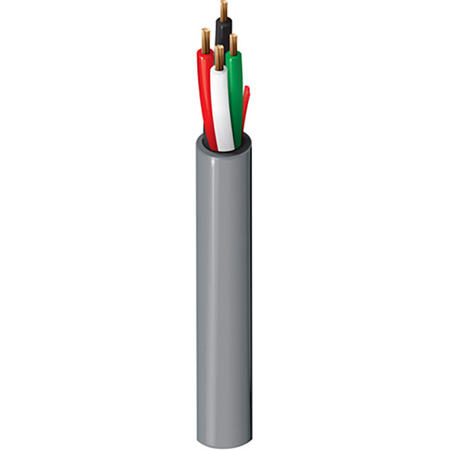

    Belden 6302UE Security & Sound Cable Plenum-CMP 4-18 AWG stranded bare copper conductors with Flamarres® insulation, Flamarrest® jacket with ripcord

    • Specifications:

      • AWG: 18
      • Stranding: 7x26
      • Material: BC - Bare Copper
      • Conductor Count: 4
      • Material: LS PVC - Low Smoke Polyvinyl Chloride
      • Material Trade Name: Flamarrest®
      • Nominal Wall Thickness: 0.008in
      • UL Voltage Rating: 300 V RMS
      • Installation Temp Range: 0°C To +75°C
      • Operating Temp Range: -10°C To +75°C
      • Bulk Cable Weight: 33 lbs/1000ft
      • Max. Pull Tension: 89.6 lbs
      • Min Bend Radius/Minor Axis: 1.8 in
      • NEC Articles: Article 800
      • NEC/(UL) Compliance: CMP
      • CEC/C(UL) Compliance: CMP
      • CPR Euroclass: Eca
      • UL Flammability: NFPA 262 Plenum Flame Test
      • CSA Flammability: FT6
      • IEC Flammability: IEC 60332-1-2
      • UL voltage rating: 300 V RMS

    • GTIN:

      0612825175384
