6400FE 877U1000 - Overview

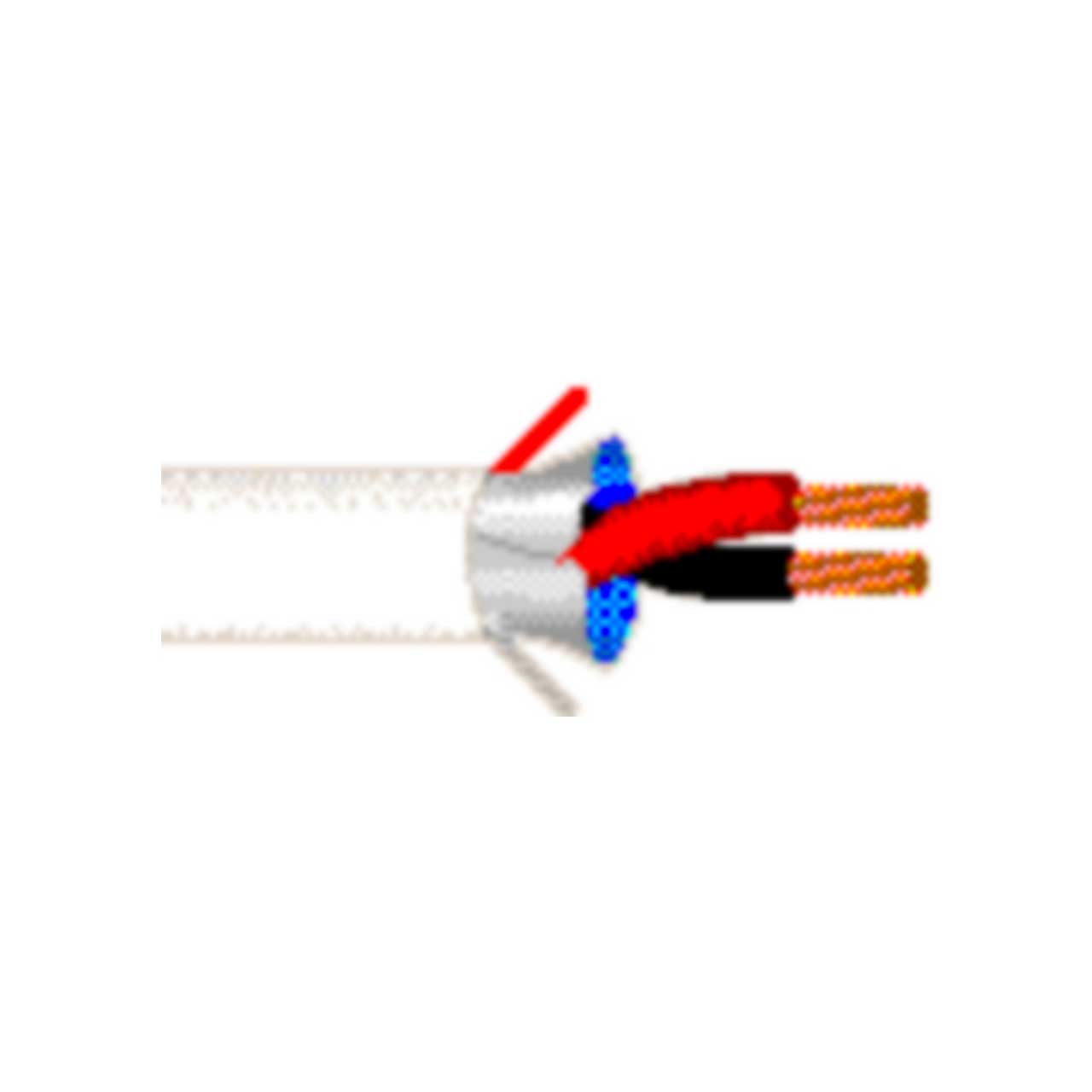

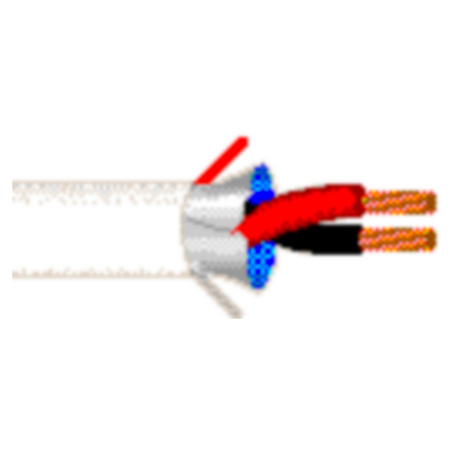

Security & Commercial Audio Cable, Plenum-CMP, 2-20 AWG stranded bare copper conductors with Flamarrest insulation, Beldfoil shield and Flamarrest jacket with ripcord

Suitable Applications: Intercom/PA Systems and Sound/Audio Systems.

  • Specifications:

    • AWG: 20
    • Pairs: 2
    • Stranding: 7x28
    • Material: Bare Copper
    • Nom. Conductor DCR: 10.3 Ohm/1000ft
    • Nom. Capacitance Cond-to-Cond: 56 pF/ft
    • Nom. Capacitance Cond-to-Other (Conds + Shield): 100.8 pF/ft
    • Max. Current: 3.75 Amps per conductor @ 25°C
    • Nom Outer Shield DCR: 16.7 Ohm/1000ft
    • UL Voltage Rating: 300 V (CMP)
    • UL Rating Temp: 75°C
    • Operating Temp: 0°C to +75°C
    • Max. Pull Tension: 37 lbs
    • Bulk Cable Weight: 15 lbs/1000ft
    • Environmental Suitability: Indoor - Plenum, Indoor
    • Flammability / Fire Resistance: NFPA 262, UL 910 (Plenum), FT6
    • NEC / UL Compliance: Article 800, CMP
    • CEC / C(UL) Compliance: CMP


  • GTIN:

    0612825176589
