Belden 6542UE Security & Sound Cable - Plenum-CMP 2-22AWG Stranded Bare Copper Pairs - Natural - 1000 Foot

Name: Belden 6542UE Security & Sound Cable - Plenum-CMP 2-22AWG Stranded Bare Copper Pairs - Natural - 1000 Foot
Brand: Belden
SKU: BL-6542UE-1000NL
Price: 282.00 USD
Availability: PreSale

ITEM #: BL-6542UE-1000NL MFG #: 6542UE 8771000

Belden

List Price:

$348.70

Our Price:

$282.00

Add to Wish List Leasing Options

Availability: Typically Ships in 3-10 Business Days

Report Lower Price Large Quantity Quote

Overview

Recommended Accessories

Reviews

Required Accessories

Recommended Accessories

6542UE 8771000 - Overview

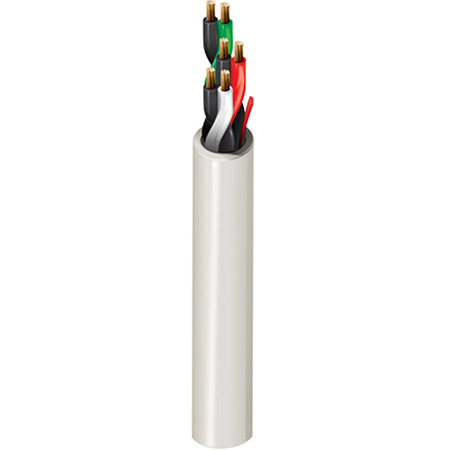

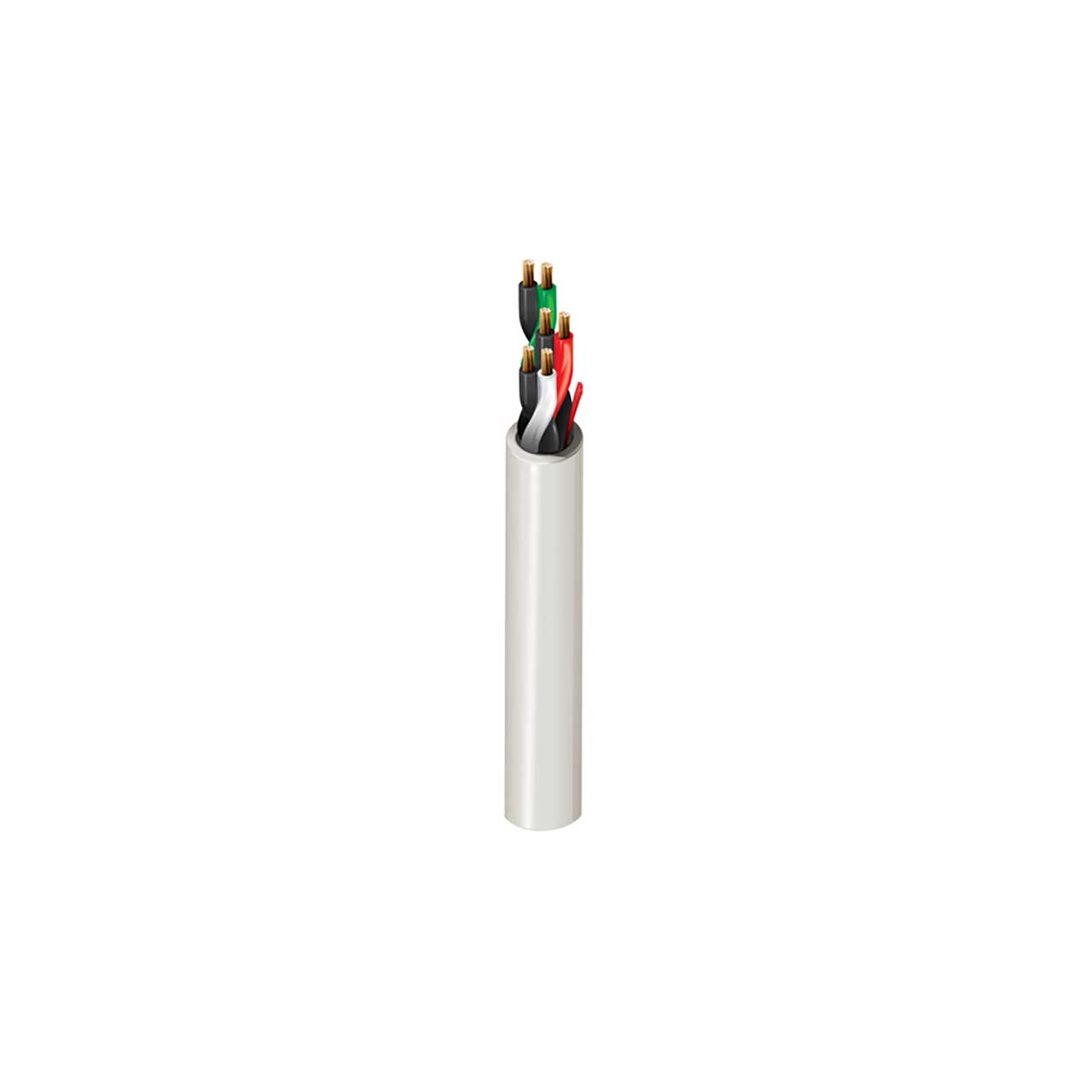

Belden 6542UE Security & Alarm Cable, Plenum-CMP 2-22 AWG stranded bare copper pairs with Flamarrest insulation, Flamarrest jacket with ripcord.

Specifications:
- Pairs: 3
- AWG: 22
- Stranding: 7
- Conductor Material: Bare Copper
- Operating Temperature Range: 0°C To +75°C
- Bulk Cable Weight: 35.717 Kg/Km
- Max. Recommended Pulling Tension: 242.872 N
- Min. Bend Radius/Minor Axis: 50.800 mm
- Overall Nominal Diameter: 5.385 mm
- UL Flame Test: NFPA 262
- CSA Flame Test: FT6
- Plenum (Y/N): Yes
- Non-Plenum Number: 5542UE
- Voltage: 300 V RMS
GTIN:
0612825175377
