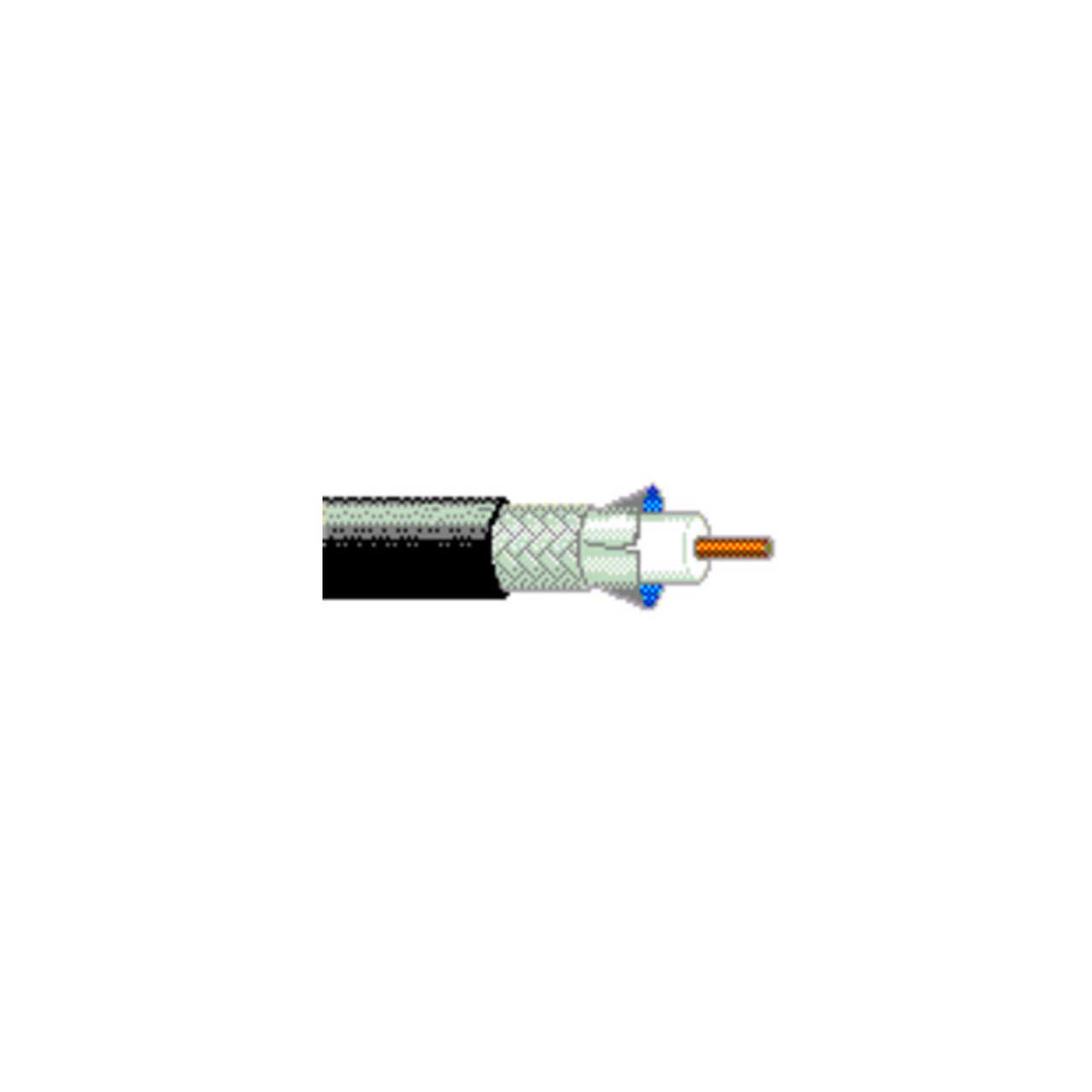

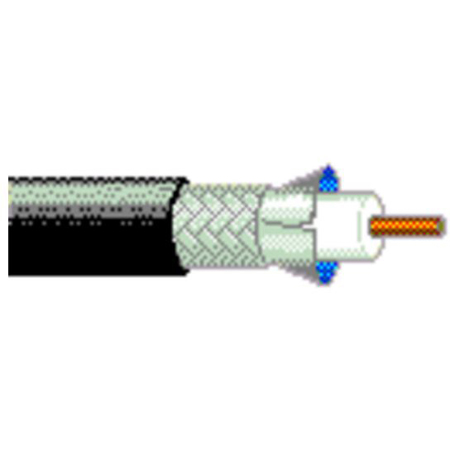

Belden 7810SB MarineTuff Shipboard CMG/LSZH Low Loss 50 Ohm RF400 Wireless Coax BC/Shielded Cable - Black - 1000 Ft

7810SB 0101000 - Overview

MarineTuff® Coaxial Broadcast AV Cable

• Features:

  • Thermoplastic LSZH Jacket
  • ABS Certified
  • TIA/EIA-568-B.2 or B.2.1
  • Compliant with IEEE 45 and applicable sections of IEC
  • 60092-376
  • NEC/CEC CMG-LS
  • FT4
  • RoHS compliant


• Specifications:

  • Conductor AWG: 10
  • Conductor Number of Element: 1
  • Conductor Stranding: Solid
  • Conductor Material: BCCA - Bare Copper Covered Aluminum
  • Conductor Nominal Diameter: 0.108 in
  • Insulation Material: PE - Polyethylene (Gas-Injected Foam)
  • Insulation Nominal Diameter: 0.285 in
  • Outer Shield Layer 1: Duofoil® Tape - Tri-Laminate (Alum+Poly+Alum) - 100%
  • Outer Shield Layer 2: Braid - Tinned Copper (TC) - 95%
  • Outer Jacket Material: LSZH - Low Smoke Zero Halogen (Flame Retardant)
  • Outer Jacket Nominal Diameter: 0.405 in
  • Nom. Conductor DCR: 1.34 Ohm/1000ft
  • Nom. Capacitance Cond-to-Shield: 23 pF/ft (75 pF/m)
  • Nom. Characteristic Impedance: 50 Ohm
  • Nom. Velocity of Prop.: 86%
  • Voltage Rating: 300 V RMS
  • Operating TEmp: -30°C to +75°C
  • Max. Pull Tension: 150 lbs
  • Bulk Cable Weight: 88 lbs/1000ft
  • Suitability - Aerial: Yes - Black only, when supported by messenger wire
  • Suitability - Indoor: Yes
  • Suitability - Outdoor: Yes
  • Other Specification: UL444, ABS Type Approval Certificate 06-HS184641B
  • UL Flammability: UL1666 Vertical Shaft, UL1685 FT4 Loading, Limited Smoke
  • Environmental Suitability: Indoor/Outdoor - Euroclass Dca
  • Sustainability: CA Prop 65


• Item Includes:

  • 7810SB MarineTuff Shipboard Coax BC/Shielded Cable - Black - 1000 Ft


• Warranty:

  • 10 Year Limited Warranty
