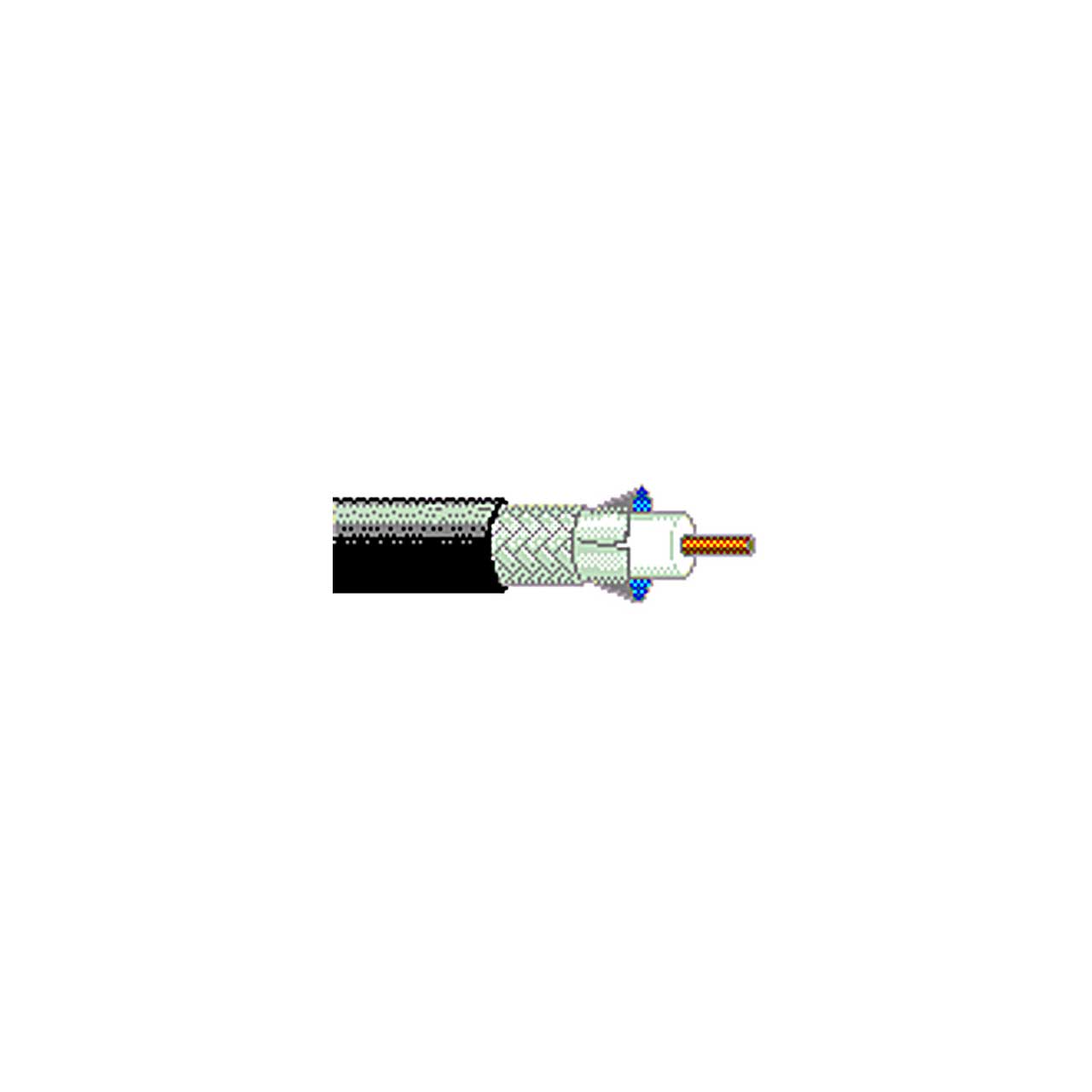

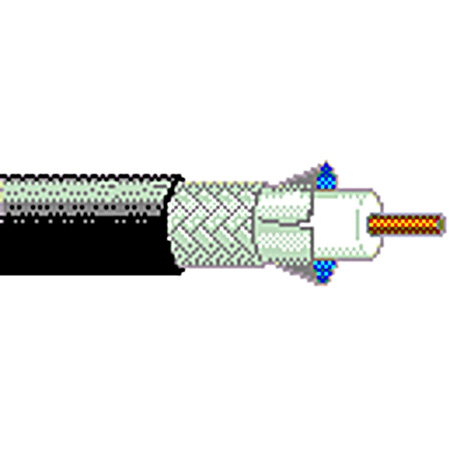

Belden 7810WB RF 400 Wireless Coax Cable - RG8 - Waterblocked - Black - 1000 Foot

7810WB-1000BK - Overview

• Specifications:

  • Physical
  • Conductor
  • AWG: 10
  • Stranding: Solid
  • Material: BCCA-Bare Copper Covered Aluminum
  • Nominal Diameter: 0.108"
  • Number of Coax: 1
  • Conductor Count: 1

    Insulation
  • Material: Gas-injected FHDPE - Foam High Density Polyethylene
  • Nominal Diameter: 0.285"

    Outer Shield Material
  • Tape
  • Layer: 1
  • Material: Aluminum/Polyester/Aluminum
  • Material Trade Name: Bonded Duofoil®
  • Coverage: 100%
  • Braid
  • Tape: 1
  • Layer: 2
  • Material: TC - Tinned Copper
  • Coverage: 95%

    Outer Jacket Material
  • Material: PE - Polyethylene
  • Nominal Diameter: 0.403"

    Electrical
  • Conductor DCR
  • Nominal Conductor DCR: 1.34Ω/1000ft
  • Nominal Conductor DCR Conductor Resistance: 1.34Ω/1000ft
  • Nominal Outer Shield DCR: 2Ω/1000ft
  • Outer Conductor DCR: 2Ω/1000ft

    Capacitance
  • Nominal Capacitance Conductor to Shield: 23 pF/ft

    Inductance
  • Nominal Inductance: 0.06 µH/ft

    Impedance
  • Nominal Characteristics Impedance: 50Ω

    Temperature Range
  • Non-UL Temp Rating: 176° (80°C)
  • Operating Temp Range: -40° to 167°F (-40° To 75°C)

    Mechanical Characteristics
  • Bulk Cable Weight: 73Lbs/1000'
  • Max Recommended Pulling Tension: 150Lbs
  • Min Bend Radius/Minor Axis: 4"

    Standards
  • RG Type: 8/U Type


• GTIN:

  0612825189848
