Belden 7924A CMR/CMX-Outdoor DataTuff Industrial Ethernet Cat5e Cable 4 Bonded Pr BC 24AWG UV/Oil Res - Black - 1000 Ft

ITEM #: BL-7924A-1000 MFG #: 7924A 0101000

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$2,231.90

Our Price:

$1,733.14

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

7924A 0101000 - Overview

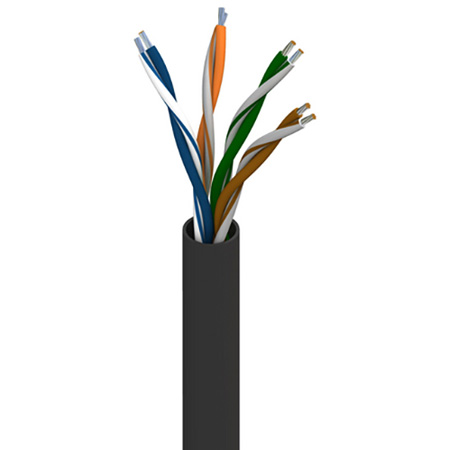

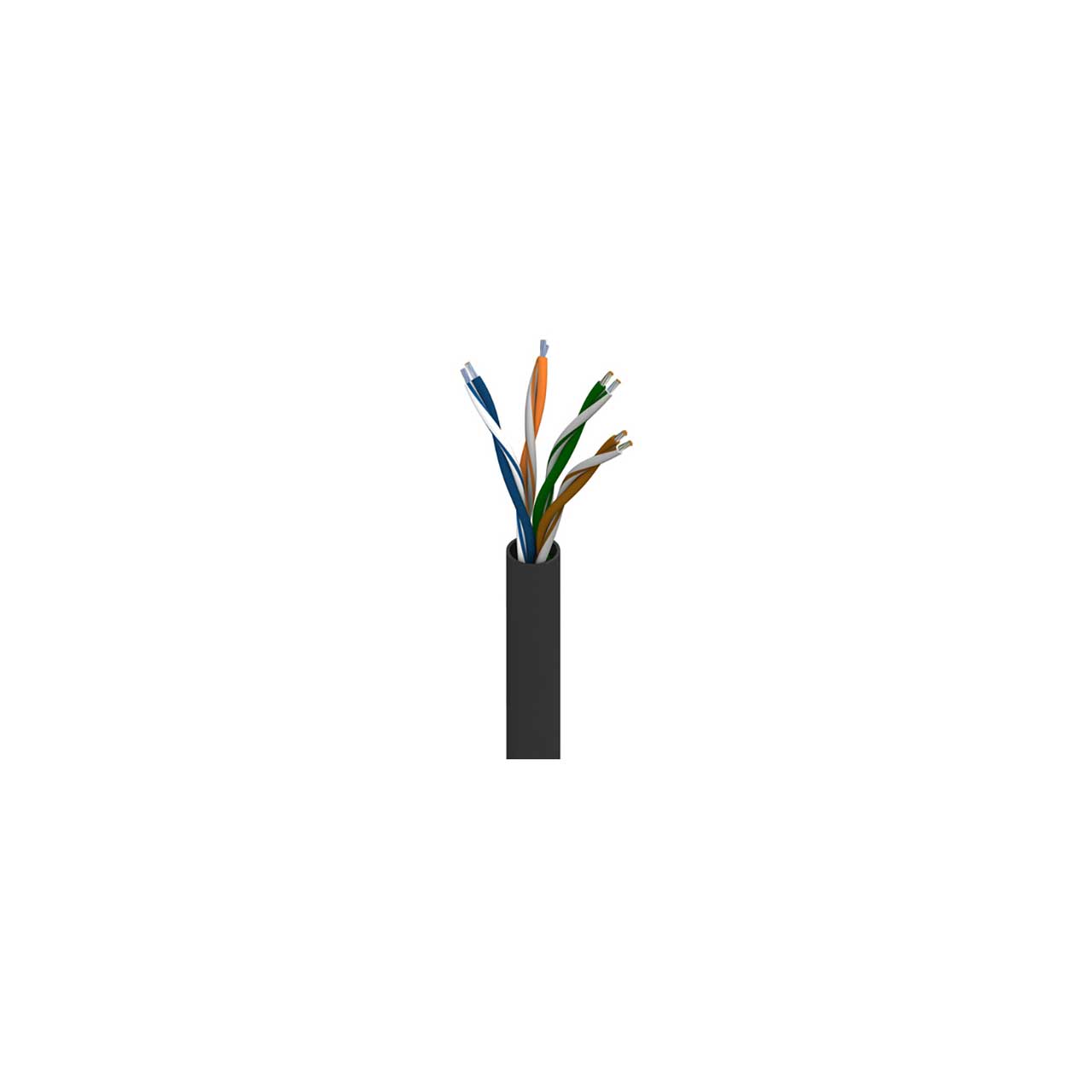

Belden 7924A is a CMR/CMX-Outdoor rated DataTuff® Industrial Ethernet Category 5e cable with 4 Bonded-Pair, 24AWG (7x32) Tinned Copper Conductors and PO Insulation in a PVC Outer Jacket. 7924A is rated for Indoor or Outdoor use and it's Sunlight and Oil Resistant.

Ensure maximum network performance and stability in legacy IP applications, renovations and price-sensitive environments with Category 5e cables that exceed standards. Belden offers several Category 5e performance levels that provide headroom beyond the TIA-568-C.2 Category 5e standard and are offered with Bonded-Pair technology to make your installation as robust as possible.

Applications
Outdoor & Harsh environments
IIoT (industrial internet of things)
Factory or process automation
Robotics
IP cameras and devices
Data communication

  • Features:

    • Superior Electrical Performance: Exceeds Category 5e performance
    • Performance Headroom: RevConnect delivers data rates up to 1.2 Gb/s for a system with usable bandwidth of 160 MHz
    • Stable Electricals: Cables design features matched conductors on all four pairs providing for extremely stable electrical performance

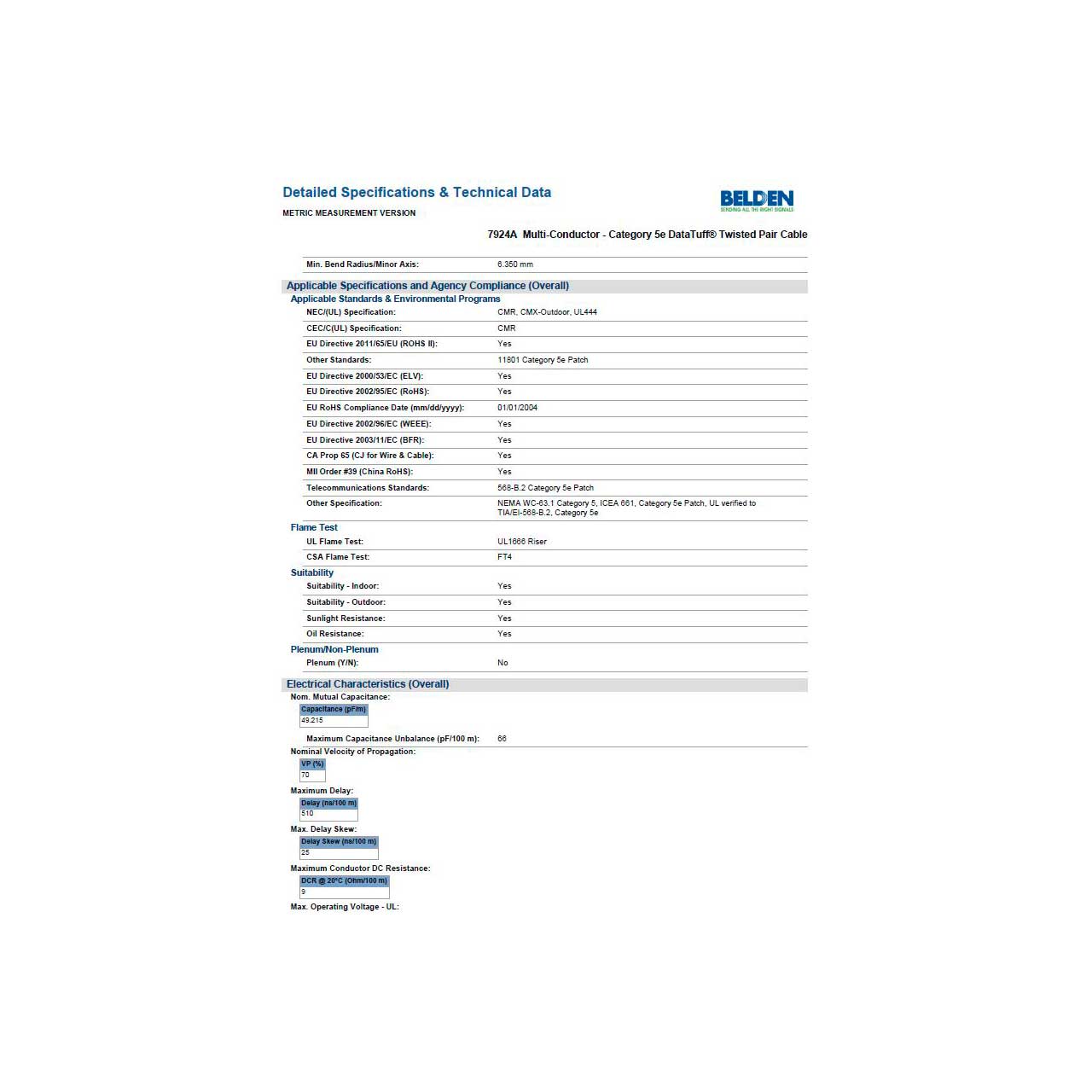

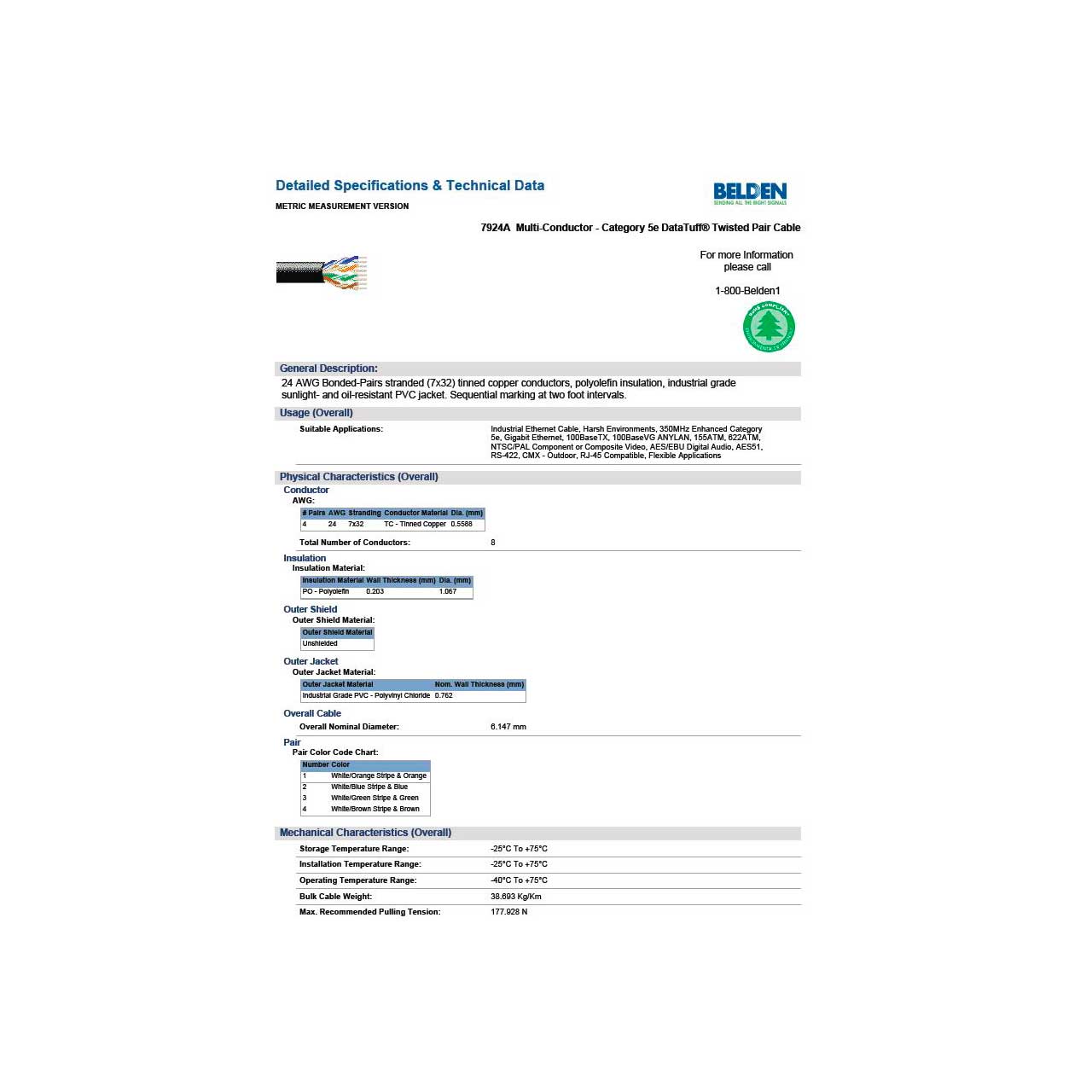

  • Specifications:

    • Conductor AWG: 24
    • Conductor Stranding: 7x32
    • Conductor Material: TC - Tinned Copper
    • Conductor Number of Pairs: 4
    • Insulation Material: PO - Polyolefin
    • Insulation Color Code: White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown
    • Bonded-Pair: Yes
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Outer Jacket Nom. Diameter: 0.242 in (6.15 mm)
    • Outer Jacket Ripcord: No
    • Overall Cable Diameter (Nominal): 0.242 in (6.15 mm)
    • UL Voltage Rating: 300 V (CMR), 300 V (CMX-Outdoor)
    • Max. Conductor DCR: 9 Ohm/1000ft / 90 Ohm/km
    • Max. DCR Unbalance: 3.0%
    • Max. Capacitance Unbalance: 49.2
    • Nom. Mutual Capacitance: 15 pF/ft
    • Max. Delay Skew: 25 ns/100m
    • Nominal Velocity of Propagation (VP) [%]: 70%
    • Max. Pull Tension: 40 lbs
    • Bulk Cable Weight: 26 lbs/1000ft
    • Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Oil Resistance
    • Flammability / Fire Resistance: UL1666 Riser, FT4, FT4, IEC 60332-1-2
    • NEC / UL Compliance: Article 800, CMR;CMX-Outdoor
    • CEC / C(UL) Compliance: CMX-Outdoor


  • Item Includes:

    • 7924A CMR/CMX-Outdoor DataTuff Cat5e Cable 24AWG- Black - 1000 Foot


  • Warranty:

    • 10 Year Limited Warranty


  • GTIN:

    0612825191414
