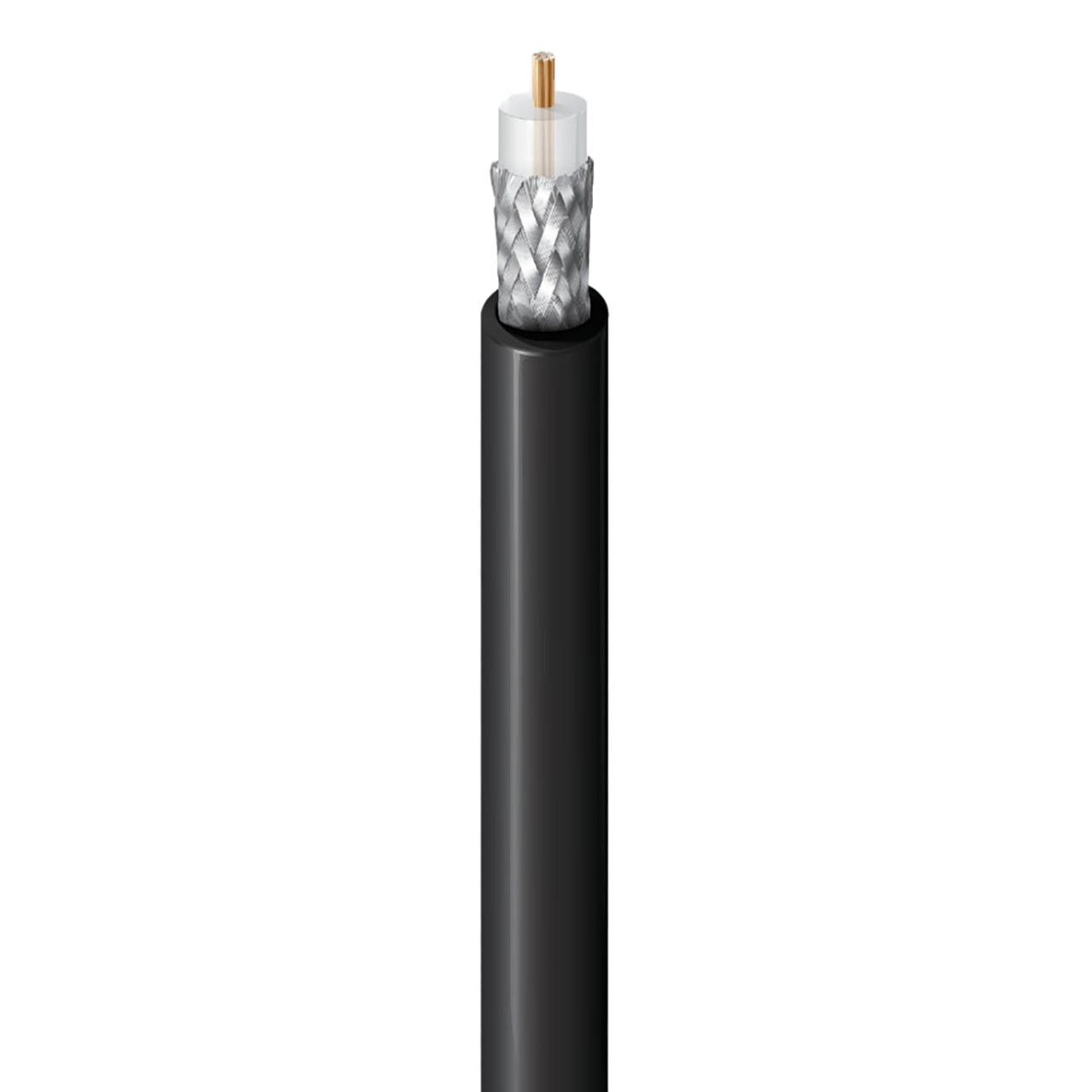

Belden 8216 Aerial Indoor/Outdoor RG-174/U 50 Ohm Wireless Transmission Coax Shielded Str BCCS 26AWG - Black - 1000 Ft

8216 0101000 - Overview

RG-174/U 26 AWG Coax Cable - 1000ft

• Specifications:

  • Conductor AWG: 26
  • Conductor Stranding: 7x34
  • Conductor Nom. Diameter: 0.019"
  • Conductor Material: BCCS - Bare Copper Covered Steel
  • Insulation Material: PE - Polyethylene
  • Insulation Color Code: White
  • Nom. Insulation Diameter: 0.060" (1.5mm)
  • Outer Shield Type: Braid
  • Outer Shield Material: Tinned Copper (TC)
  • Outer Shield Coverage: 90%
  • Outer Jacket Material: Tinned Copper (TC)
  • Outer Jacket Nom. Diameter: 0.110" (2.79mm)
  • Overall Cable Diameter (Nominal): 0.110" (2.79mm)
  • Nom. Conductor DCR: 97Ω/1000ft
  • Nom. Outer Shield DCR: 10.7Ω/1000ft
  • Nom. Capacitance Cond-to-Shield: 30.8pF/ft
  • Nom. Impedance: 50Ω
  • Nom. Velocity: 66%
  • UL Voltage Rating: 30 V (UL AWM 1354)
  • Non-UL Voltage Rating: 1100V
  • UL Rating Temp: 140°F (60°C)(UL AWM 1354)
  • Operating Temp: -22°F - 167°F (-30°C - 75°C)
  • Bulk Cable Weight: 8lbs/1000ft
  • Max. Pull Tension: 20lbs
  • Environmental Suitability: Outdoor - Aerial, Indoor, Aerial - Black only, When supported by messenger wire
  • Sustainability: CA Prop 65
  • AWM Compliance: 1354


• Item Includes:

  • 8216 50Ω Wireless Transmission Coax - Black - 1000ft
