Belden 9180 Paired AES/EBU Digital Audio Cable - Light Gray - 1000 Foot

ITEM #: BL-9180-1000 MFG #: 9180 0601000

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Belden
Free Shipping with $49 Minimum Order

List Price:

$1,216.90

Our Price:

$998.42

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

9180 0601000 - Overview

110 Ohm, 26 AWG stranded (7x34) .018" TC conductors, Datalene insulation, twisted pair, Beldfoil shield (100% coverage), 26 AWG stranded TC drain wire, PVC jacket.

  • Specifications:

    • Number of Pairs: 1
    • Total Number of Conductors: 2
    • AWG: 26
    • Stranding: 7x34
    • Conductor Material: TC - Tinned Copper
    • Insulation Material Trade Name: Datalene
    • Insulation Material: FHDPE - Foam High Density Polyethylene
    • Outer Shield Material Trade Name: Beldfoil

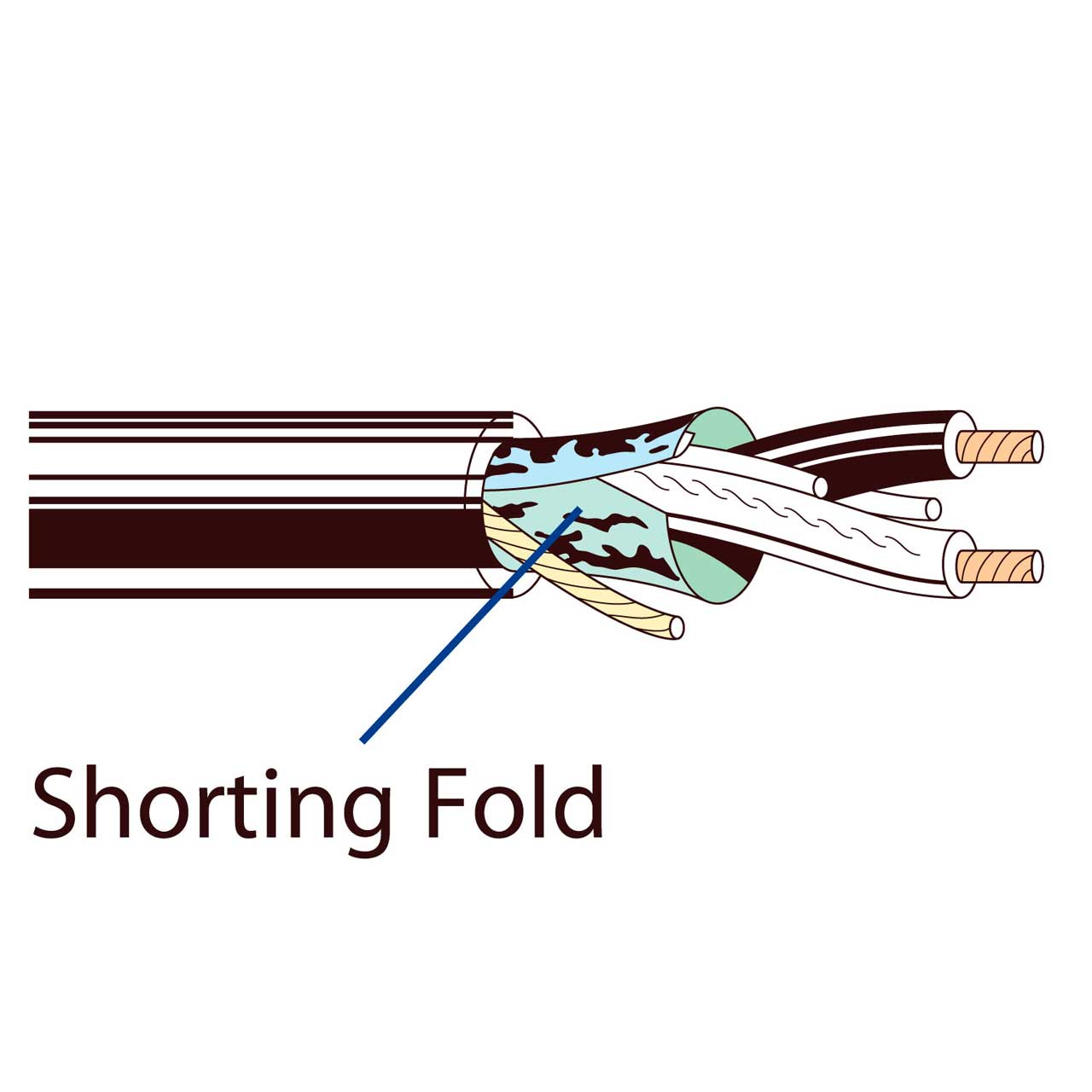

    • Outer Shield Material: Aluminum Foil-Polyester Tape w/Shorting Fold
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Plenum (Y/N): N


  • GTIN:

    0612825225096
