Belden 9310 20AWG RG-58/U Type 50 Ohm Coax Cable - Black - 500 Foot/Reel

ITEM #: BL-9310-500 MFG #: 9310 010500

Primary Image
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$639.65

Our Price:

$532.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    9310 010500 - Overview

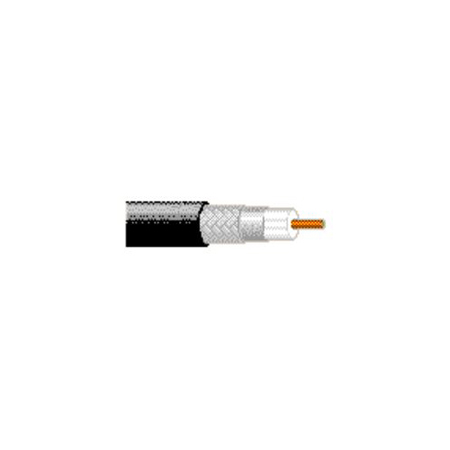

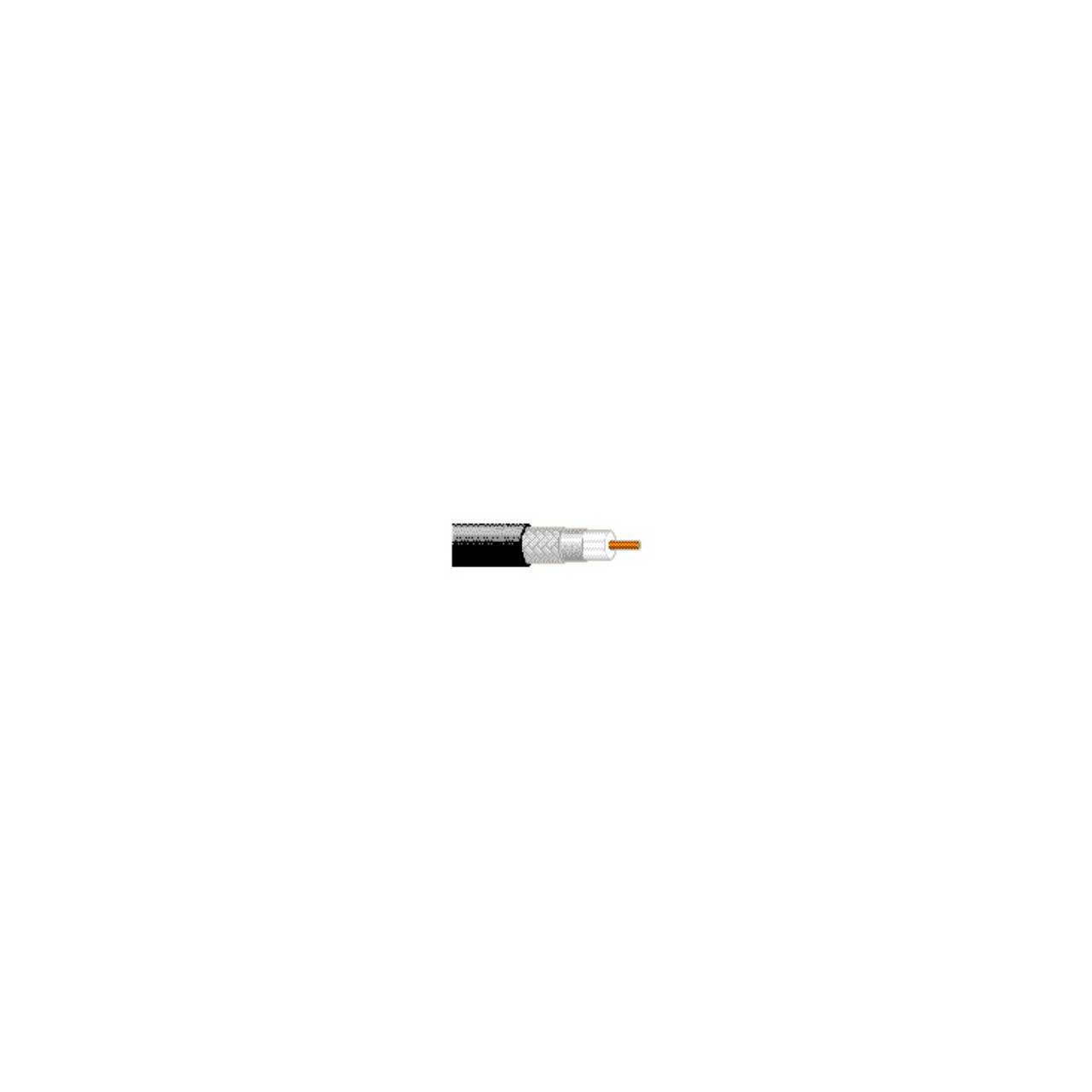

    Belden 9310 is a RG-58/U type cable with with 20 AWG solid .033" bare copper conductor, polyethylene insulation, Duobond II + tinned copper braid shield (55% coverage), and a PVC jacket.

    • Specifications:

      • AWG: 20
      • Stranding: Solid
      • Material: Bare Copper
      • Nominal Diameter: 0.033 in
      • No. of Coax: 1
      • Outer Jacket: PVC - Polyvinyl Chloride / 0.193 in
      • Insulation: PE - Polyethylene / 0.114 in
      • Nominal Conductor DCR: 9.4 Ohm/1000ft
      • Nominal Conductor DCR Conductor Resistance: 9.4 Ohm/1000ft
      • Nominal Outer Shield DCR: 8 Ohm/1000ft
      • Outer Conductor DCR: 8 Ohm/1000ft
      • Nom. Capacitance Conductor to Shield: 30.8 pF/ft
      • Nominal Inductance: 0.09 µH/ft
      • Nominal Characteristic Impedance: 50 Ohm
      • Nominal Delay: 1.54 ns/ft
      • Nominal Velocity of Propagation (VP) [%]: 66%
      • Non-UL Voltage Rating: 1400 V RMS
      • UL Voltage Rating: 30 V RMS
      • UL Temp Rating: 60°C
      • Operating Temperature Range: -40°C To +60°C
      • Bulk Cable Weight: 20 lbs/1000ft
      • Max. Pull Tension: 12.4 lbs
      • Min. Bend Radius/Minor Axis: 2 in
      • UL AWM Style Compliance: AWM 1354 (30 V 60°C)
      • CPR Euroclass: Eca
      • RG Type: 58
      • Environmental Space: Indoor/Outdoor


    • Item Includes:

      • 1x Belden 9310 20AWG RG-58/U Type 50 Ohm Coax Cable - Black - 500 Foot/Reel


    • GTIN:

      0612825227793
