Belden 9451P CMP/Plenum Single Pair Line Level Audio Cable Str TC Shielded 22AWG - Black - 1000 Foot/Z Tuff Box

ITEM #: BL-9451P-Z1000BK MFG #: 9451P 010Z1000

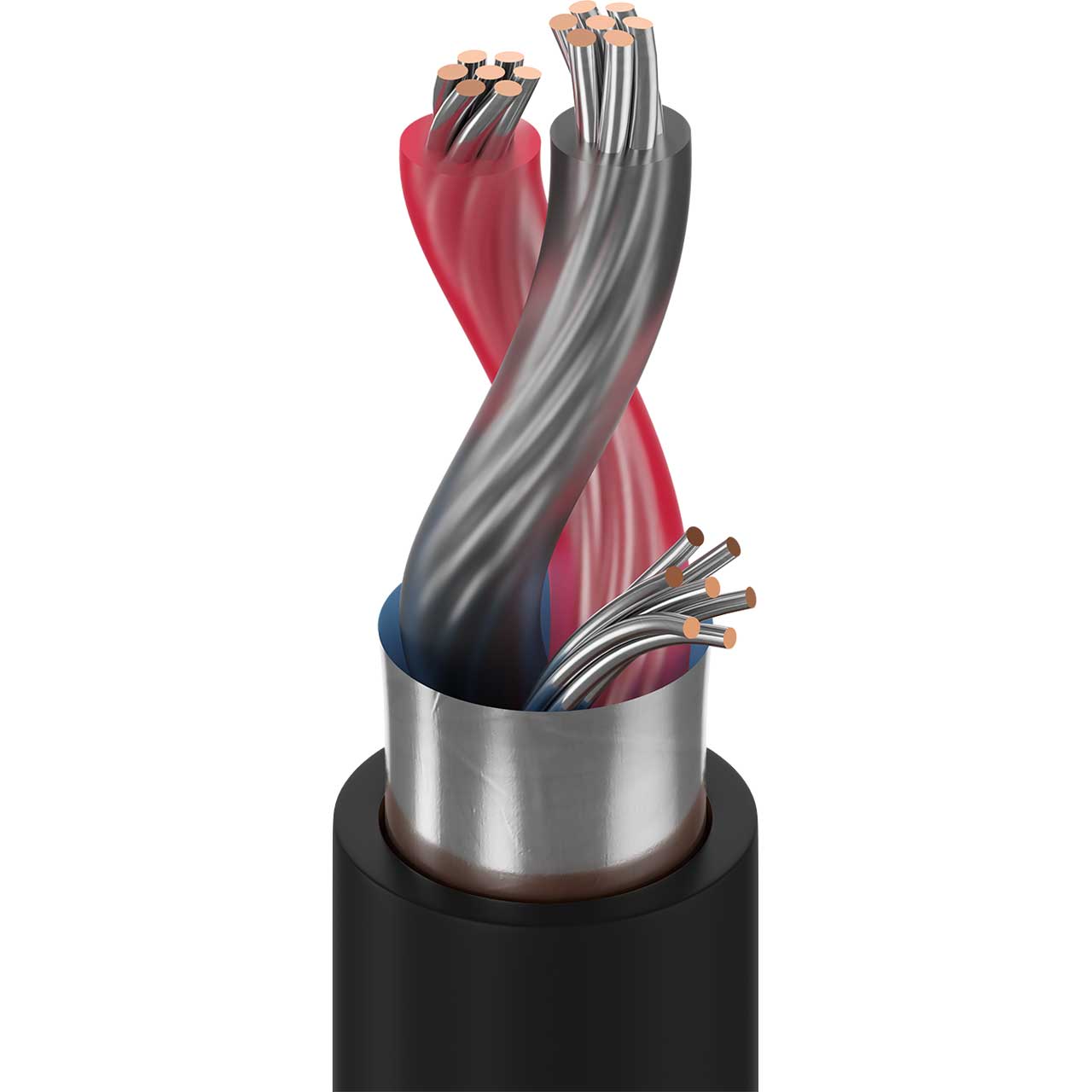

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,063.10

Our Price:

$620.00

Availability: In Stock
iAvailability Description Popup


    9451P 010Z1000 - Overview

    Belden 9451P is a Plenum, 300V, 1-Pair, Line Level 22 AWG (7 x 30) Stranded Audio Cable. It features tinned copper conductors, FEP insulation with an Overall Beldfoil® Shield in a Flamarrest® CMP rated jacket.

    Belden's Analog Audio Cables allow for easier stripping and quicker installation, saving time and money. These cables are designed to ensure that audio signals deliver efficiently with Belden's quality standards in mind.

    Applications
    Mic or Line level audio
    Low voltage analog signals and control
    Electronic audio
    Low voltage instrumentation

    • Features:

      • Easy Stripping: Foil shields bonded to the cable jacket support faster installation
      • Rated for Many Applications: Audio Cables are CM, CMR and CMP rated
      • Improved Performance: Shorting fold technique to maintain metal-to-metal contact

    • Specifications:

      • Environmental Suitability: Indoor - Plenum
      • Conductor Count: 2
      • Total Number of Pairs: 1
      • Conductor Size: 22 AWG
      • Stranding: 7x30
      • Conductor Material: TC - Tinned Copper
      • Insulation Material: FEP - Fluorinated Ethylene Propylene
      • Insulation Thickness: 0.008 in (0.20 mm)
      • Insulation Diameter: 0.044 in (1.1 mm)
      • Insulation Color Code: Black & Red
      • Outer Shield Type: Tape
      • Outer Shield Material: Bi-Laminate (Alum+Poly)
      • Outer Shield Coverage: 100%
      • Outer Shield Drainwire Type: 22 AWG (7x30) TC
      • Outer Jacket Material: PVC - Polyvinyl Chloride
      • Outer Jacket Nom. Thickness: 0.017 in (0.43 mm)
      • Outer Jacket Nom. Diameter: 0.127 in (3.23 mm)
      • Overall Cable Diameter (Nominal): 0.127 in (3.23 mm)
      • UL Voltage Rating:300 V (CMP)
      • UL Temp Rating: 60°C
      • Operating Temp Range: -20°C To +75°C
      • Bulk Cable Weight: 14 lbs/1000ft
      • Max Recommended Pulling Tension: 27 lbs
      • Min Bend Radius/Minor Axis: 1.25 in
      • NEC/(UL) Specification: CMP
      • CEC/C(UL) Specification: CMP
      • CPR Euroclass: Eca

    • Item Includes:

      • 9451P Audio Cable 22AWG - Black - 1000 Foot/Z Tuff Box

    • Warranty:

      • Limited 10 Year Warranty

    • GTIN:

      0612825445340
