Belden 9626 25/18 Audio Control & Instrumentation Cable - 1000 Foot

ITEM #: BL-9626-1000 MFG #: 9626 0601000

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$23,575.50

Our Price:

$19,692.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Shipped truck freight.
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

9626 0601000 - Overview

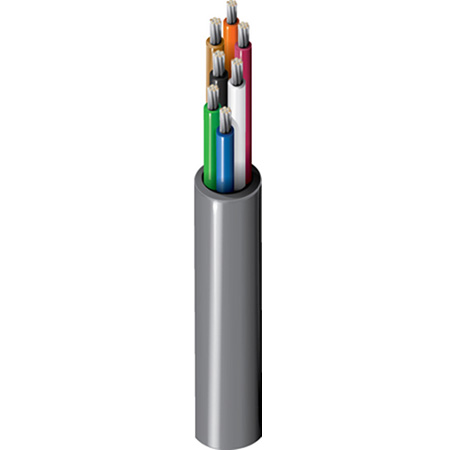

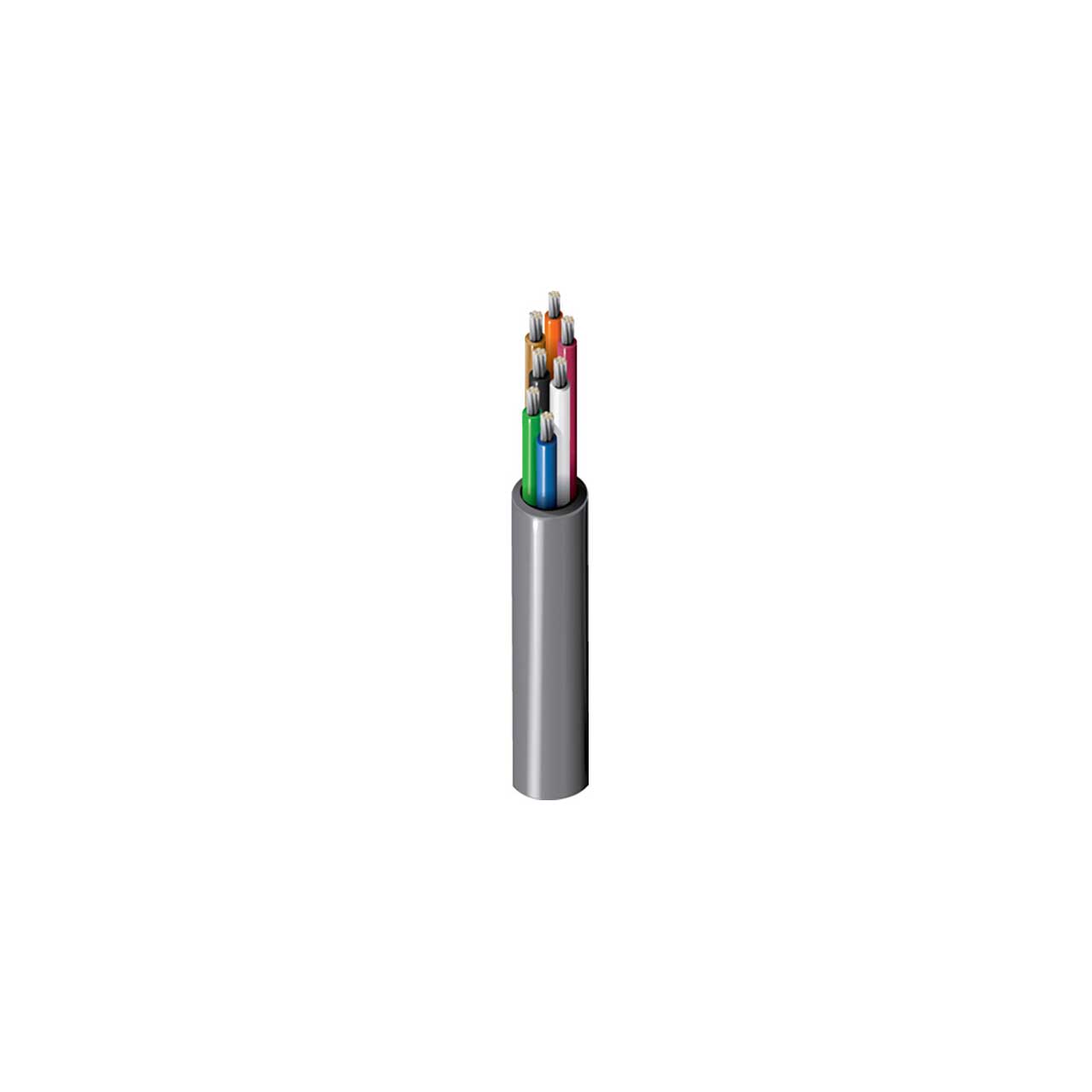

Belden 9626 is a Multi-Conductor - Audio, Control and Instrumentation Cable with 18 AWG stranded (19x30) tinned copper conductors, conductors cabled, PVC insulation, PVC jacket.

  • Specifications:

    • # Conductors: 25
    • AWG: 18
    • Stranding: 19x30
    • Conductor Material: TC - Tinned Copper
    • Overall Nominal Diameter: 15.545 mm
    • Operating Temperature Range: -20°C To +60°C
    • UL Temperature Rating: 60°C (UL AWM Style 2598)
    • Bulk Cable Weight: 363.121 Kg/Km
    • Max. Recommended Pulling Tension: 2780.125 N
    • Min. Bend Radius/Minor Axis: 158.750 mm
    • Nom. Capacitance Conductor to Conductor: 85.306pF/m
    • DCR @ 20°C (Ohm/km): 20.6703
    • Voltage: 300 V RMS


  • GTIN:

    0612825256816
