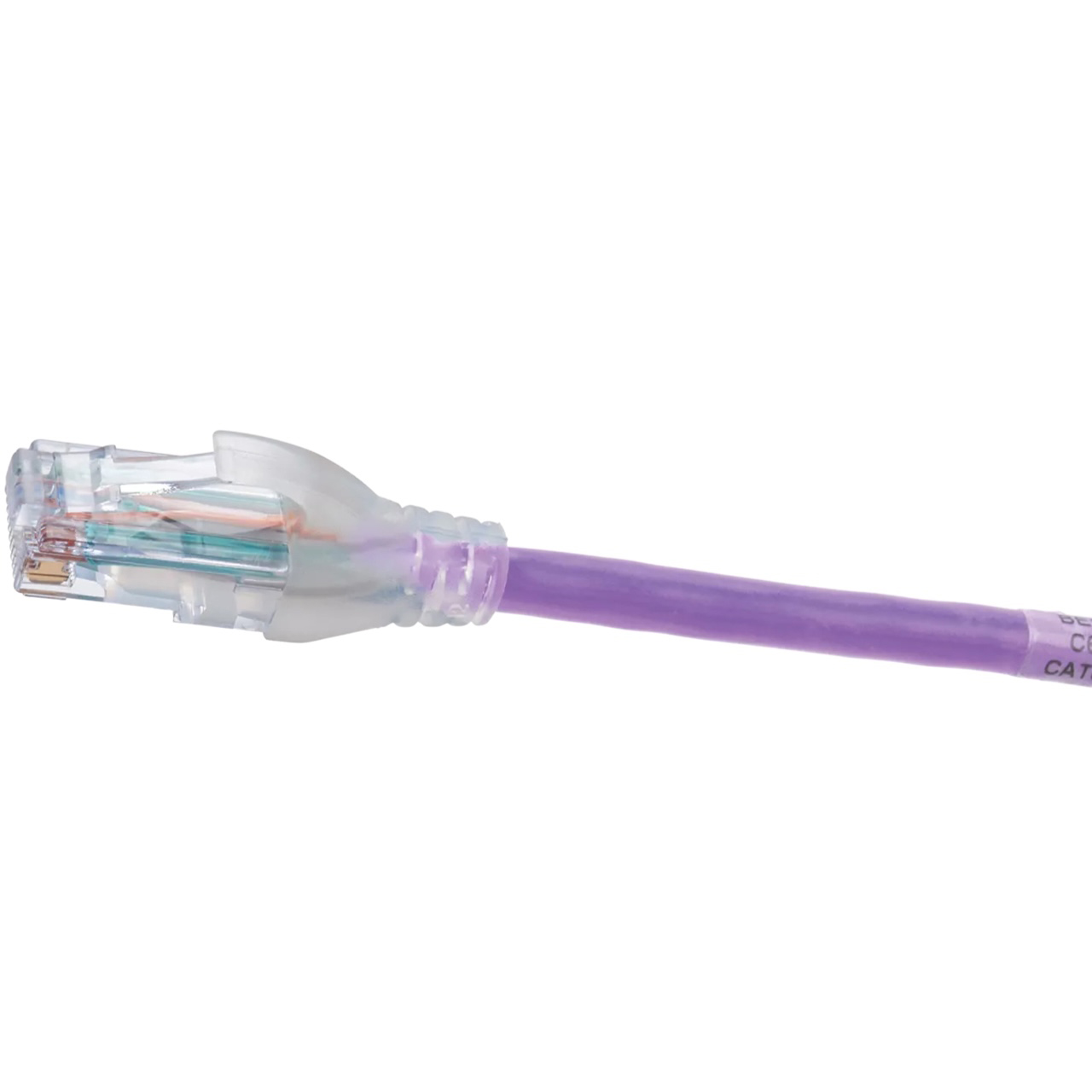

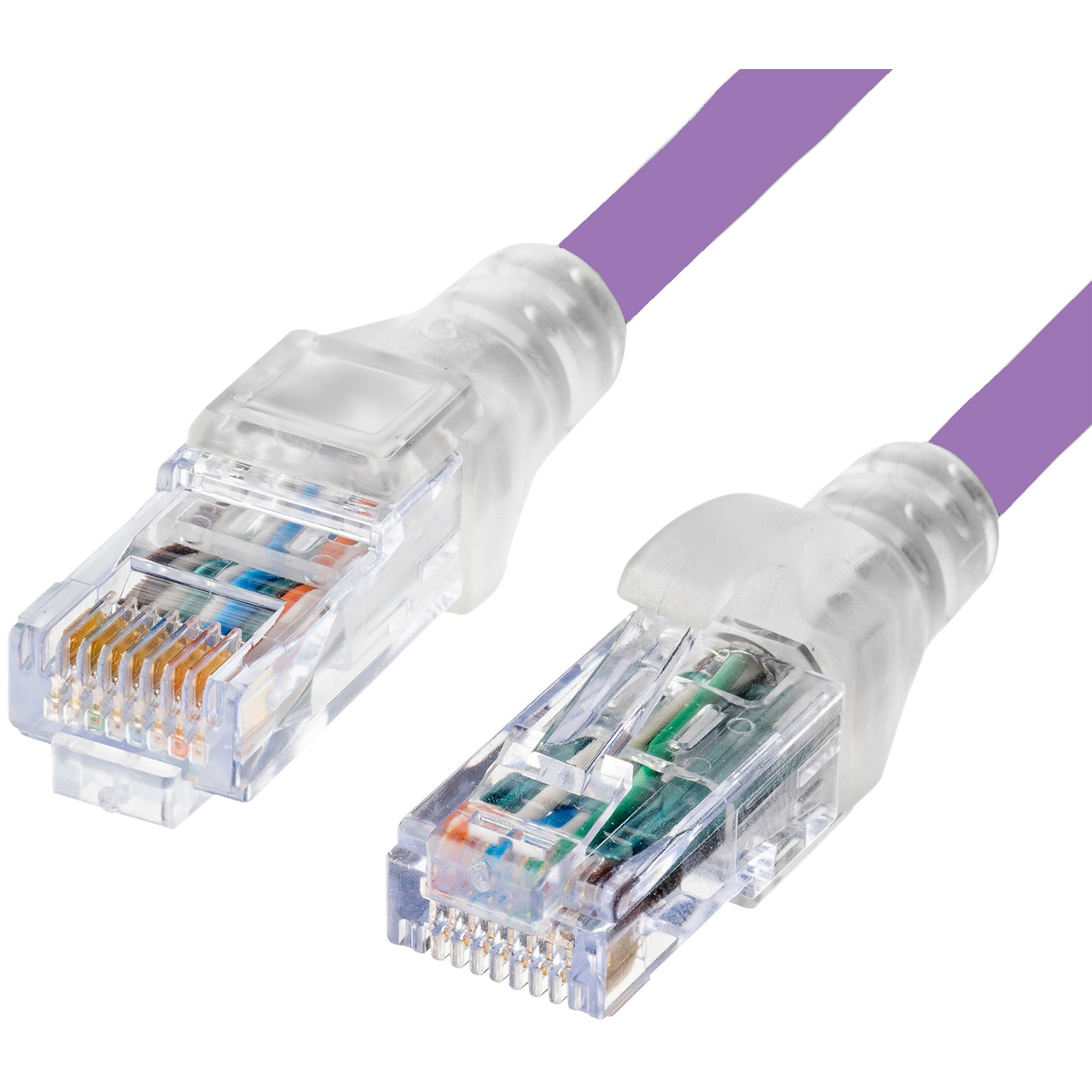

Belden CA24107003M CAT6A 10GX Unshielded Patch Cord - LSZH Stranded - T568A/B Compatible - Purple - 9.84FT/3M - Each

CA24107003M EACH - Overview

Bonded-Pair technology ensures optimum performance and resists impacts of installation and wear and tear!

• Features:

  • Guaranteed Performance: With guaranteed usable bandwidth, patch cords meet and exceed standards
  • Highly Reliable: Bonded-Pair technology ensures optimum performance and resists impacts of installation and wear and tear
  • Space-Saving Footprint: Small in diameter, Belden's patch cords ensure proper airflow, support easy maintenance and are compatible with high-density hubs


• Specifications:

  Conductor
  • AWG: 26
  • Stranding: Stranded
  • Material: BC - Bare Copper
  • Nominal Diameter: 6.1mm
  • No. of Pairs: 4
  • Total Number of Pairs: 4

    Insulation
  • Material: PE - Polyethylene (Foam

    Inner Shield
  • Element: Floating Shielded Pair
  • Type: Tape
  • Material: Bi-Laminate (Alum+Poly)

    Inner Jacket
  • Material: No Jacket

    Outer Shield
  • Type: Braid
  • Material: Tinned Copper (TC)

    Outer Jacket
  • Material: LSZH - Low Smoke Zero Halogen (Flame Retardant)
  • Nominal Diameter: 6.1mm
  • Wiring Scheme: T568A/B-T568A/B
  • Packaging: Individually packaged in a clear plastic bag

    Connectors
  • Plug: Polycarbonate RJ45
  • Boot: LSZH Snagless
  • Front Connection: Phosphor Bronze with 50u inch Gold over Nickel Plating Blades

    Electrical Characteristics
  • Dielectric Strength: 2.5kV DC
  • Current Rating: 1A
  • Insulation Resistance: 5000MΩ*km
  • Max Contact
  • Resistance: 20mΩ

    Voltage
  • Voltage Rating: 72V DC
  • Performance Footnote:
    1) There is 1dB margin on NEXT and RL guaranteed compared to ISO/IEC 11801-1:2017
    2) The performance data below 4MHz or above 500MHz are for information only.
    3) The standard minimum patch-cord length is 0.4m and the maximum is 80m. Electrical performance is not guaranteed outside this range.

    Temperature Range
  • Installation Temperature Range: 32°F - 122°F (0°C - 50°C)
  • Operating Temperature Range: -4°F - 140°F (-20°C - 60°C)

    Mechanical Characteristics
  • Min Bend Radius (Overall Cable): 25mm
  • Plug/Jack Compatibility: RJ45

    Termination Interface
  • Termination: RJ45
  • Connection: Mated Connection
  • Durabilities: 750 Cycles

    Standards
  • ISO/IEC Compliance: ISO/IEC 11801-1
  • Data Category: Category 6A
  • TIA/EIA Compliance: ISO/IEC 11801-1:2017; EN 50173-1 Amd 1 Caregory 6A; ANSI/TIA/EIA 568 C.2 Category 6A

    Applicable Environmental and Other Programs
  • Environmental Space: Indoor Rated (Not Riser or Plenum)
  • Suitability - Indoor: Yes
  • IEC Flammability: IEC 60332-3-22
  • Related Parts: 10GX Modular Jacks, 10GX Patch Panels


• Item Includes:

  • 1x Belden CA24107003M CAT6A 10GX Unshielded Patch Cord - LSZH Stranded - T568A/B Compatible - Purple - 9.84FT/3M - Each
