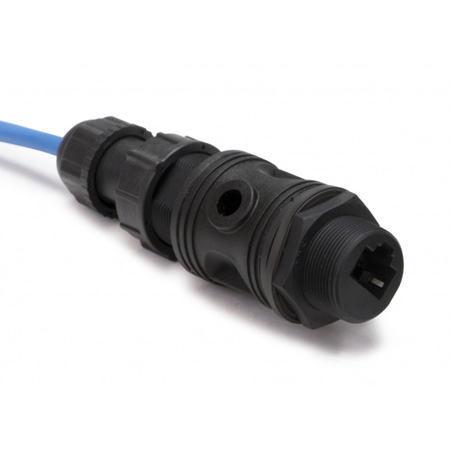

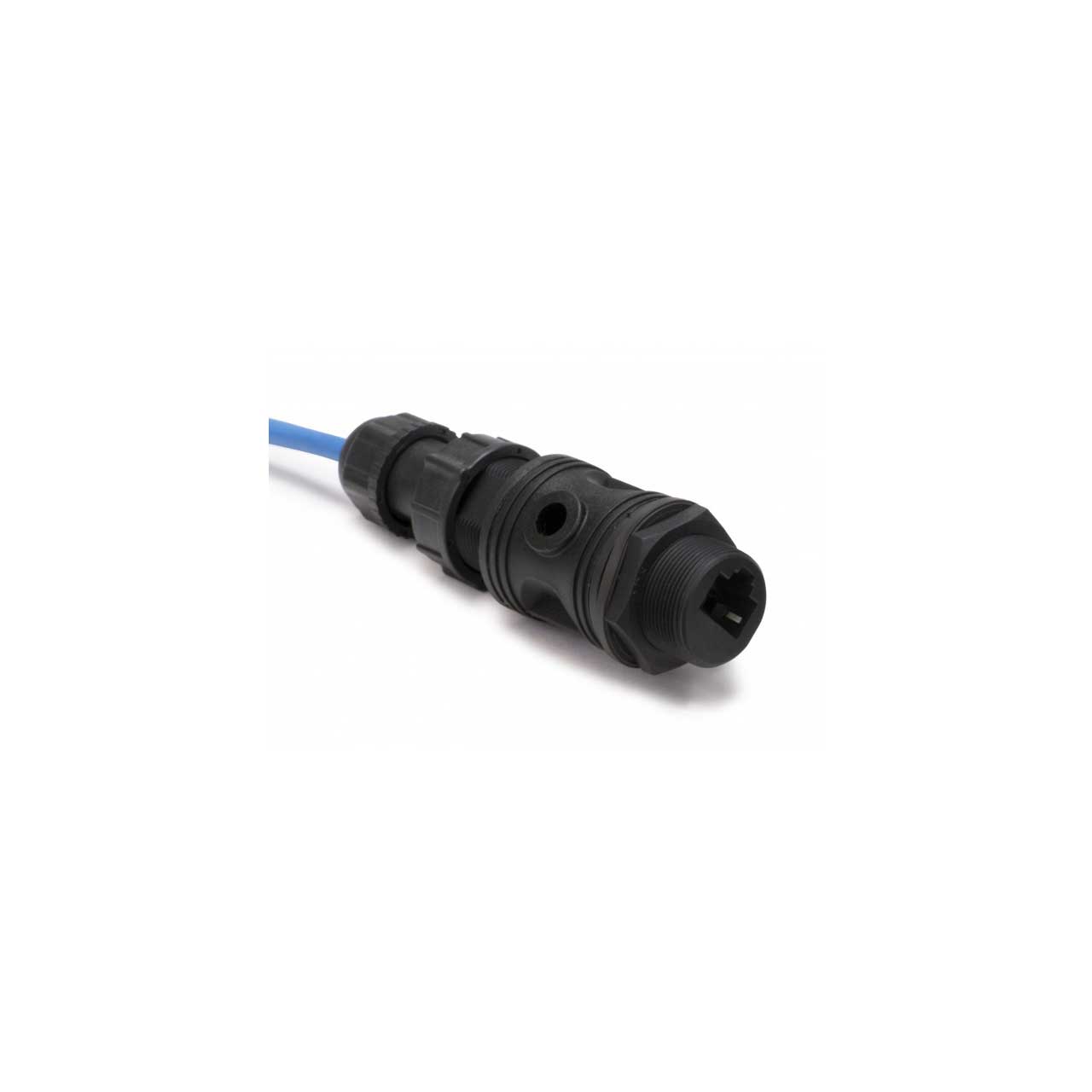

Platinum Tools 741C Waterproof RJ45 Bulkhead Coupler

ITEM #: PLAT-741C MFG #: 741C

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

List Price:

$28.54

Our Price:

$24.26

Availability: Temporarily Out of Stock
iAvailability Description Popup


    741C - Overview

    The Platinum Tools 741C is ideal for installs through a bulkhead or partition where the exterior cable end must be protected against exposure to water, dust and harsh environments.

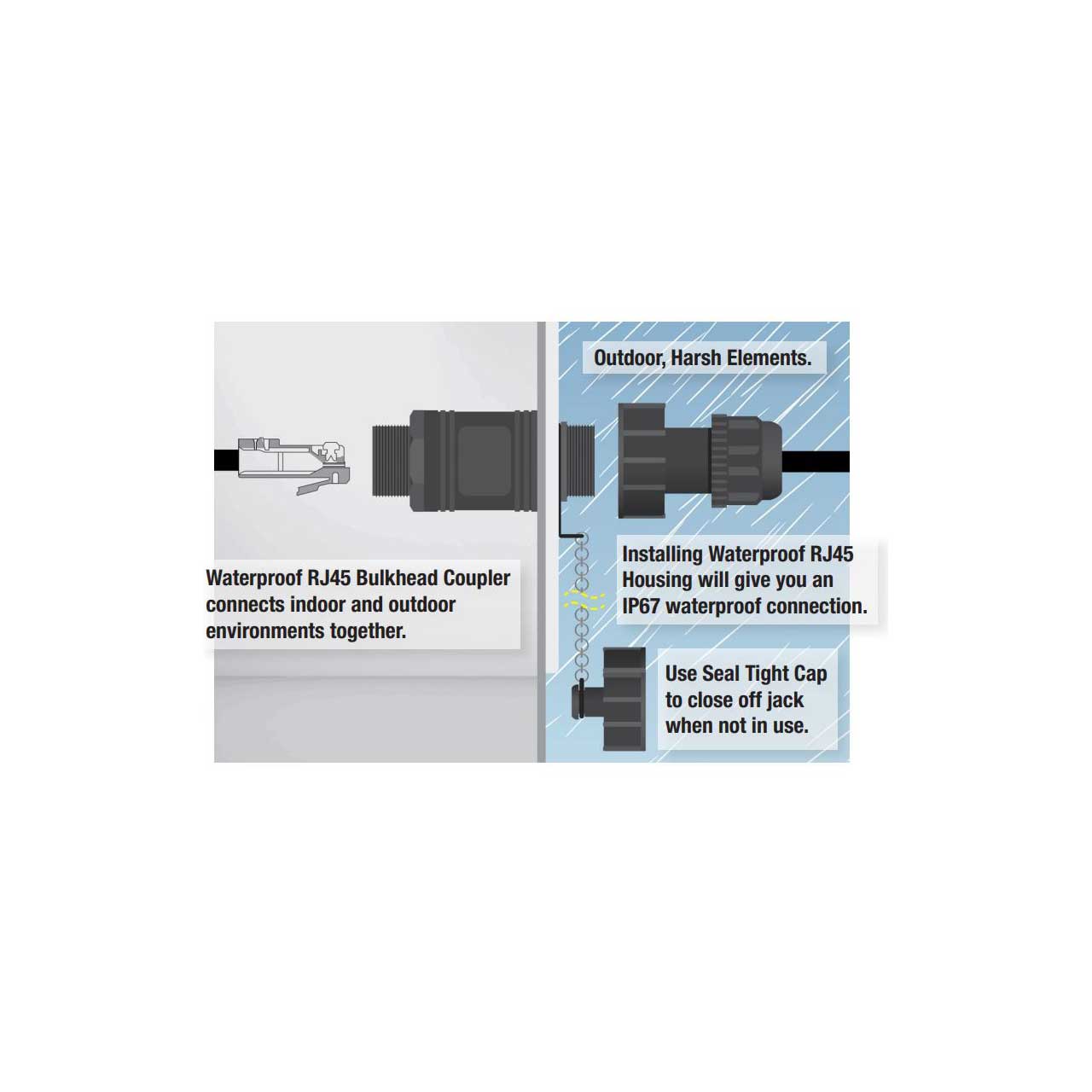

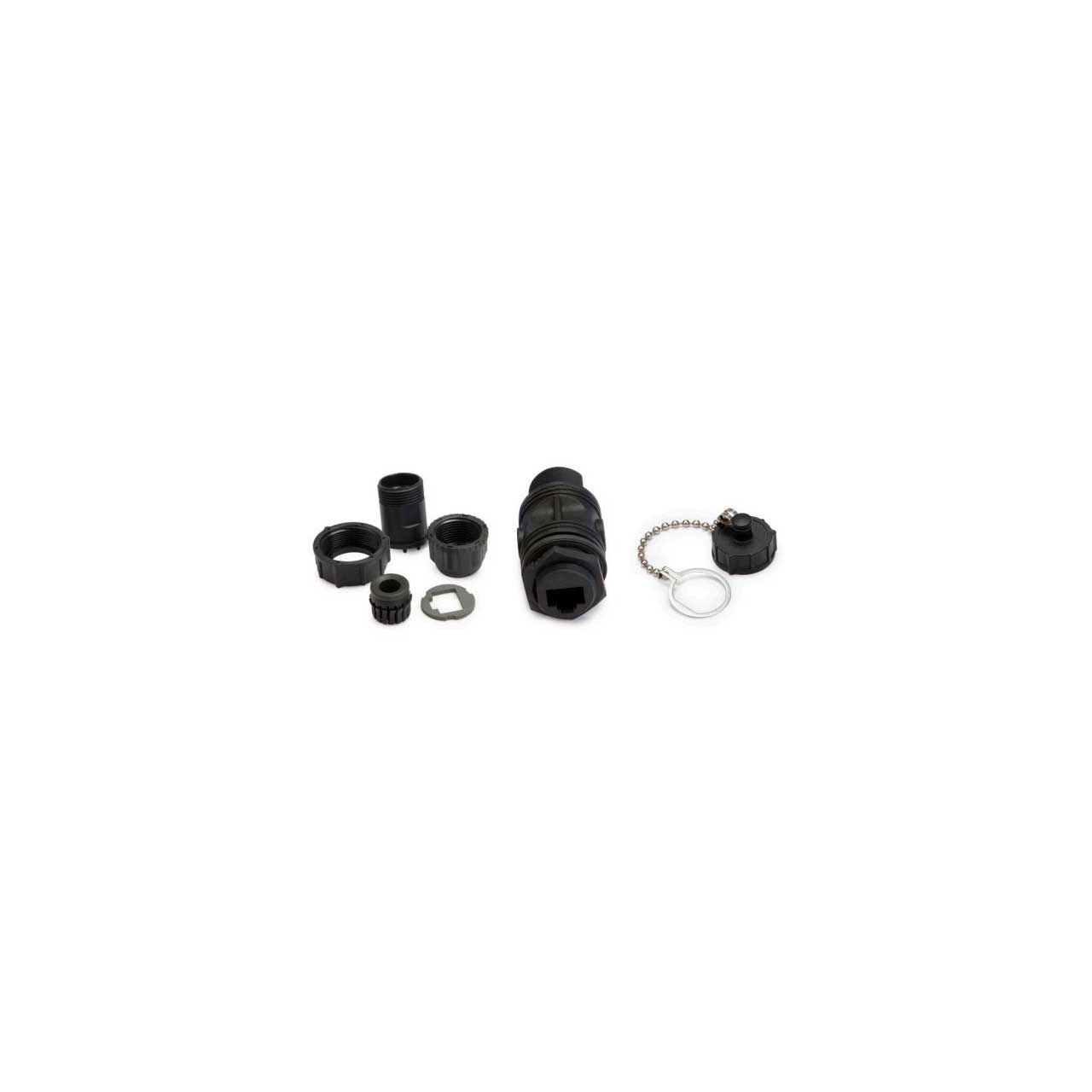

    The coupler is quick to assemble and install and connects RJ45 terminated cables within the waterproof body. The body is installed through a bulkhead. The end housing is assembled on a cable end prior to termination with an RJ45 connector and is then screwed onto the coupler body. An internal ground link in the coupler body allows it to be used for shielded applications using internal ground shielded connectors. The gasketed housing/body screw mating system is secure and rated IP67 waterproof and dustproof and the unit is rated for Cat5e/Cat6. The cable jacket has an OD range of .216"-.276" (5.5 - 7.0mm).

    A weatherproof cap is provided to seal off the exterior jack when not in use. An additional end housing (742C) may be purchased separately for the interior end of the coupler body.

    Applications:
    Wireless Towers
    Security Systems
    Outdoor Entertainment Venues
    Industrial Manufacturing
    LED Lighting
    Emergency Communications
    Marinas

    741C - Required Accessories

      741C - Recommended Accessories
