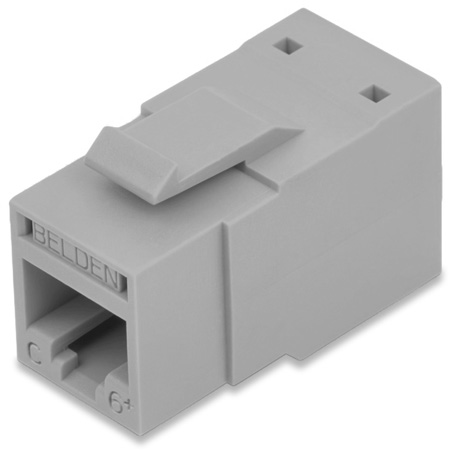

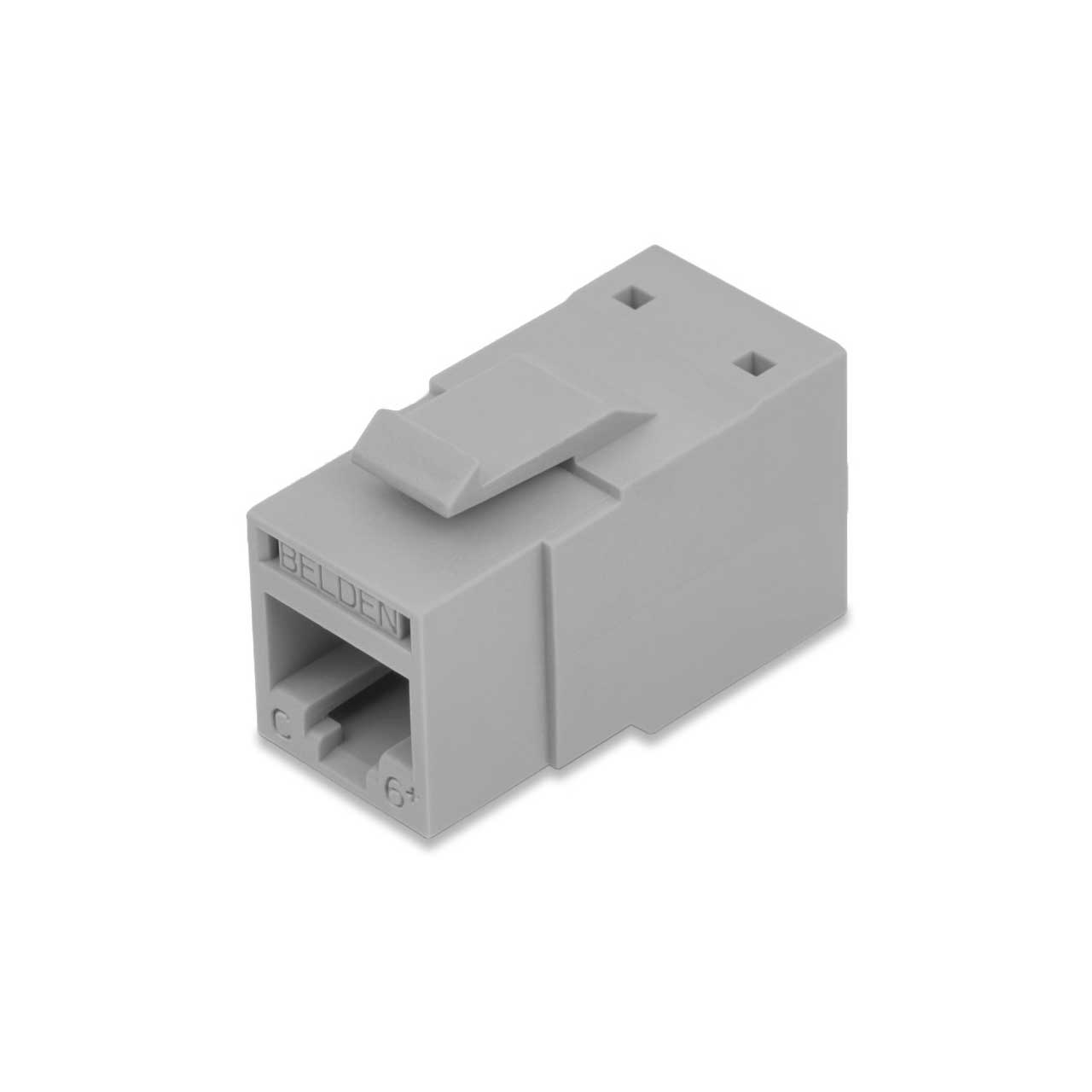

Belden RV6MJKUGY-S1 REVconnect Cat6+ Shielded Modular Jack - Gray - Each

RV6MJKUGY-S1 - Overview

• Specifications:

  • Related Parts: Compatible with KeyConnect Faceplates, Adapters, Boxes and Patch Panels
  • Footprint/Type: KeyConnect
  • Suitability - Indoor: Yes
  • Plug / Jack Compatibility: RJ45, RJ11
  • Cable/Connector Retention: 15 lbs.
  • Dielectric Strength: 1,000 V RMS @ 60 Hz for 1 minute (Signals to Ground)
  • Current Rating: 1.300 A
  • Insulation Resistance: 500 M-Ohm Minimum
  • Max. Contact Resistance: 20 m-Ohm
  • Termination Resistance: 2.5 m-Ohm
  • Connector/Hardware Retention: 20 lbs
  • Plug/Connector Retention: 11.250 lbs
  • Storage Temperature Range: -40°C To +70°C
  • Installation Temperature Range: -10°C To +60°C
  • Operating Temperature Range: -10°C To +60°C
  • Tool Compatibility: REVConnect Termination Tool (p/n RVUTT01)
  • Height (in.): 0.940
  • Width (in.): 0.640
  • Depth (in.): 1.337
  • Wiring Scheme: T568A/B
  • Weight: 0.016 lbs
  • UL Rating: UL94V-0
  • IEEE Specification: Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBaseTTM (up to 100W)
  • UL Flame Test: UL2043 Air Handling Spaces


• Item Includes:

  • 1x Belden RV6MJKUGY-S1 REVconnect Cat6+ Shielded Modular Jack - Gray - Each
