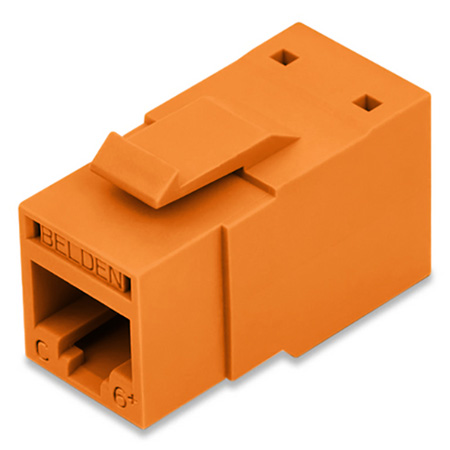

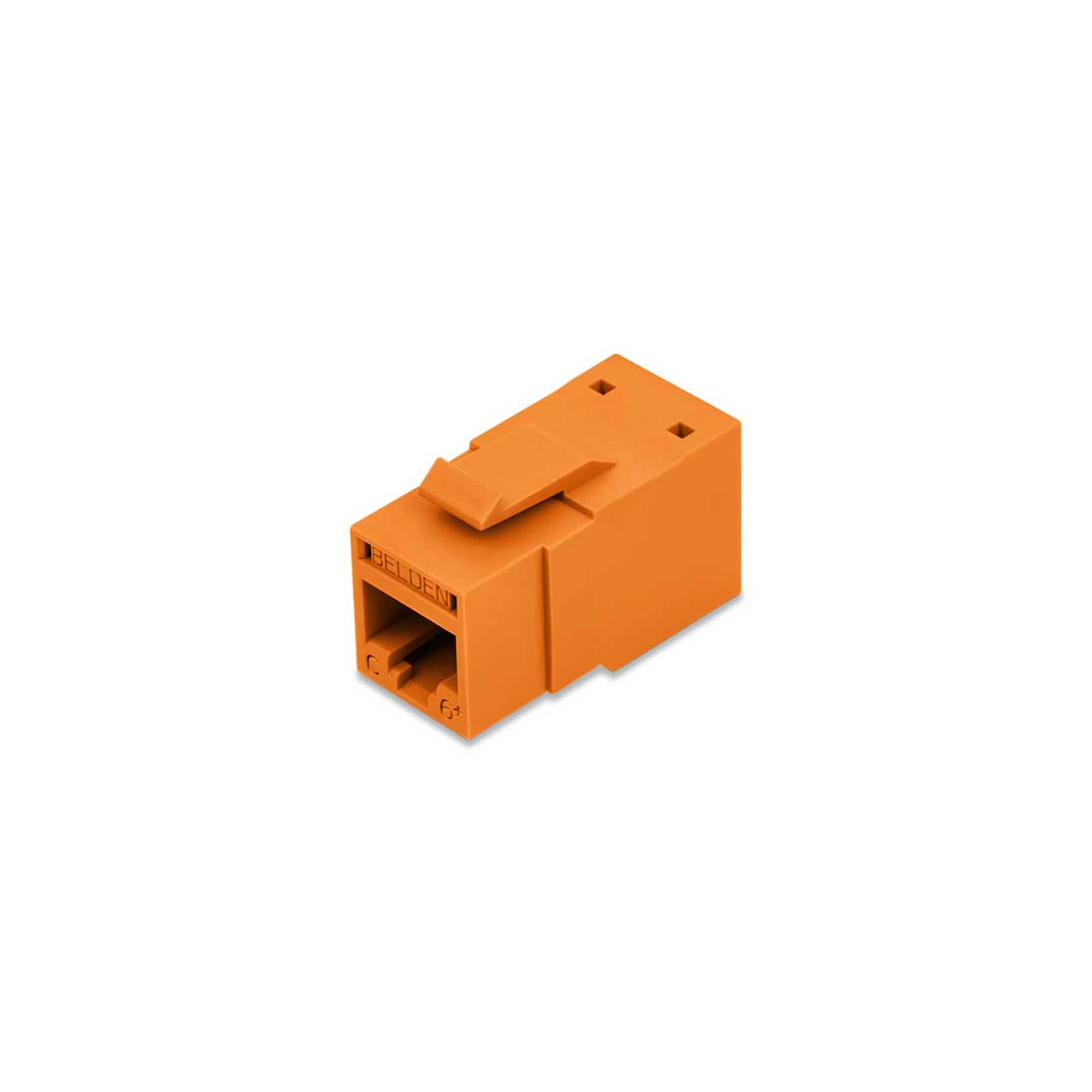

Belden RV6MJKUOR-S1 REVConnect 10GX Cat6+ UTP Modular Jack - Orange - Single Pack

RV6MJKUOR-S1 - Overview

• Specifications:

  • Color: Orange
  • Height (in.): 0.940
  • Width (in.): 0.640
  • Depth (in.): 1.337
  • Weight: 0.016 lbs
  • Footprint/Type: KeyConnect
  • Suitability - Indoor: Yes - Indoor
  • Plug / Jack Compatibility: RJ45, RJ11
  • Cable/Connector Retention: 15 lbs.
  • Connector/Hardware Retention: 20 lbs.
  • Plug/Connector Retention: 11.250 lbs.
  • Storage Temperature Range: -40°C To +70°C
  • Installation Temperature Range: -10°C To +60°C
  • Operating Temperature Range: -10°C To +60°C
  • Tool Compatibility: REVConnect Termination Tool (p/n RVUTT01)
  • UL Rating: UL94V-0
  • IEEE Specification: Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBaseTTM (up to 100W)
  • EU Directive 2002/95/EC (RoHS): Yes
  • EU RoHS Compliance Date (mm/dd/yyyy): 07/01/2006
  • MII Order #39 (China RoHS): EUP 50
  • Telecommunications Standards: Category 6 - TIA 568.C.2, Category 6 - ISO/IEC 11801:2002 Ed.2
  • Safety Listing: c(UL)us Listed
  • Other Specification: UL 1863, IEC 60603-7, FCC part 68-F
  • UL Flame Test: UL2043 Air Handling Spaces
  • Dielectric Strength: 1,000 V RMS @ 60 Hz for 1 minute (Signals to Ground)
  • Current Rating: 1.300 A
  • Insulation Resistance: 500 M-Ohm Minimum
  • Max. Contact Resistance: 20 m-Ohm
  • Termination Resistance: 2.5 m-Ohm

    Materials:
  • Front Connection: RJ45 Copper - Clad Flexible PCB, 50uin Gold plated contacts over Nickel
  • Rear Connection: REVConnect - Copper alloy, Gold plated contacts over Nickel
  • Connector Body: PBT glass reinforced UL94V-0


• Item Includes:

  • 1x Belden RV6MJKUOR-S1 REVConnect 10GX Cat6plus UTP Modular Jack - Orange
