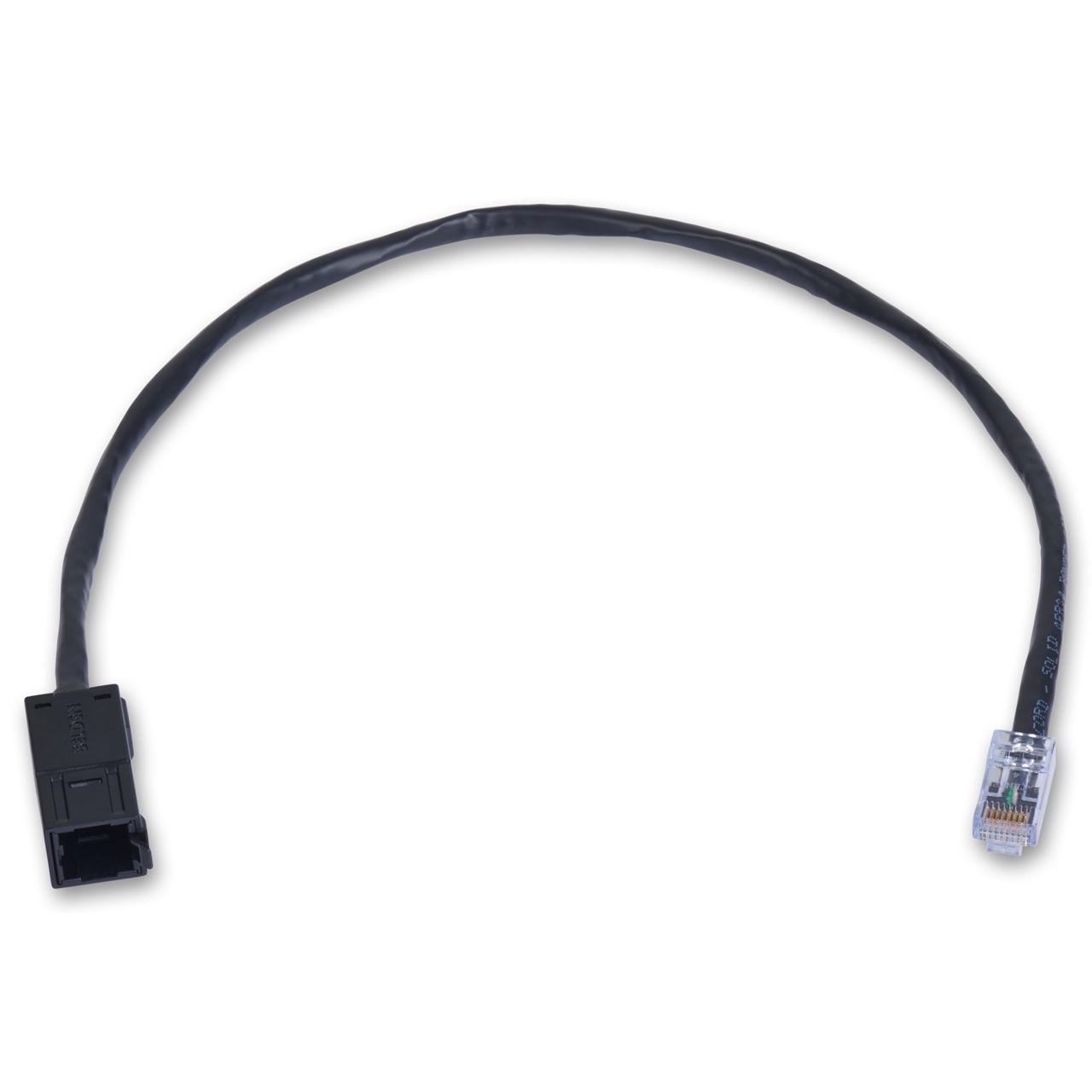

Belden RVAFFPUBK18O-S1 REVConnect 10GX CAT6a Single FlexPlug for Bonded-Pair/4 Pair 23 AWG Solid Cable - 18-Inch - Black

RVAFFPUBK18O-S1 - Overview

• Features:

  • REVConnect 10GX I/O FlexPlug
  • CAT6A
  • Single Packaging (incl. 1 core)
  • Bonded-Pair, 4 Pair,
  • 23 AWG Solid
  • UTP / CMR/ CMX - T568A/B-T568A/B

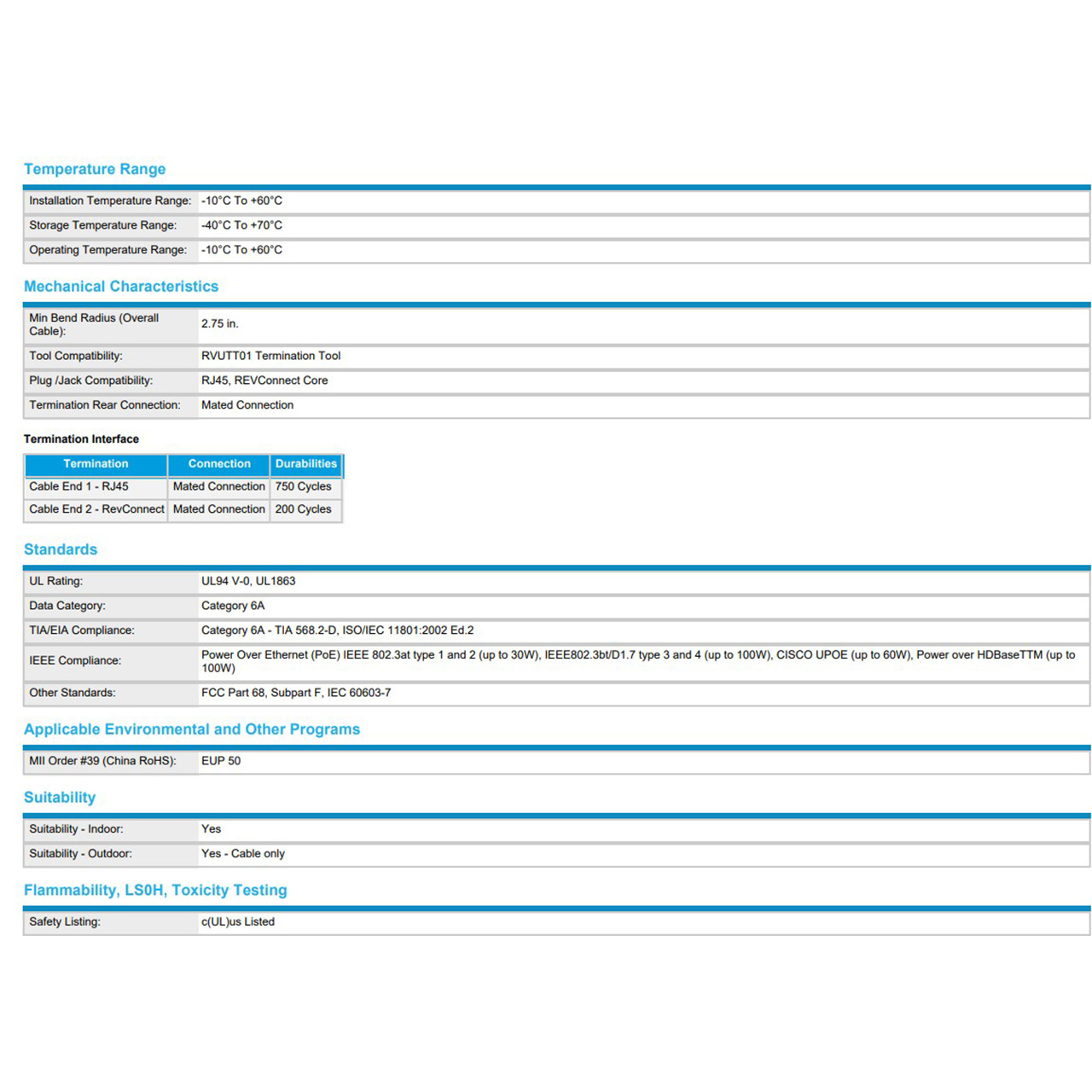

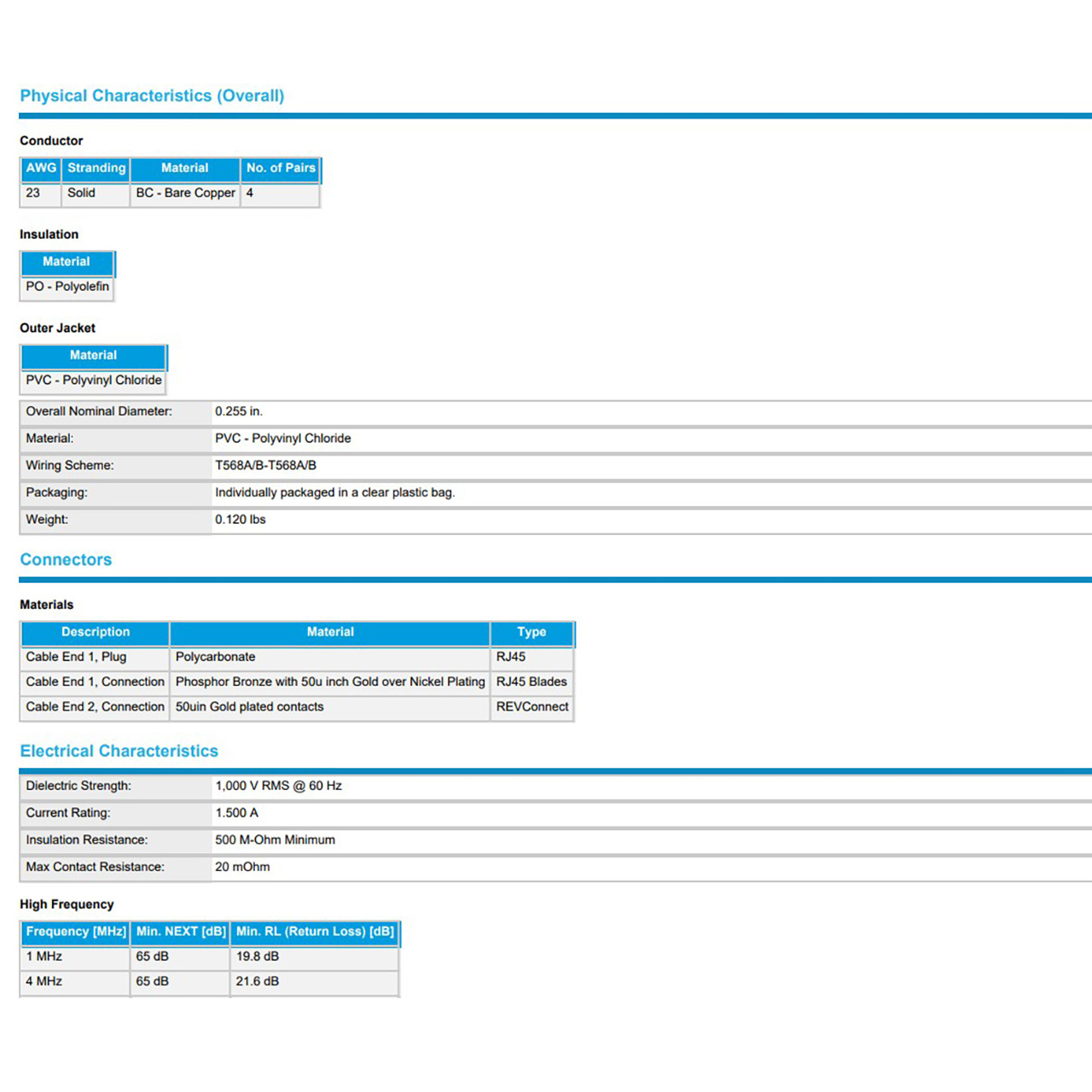

• Specifications:

  • AWG: 23
  • Stranding: Solid
  • Material: BC - Bare Copper
  • No. of Pairs: 4
  • Insulation Material: PO - Polyolefin
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Overall Nominal Diameter: 0.255"
  • Wiring Scheme: T568A/B-T568A/B
  • Dielectric Strength: 1,000V RMS @ 60Hz
  • Current Rating: 1.500A
  • Insulation Resistance: 500MΩ Minimum
  • Max Contact Resistance: 20mΩ
  • Operating/Installation Temperature Range: 14°F - 140°F (-10°C - 60°C)
  • Storage Temperature Range: -40°F - 158°F (-40°C - 70°C)
