Belden AX104024 10GX Category 6A RJ45 KeyConnect Coupler - Black - Each

Name: Belden AX104024 10GX Category 6A RJ45 KeyConnect Coupler - Black - Each
Brand: Belden
SKU: BL-AX104024
Price: 26.00 USD
Availability: PreSale

ITEM #: BL-AX104024 MFG #: AX104024

Belden

List Price:

$30.86

Our Price:

$26.00

Add to Wish List Leasing Options

Availability: Typically Ships in 3-10 Business Days

Report Lower Price Large Quantity Quote

Overview

Recommended Accessories

Reviews

Attachments

Required Accessories

Recommended Accessories

AX104024 - Overview

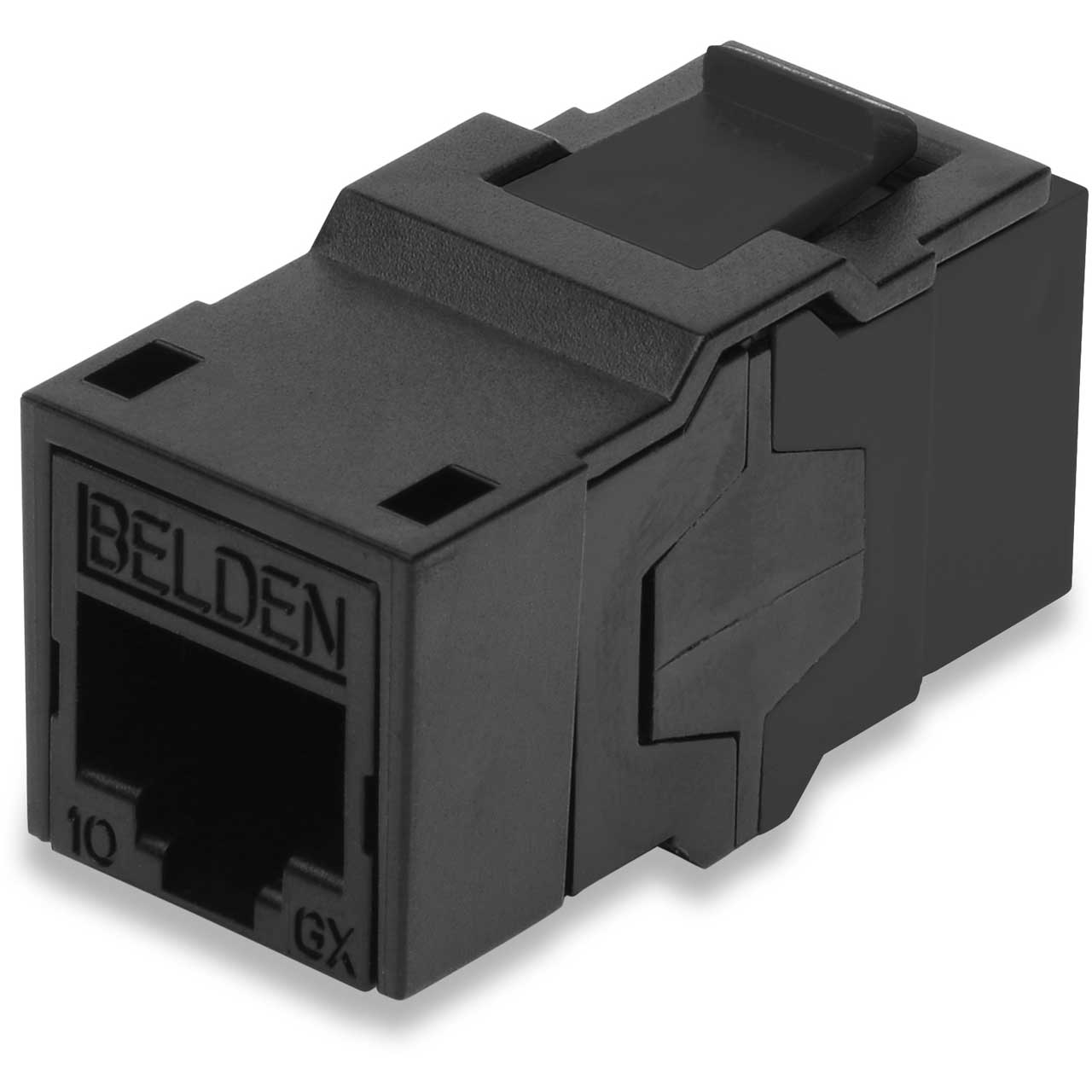

The Belden AX104024 is a KeyConnect Cat6a 10GX RJ45 Coupler in Black.

Belden connectors are available in many different styles and footprints including RJ45 jacks, plugs and couplers for both commercial and industrial installations. The portfolio covers Category 5E, Category 6, and Category 6A for both shielded and unshielded applications. Reliability, high performance and ease of termination is designed into every component. Combine with Belden Ethernet cables for end-to-end system performance.

Applications
IBDN System 10GX
TIA Category 6A
10GBASE-T
10GX Coupler Patch Panels

Specifications:
- Color: Black
- Wiring Scheme: T568A/B-T568A/B
- Weight: 0.380 lbs.
- Dimensions: Height (in.) 0.895 - Width (in.) 0.692 - Depth (in.) 1.522
- Packaging: Individually packaged in a clear plastic bag
- Footprint/Type: KeyConnect
- Plug / Jack Compatibility: RJ45
- Connector/Hardware Retention: 20 lbs.
- Storage Temperature Range: -40°C To +70°C
- Installation Temperature Range: -10°C To +60°C
- Operating Temperature Range: -10°C To +60°C
- Dielectric Strength: 1,000 V RMS @ 60 Hz for 1 minute
- Current Rating: 1.500 A
- Insulation Resistance: 500 M-Ohm Minimum
- Max. Contact Resistance: 20 m-Ohm
