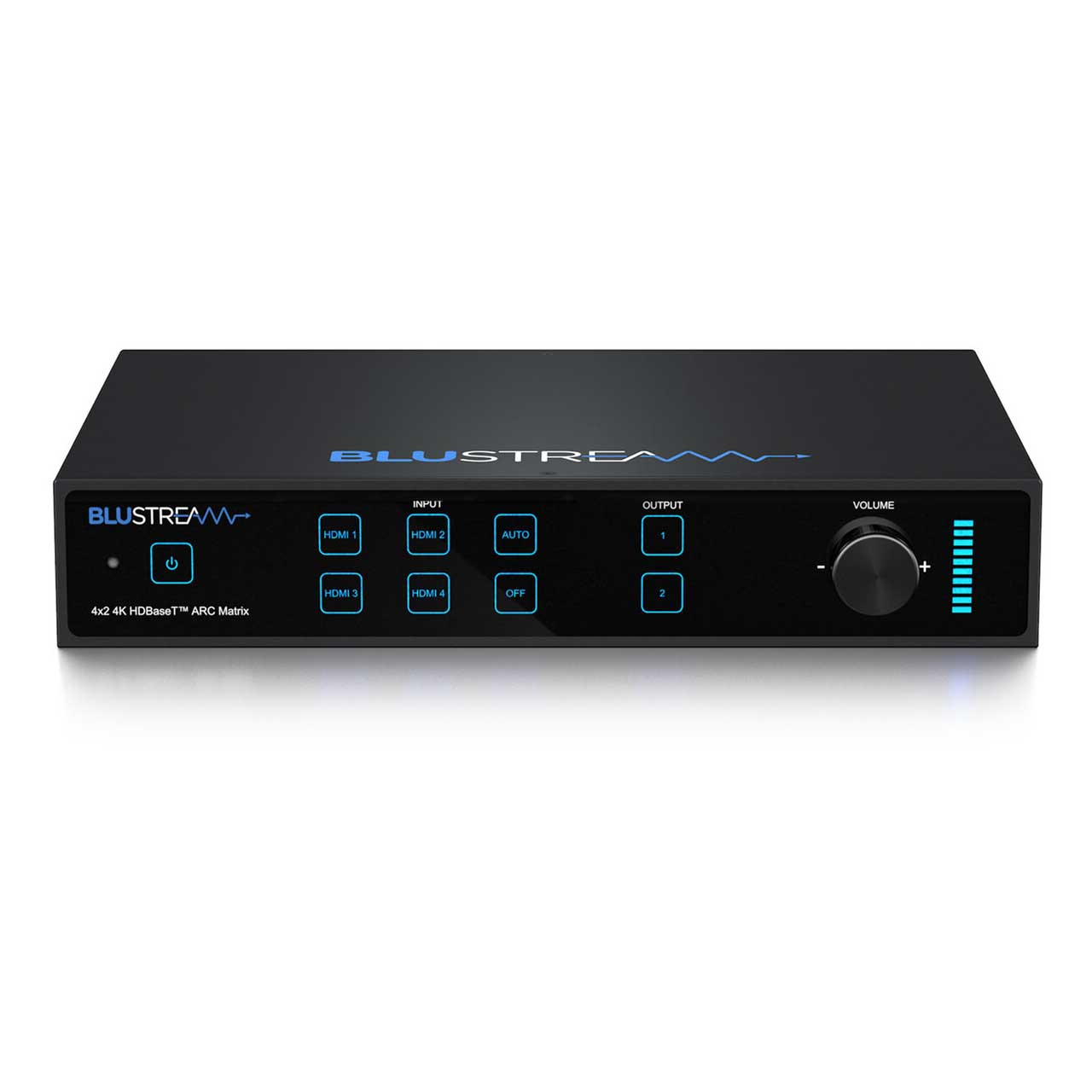

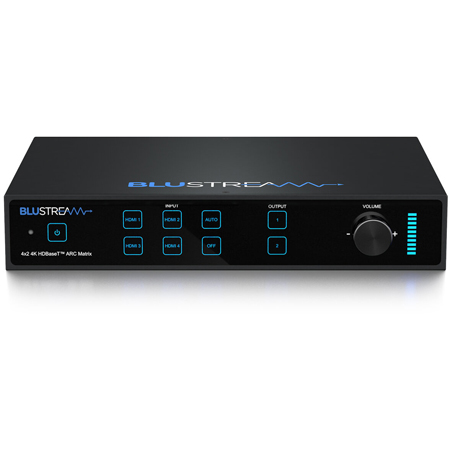

Blustream HMXL42ARC-KIT 1RU 4x2 HDBaseT CSC Matrix Switch Kit - 1080p 70 Meter / 4K60Hz 4:4:4 up to 40 Meter

HMXL42ARC-KIT - Overview

Unprecedented performance and value for the custom installation market!

• Features:

  • Advanced HDBaseT technology offering distribution of video and audio over a single CAT cable
  • Advanced Color Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR Features 4 x HDMI inputs which can be independently routed to 2 x HDBaseTT outputs
  • Output 1 features simultaneous HDMI and HDBaseTT output
  • Video Smart Scaling on HDBaseTT outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
  • Supports 4K 60Hz 4:4:4 UHD video up to 40m
  • Extends HDMI 1080p video up to 70m
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
  • 8 x 2 audio matrix that is independently controllable from video
  • Audio source inputs include: - 4 x audio breakout from HDMI source - 2 x audio breakout from zone outputs - 2 x ARC from zone outputs
  • Audio breakout to analogue L/R audio and optical digital (S/PDIF) outputs concurrently with line level volume control on analogue outputs
  • Audio breakout features selectable source from zone audio breakout or ARC from zone outputs via HDMI ARC or optical ARC
  • Web interface module for control and configuration of matrix
  • Supports bi-directional IR on all HDBaseT outputs
  • Supports PoC (Power over Cable) to power supplied RX70CS HDBaseT receivers
  • 3rd Party drivers available for all major control brands
  • Advanced EDID management
  • HDCP 2.2 compliant

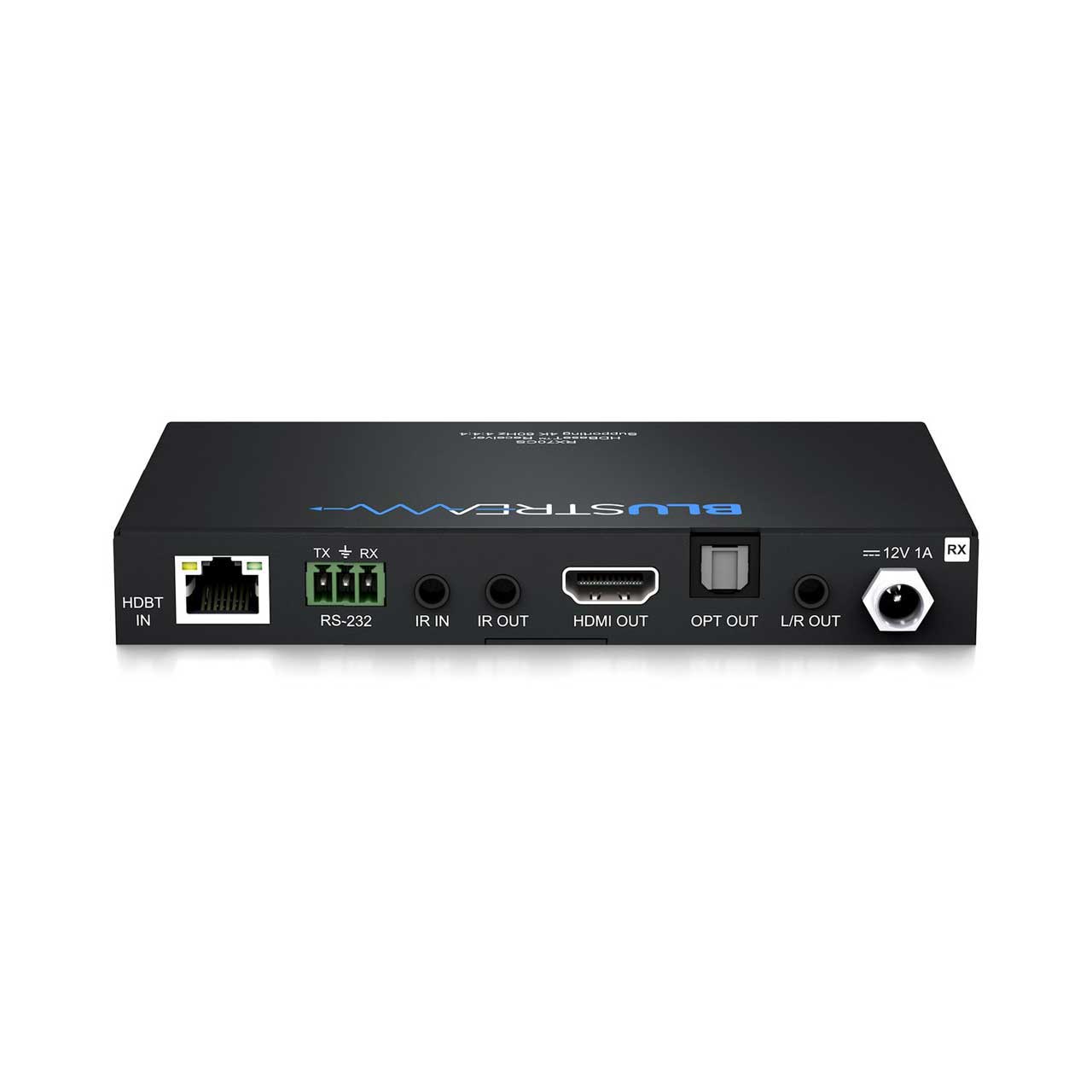

  • Supplied with 2 x RX70CS HDBaseT receivers


• Specifications:

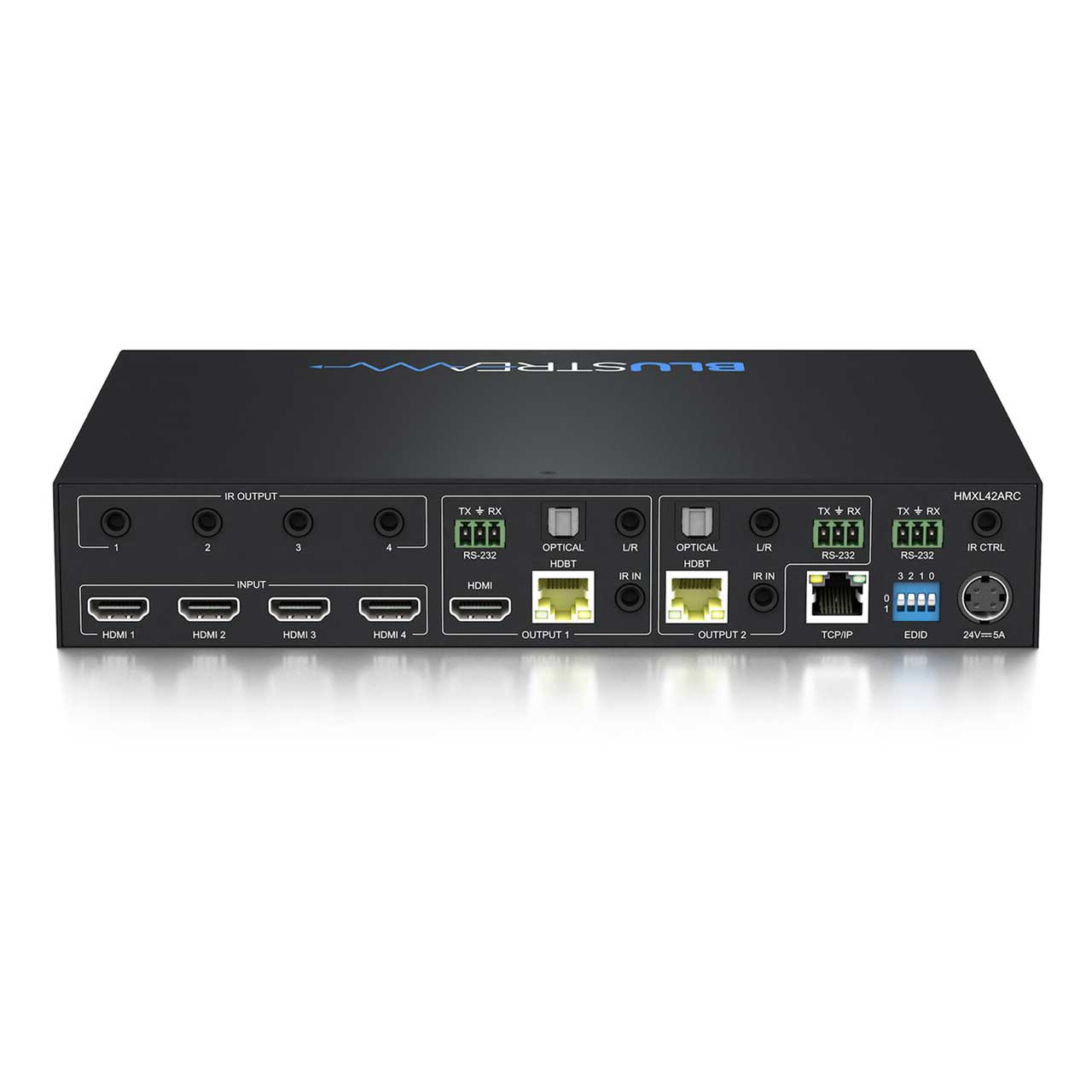

  • Video Input Connectors: 4x HDMI Type A, 19-pin, female
  • Video Output Connectors: 1x HDMI Type A, 19-pin, female, 2x HDBaseT RJ45 connector
  • Audio Output Connectors: 2x Analogue audio L/R (3.5mm stereo Jack), 2x Optical (SPDIF)
  • RS-232 Serial Ports: 1x 3-pin Phoenix connector
  • TCP/IP Control: 1x RJ45, female
  • IR Input Ports: 3x 3.5mm stereo jack
  • IR Output Ports: 4x 3.5mm mono jack
  • Rack Mountable: 1U rack height, rack ears included
  • Casing Dimensions (WxDxH): 220mm x 235mm x 44mm (without feet)
  • Shipping Weight: 4.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 1x 24V/5A DC


• Item Includes:

  • 1 x HMXL42ARC
  • 2 x RX70CS
  • 1 x 19" Rack mounting kit for HMXL42ARC
  • 1 x Surface mount kit for HMXL42ARC
  • 2 x Mounting kit for RX70CS
  • 1 x Remote control
  • 4 x IRE1 emitters
  • 3 x IRR receivers
  • 1 x Serial Cable - DB9 to 3-pin Phoenix connector
  • 1 x IR Control Cable - 3.5mm-3.5mm Cable
  • 1 x 24V/5A power supply
  • 1 x Quick Reference Guide


• GTIN:

  9340242003652
