Blustream MV41 4x1 HDMI 2.0 Multiview Switcher with HDMI Loop-through - Supports 4K 60Hz 4:4:4 & HDCP 2.2

Name: Blustream MV41 4x1 HDMI 2.0 Multiview Switcher with HDMI Loop-through - Supports 4K 60Hz 4:4:4 & HDCP 2.2
Brand: Blustream
SKU: BLU-MV41
Price: 1870.95 USD
Availability: Backorder

ITEM #: BLU-MV41 MFG #: MV41

Blustream

List Price:

$1,875.95

Our Price:

$1,870.95

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Notify when in stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

MV41 - Overview

Allows up to four HDMI2.0 sources to be output to a single display at the same time!

The Bluestream MV41 has pre-defined and customisable video layouts, and seamless switching. It also supports HDMI loop-through for all HDMI inputs allowing cascading of original source signals for further distribution.

The MV41 features 2ch PCM and Optical S/PDIF audio break, with third party control achievable from the web-GUI, TCP/IP, RS-232, IR remote control, of from the front panel buttons.

The multiple configuration and connectivity options make the MV41 suitable for both residential and commercial installations.

Please Note: The MV41 does not down-mix multi-channel audio signals.

Features:
- Advanced 4x HDMI input switch with multi-view HDMI output
- Features 4x HDMI loop out for integrating local displays or cascading to multiple devices
- Supports:
  - PIP, PBP, POP, Dual, Triple and Quad-windows layouts with pre-defined and customisable configurations
  - Video down-scaling and HDR to SDR conversion on HDMI multiview output
  - HDMI2.0 4K UHD 60Hz 4:4:4 18Gbps specification including HDR
  - All industry standard video resolutions including VGA-WUXGA and 480i-4K
  - Bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
- HDMI audio breakout to analog L/R audio, and optical digital outputs concurrently
- Analog L/R audio outputs support both balanced and unbalanced audio signals
- Control via front panel, IR, RS-232, TCP/IP, web-GUI and 12V trigger
- Supplied with Blustream 5V IR receiver and remote control
- 3rd party drivers available for all major control brands
- HDCP2.3 compliant with advanced EDID management

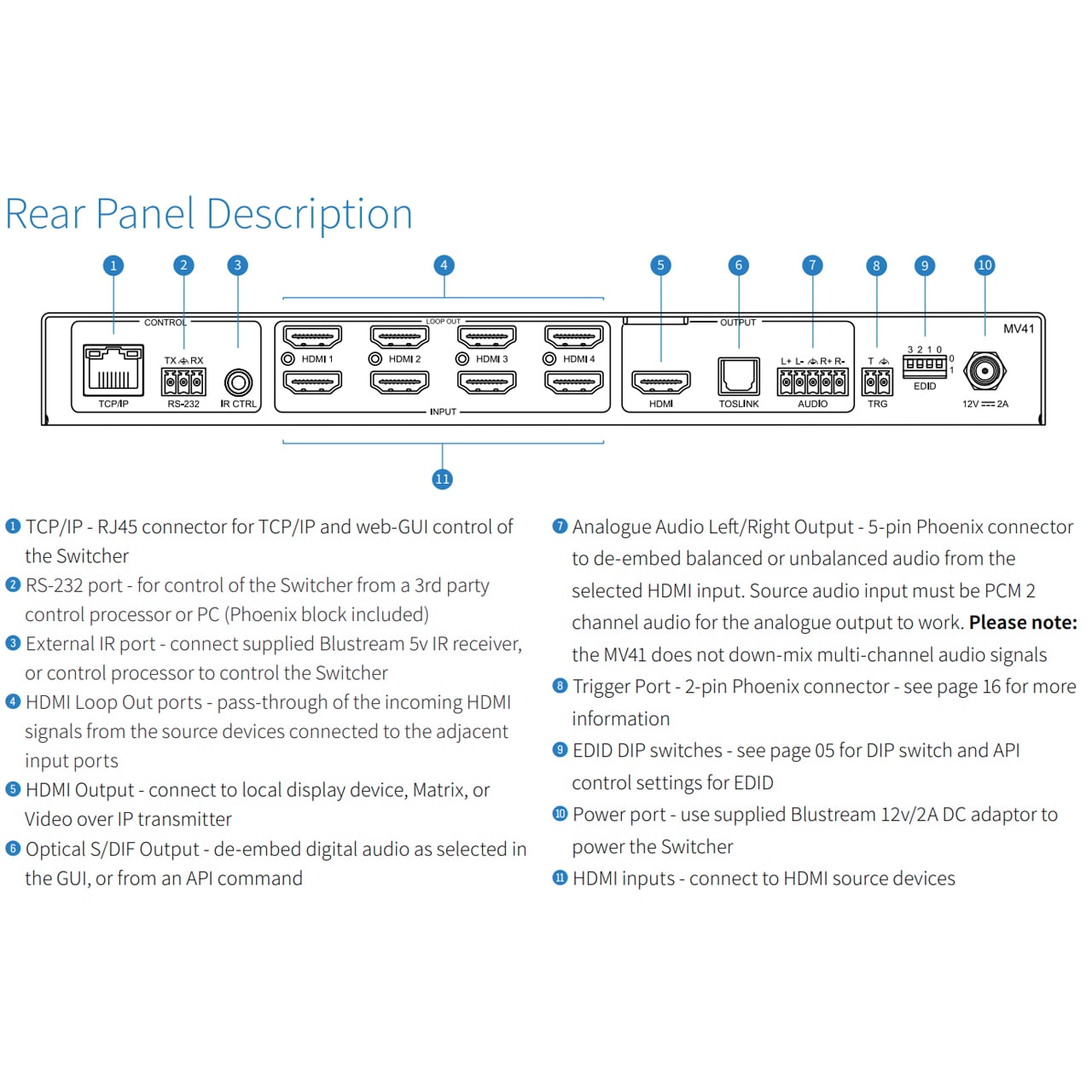

Specifications:
- Video Input Connectors: 4x HDMI Type A, 19-pin, female
- Video Output Connectors: 5x HDMI Type A, 19-pin, female
- Audio Output Connectors: 1x Optical (S/PDIF), 1x 5-pin Phoenix connector
- TCP/IP Control: 1x RJ45, female
- RS-232 Port: 1x 3-pin Phoenix connector
- 12V Trigger Port: 1x 2-pin Phoenix connector
- IR Input Ports: 1x 3.5mm stereo jack
- Firmware Upgrade: 1x Micro-USB UART port
- Dimensions (WxDxH): 10.43" x 5.98" x 1.18" (265mm x 152mm x 30mm)
- Shipping Weight: 3.30lbs (1.5kg)
- Operating Temperature: 32°F - 104°F (0°C - 40°C)
- Storage Temperature: - 4°F - 140°F (- 20°C - 60°C)
- Power Supply: 12V/3A DC, screw connector
Item Includes:
- 1x MV41
- 1x IR receiver
- 1x IR remote control
- 1x 5-pin phoenix connector
- 1x 3-pin phoenix connector
- 1x 2-pin phoenix connector
- 1x 19" rack mounting kit
- 1x Quick reference guide
- 1x 12V/3A DC power supply
GTIN:
9320242005106
