Blustream PRO16HBT70CS Custom Pro Preconfig 16x16 HDBaseT Matrix - 229ft/70m

PRO16HBT70CS - Overview

• Features:

  • Pre-configured Custom Pro matrix bundle with 16x video inputs, 16x video outputs, Audio breakout, and 2-way IR control
  • Supports 4K UHD video up to 4K @ 60Hz 4:4:4 (18Gbps) over HDBaseT using Color Space Conversion up to 40m at 4K @ 60Hz 4:4:4, or up to 70m at 1080p
  • HDBaseT CSC output boards feature independent automatic downscaling of up to 4K @ 60Hz 4:4:4 video input to the following formats (HDMI outputs are native pass-through): 1080p@ 60Hz (for screens that do not support 4K) / 4K @ 60Hz 4:2:0 (for screens that do not support full 4K @ 60Hz 4:4:4)
  • 16x analog L/R audio inputs which can be embedded onto corresponding HDMI / HDBaseT zone outputs
  • Extend 16x IR outputs for routed control of local source equipment
  • 16x IR inputs for distribution of IR to compatible Blustream HDBaseT Receivers
  • Optional RS-232 control board for bi-directional serial control with equipment connected to Blustream HDBaseT Receivers (PRO-8RS232 cards sold separately)
  • Audio breakout board with line-level volume control
  • Web browser interface for control and configuration of Matrix

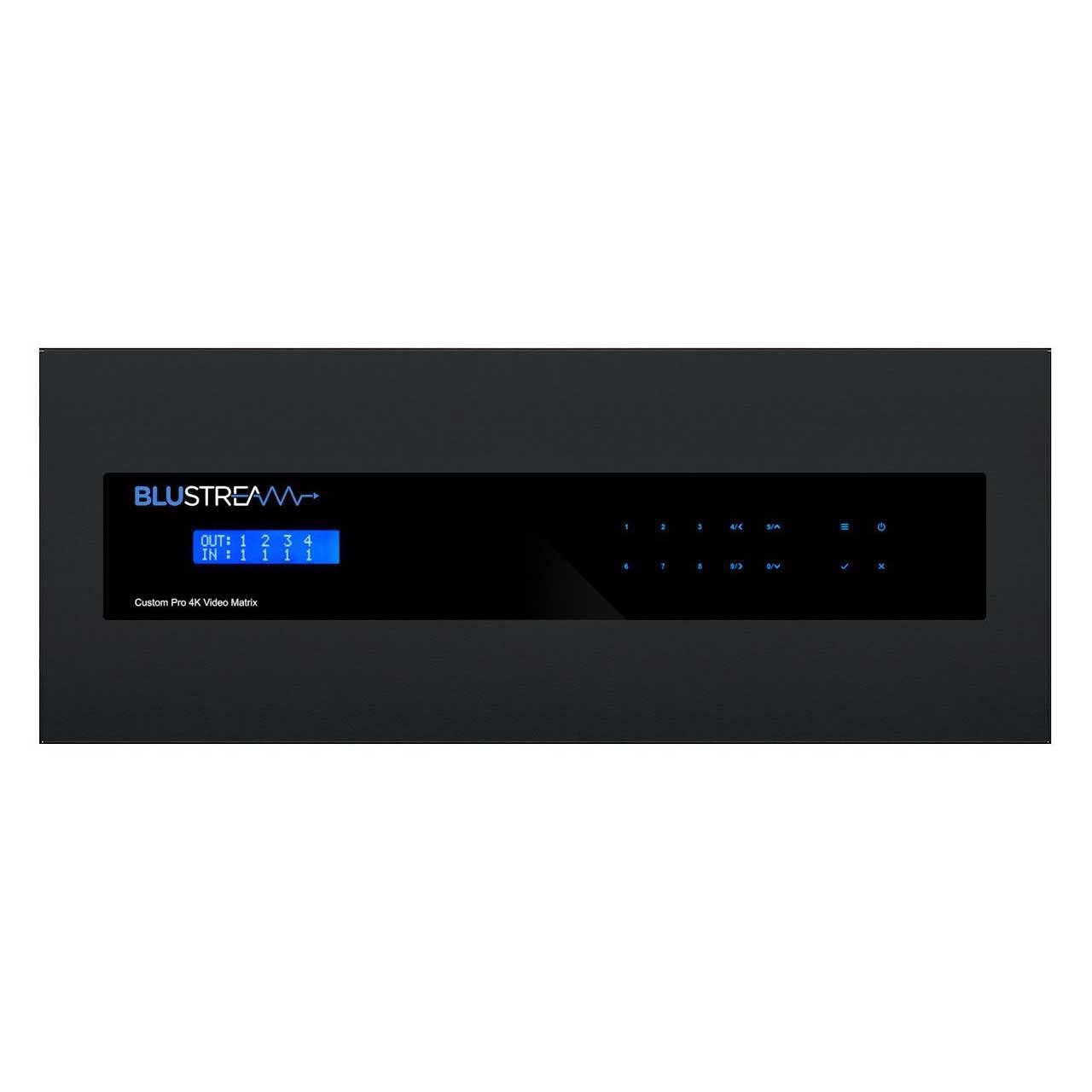

  • Control of Matrix via front panel, RS-232, TCP/IP and web GUI / App
  • Supports PoC (Power over Cable) when used with compatible Blustream HDBaseT Receivers
  • 3rd Party drivers available for major commercial & residential control brands
  • Advanced EDID management
  • HDCP 2.2 compliant
  • Used with Blustream HEX70CS-RX Receivers (sold separately)


• Specifications:

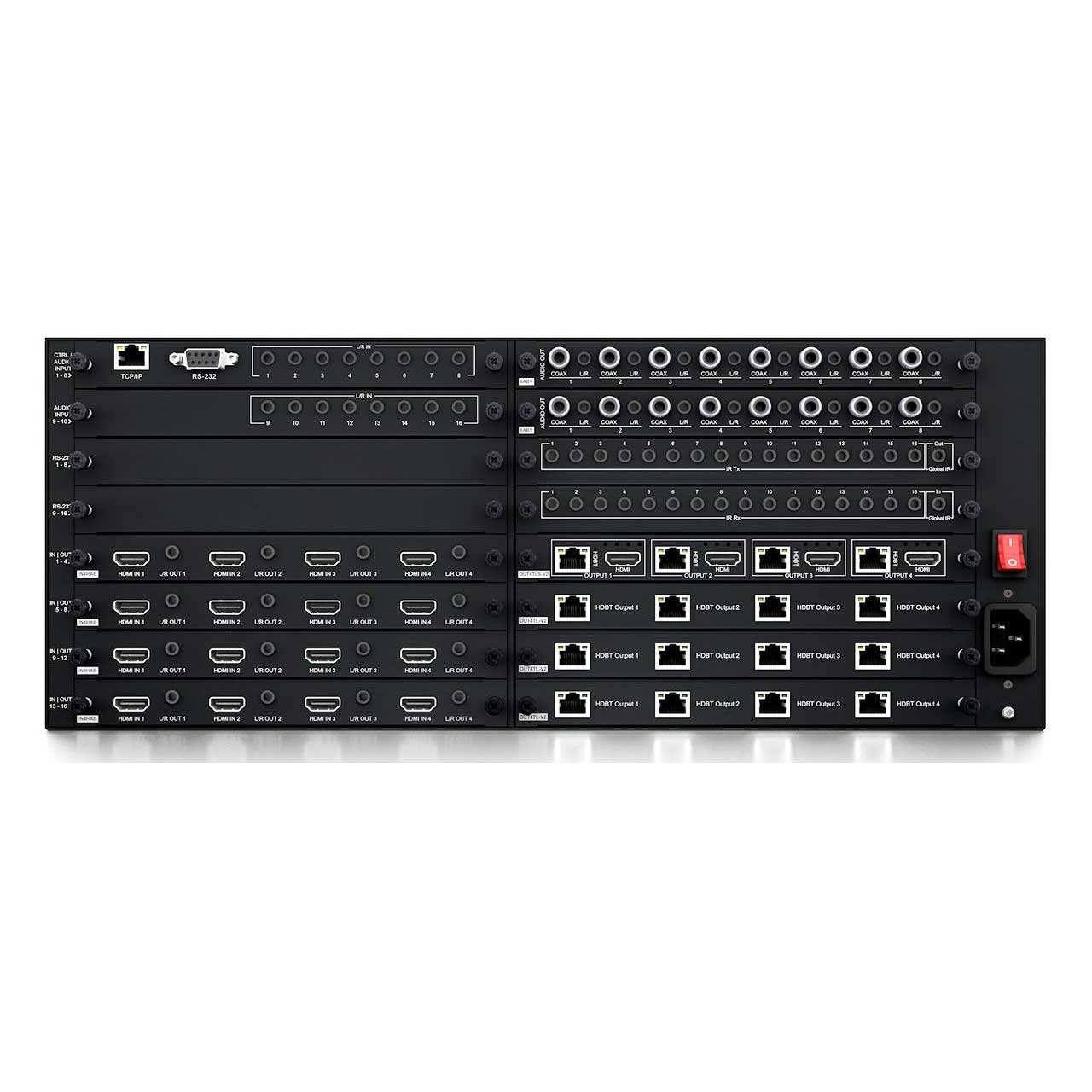

  • Video Input Connectors: 16x HDMI Type A, 19-pin, female
  • Video Output Connectors: 4x HDMI Type A, 19-pin, female, 16x HDBaseT RJ45 connector
  • Source Audio Output Connectors: 16x 3.5mm stereo jack (L/R)
  • Zone Audio Output Connectors: 16x 3.5mm stereo jack (L/R), 16x RCA Coaxial Digital (S/PDIF)
  • Audio Input Connectors: 16x 3.5mm stereo jack (L/R)
  • RS-232 serial ports: 1x 9-pin RS-232 connector
  • IR Input ports: 16x 3.5mm stereo jack
  • IR Output ports: 16x 3.5mm mono jack
  • TCP/IP Control: 1x RJ45 connector, female
  • Rack-Mountable: 4U rack height, rack ears included
  • Casing Dimensions (W x H x D): 17.3" x 6.8" 16.6" (440mm x 173mm x 422m) without feet
  • Dimensions Including Connections (W x H x D): 17.3" x 7" x 16.9" (440mm x 178mm x 430mm) with feet
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Power Supply: Internal 100-240V AC, IEC cable supplied

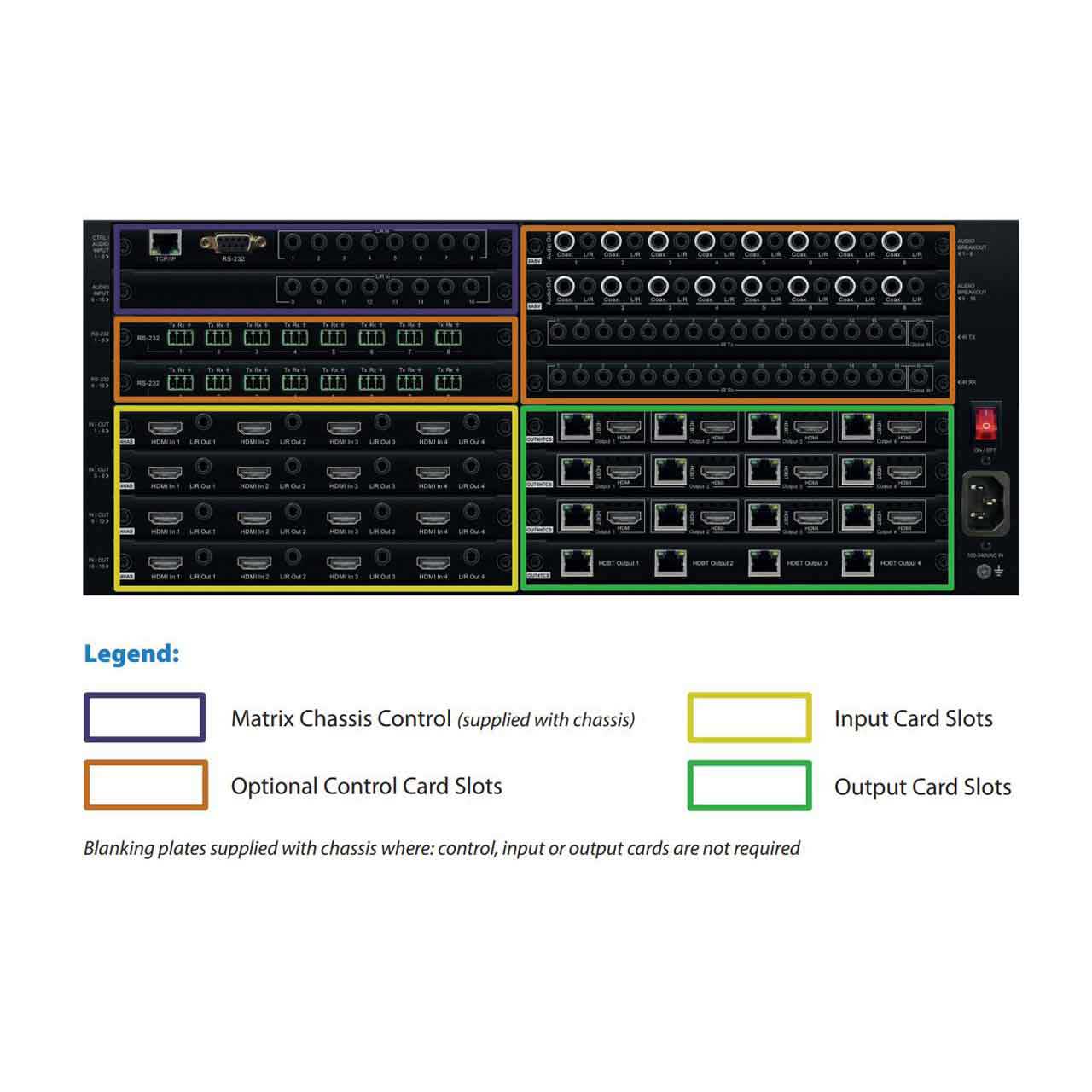

• Item Includes:

  • 1 x Custom Pro Hub 16 Matrix
  • 4 x PRO-IN4HAB; 4 x HDMI2.0 Input with Audio Breakout.
  • 2 x PRO-8AB-V2: Coax digital, or stereo audio breakout card.
  • 1 x PRO OUT4TLS-V2: 4 x Simultaneous HDMI / HDBaseTT CSC Output (40m at 4K, 70m at 1080p).
  • 3 x PRO-OUT4TL-V2: 4 x HDBaseTT CSC Output (40m at 4K, 70m at 1080p).
  • 1 x Remote Control
  • 1 x Rack Mounting Kit
  • 5 x IR Receiver
  • 4 x IR Emitter
  • 5 x IR Control Cable - 3.5mm-3.5mm Cable
  • 1 x Quick Reference Guide
  • Power Cable/s


• Warranty:

  • 3-Year Warranty
