Blackmagic Design CINEURSAMUPROTB4HD URSA Mini Pro B4 Mount

ITEM #: BMD-CINEURSAB4HD MFG #: CINEURSAMUPROTB4HD

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$385.00

Availability: In Stock
iAvailability Description Popup


    CINEURSAMUPROTB4HD - Overview

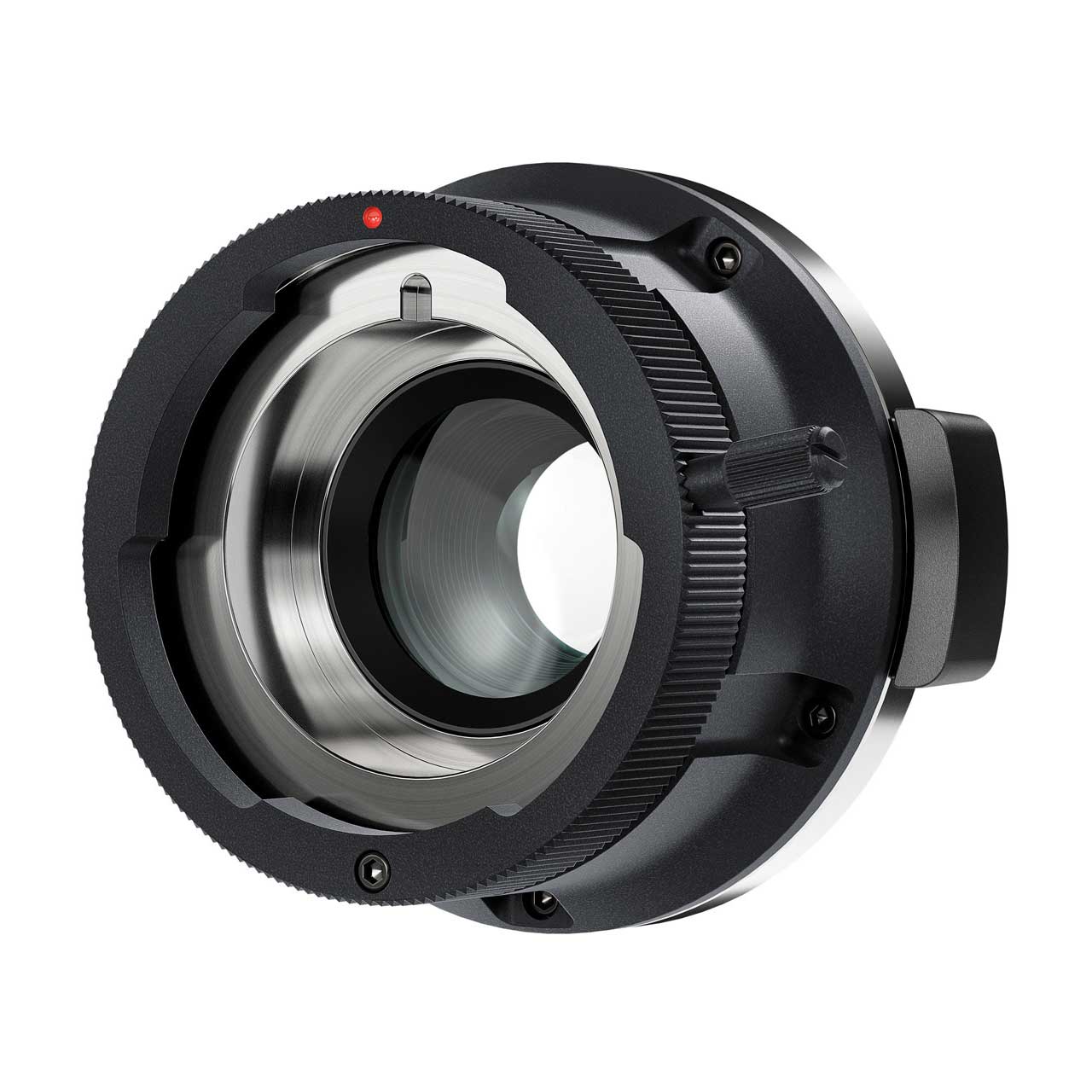

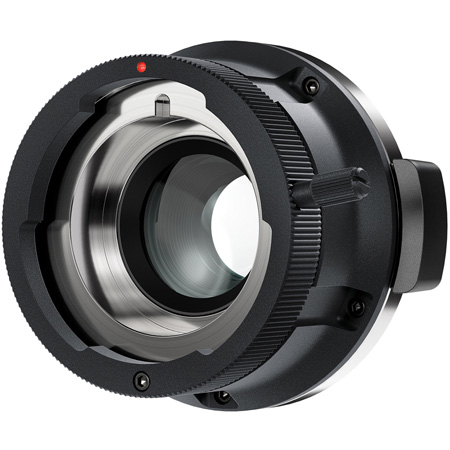

    The URSA Mini Pro B4 Mount from Blackmagic Design is a replacement mount for use on the URSA Mini Pro that enables using an ENG-style B4 mounted HD lens on the URSA Mini Pro. The mount incorporates corrective optics that enable the use of a lens designed to work on a camera with three sensors and a prism to work perfectly on the single-sensor URSA Mini Pro with zero optical degradation. That turns your URSA Mini Pro into an incredibly compact broadcast camera! URSA Mini Pro features a standard 12-pin Hirose lens control connection that's compatible with both B4 and PL lenses. You can remotely control record start/stop, iris and motorized zoom lenses! The lens mount features a locking lever to engage the mount's lock and the included shim kit enables precise flange distance adjustment when installing this mount on your camera.

    • Specifications:

      • Optics Resolution: 2048 x 1152
      • Image Circle: 10.56mm x 5.94mm
      • Magnification: 1.1x
      • Lens Mount: B4 Bayonet style with locking ring
      • B4 Spherical Aberration Correction: Yes
      • Dimensions: 3.27 In x 2.20 In x 2.92 In
      • Weight: 0.75 lbs

    • Item Includes:

      • Blackmagic URSA Mini Pro B4 Mount
      • Moulded Mount Case
      • Turret Dust Cap
      • Lens Rear Protective Cover
      • Shim Set
      • Spare Mounting Screws
      • Printed Instructions

    • GTIN:

      9338716004625
