Blackmagic Design CONVMCSAUD4K Mini Converter - SDI to Audio 4K - De-Embedder

ITEM #: BMD-CONVMCSAUD4K MFG #: CONVMCSAUD4K

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

Our Price:

$325.00

Availability: In Stock
iAvailability Description Popup


    CONVMCSAUD4K - Overview

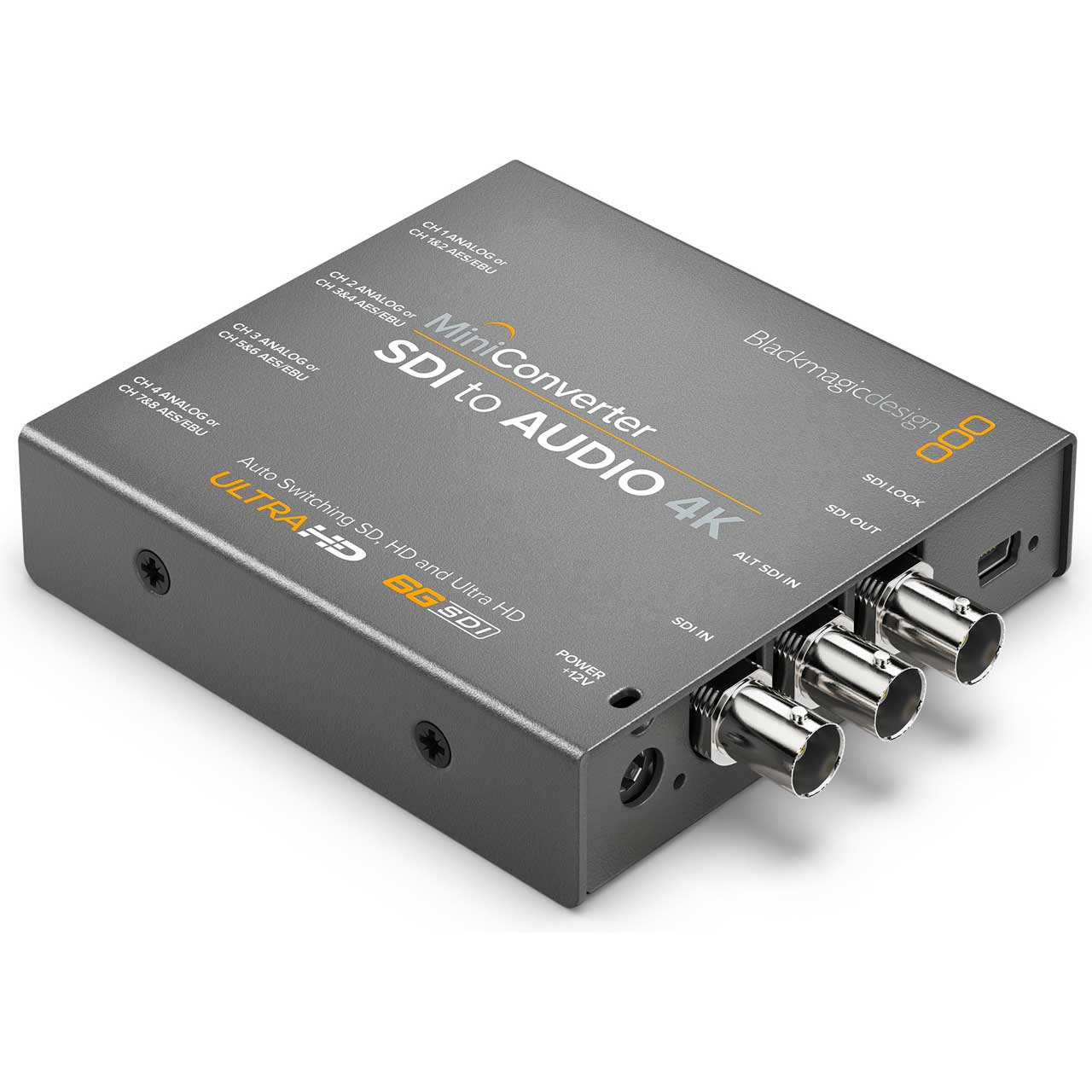

    Blackmagic Mini Converter - SDI to Audio 4K

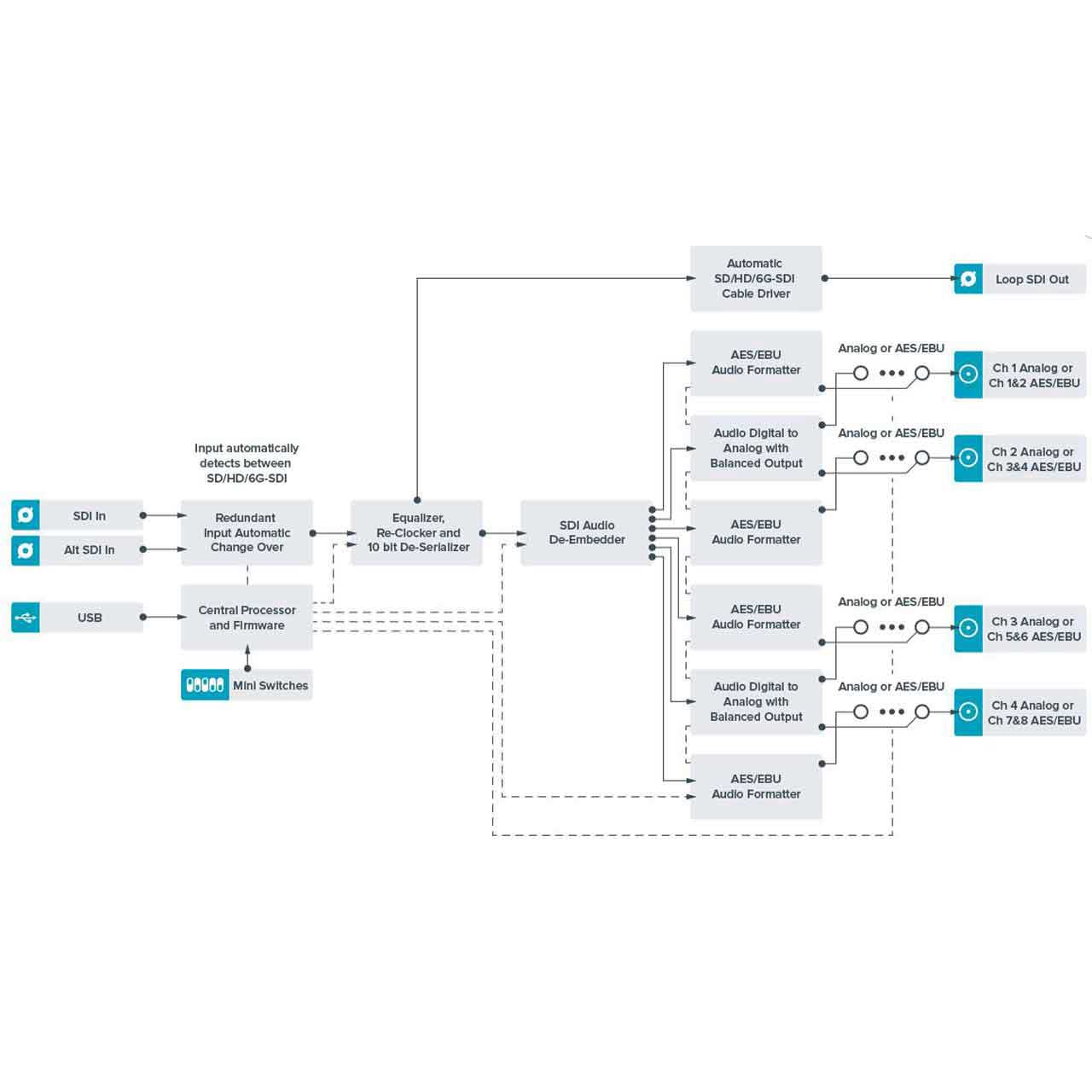

    The Blackmagic Design SDI to Audio 4K Mini Converter de-embeds 4 channels of analog audio or 8 channels of AES/EBU digital audio from any SDI video connection. Access the audio in any SDI video connection for output to a massive range of audio equipment such as audio mixers, analog broadcast decks, audio monitors and more.

    4K Mini Converters are the perfect solution for broadcast and post production engineers who need to install equipment that's Ultra HD ready, as each converter operates as a normal SD or HD converter and then will automatically switch to Ultra HD when a 6G-SDI input is connected. Live production customers will love the ability to use these Mini Converters in all kinds of situations when doing Ultra HD live production work. Even connecting to old SD televisions from an Ultra HD program feed is possible, so customers don't have to worry about what kind of equipment they might find at a venue they are integrating with.

    Mini Converter Heavy Duty models feature an aluminum design that is super tough yet compact and lightweight, making them perfect for use on location. All models include the latest 6G-SDI technology, auto switching between SD, HD and Ultra HD formats, redundant SDI inputs, loop through SDI, balanced analog and AES/EBU switchable audio, standard 1/4" jack audio connections and an international power supply.

    Unlike traditional converters that are only suitable for indoor use, Blackmagic Design's Mini Converter are heavy duty and designed to meet the tough and demanding conditions of live production. Each converter is machined from a solid block of aluminum and is designed to keep working, even while being run over by a car or a truck!

    • Features:

      • Designed to be used anywhere and you can put them in equipment racks in the studio, on news trucks, or use them outside for live sports and other events
      • Works with SD, HD and Ultra HD
      • Support 24-bit analog and AES/EBU audio, and feature standard 1/4" audio jacks
      • Redundant SDI inputs helps safeguard against a damaged SDI cable

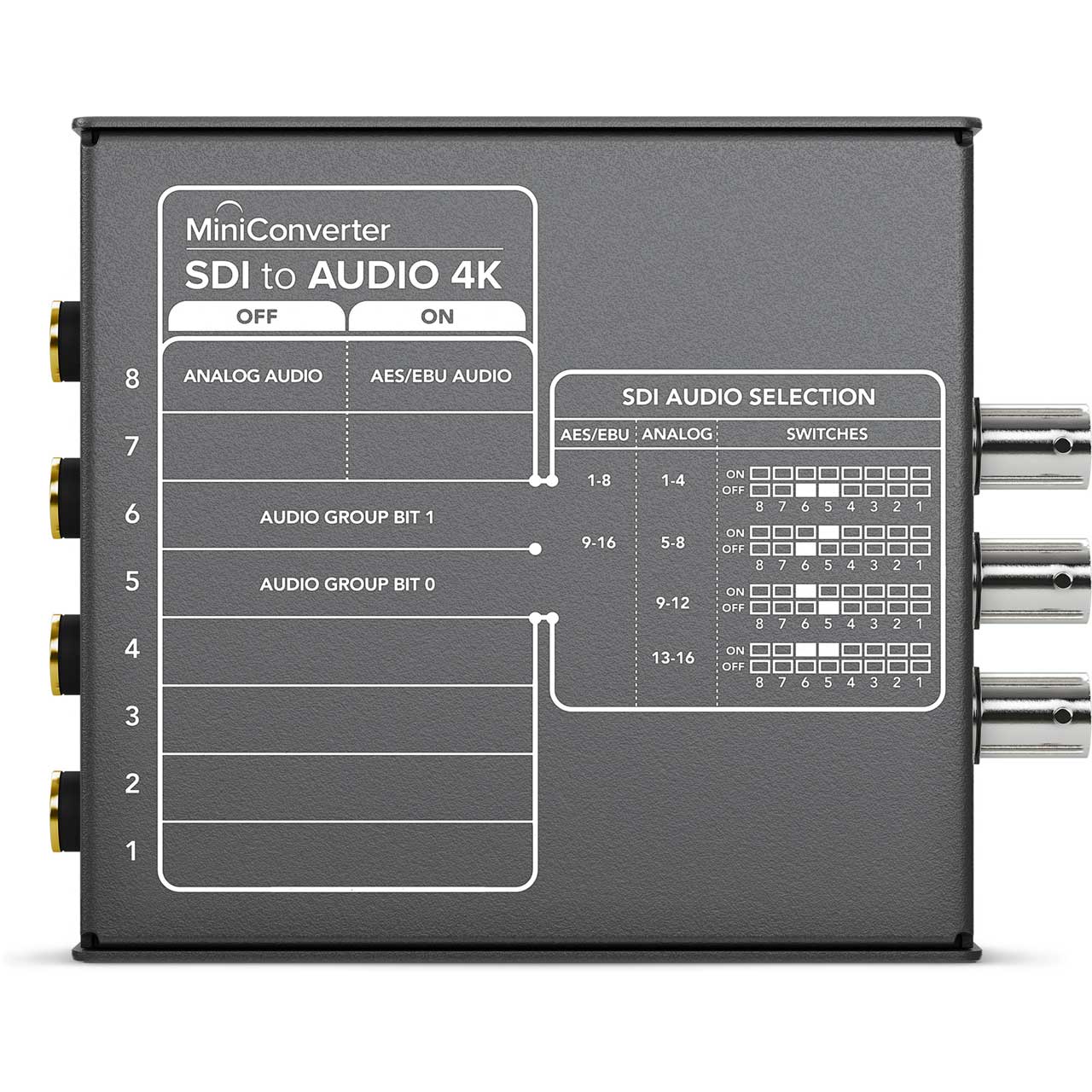

      • Change settings quickly and easily with built-in function DIP switches

    • Specifications:

      • Connections
      • SDI Video Inputs: 1x SD, HD or 6G SDI. 1x ALT SDI Input for automatic switch over if main input fails.
      • SDI Video Outputs: 1x Embedded SDI Output
      • Analog Audio Inputs: 4 channels of professional balanced analog audio with standard 1/4-inch jack connections
      • Digital Audio Inputs: 8 channels of professional balanced digital with standard 1/4-inch jack connections
      • SDI Redundant Input: Automatically switches over if main SDI input is lost
      • Multi Rate Support: Auto detection SD, HD or 6G SDI
      • Updates and Configuration: Via USB 2.0 high speed (480 Mb/s)
      • Reclocking: Yes

        Standards
      • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
      • HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
      • 2K Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
      • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
      • 4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
      • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level A and B, SMPTE 425M Level A and B, SMPTE ST-2036, SMPTE ST 2081, ITU R BT.656 and ITU R BT.601
      • SDI Video Rates: SDI video connections are switchable between standard definition and high definition
      • SDI Video Sampling: 4:2:2, 4:4:4
      • SDI Audio Sampling: Television standard sample rate of 48kHz and 24 bit
      • SDI Color Precision: 4:2:2, 4:4:4
      • SDI Color Space: YUV, RGB
      • SDI Auto Switching: Automatically selects between SD, HD, 3G and 6G SDI

        Software
      • Software Control: Mac ™ and Windows ™ software upgrade via USB
      • Internal Software Upgrade: Via included updater application.
      • Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 8.1 and 10.
      • Settings Control: Mini Switches or USB software

        Power Requirements
      • Power Supply: +12V universal power supply included with international socket adapters for all countries. Cable tie point.
      • Power Consumption: 8.40 Watts
      • Operational Voltage Range: 12-31V DC

        Environmental Specifications
      • Operating Temperature: 32°F - 104°F (0°C - 40°C)
      • Storage Temperature: -4°F - 113°F (-20°C - 45°C)
      • Relative Humidity: 0% - 90% non condensing

    • Item Includes:

      • Mini Converter SDI to Audio 4K
      • 12V universal power supply with international socket adapters

    • Warranty:

      • 3 Year Limited Manufacturer's Warranty

    • GTIN:

      9338716002768
