Blackmagic Design DISKMDOCK4/U10G MultiDock 10G SSD Dock - 4x SSDs via a Single Highspeed 10Gb/s USB-C


Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:


Availability: In Stock
iAvailability Description Popup

    DISKMDOCK4/U10G - Overview

    Edit directly from your media disks!

    The Blackmagic MultiDock 10G is an advanced SSD dock that lets you access 4 separate SSDs via a single high speed 10 Gb/s USB C connection. Unlike cheap consumer adapters, Blackmagic MultiDock 10G has been specifically designed for the film and television industry and features an independent SATA driver chip on each disk, ensuring much faster data transfer speeds. That's perfect for editors, colorists and media management on set! It can even be used for SSD compatibility on HyperDeck Extreme! Only Blackmagic MultiDock 10G gives you the industrial strength design you need for professional work.

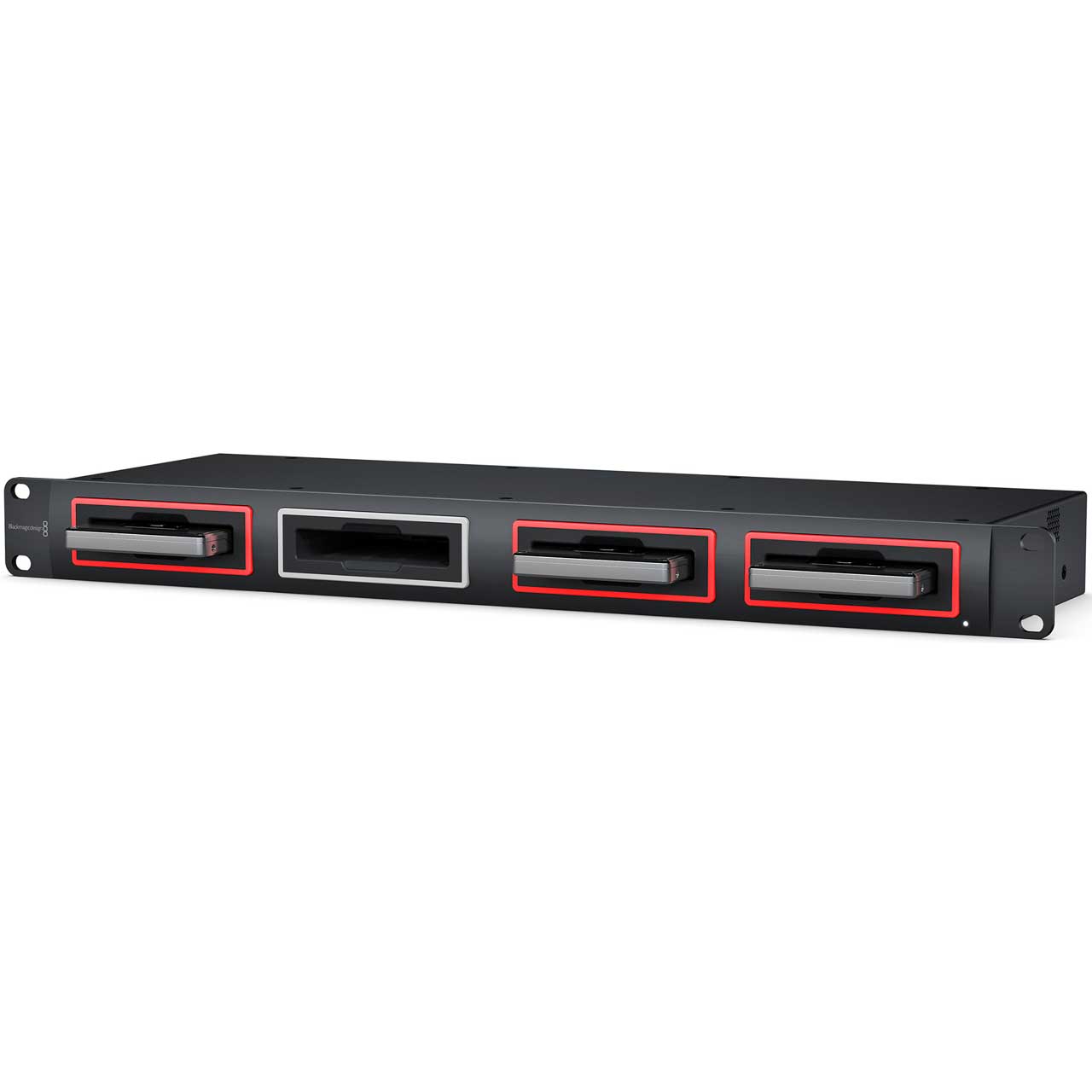

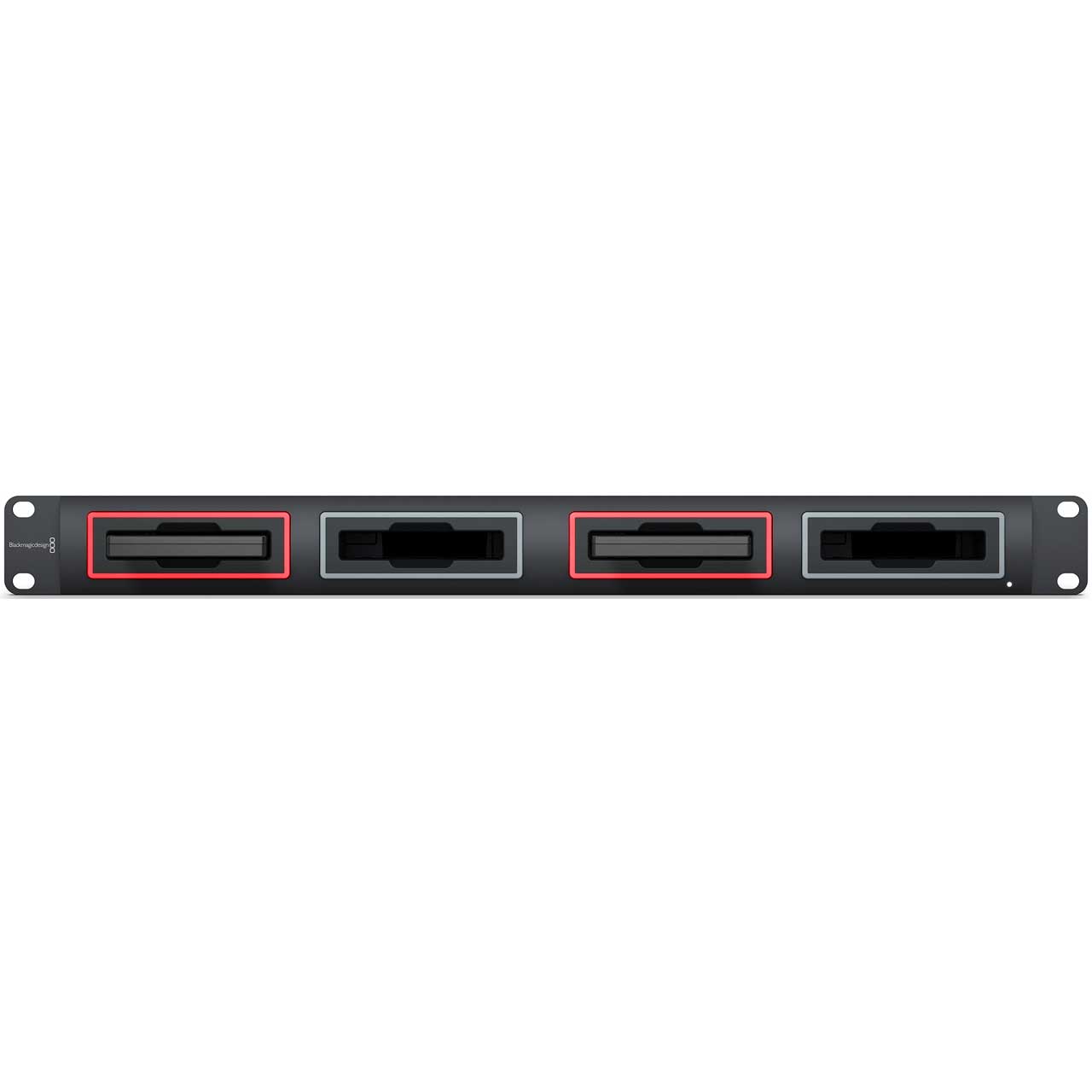

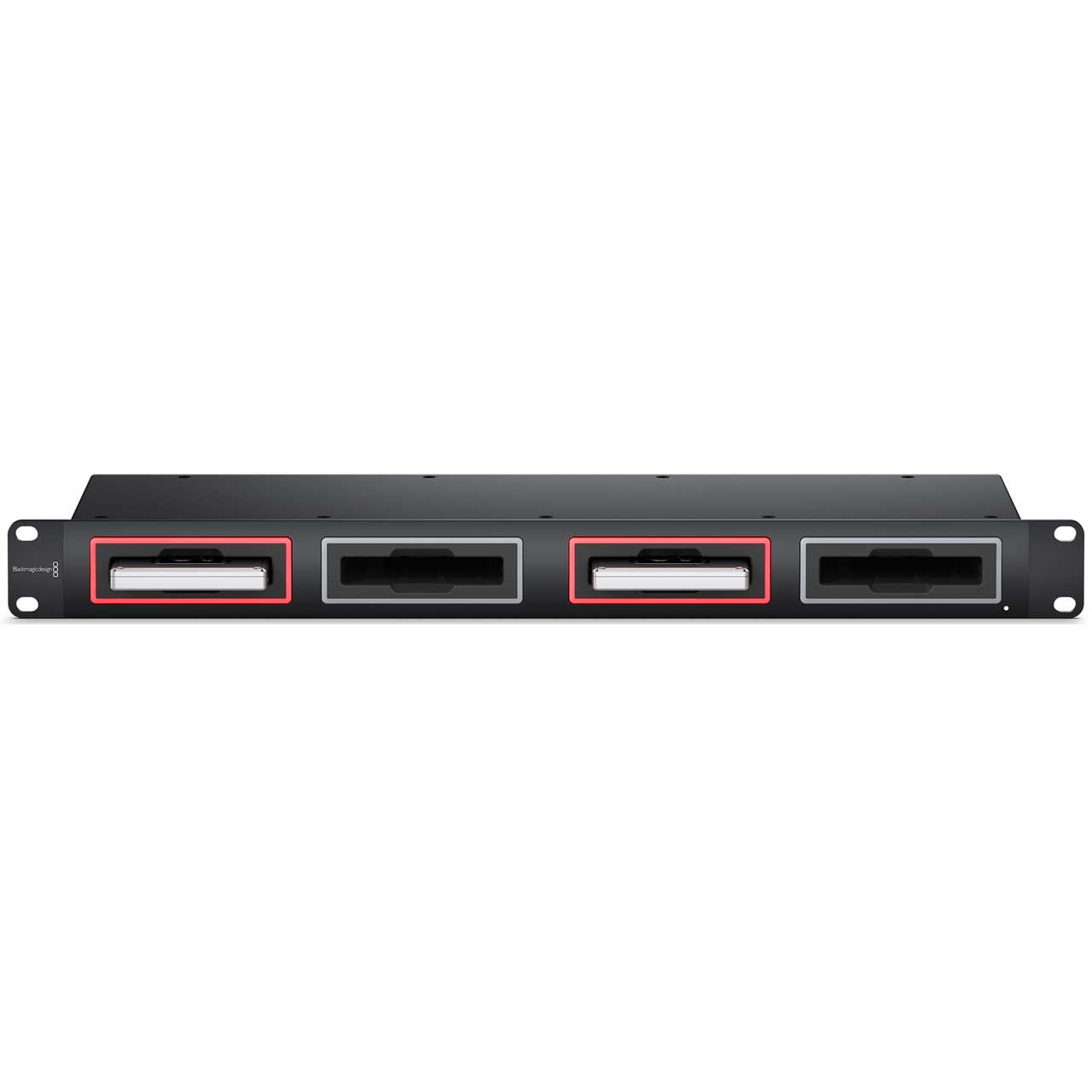

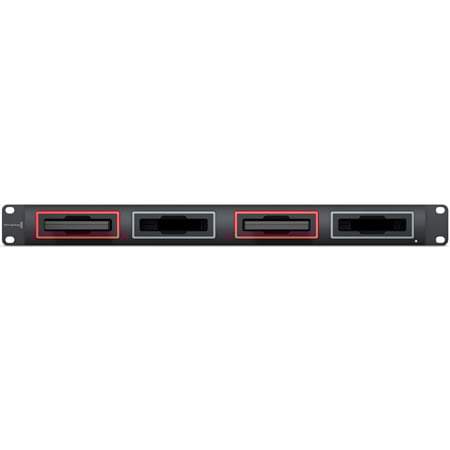

    Unlike common SSD docking cables, the Blackmagic MultiDock10G is designed in a compact, 1 RU all metal form you can mount in any professional rack. Each disk slot features an illuminated disk indicator so you can see when disks are being accessed. The design is also repairable so you can replace the socket connector in each slot. Simply plug into any USB C Mac or Windows computer and there is no software to install. The rear panel features 2 USB C connections and a slide switch to allow selecting between using 4 disk slots on a single USB C connection, or 2 slots on each USB C connection for shared use. Plus the built in AC power supply provides lots of power to run 4 SSDs or hard disks at the same time!

    Blackmagic MultiDock10G uses advanced USB C technology so you get blazingly fast transfer speeds to your computer at up to 10 Gb/s with a single cable connection! That's more than enough bandwidth to handle the highest resolution video formats including 8K in H.265 from HyperDeck Extreme 8K! MultiDock features a completely independent disk interface chip per disk slot so you never get slowdowns because of SATA bandwidth issues. Even though you get all 4 disks connected to a single USB C connection, you can also split Blackmagic MultiDock 10G and get 2 disks on one USB C connection and 2 disks on the second USB-C connection. That's perfect for dual computer use or increased speed!

    • Features:

      • Works with HyperDeck Extreme 8K HDR
      • Super fast rack mount 4 slot USB C disk dock
      • Premium All Metal Rack Mount Design
      • Dock and Edit!
      • Super Fast Solid State Disks
      • Extreme 10 Gb/s USB C Speed
      • Flexible RAID Storage
      • Use Any Software
      • Move Media Between Editing Systems
    • Specifications:

      • Connections
      • SSD Interface: 4 x 2.5" SATA 3 6Gb/s.
      • Computer Interface: 2 x USB C 3.1 Gen 2 (up to 10Gb/s)

        Power Requirements
      • Power Supply: 1 x Internal 100 - 240 AC.

        Operating Systems
      • Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 8.1 and 10.

        Environmental Specifications
      • Operating Temperature: 0° to 40° C (32°to 104° F)
      • Storage Temperature: -20 to 45§ C (-4§ to 113§ F)
      • Relative Humidity: 0% to 90% non-condensing
    • Item Includes:

      • Blackmagic MultiDock 10G
      • SD card with user manual.
    • Warranty:

      • 12 Month Limited Manufacturer's Warranty.
    • Operating Systems


      • Mac 10.13 High Sierra, Mac 10.14 Mojave or later.
      • Windows 8.1 or Windows 10.
