Blackmagic Design BMD-OGX-FR-C-P Blackmagic openGear Frame with Cooling

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

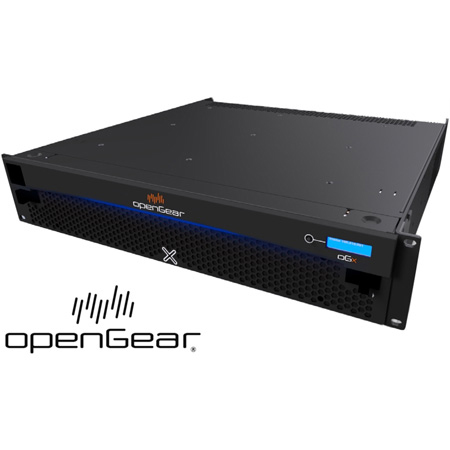

    Blackmagic Design BMD-OGX-FR-C-P Blackmagic openGear Frame with Cooling

    Manufacturer: Blackmagic Design

    Item #: BMD-OGX-FR-C-P   •   MFG #: BMD-OGX-FR-C-P




    Our Price:$1,499.00

    free ship


    Availability: In Stock
    i
    Item is Available for immediate shipping from our warehouse.




      Share!

      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      The oGx is a 2RU high-density openGear® modular frame offering 600 Watts of total power in a high-capacity 20-slot format. It uses the same form factor and DashBoard™ remote control as our other 20-slot frames and supports all openGear compatible cards and rear I/O modules, but offers significantly more available user power. The oGx is designed to meet the demands of today's most complex IP and hybrid infrastructures, supporting evolving IP and UHD applications.

      A new high-power mode allows 23 Watts per slot (460 W user net max). An intelligent fan controller adjusts fan speed with changes in power supply loading and temperature. The single (standard) 600 Watt power supply can fully power a loaded frame, and the addition of a second (optional) supply gives the frame full power redundancy. oGx accommodates 2 front-loaded, hot-swappable power supplies. The split outside location of the power supplies makes installation easy. Each power supply contains an independent cooling fan, status LED, and a front mounted power switch.

      In addition to an integrated LCD display that provides frame name, IP address and reports any alarms, the FrameGlow highly-visible programmable RGB LED bar provides "across-the-room" visibilty of any customizable status or frame ID functions, allowing personnel to see frame status/info literally anywhere in the room.

      The openGear® 3.0 frame offers optional gigabit Ethernet to every slot within the frame chassis, enhancing communication speed, and connection options to all openGear® cards. The openGear® 3.0 frame provides more communication options and flexibility to openGear® card manufacturers. The 21-port Ethernet switch, built in to the frame's network control card, virtually future-proofs the openGear® 3.0 platform. (Gigabit Ethernet is only available with the Advanced Network Control option.) SNMP (optionally available) is loaded direct to the frame eliminating the need for any external gateways and runs on a separate software port allowing for simultaneous control from both DashBoard and SNMP clients. This is useful in applications where system wide monitoring is performed using SNMP and real-time control is performed using DashBoard.


      • Features

        • 600 watt power supply with redundancy option. New high-power mode allows 23W per slot.
        • Full openGear® 3.0 compatibility supporting openGear-compatible cards as well as latest and legacy 20-slot frame openGear rear modules
        • Gigabit Ethernet to every slot within the frame (available on frames with Advanced Networking)
        • Optional DataSafe network-card stored backup and restore allows swapping of hosted cards with all settings automatically uploaded to the new card - no hassles trying to remember card settings. Settings are restored only when a DataSafe detects same-model card as replacement. (Available with the advanced networking control option.)
        • Power supply is hot-swappable for 24/7 operation
        • Front LCD display and FrameGlow customizable multi-color, flexible-function lightbar. Wide high-visibility design provides "across-the-room" visibility of any customizable status or frame ID functions.
        • Two independent looping references internally routed to all user card slots
        • Separate power cords to each power supply for power redundancy
        • Network Controller Card enables multiple copies of DashBoard™ for seamless remote setup, monitoring, and control. SNMP option can further be added.
        • Fan status and error indicator LEDs on front of the frame
        • Hinged, pull-away front door panel lowers to allow quick, easy card insertion
        • Remote control/monitoring via Ethernet using free DashBoard™ software, or optional OGCP-9000 remote control panel
