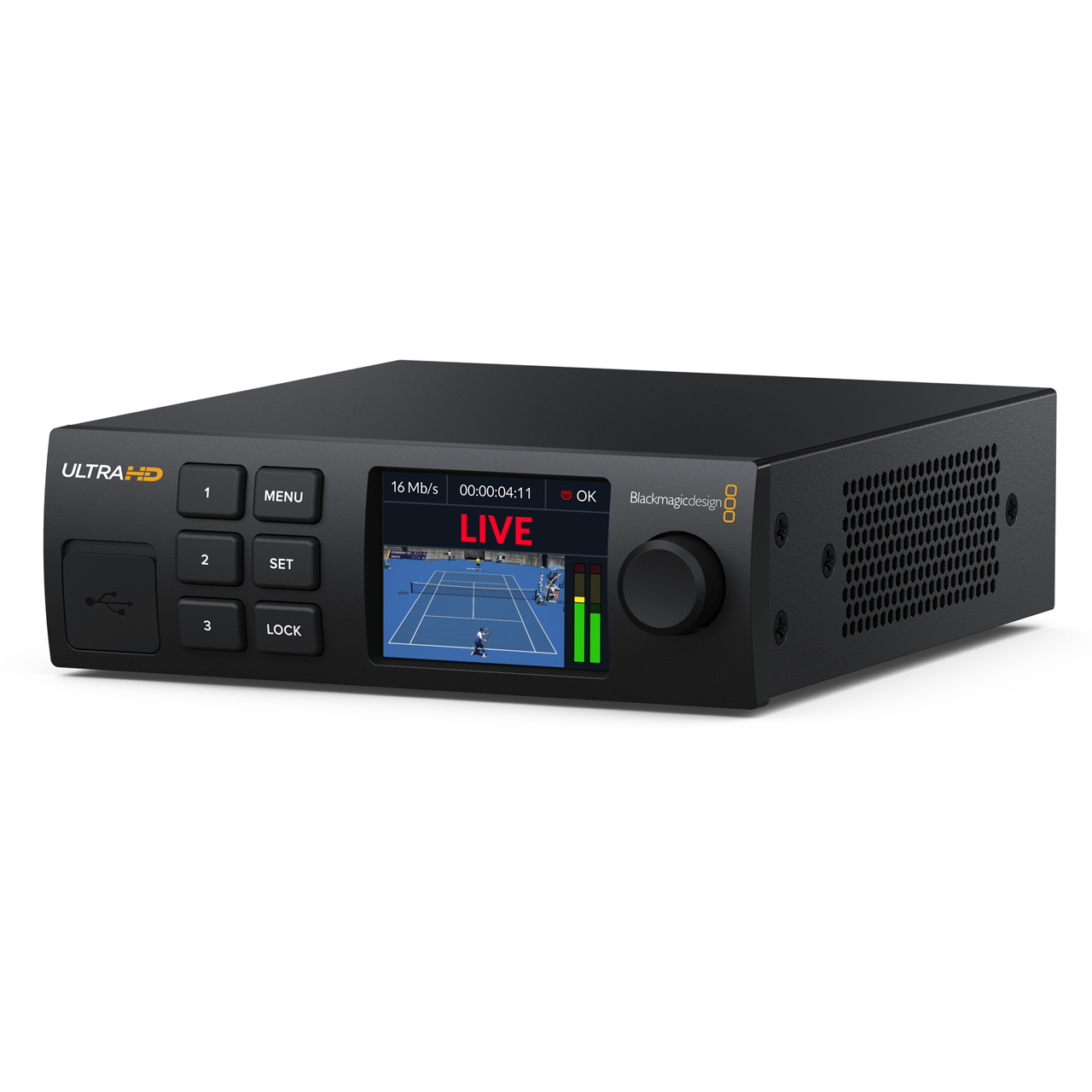

Blackmagic Design BDLKWEB/J/DES4K Streaming Decoder 4K H.264/H.265 with 12G-SDI REF/12G-SDI/12G-SDI REF/HDMI 4K

ITEM #: BMD-STRMDECODE4K MFG #: BDLKWEB/J/DES4K

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$745.00

Availability: In Stock
iAvailability Description Popup


BDLKWEB/J/DES4K - Overview

Live Stream to YouTube, Facebook, X and More!

The Blackmagic Streaming Decoder 4K is a professional streaming decoder that lets you receive an H.264 or H.265 stream from Blackmagic Streaming Encoder, ATEM switcher or Blackmagic camera and convert it back to SDI and HDMI video. Includes Blackmagic Cloud streaming and 12G-SDI reference input that lets you connect SDI tally, camera control and talkback back to the encoder.

If you need to create a broadcast streaming link, you can use the Blackmagic Streaming Decoder! It will receive and convert a H.264 or H.265 stream to SDI video. It even supports tally, talkback and camera control back to the camera! This professional streaming decoder lets you receive an ATEM or Blackmagic camera H.264 stream and convert it back to SDI and HDMI video. Includes return tally and control, plus Blackmagic Cloud streaming!

Create Point to Point Internet Based Broadcast Links

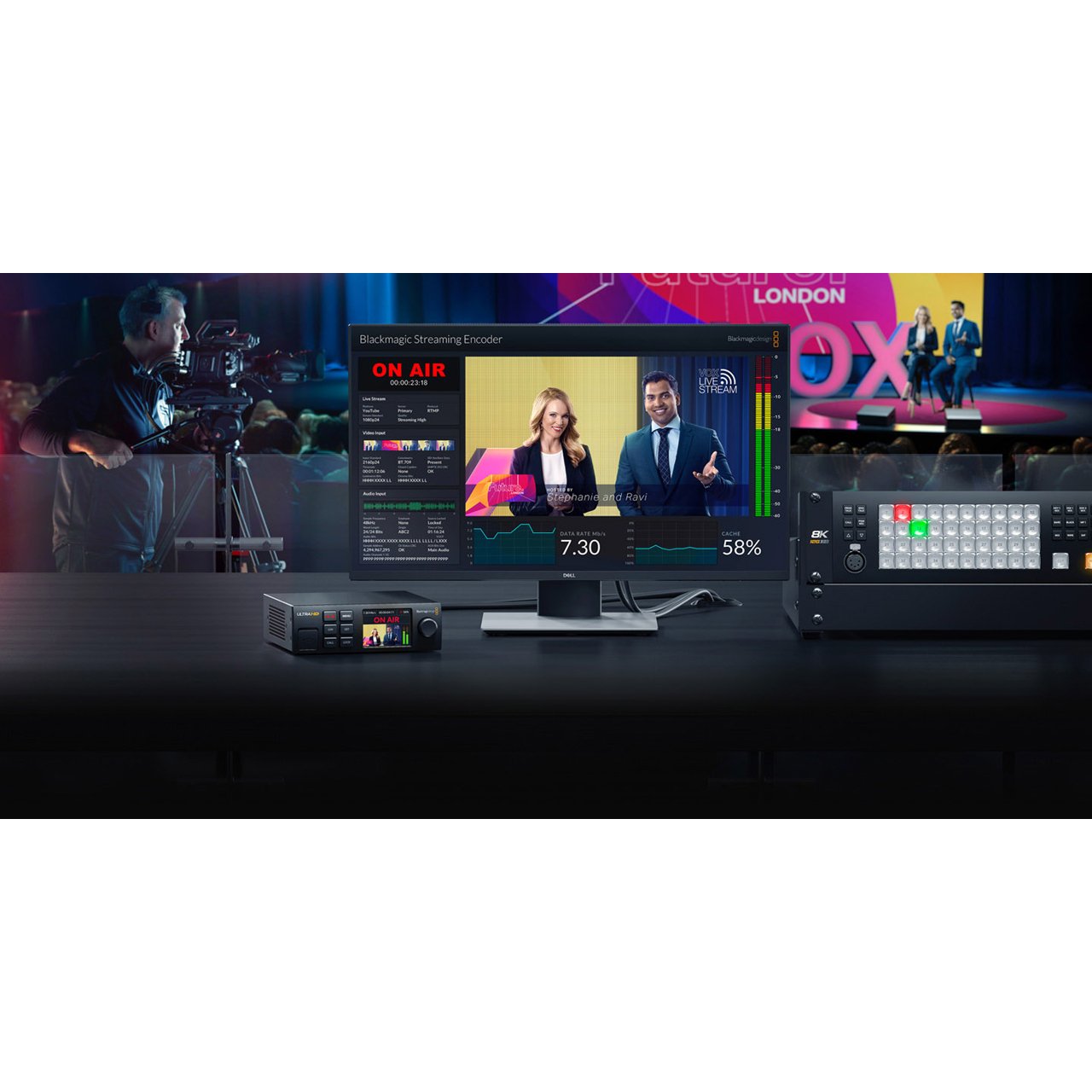

The Blackmagic Streaming Decoder also has a 12G-SDI "reference" input that lets you connect SDI tally, camera control plus talkback and send it back up to the encoder end. Imagine setting up a central control room with remote streaming from cameras with full tally, talkback and camera control on the remote cameras! Everyone is remote, but still working together!

  • Features:

    • Make Live Streaming Easy!
    • Create Point to Point Internet Based Broadcast Links
    • Connect 5G or 4G Phones for Mobile Data
    • USB Webcam Output for Video Software
    • Built-in Technical Monitoring
    • Includes Blackmagic Streaming Utility
    • 12G-SDI Supports 720HD, 1080HD and 2160p Ultra HD!
    • Control and Color Balance Remote Cameras

  • Specifications:

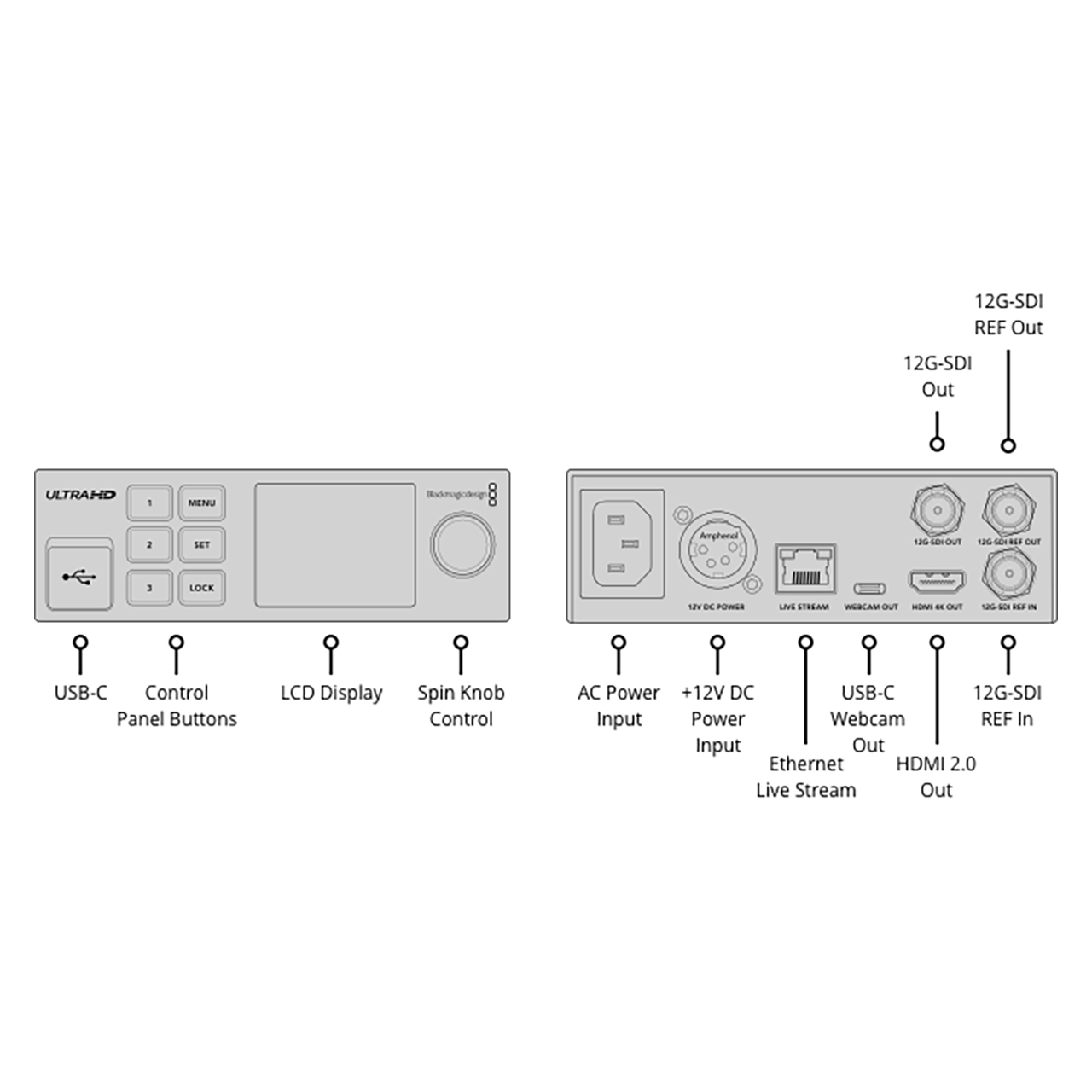

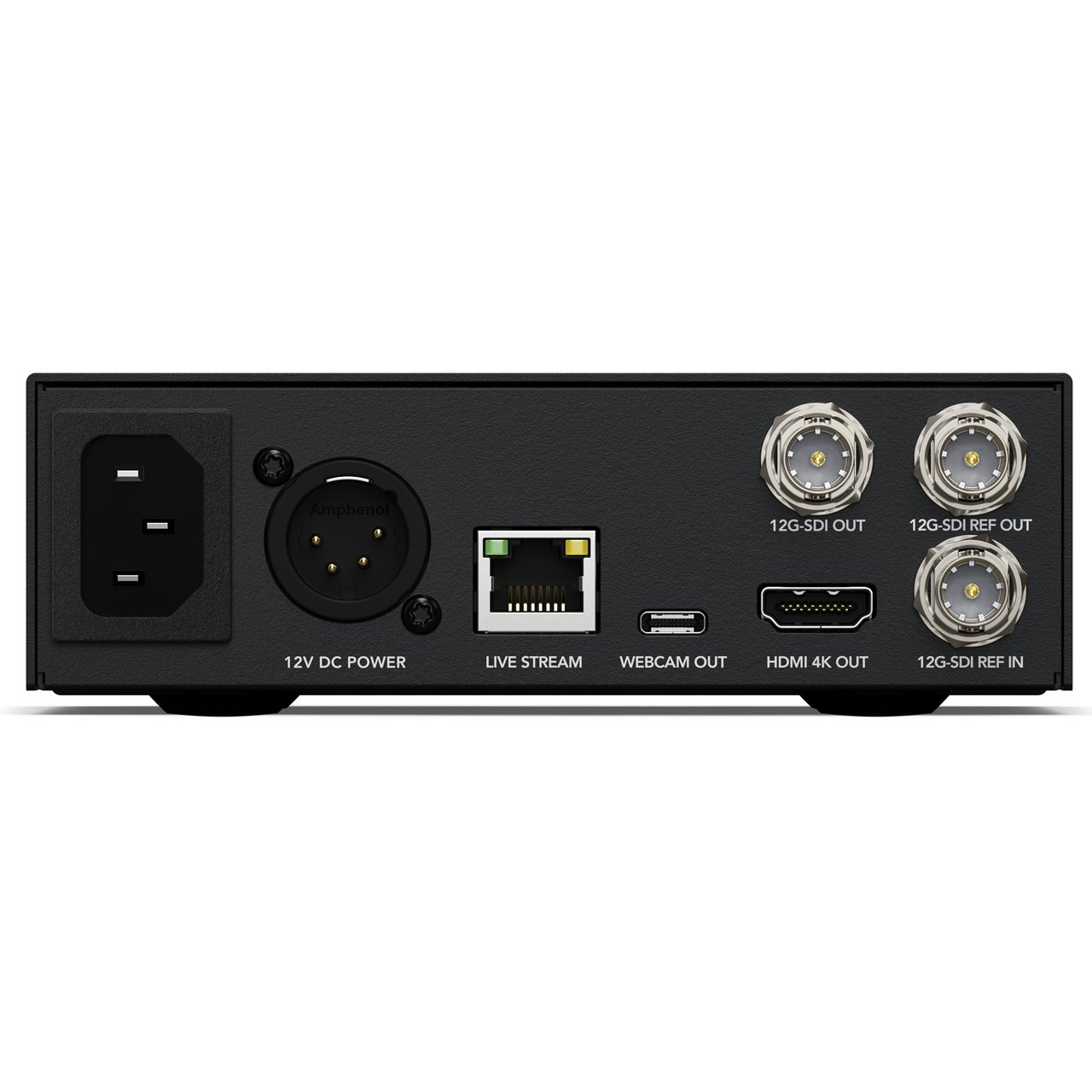

      Connections
    • SDI Reference Inputs: 1
    • SDI Video Outputs: 1
    • SDI Reference Outputs: 1
    • SDI Rates: 1.5G, 3G, 6G, 12G
    • SDI Audio Inputs: 16 channels embedded audio on 12G-SDI Ref In.
    • SDI Audio Outputs: 16 channels embedded audio on 12G-SDI Ref Out/2 channels embedded audio on 12G-SDI Out
    • HDMI Audio Outputs: 8 channels embedded audio on Monitor Out
    • HDMI 2.0 Video Outputs: 1
    • Webcam Output: 1x USB-C up to 2160p60
    • Ethernet: Ethernet supports 10/100/1000 BASE-T for live streaming, configuration and software updates
    • Live Stream Audio Input/Output: 2 channels embedded Live Stream audio on output/2 channels embedded Program audio on input/2 channels embedded talkback audio on input

      Standards
    • HD Video Input Standards: 720p50, 720p59.94, 720p60,1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60,
    • Ultra HD Video Input Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
    • 4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
    • SDI Compliance: SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE 2108-1
    • Video Input Color Space: Rec. 709, Rec. 2020
    • 3G SDI: Auto detects SMPTE level A or B on SDI input
    • Video Streaming Standards: 720p25, 720p30, 720p50, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
    • HDMI HD Video Standards: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    • HDMI Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
    • HDMI 4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI
    • HDMI Color Precision: 4:2:2
    • HDMI Color Space: YUV

      Streaming
    • Direct Streaming: Receives (RTMP) H.264 or (SRT) H.265 streams from the Blackmagic Streaming Encoder or compatible Blackmagic cameras.
    • Closed Captions: Web Presenter 4K supports embedding CEA-608 and CEA-708 closed captions in your live RTMP stream.
    • Timecode: Support source timecode over RTMP and SRT streams on 12G-SDI Out.

      Control

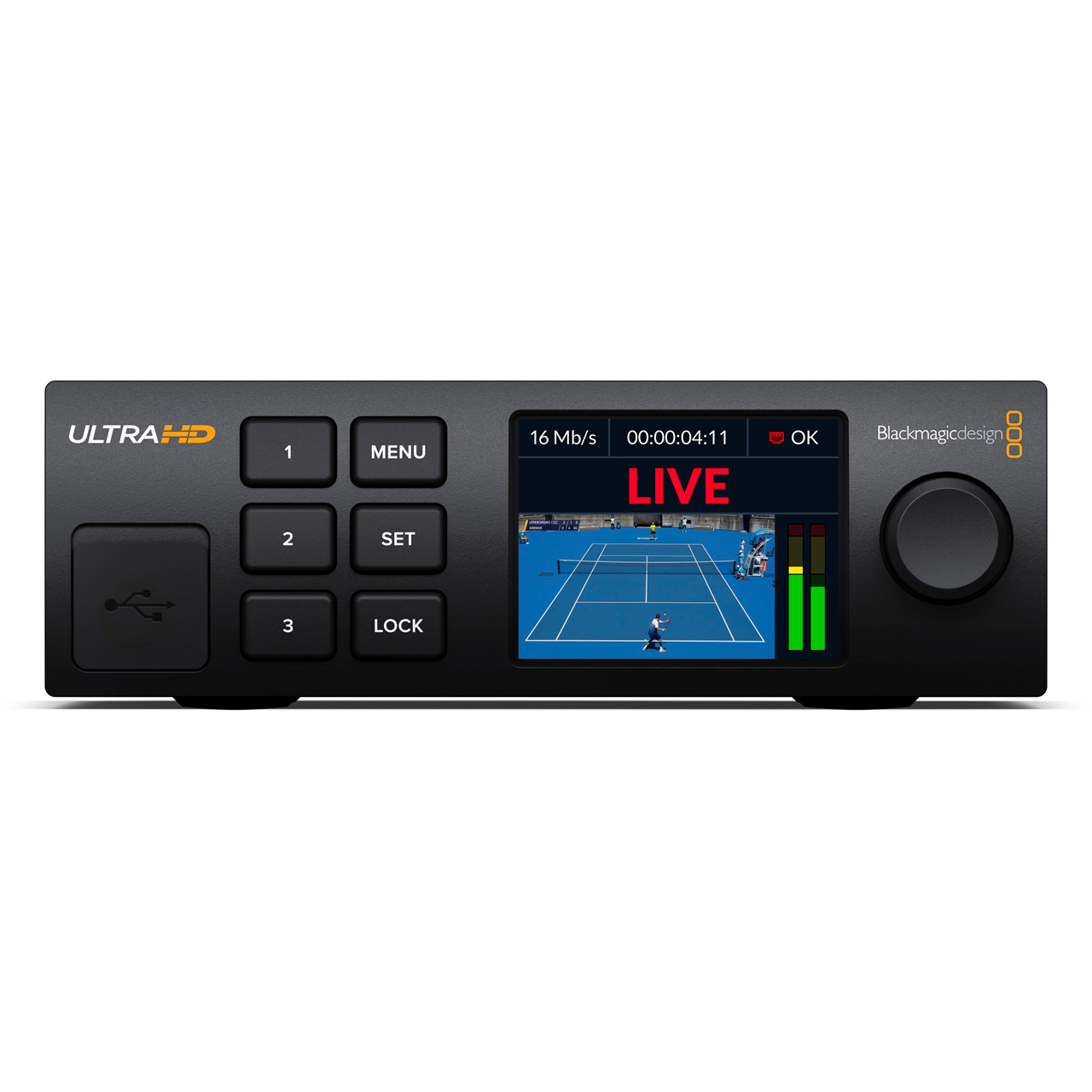

    • Control Panel: Built in control panel including 6 buttons, spin knob control and 2.2 inch color display.
    • Device Control: Front panel, USB-C or Ethernet
    • External Control: Supports remote camera control, color corrector, tally and talkback. REST API over Ethernet for external control via HTTP when used with REST client applications.

      Displays
    • Display: Built in 2.2 inch LCD for monitoring video, audio and status plus menu settings.

      Software
    • Compatible Services and Software: Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, AfreecaTV, Bilibili, DouYu, Weibo, Zoom, Skype, Microsoft Teams, QuickTime Player, FaceTime, OBS Studio, Open Broadcaster, VLC, Wirecast Play, Wowza Streaming Engine.

      Operating Systems
    • Mac 13.0 Ventura
    • Mac 14.0 Sonoma or later
    • Windows 10, 64-bit
    • Windows 11
    • Linux
    • Chrome OS

      Power Requirements
    • Power Supply: 1x Internal 100V - 240V AC
    • 12V DC Input: 1x 4-pin XLR for +12V DC input for external power supply or battery use

      Environmental
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Storage Temperature: -4°F - 113°F (-20°C - 45°C)
    • Relative Humidity: 0% - 90% non-condensing

  • Item Includes:

    • 1x Blackmagic Streaming Decoder 4K
    • 1x Welcome wallet with QR code for software download

  • Warranty:

    • 3 Year Limited Warranty
