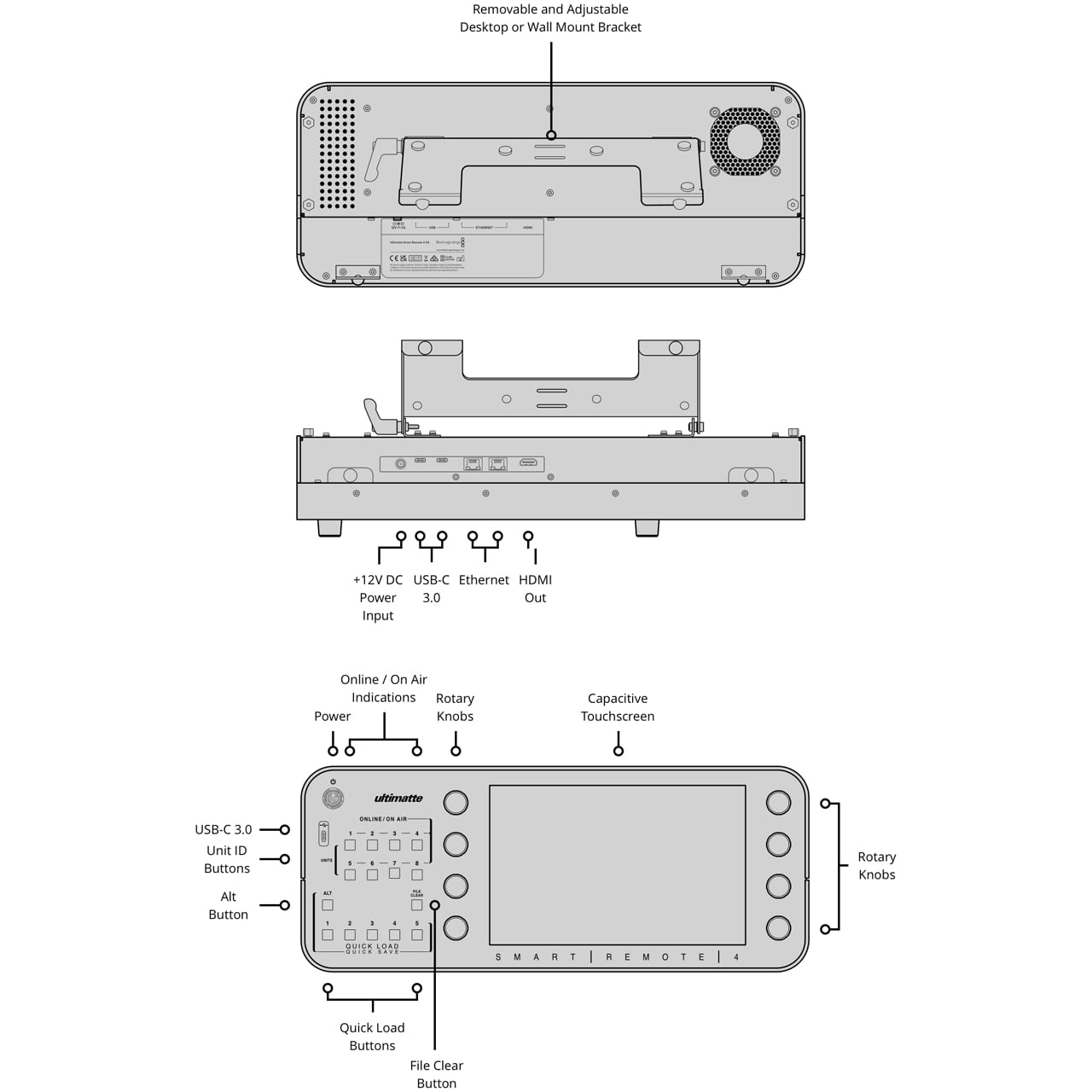

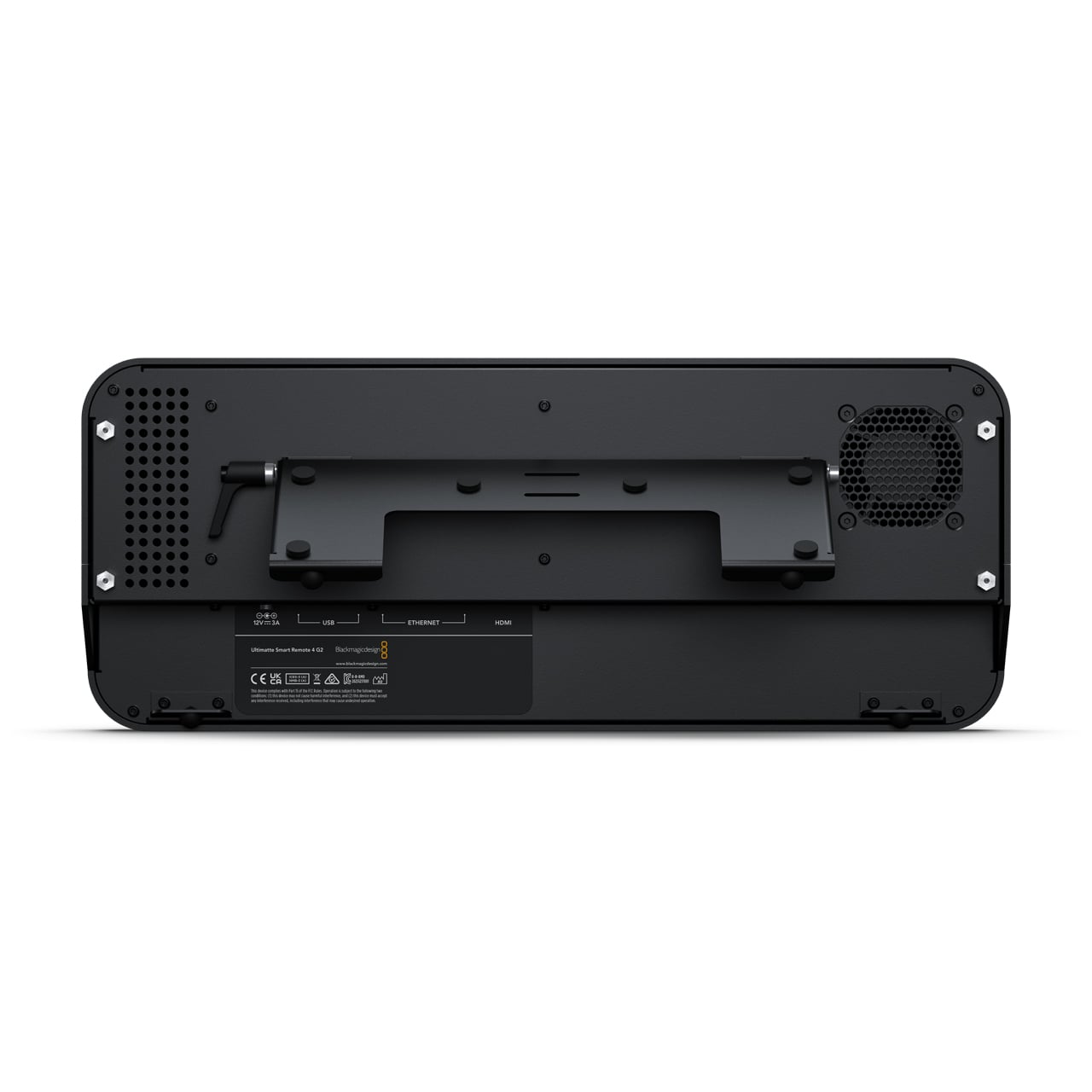

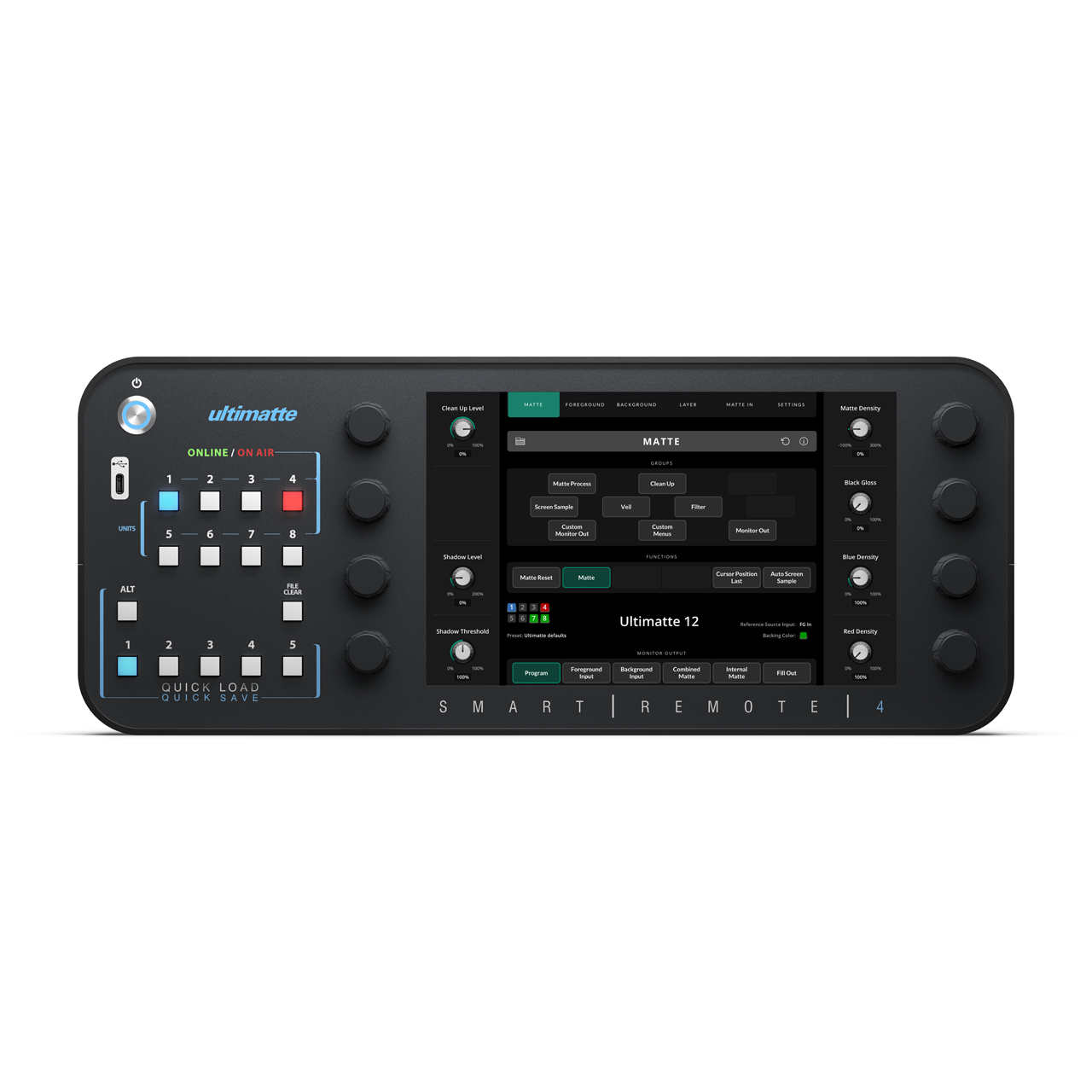

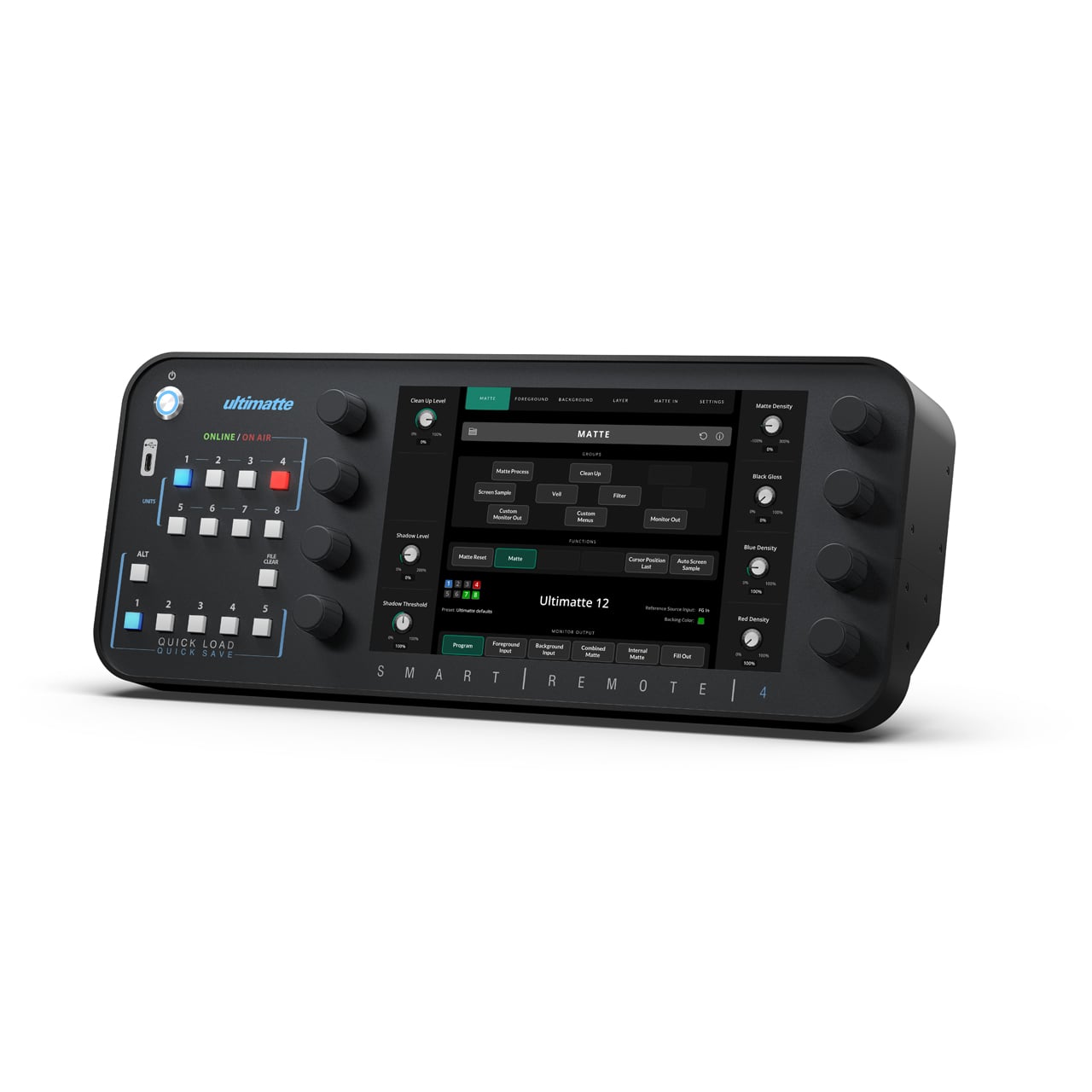

The Blackmagic Design Ultimatte Smart Remote 4 G2 is a 10.1" touchscreen remote that connects via Ethernet to control up to eight Ultimatte 12 units. Combined with the monitor cascade, this means you can view up to eight Ultimatte 12 units without adding a video router. Smart Remote 4 also features physical buttons and knobs for finer control of the Ultimatte 12 parameters. There are also buttons for quickly loading and saving presets, and a touchscreen that gives you full control over every Ultimatte parameter. Plus the front panel of the Ultimatte rack unit also has buttons to allow recall of custom presets! You can also create custom control solutions with the easy to use text based Ultimatte control protocol.
All Ultimatte 12 models feature a monitor cascade feature that lets you view the monitor output from up to eight Ultimatte units on a single SDI display. Simply connect up to eight Ultimatte units via an SDI daisy chain using the monitor input and monitor output connections, with the last Ultimatte unit then plugged into an SDI monitor. Then when you switch to monitor any specific Ultimatte unit using the Ultimatte Software Control or the Smart Remote 4, the monitor output will then clean switch, with almost zero latency, and be passed down the chain for display on the monitor. This greatly simplifies monitoring, even when working with lots of Ultimatte equipped cameras.
