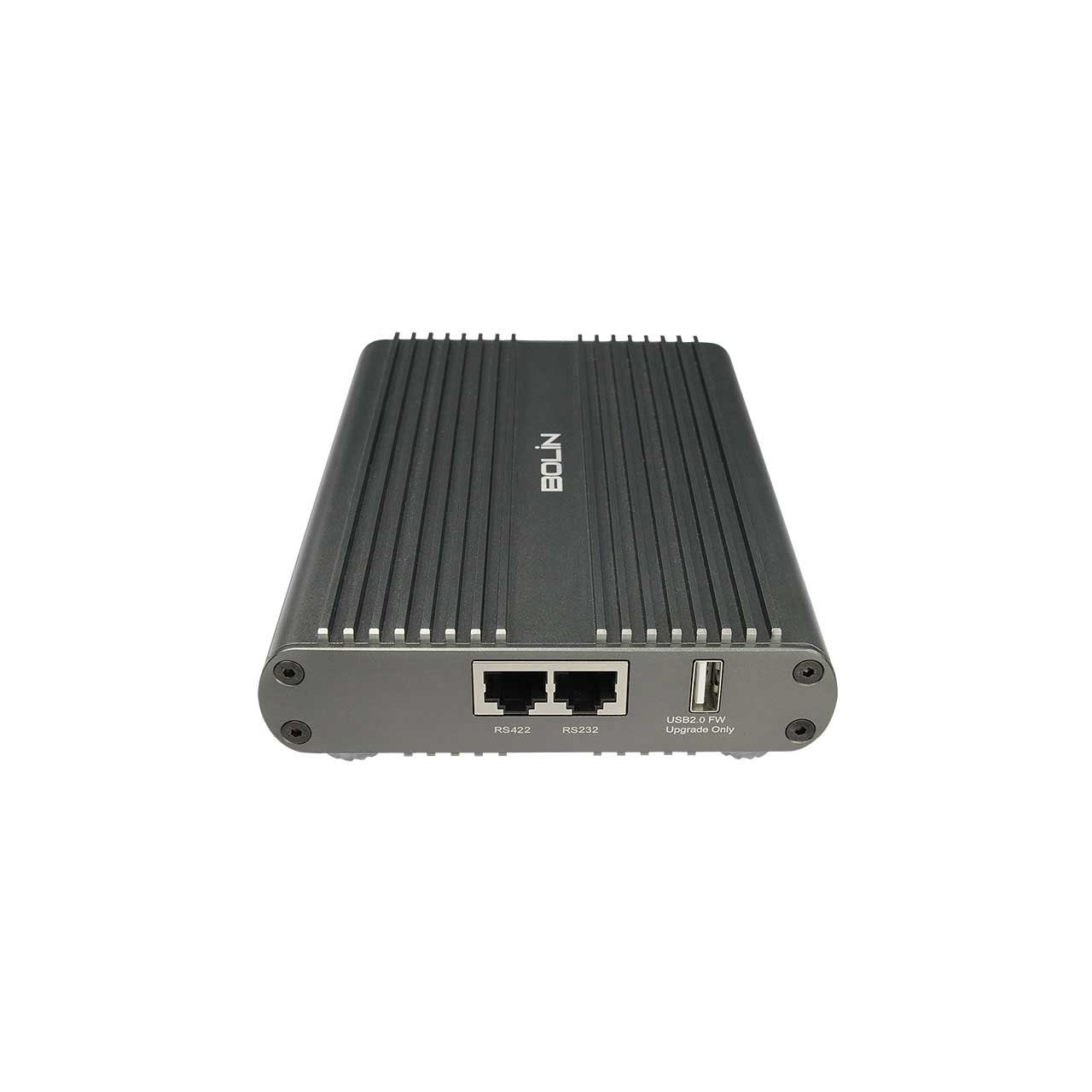

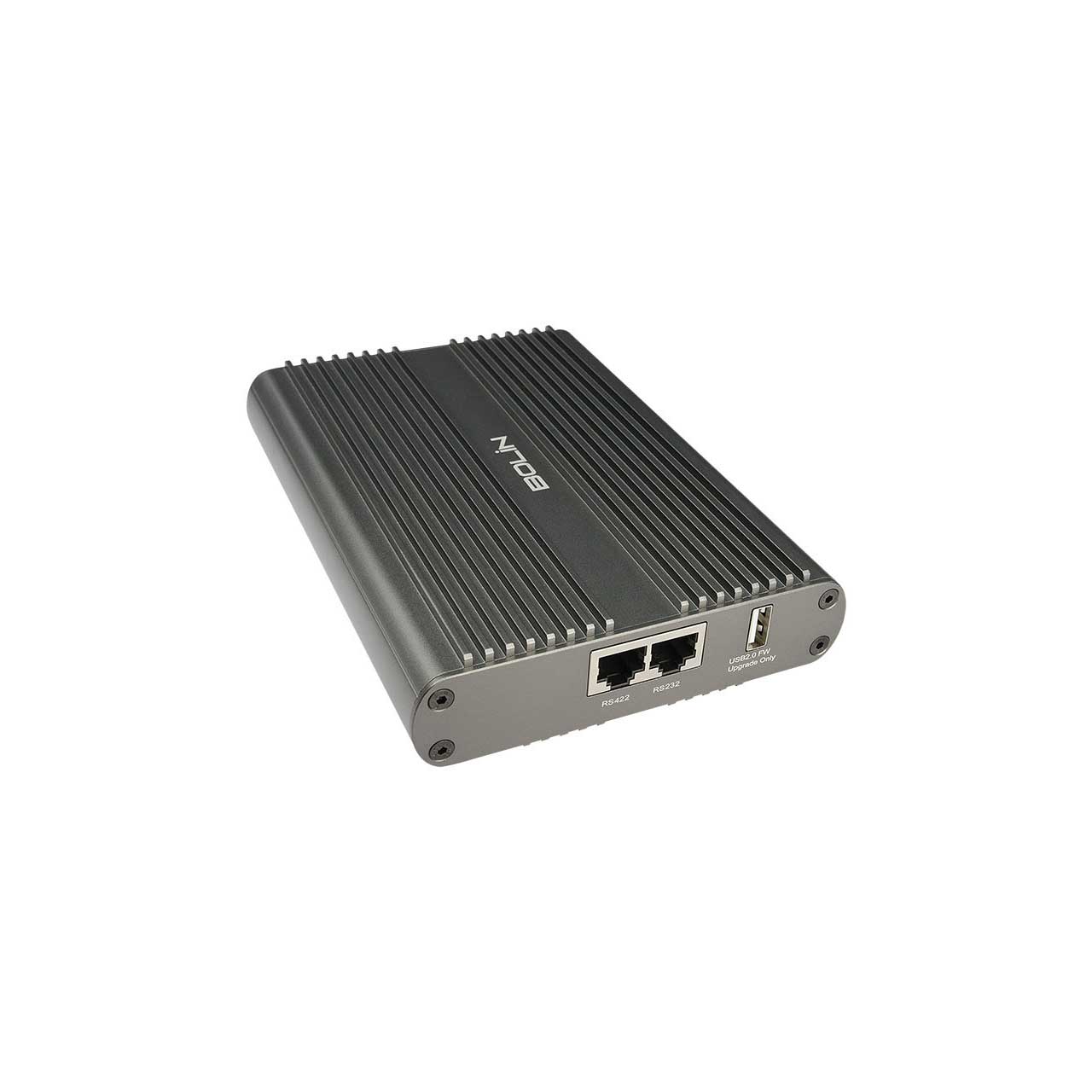

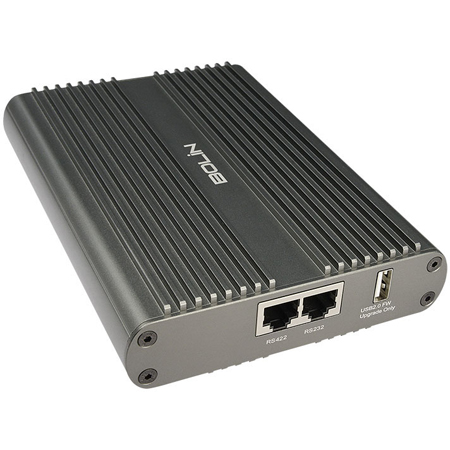

Bolin Technology BL-VNS-1 Visca Over IP to Serial Control Converter for PTZ Cameras

ITEM #: BOL-BL-VNS-1 MFG #: BL-VNS-1

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BOL-BL-VNS-1

BL-VNS-1 - Overview

With a compact and modular design, BOLIN BL-VNS-1 VISCA over IP to Series Converter device enables any PTZ camera with serial RS232/422/485 only control support to send pan, tilt, zoom movements and image parameter data over IP network.

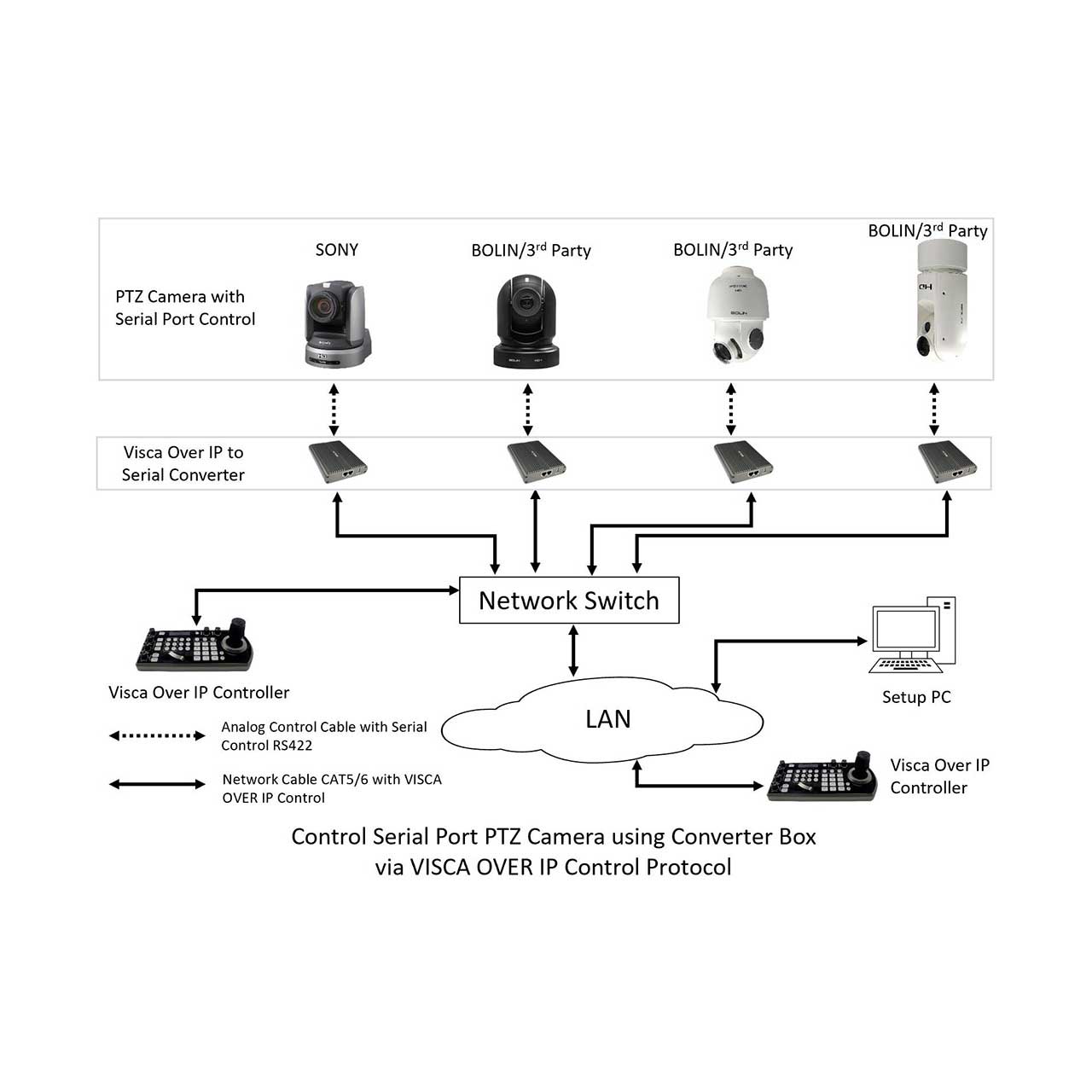

By using VISCA over IP control protocol, BL-VNS-1 device enables remote access capability to any serial control ready cameras that support VISCA and when bundled with KBD-1010-RNV keyboard controller, operator can easily and quickly manage all camera devices on the network.

Compatibility
Supports all BOLIN PTZ cameras and Sony's and all 3rd party PTZ cameras that use VISCA protocol for controlling. Camera models for indoor and outdoor applications.

PTZ Keyboard Controller Support
Compatible with BOLIN KBD-1010-RNV Keyboard Controller and all standard Visca Over IP controllers. (Visca Over IP port may differ).

Visca Full Functional
Supports full functional commands based Visca camera & image control protocol.

IP Management
Built in web interface to manage IP settings to communicate with network.

Firmware Upgrade
IP firmware and MCU firmware can be upgraded using USB port.

Installation
Desktop pads and Rack mount brackets included. Optional DIN-Rail mount. for separate order.

Power
DC12V, and PoE (IEEE802.3at).

  • Features:

    • Convert serial control PTZ or motorized zoom camera into IP controllable device.
    • Device supports RS232/422/485 serial input using VISCA control commands.
    • Supports all BOLIN PTZ and Motorized Zoom cameras models for indoor and outdoor applications.
    • Network ready to receive VISCA over IP camera control and setting commands from any keyboard or software based controllers.

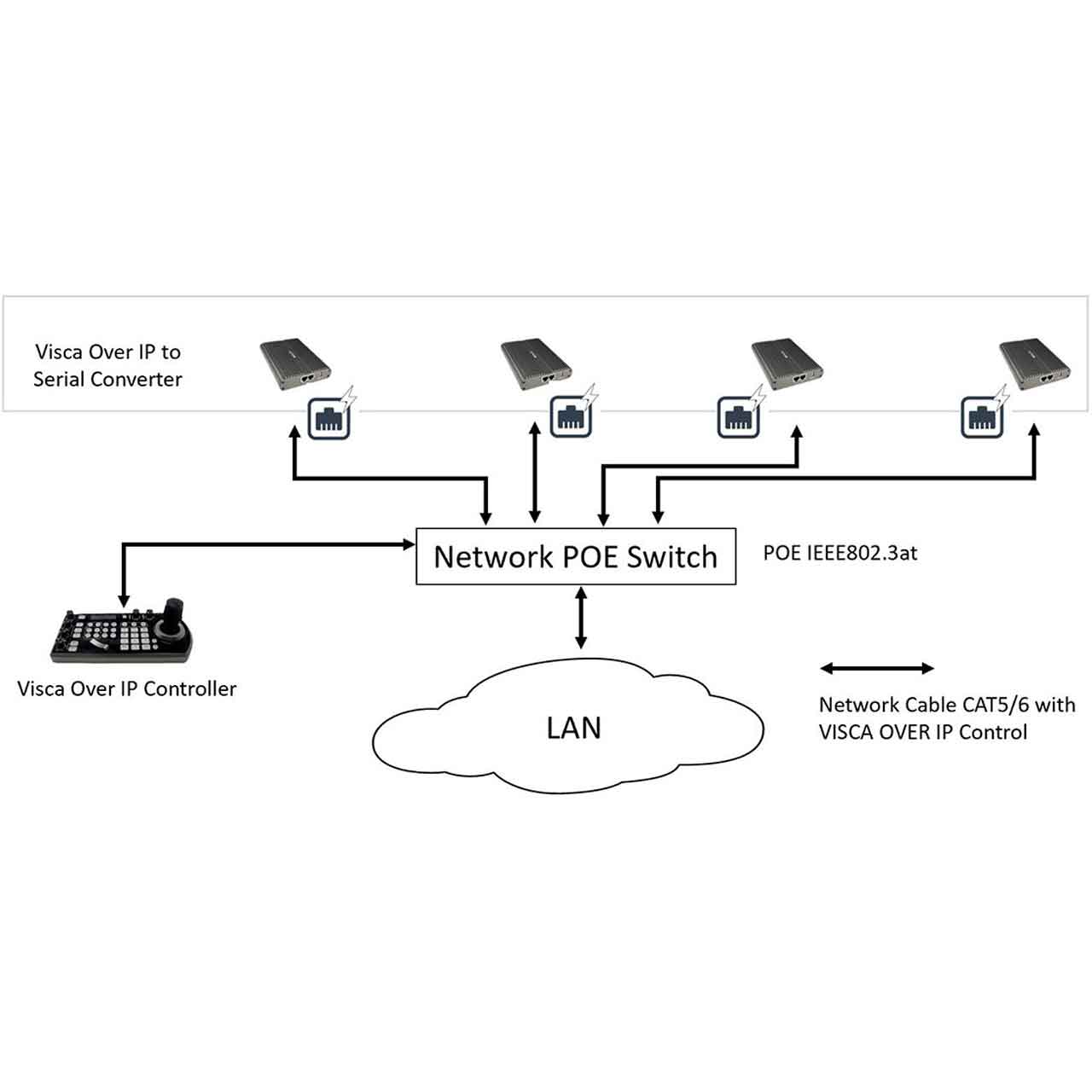

    • Use existing PoE network environment to add IP control to analog PTZ camera.
    • 802.at POE+ support.
    • Serial to VISCA over IP Control Protocol support.


  • Specifications:

    • Control
    • PTZ Control Output: RS232, RS422/485
    • PTZ Control Input: IP - Visca Over IP
    • Protocal: Visca

      Interface

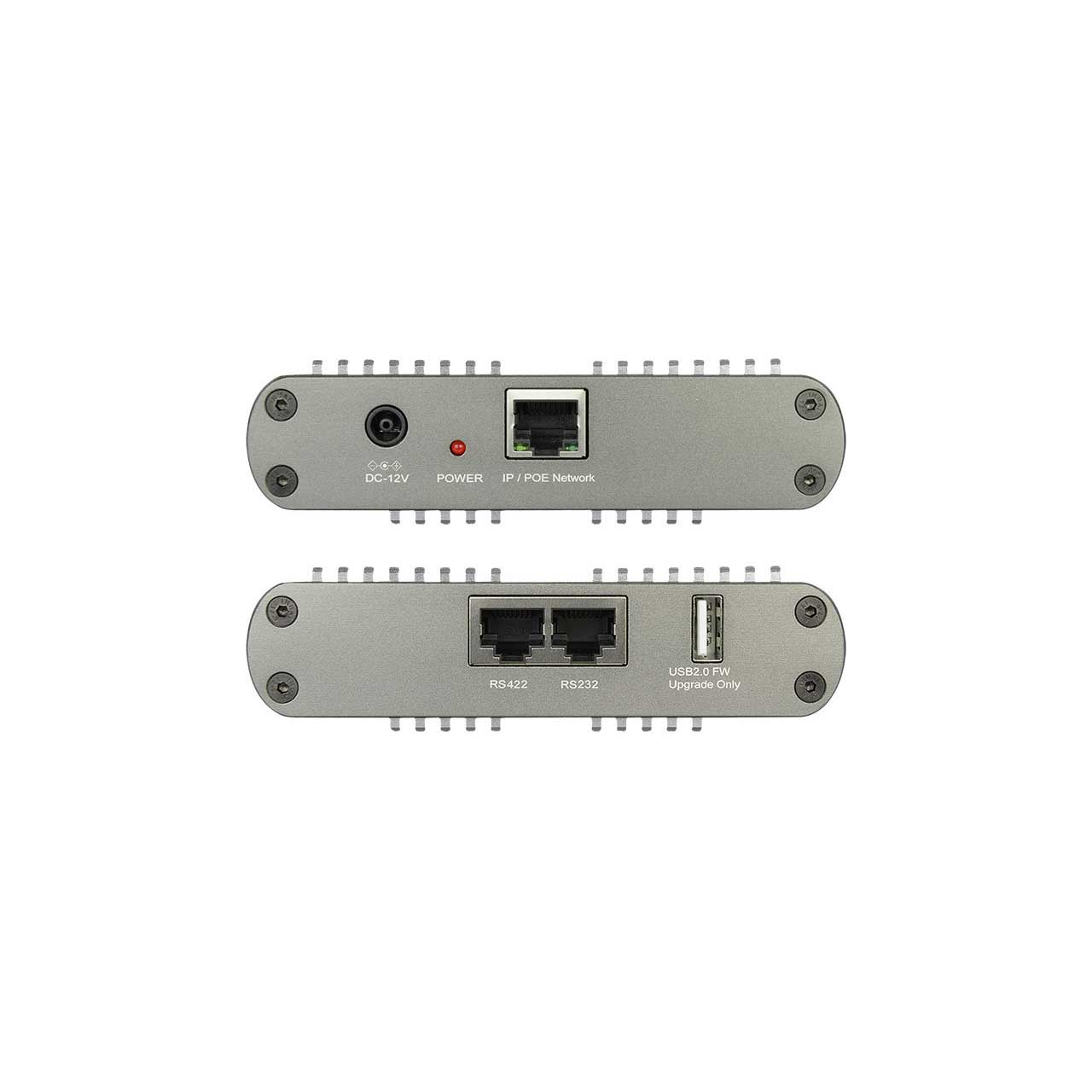

    • Control Interface: 2XRJ45: RS232, RS422/485 (RJ45 to Phoenix Connector adapter included), IR-1x 3.5mm IR RX
    • USB Port: USB2.0, FW upgrade only

      General
    • Operating Temperature: -20 to +60 (°C)
    • Power Input: DC12V, PoE+ (IEEE802.3at)
    • Mount: Rubber pads and Wall mount included. Din Rail mount kit is optional sold separately.
    • Dimension: 6.56 x 4.65 x 1.3"
    • Weight: 1.15lb


  • Item Includes:

    • 1x Bolin Technology BL-VNS-1 Visca Over IP to Serial Control Converter for PTZ Cameras
    • 1x DC12V power supply
    • 1x RJ45 to RS422 extension cable
    • 1x Control port connector
    • 2x Rackmount
    • 1x Desktop mount pads
    • 1x Wall mount
