NAD22-T2 - Overview

Bolin D Series Dante AV PTZ camera D220 is the world's first Dante AV hardware enabled pan, tilt, zoom camera interfacing video and audio in a standard 1 Gbps network, and providing uncompromised video quality with lowest latency and synchronization.

The D Series Dante AV camera provides high quality color image up to 4K60 / Full HD, with quiet and smooth Pan, Tilt and Zoom capability.Designed to seamlessly integrate into an existing Dante audio ecosystem, the D412 PTZ is managed using the Dante Controller Software with flexibility to independently route audio and video with sub-microsecond accuracy to minimize time alignment issues

D20H HDMI DanteAV Transceiver
The Bolin D20H(HDMI) decoder is part of Bolin DanteAV camera system. Over standard Gigabit network, a single-channel networked AV decoder outputs baseband video HDMI 2.0 , which not only works with Bolin DanteAV PTZ camera but also works with standard DanteAV video device within Dante eco system.

It transports up to UHD/4K60 4:4:4 video output with ultra low latency and lossless quality. It supports HDCP, plus IP PTZ camera control, embedded audio and control pass-through.

As part of Dante Audio over IP eco family, using standard Gigabit Ethernet network switches and CAT5e UTP wiring, D Series decoder delivers a high-performance virtual video matrix routing solution for presentation of multimedia, and live camera images, Dante 4k video content application such as demanding conference room and classroom applications.

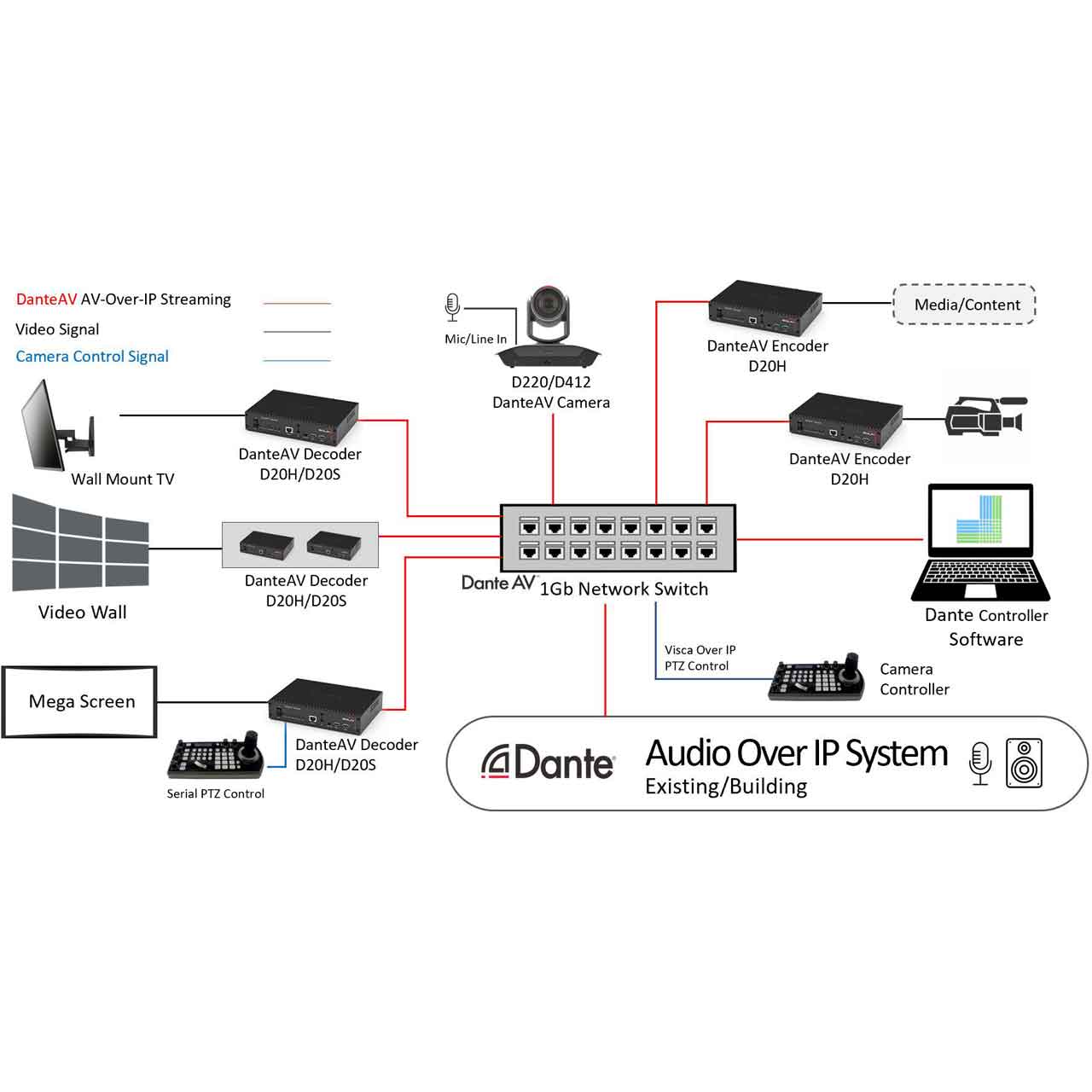

Paired with Dante AV decoder, it receives the signal from a DanteAV PTZ camera or an encoder and feeds it to a display device via the HDMI output. Using familiar Dante Controller software, the decoder can quickly and easily switch between multiple DanteAV endpoints including cameras or encoders on the network, with no need for breakouts or matrix switches to unicast or multicast display the video on any number of screens and video router system to use.

  • Features:

    • Individually route video using familiar Dante Controller software, with no need for breakouts or matrix switches to display the camera video on any number of Dante AV-enabled screens.
    • Deliver IP streaming video to Dante network and local HDMI 2.0 video output to conventional workflow in 4K60 or FHD.
    • Multicast Mode
    • Point to Multipoint and Point to Point Distribution - supports both unicast and multicast video distribution.
    • HDMI embedded high-quality audio and DanteAV video streaming embedded audio with support for mic and line-in audio input.
    • Multi-screen video display routing
    • Deliver IP streaming video to Dante network and local HDMI 2.0 video output to conventional workflow in 4K60 or FHD
    • Multicast Mode
    • Point to Multipoint and Point to Point Distribution - supports both unicast and multicast video distribution.
    • Ultra-low latency real-time video performance over IP network
    • 4K60 4:4:4 video over standard Gigabit Ethernet
    • Use as a decoder - provides HDMI 2.0 and/or 12G-SDI output
    • Tunable audio delay to facilitate lip-sync control
    • Supports unicast and multicast for 8 audio flow and 1 video flow
    • Full support of Dante audio and video protocols
    • Supported by Dante Controller
  • Specifications:

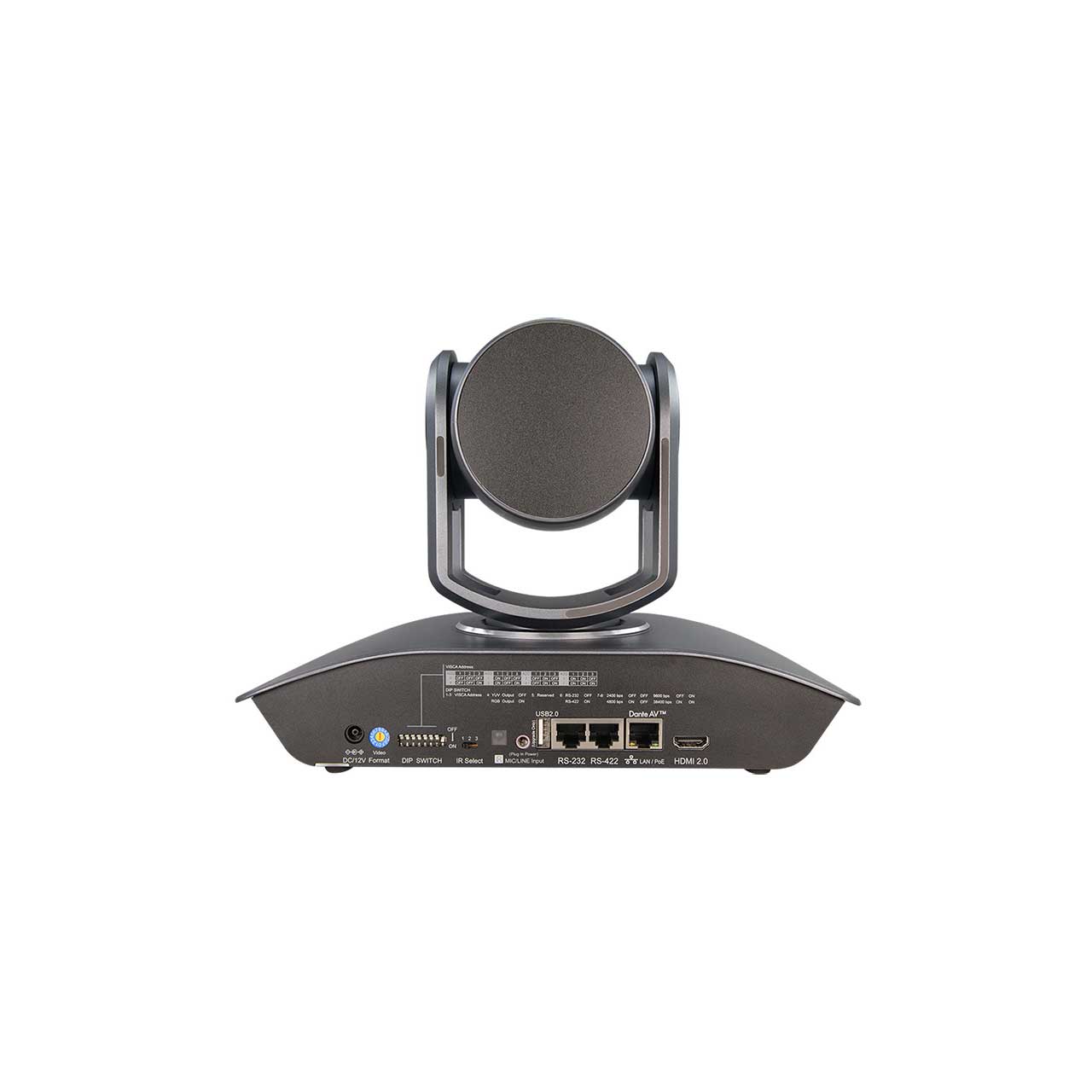

    • D220 Dante AV PTZ Camera
    • Image Sensor: Sony IMX 307, 1/2.8" CMOS
    • Pixels: 1920x1080, 2 MP
    • Zoom: Optical Zoom 20X, Digital Zoom 2x
    • Focal Length: 5.2~98mm, F1.5 ~ F3.0
    • Aperture: F1.5(W)~F3.0(T)
    • Horizontal Angle of View: 55.8°(W)~3.2°(T)
    • Min. Object Distance: 1000mm(Wide), 1500mm(Tele)
    • Min. Illumination: 0.5Lux (Day), 0.1Lux (Night)
    • Shutter Speed: 1/1s~1/10000s
    • Focus: Auto, Manual, One Push
    • White Balance: AUTO, ATW, Indoor, Outdoor, USER, OPW
    • Exposure: Full Auto, Manual, Shutter Priority, Iris Priority, Bright
    • Video Format - HDMI 2.0 -D220: 1920x1080p:60/59.94/50/30/29.97/25; 1280x720p:60/59.94/50/30/25
    • Color Format: HDMI, RGB 8bit 4:4:4 / YUV 12bit 4:2:2
    • Color Space: YUV(YCbCr), RGB
    • Dante AV: Powered By DanteAV Module
    • Network Interface: Standard 1Gbps Ethernet
    • Video Codec: ProAV optimized implementation of JPEG2000 codec in FPGA, Licensed By IntoPIX
    • Video Transport Format: Dante Video over IP
    • DanteAV IP Video Format: 1920x1080p:60/59.94/50/30/29.97/25; 1280x720p:60/59.94/50/30/25
    • Video Streaming: Unicast or Multicast
    • Latency - Codec: Encoder to Decoder < 8ms with Low Latency Mode

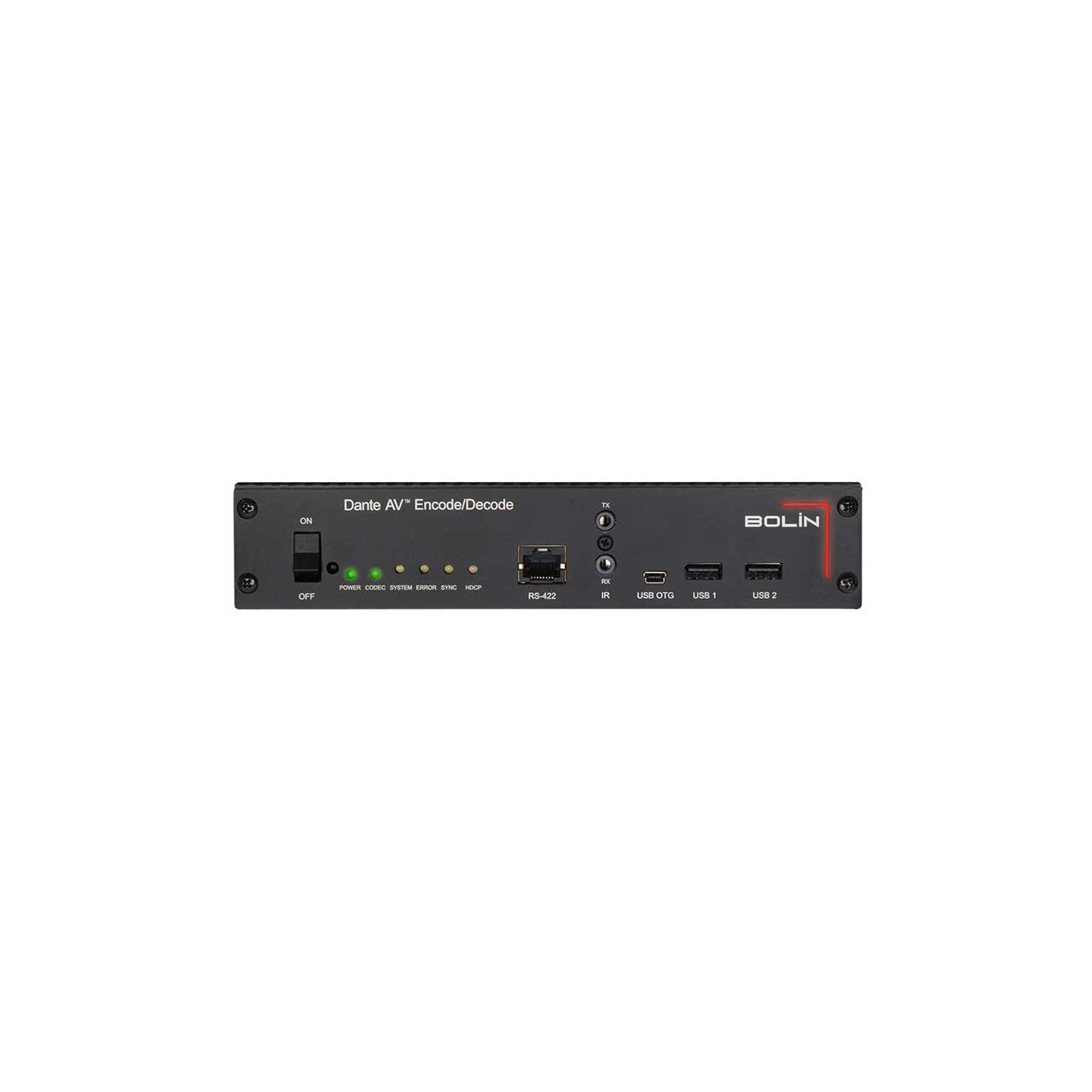

      D20H HDMI DanteAV Transceiver
    • Device: Encoder/Decoder
    • Video Codec: JPEG2000
    • Video Resolution: Up to 4096x2160p60
    • Bit Rates: 200 to 800 Mbps
    • Format/Eco-System: Dante Video over IP
    • Encoder Input: HDMI 2.0
    • Encoder Monitor Output: HDMI 2.0
    • Decoder Output: HDMI 2.0
    • HDMI Resolution: 4096x2160p, 3840x2160p, 1920x1080p, 1920x1200, 1600x1200, 1280x720p, 1280x1024, 1024x768, 800x600, 720x576p, 720x480p, 640x480
    • HDMI Frame Rate: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • HDMI Color Space: RGB, YCbCr
    • HDMI Bit Width: 8-bit, 10-bit, 12-bit
    • HDMI Color Sampling: 4:4:4, 4:2:2, 4:2:0
    • HDMI EDID: Yes
    • Video Standard: SMPTE 292(1.5Gb/s), SMPTE 424, SMPTE 425-A(3Gb/s), SMPTE 2081, SMPTE 2082 With SMPTE352 SDI Metadata Supported
    • Audio Format: Dante Audio over IP
    • Encoder Input: Up to 8 channels to Dante
    • Decoder Output: 2 channels from Dante
    • Bit Depth: 24, 16 and 32 bits
    • Ethernet: Standard 1Gbps Ethernet
    • Ethernet Port: 2

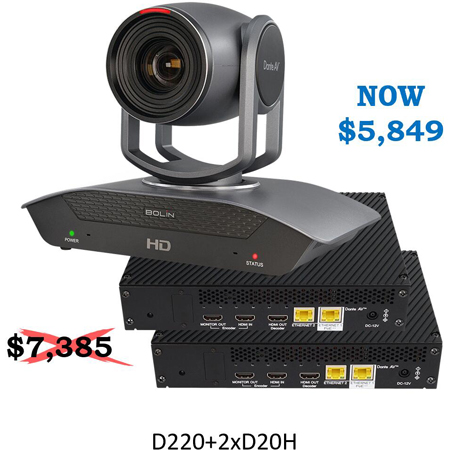

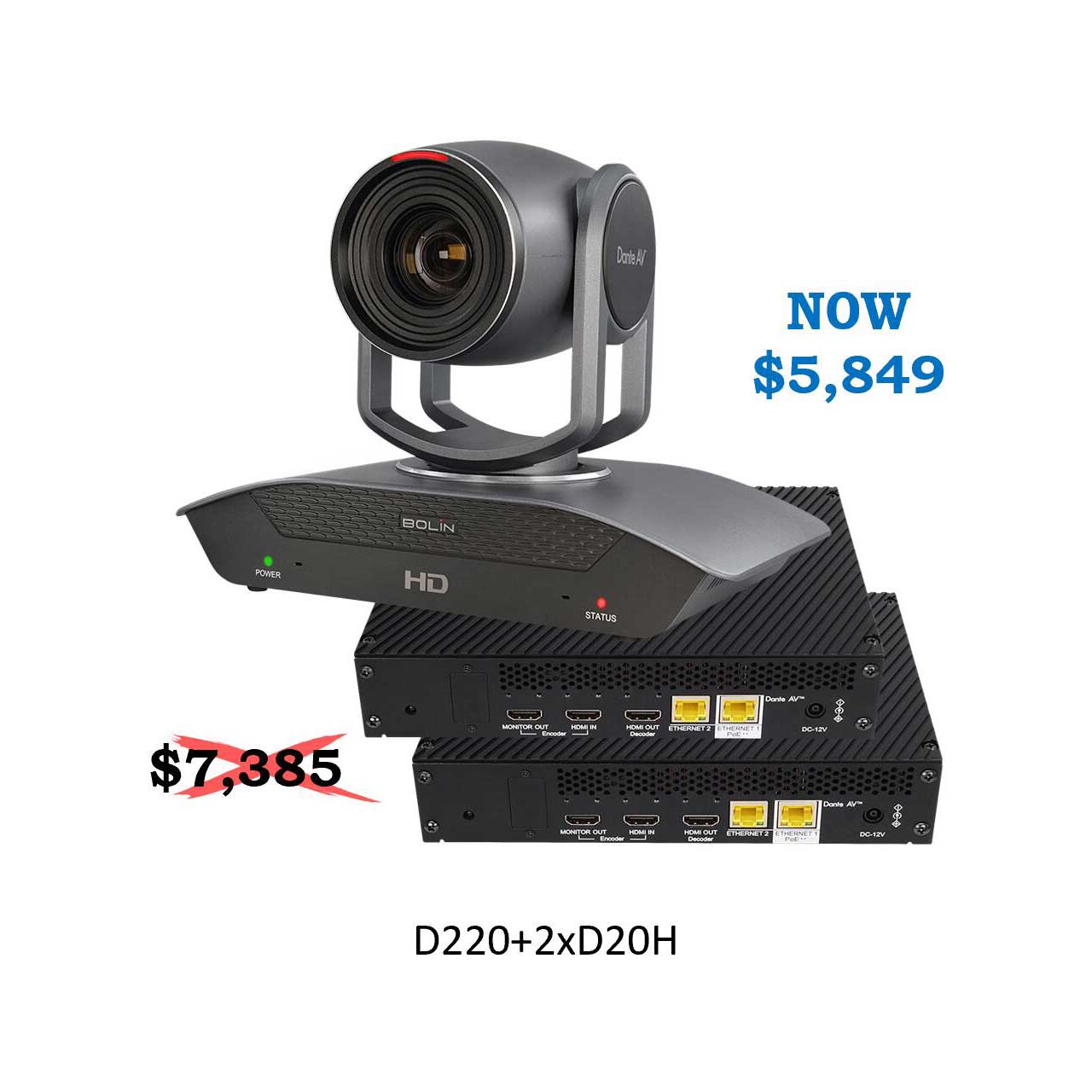

  • Item Includes:

    • 1x D220 PTZ Camera
    • 2x D20H Transceiver
