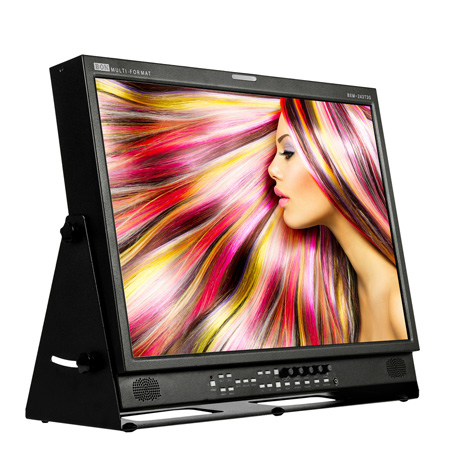

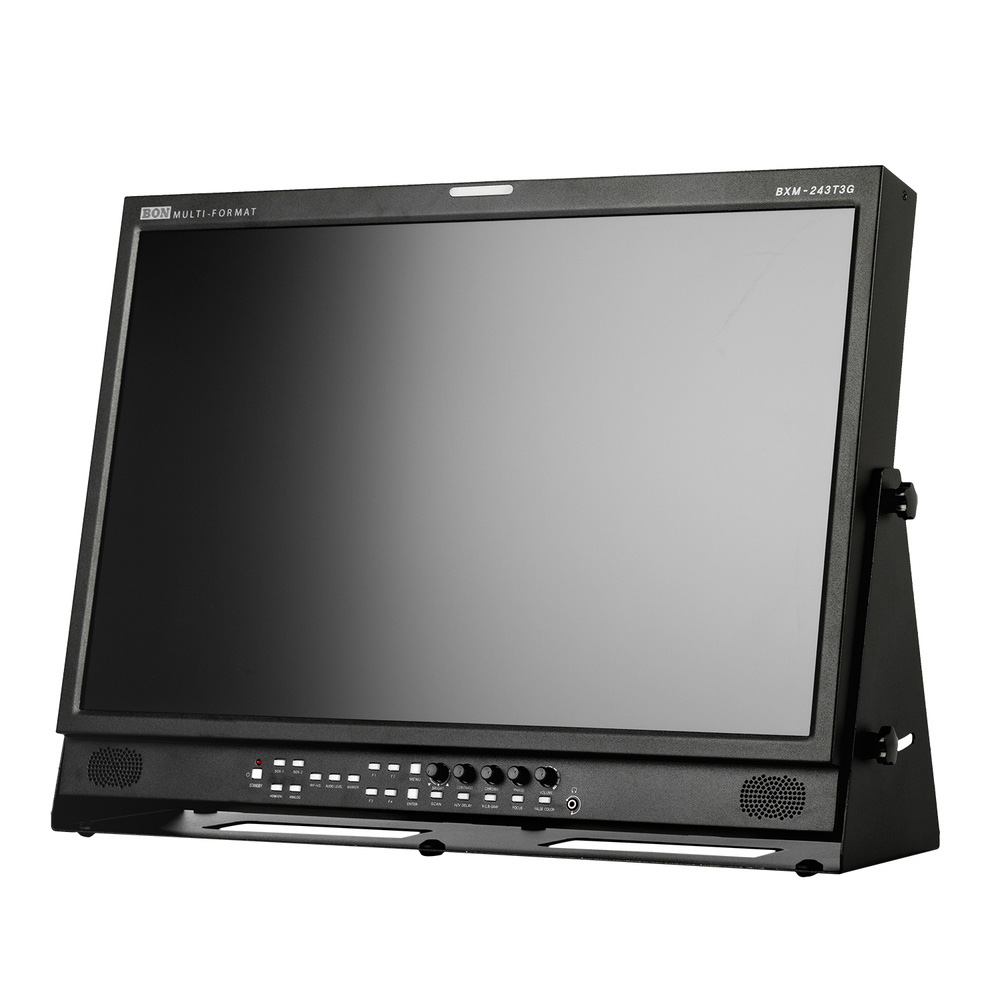

BON BXM-243T3G 24 Inch 3G/HD/SD-SDI & HDMI LCD Studio Broadcast & Production Monitor with Timecode/ PIP/ Waveform & Vec

Manufacturer: Bon Electronics

Item #: BON-BXM-243T3G   •   MFG #: BXM-243T3G



List Price:$5,249.00
Our Price:$4,999.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    BXM-243T3G is a high-end 12-bit video processing montior which can display multiple color space with its 3D LUT. Most of its commands such as input selection and power on/off can be transmitted remotely via network.


    • Features

      • 12-bit Signal Processing for Smooth Gradients
      • Multiple Color Spaces: NTSC, EBU, SMPTE, BT.709
      • Gamma level 1.0 - 3.0
      • Gen-lock
      • Time Code
      • 8~16ch Audio Level Meter
      • UMD/IMD Mode (supports TSL 4.0)
      • Freeze Frame
      • Tally Display
      • Monitor Controllable via Ethernet
      • Firmware Update via Ethernet

    • Specifications

      • LCD
      • Size: 24"
      • Resolution: 1920 x 1200
      • Pixel Pitch: 0.270mm
      • Color: 10-bit
      • Viewing Angle(deg): 178(H), 178(V) (IPS)
      • Luminance of White: 250 cd/m²
      • Contrast: 1000 : 1
      • Gamut: 102%
      • Back Light: LED
      • Display Area (H x V): 518.4 x 324.mm

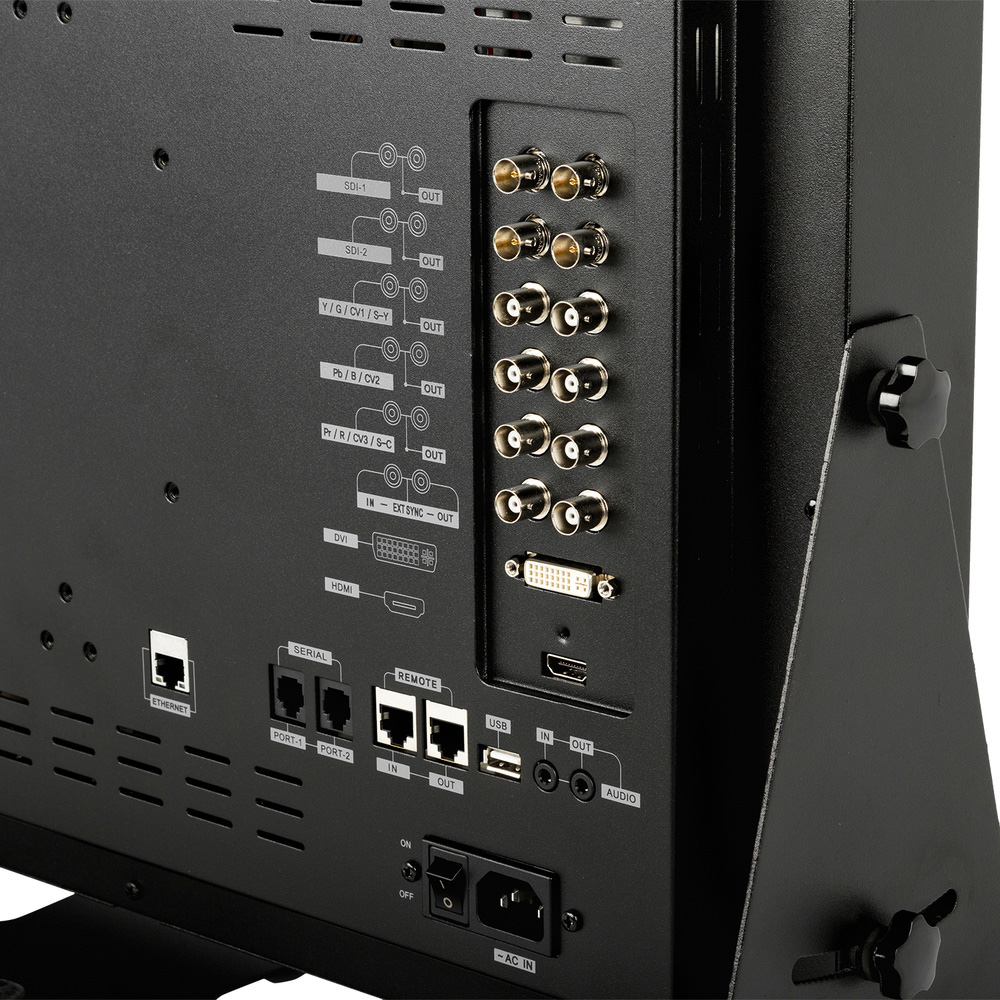

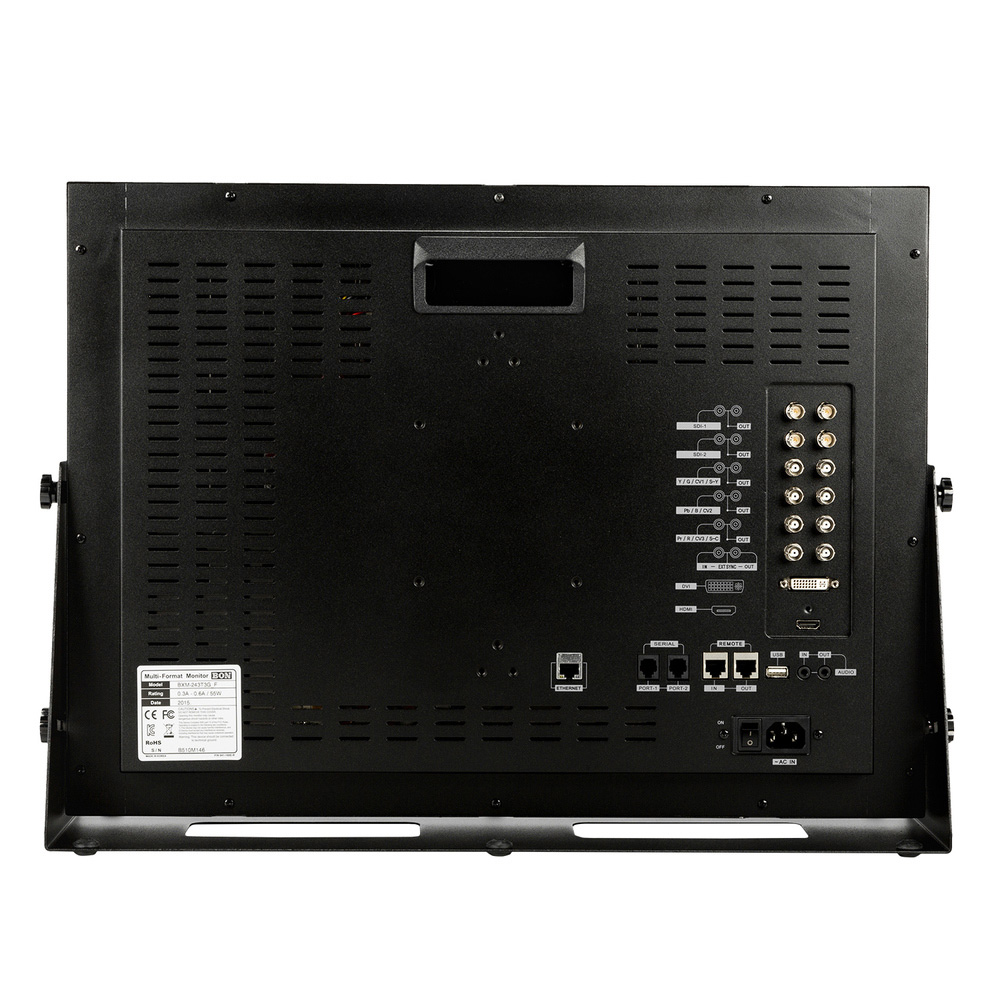

      • Input
      • 2 x BNC: HD/SD-SDI,3G/ 1.485G/270M
      • 3 x BNC: Analog(YPbPr/CVBS/S-Video/RGB)
      • 1 x HDMI: HDMI (with HDCP v.1.1), 19pin Female
      • 1 x DVI: DVI-I, 24pin, Female
      • 1 x BNC: External Sync, Black Burst & Tri-sync, 1.0Vp-p

      • Output
      • 2 x BNC: SDI-1/2 Active Loop Output
      • 3 x BNC: Analog(YPbPr/CVBS/S-Video/RGB)
      • 1 x BNC: For External Synchronization

      • Analog Input Level
      • Composite: 1.0Vp-p(with sync), NTSC/PAL
      • YC(S-Video): Y :1.0Vp-p, C:0.286Vp-p
      • Component(Y/Pb/Pr): Y :1.0Vp-p, Pb :0.7Vp-p, Pr :0.7Vp-p
      • Component(R/G/B): G :1.0Vp-p(with Sync), B :0.7Vp-p, R :0.7Vp-p
      • PC-RGB, Sync Level: R, G, B : 0.7Vp-p, H/V Sync : 4V ± 1Vp-p

      • Input Signal Format
      • SMPTE 425M AB: 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
      • 1080i (60/59.94/50)
      • SMPTE 372M: Dual HD-SDI YCbCr (4:2:2), 1080p
      • Dual HD-SDI YCbCr/RGB (4:4:4), 1080i, 1080p, 720p
      • SMPTE 274M/292M:
      • 1080i (60/59.94/50)
      • 1080p(30/29.97/25/24/24sF/23.98/23.98sF)
      • SMPTE 296M: 720p(60/59.94/50)
      • SMPTE 260M: 1035i(60/59.94)
      • SMPTE 125M/259M: 480i(60/59.94), 576i(50)
      • 2K, SMPTE 428M: 2048 x 1080p(24/24sF/23.98/23.98sF)
      • ITU R-BT.656: 576i(50)
      • HDMI: ~ 1080p(60)
      • DVI: ~ 1080p(60)

      • Audio Input/Output
      • 1 x Phone Jack In: Line In(Stereo)
      • 2 x Phone Jack Out: Line Out(Stereo), H/P Out(Front, Stereo))
      • 2 x Speaker Out: 2W+2W, Stereo

      • General
      • 1 x Ethernet: Control/Update, GPI-7 Port, RJ-45P Jack
      • 2 x GPIO: GPI-7 Port, RJ-45P Jack
      • 2 x Serial: RS-422, RJ-11P Jack
      • 1x USB: For firmware update
      • Power Requirements: AC(100-230V, 50/60Hz)
      • Power Consumption: 108W
      • Operating Temperature: 0°C ~ 40°C(32°F~104°F)
      • Operating Humidity: 20% ~ 80% RH
      • Weight: 9.9 kg / 21.8 lbs
      • Dimensions(WxHxD):
      • Main Body : 552.0 x 408.0 x 90.6(mm) / 21.7 x 16.0 x 3.5 (inch)
      • with stand : 590.4 x 423.5 x 160.0(mm) / 23.2 x 16.8 x 6.3(inch)

      • SPECIFICATIONS:
      • Shipping Dimensions: 21.5 x 27 x 10.7 in.
      • Shipping Dimensions (Metric): 54.6 x 68.5 x 27.1 cm
      • Shipping Weight: 34 lbs
      • Shipping Weight (Metric): 15.4 lbs

    • Item Includes

      • Manual CD
      • Power Cable
      • Screen Cleaning Cloth
      • Tilting Table Stand

    • Warranty

      • 1 Year
