Bose768938-0110 ControlCenter CC-2 Zone Controller - Black

ITEM #: BOSE-768938-0110 MFG #: 768938-0110

Primary Image

This item is no longer available.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BOSE-768938-0110

768938-0110 - Overview

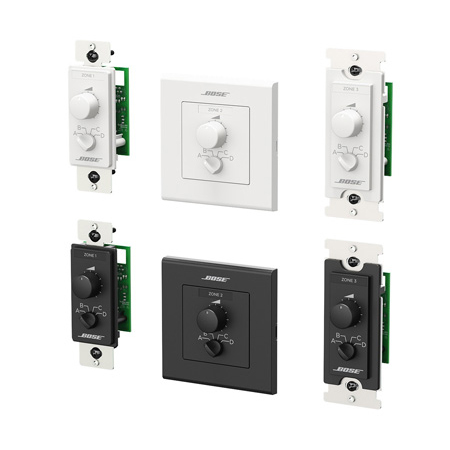

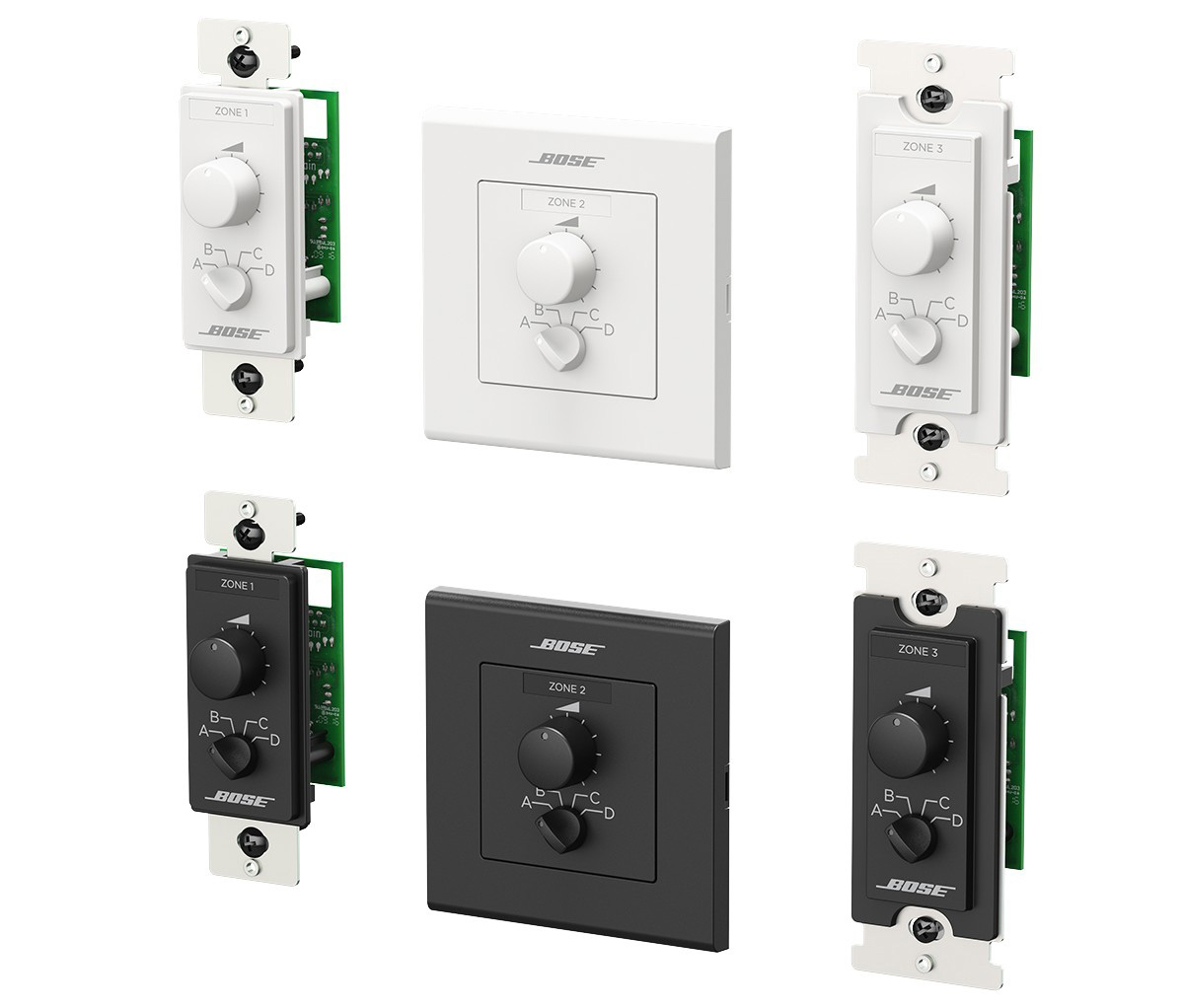

Bose ControlCenter CC-2 zone controllers provide volume and A/B source selection for FreeSpace and ControlSpace products. Three models are available in either black or white and fit 1-gang electrical boxes in North America, Europe, and Japan.

  • Features:

    • ControlCenter Series - The ControlCenter series is a set of remote controls for use with Bose FreeSpace amplifiers, PowerShare amplifiers, and ControlSpace processors. The three models offer volume control (CC-1), volume plus A/B source selection (CC-2), and volume plus A/B/C/D source selection (CC-3).
    • Custom Labels - Each zone controller includes a sheet of pre-printed labels, with two blanks for custom labeling.


  • Specifications:

    • Electrical
    • Connectors: Two (2) RJ-45, allows for daisy-chaining, TIA/EIA 568B wiring standard
    • Settings: Channel selection via 8 DIP switch bank
    • Type: Passive controller, linear potentiometer 0- 10 kω and 2-position switch
    • Cable Requirement: Cat 5
    • Maximum Cable Length: 609 m (2000 ft) for FreeSpace amplifiers; 152 m (500 ft) for ControlSpace processors, using shielded cable; 30 m (100 ft) for ControlSpace processors, using unshielded cable
      Phsyical
    • Colors: Black or White
    • Electrical Box: Size 1-gang


  • Item Includes:

    • (1) controller
    • (1) color-matched pre-printed label sheet
    • (2) mounting screws
    • (1) installation guide


  • GTIN:

    0017817739863
